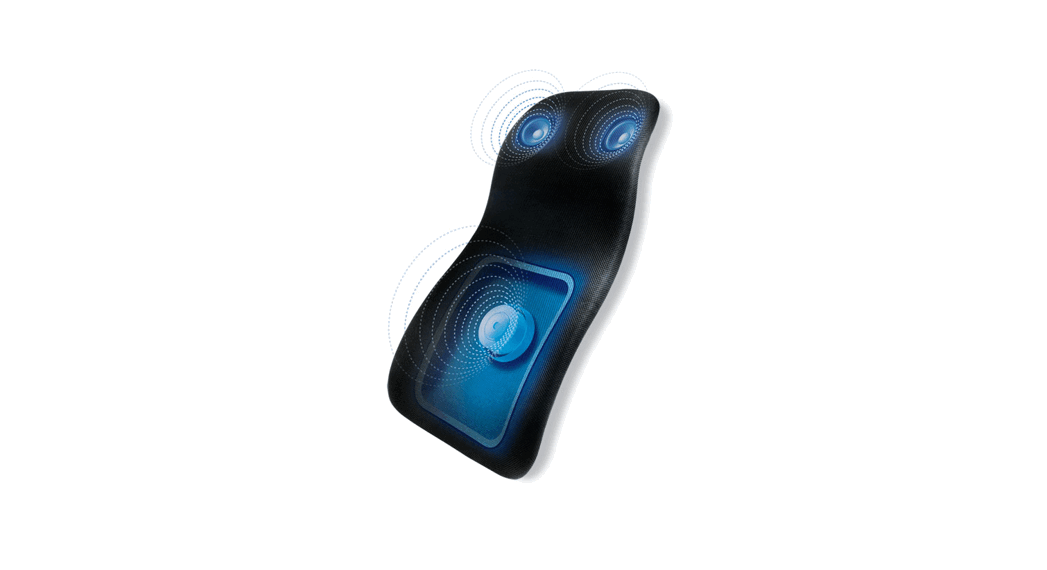

Sound Oasis Vts-2000 Vibroacoustic Therapy System Instruction Manual

Vibroacoustic Therapy has been proven to have positive effects
on circulation, temporary pain relief, increased mobility, and
various other medical ailments. The therapy system delivers precise
therapeutic vibration frequencies to the body, providing massage
therapy to muscles and joints that hand/mechanical massage cannot
reach. It operates within the frequency range of 20 Hz to 100 Hz,
aligning with the body’s energy channels.

Clinical studies have shown several benefits resulting from
vibroacoustic therapy, including improved circulation, temporary
pain relief, increased mobility, and relaxation.

The brain responds to sounds it hears. The Vibroacoustic Therapy
System Plus utilizes nature, music, and therapy sounds with Delta,
Alpha, or Theta brainwaves to induce states of sleep, relaxation,
or renewal.

Through brainwave entrainment, the therapy system coaxes the
brain to match the frequencies of the played sounds, resulting in
states of sleep, relaxation, or renewal.

Vibroacoustic Therapy System Plus
Proven to help you sleep, relax, renew
VTS-2000 Instruction Manual

Table of Contents
Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . 2 The Unique Benefits of Vibroacoustic Therapy . . . . . . . . . . . . . . . . . . . . . 4
What is Vibroacoustic Therapy? . . . . . . . . . . . . . . . . . .4 Why is Vibroacoustic Therapy so effective? . . . . . . .4 Medical Benefits of Vibroacoustics . . . . . . . . . . . . . . .6 Why is Sound Therapy so Effective? . . . . . . . . . . . . . .7 The Scientific Breakthrough of Sound Therapy with Brainwave Entrainment . . . . . . . . . 8 Key Buttons & Features . . . . . . . . . . . . . . . . . . . . . . 10 Soundtrack Descriptions . . . . . . . . . . . . . . . . . . . . 12 Demo Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Sound Track Selection . . . . . . . . . . . . . . . . . . . . . . . . . 16 Vibration Intensity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Sound Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Using Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Using an External Sound Source . . . . . . . . . . . . . 21 Using Headphones . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . 23 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 FCC Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Online Registration . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Thank you, for choosing Sound Oasis
Thank you for choosing Sound Oasis®. Sound Oasis® is the world leader in sound therapy systems and electronic sleep masks. We are dedicated to making your life healthier and more enjoyable with creative sound solutions that combine superior quality with the very latest technology.
The revolutionary Vibroacoustic Therapy System Plus uses clinically proven, doctor developed sounds and vibration to help you sleep, relax and renew your body ­ naturally! Vibroacoustic therapy systems, costing several thousands of dollars, have been successfully used in hospitals and clinics around the world. Now you can enjoy this same therapeutic technology at a fraction of the price.
This VTS-2000 model advances technology further by including Bluetooth technology. This allows you to enjoy new music/sounds by Bluetooth streaming from your own music library or from our free Sound Oasis vibroacoustic app.
Please take a few moments to review the following important information before using this item.
Thank You!
1

Important safeguards
When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING. DANGER ­ TO REDUCE THE RISK OF ELECTROCUTION:
· Always unplug the appliance from the electrical outlet immediately after using and before cleaning .
· DO NOT reach for an appliance that has fallen into water . Unplug it immediately .
· DO NOT use while bathing or showering . · DO NOT place or store appliance where it can fall or be
pulled into a tub or sink . Do not place in or drop into water or other liquid . CAUTION: Do not use this appliance if you are pregnant or use a pacemaker. This appliance uses a large magnet to generate low frequency vibrations.
If you have diabetes or any other medical illness, consult your doctor before using this appliance.
WARNING ­ TO REDUCE THE RISK OF BURNS, ELECTROCUTION, FIRE OR INJURY TO PERSONS:
· An appliance should never be left unattended when plugged in . Unplug from outlet when not in use and before putting on or taking off parts or attachments .
· Close supervision is necessary when this appliance is used by, on or near children, invalids or disabled persons .
· DO NOT use outdoors .
2

· Use this appliance only for its intended use as described in this manual . Do not use attachments not recommended by Sound Oasis; specifically any attachments not provided with the unit .
· DO NOT carry this appliance by the power or remote control cords or use the cords as a handle .
· Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water . Return it to Sound Oasis’ Service Center for examination and repair .
· Keep cords away from heated surfaces . · Never drop or insert any object into any opening . · DO NOT operate where aerosol (spray) products are being
used or where oxygen is being administered . · DO NOT use on or near eyes or other highly sensitive areas . · DO NOT operate under a blanket or pillow . Excessive heating
can occur and cause fire, electrocution or injury to persons . · To disconnect, turn all controls to the “OFF” position, then
remove plug from outlet . · Periodically straighten cord if it becomes twisted .
SAVE THESE INSTRUCTIONS
Caution: Please read all instructions carefully before operating . Consult your doctor prior to using this product, if · You are pregnant – You have a pacemaker ­ You have any
concerns regarding your health · Never leave the appliance unattended, especially if children
are present . THIS IS NOT A TOY. · Never use this product directly on swollen or inflamed areas
or skin eruptions .
3

The Unique Benefits of Vibroacoustic Therapy
What is Vibroacoustic Therapy? Vibroacoustic therapy is the use of low frequency vibrations to stimulate body cells into therapeutic states of relaxation and healing . With this Sound Oasis® Vibroacoustic Therapy System Plus, we include sound therapy that provides soothing music and clinically proven brainwave entrainment for additional stress reduction, relaxation and healing .
Why is Vibroacoustic Therapy so effective? The cells in your body respond to vibrations that they feel . Clinical studies throughout the world have proven the positive effects of vibration on circulation, temporary pain relief, increased mobility and many other medical ailments (please refer to Table A on page 6) .

Graph A

Vibroacoustic 20 Hz

Animals & Chemistry 20 KHz

Infrasound
4

Acoustic

Your Sound Oasis Vibroacoustic Therapy System Plus delivers precise therapeutic vibration frequencies to your body that massagers alone cannot provide .
Sound penetrates deeper. Vibroacoustic Therapy provides massage therapy to muscles and joints that hand/mechanical massage can not reach . For comparison purposes, ultrasound is a well known and accepted sound technology for viewing tissue inside a body and it operates at 20 KHz + (please see Graph A below) .
Vibroacoustic Therapy frequencies correspond to key brainwave activities. Vibroacoustic Therapy functions at 20 Hz to 100 Hz, the same frequency range that the body’s energy channels operate at . We can bring these energy channels into healthy alignment with Vibroacoustic Therapy .
Vibroacoustic Therapy provides sensual stimulation. Like hand/mechanical massage, Vibroacoustic Therapy aids circulation, relaxes muscles and feels good .

Medical & Destructive 2 MHz

Diagnostic & NDE 200 MHz

Ultrasound
5

What Medical Benefits have been Proven to Result from Vibroacoustic Therapy?
Clinical studies have proven the following benefits from vibroacoustic therapy: Table A
6

Why is Sound Therapy so Effective?
Your brain responds to sounds that it hears . Your Sound Oasis Vibroacoustic Therapy System Plus plays back nature, music and therapy sounds with Delta, Alpha or Theta brainwaves to coax your brain to match these frequencies, thus entering states of sleep, relaxation or renewal .
7

The Scientific Breakthrough of Sound Therapy with Brainwave Entrainment
All of us experience differenct states of consciousness throughout our daily lives . Some states are frequent ­ like ordinary waking consciousness, sleep and dreaming ­ while others are less frequent states such as when we are particularly aware or extra creative . All of these states exhibit a unique pattern of brainwaves that have been mapped and measured over the years by many experts, including Dr . Lee Bartel .
By understanding the variety of brainwaves that occur during these different states, Dr . Bartel has been able to develop sounds, music and techniques that cause your brain to produce the state that you want to experience . Totally safe and clinically proven, this work has helped millions of people sleep better, relax easier and think more effectively .
One technique commonly used by Dr . Bartel is “entrainment” . This naturally derived technique is the tendency of our brainwaves to adjust to our sound environment so they vibrate in harmony (for example, two pendulum clocks mounted side by side on the same wall will gradually start to swing at the same rate as they become “entrained”) . The principle is universal and found in chemistry, pharmacology, biology, medicine, psychology, sociology, astronomy, architecture and more .
Your Sound Oasis Vibroacoustic Therapy System Plus incorporates these effective techniques.
8

Delta Waves (0.5 – 4.0 Hz) Delta waves are associated with the deepest levels of physical relaxation . Delta is the rhythm of dreamless sleep and its presence usually corresponds with physical rejuevenation and healing .
Theta Waves (4.0 – 7.0 Hz) Theta waves reflect a state of mind that is attuned to intense creativity, visualization, imagination, and subconscious problem solving in a non-sleep state and emotional healing in the sleep state . Theta waves are produced during deep meditation, dreaming and daydreaming .
Alpha Waves (7.0 – 12.0 Hz) Alpha waves indicate an alert state with a quiet mind (e .g . a person who has completed a task and sits down to rest is often in an Alpha state) . In this state attention may be focused outward for reflection or inward to achieve an alert meditative state (e .g . pondering) . Increased Alpha is often present in the brainwaves of people who practice meditation, yoga and tai chi .
Beta Waves (12.0 – 27.0 Hz) Beta waves are associated with normal waking states that we experience from day to day at work and play . In beta states we are highly alert and focused ­ busy computing, arranging, and organizing ­ making sense of the external world . Beta is increased in moments of stress or anxiety, enabling us to manage situations and solve immediate problems .
9

Key Buttons & Features

2

2

1

3
456
1. Vibroacoustic Back Support 2. Stereo Audio Speakers 3. Low Frequency Generator 4. Power Adapter Jack 5. Remote Control Jack 6. Headphone Jack 10

1 2 3
6

4

5

8 7

9

1. Display

2. Therapy Track Selection Buttons

3. Vibration Intensity Selection Buttons

4. Power On/Off Button

(Press twice to turn on Bluetooth)

5. Sound Volume Buttons

6. Timer Selection Button

10

7. Remote Control Pocket

8. AC Adapter

9. External Sound Source Cable

10. External Input Jack

11

Vibroacoustic Soundtrack Descriptions
Your VTS-2000 contains 20 built-in sound tracks. Please see the following summary of each track.
Energize Energize Track 1 ­ [total track length 5:18] Guitar, piano, digital keyboards, bass Low pitch 41 Hz ­ 73 Hz with 41 Hz dominant Mono and binaural high alpha and beta entrainment Energize Track 2 ­ [total track length: 4:40] Guitar, piano, digital keyboards, bass Low pitch 36 Hz ­ 61 Hz with 41 Hz dominant Mono and binaural high alpha and beta entrainment Energize Track 3 ­ [total track length: 5:55] Guitar, piano, digital keyboards, bass Low pitch 36 Hz – 65 Hz Mono and binaural high alpha and beta entrainment
Relax Relax Track 1 ­ [total track length 5:15] Ocean surf nature sound . Instrumentation: keyboards, vocal, guitar . Low pitches centered around 40 Hz, 52 Hz and 68 Hz (34 Hz) Mono and binaural alpha ­ theta entrainment (5 Hz ­ 8 Hz) Relax Track 2 ­ [total track length 4:40] Ocean surf nature sound . Digital sound Low pitch ­ 36 Hz Binaural Alpha theta entrainment Relax Track 3 ­ [total track length 5:35] Ocean surf nature sound . Digital Sound Low pitch ­ 32 Hz Binaural Alpha theta entrainment
12

Sleep Sleep Track 1 ­ [total track length 4:58] Digital Sound Low pitch ­ 32 Hz Mono and binaural Delta entrainment Sleep Track 2 ­ [total track length 5:00] Digital Sound Low pitch ­ multiple between 27 .5 ­ 44 Hz Mono and binaural Delta entrainment Sleep Track 3 [total track length 6:05] Digital keyboards Low pitch ­ multiple between 34 ­ 52 Hz Mono and binaural Delta entrainment
Stress Relief Stress Relief Track 1 ­ [total track length 3:30] Piano, flute, digital sound Low Frequencies ­ 36 Hz ­ 41 Hz Mono and binaural theta entrainment 4 Hz ­ 6 Hz Stress Relief Track 2 ­ [total track length 3:00] Piano, flute, digital sound Low Frequencies ­ 32 Hz ­ 65 Hz Mono and binaural theta entrainment 4 Hz ­ 6 Hz Stress Relief Track 3 ­ [total track length 3:40] Piano, flute, digital sound Low Frequencies ­ 27 .5 Hz ­ 55 Hz Mono entrainment at delta, theta and alpha . Binaural theta entrainment 4 Hz ­ 6 Hz
13

Demo Track
For a personal introduction to vibroacoustic therapy by Dr . Lee Bartel, press and hold down the Timer Selection Button for about 3 seconds while the unit is turned on . When the Demo track is playing, the following will show on the display .
14

Set-Up
1. Unpack the product and make sure that any and all tape and protective wrap is removed from the various parts .
2. Connect the Remote Control to the Remote Control Jack located on the side of the Vibroacoustic Back Support . Remote Control Jack
Headphone Jack AC Adapter Jack 3. Connect the supplied AC Adapter to the AC Adapter Jack located on the side of the Vibroacoustic Back Support . Plug the AC Adapter into an electrical wall outlet . Note: Your AC Adapter is dual voltage and may be used worldwide with the included adapter wall plugs . 4. Place the Vibroacoustic Back Support on a chair, sofa or on top of a bed . Note: If used on a bed, place pillows under the upper portion of the Vibroacoustic Back Support to position it more comfortably .
15

Operation
Sound Track Selection
1. Press the Power Button to turn the unit on . The unit will automatically start playing the ENERGIZE THERAPY SESSION . The Remote Control Display will show:
Adjust the vibration intensity and sound volume to your desired levels (Please see page 18) . 2. The unit will play all three (3) ENERGIZE tracks and then continue looping all three (3) tracks unless you press the ENERGIZE BUTTON . Pressing the ENERGIZE BUTTON will play and loop ENERGIZE THERAPY TRACK 1 . The Remote Control Display will show:
16

3. Pressing the ENERGIZE BUTTON a second time will play and loop ENERGIZE THERAPY TRACK 2 . The Remote Control Display will show:
4. Pressing the ENERGIZE BUTTON a third time will play and loop ENERGIZE THERAPY TRACK 3 . The Remote Control Display will show:
5. Pressing the ENERGIZE BUTTON a fourth time will place you at the beginning (where all three (3) tracks will play and then loop continuously) . The Remote Control Display will show:
To change sound themes, simply press your desired sound theme ENERGIZE, RELAX, SLEEP and STRESS RELIEF . The operation is the same for each sound theme .
17

Vibration Intensity ­ Vibration therapy is projected to your body from the proprietary Low Frequency Generator . To change the intensity vibration therapy, press the (+) Button to increase vibration and press the (-) Button to decrease vibration .
Volume ­ Sound therapy is projected to your ears from the two Stereo Audio Speakers . To change the sound volume, press the (+) Button to increase volume and press the (-) Button to decrease volume .
Timer ­ A built-in timer allows you to automatically turn your vibroacoustic session off . The following timer selections are available and selected by pressing the Timer Button until the display shows your desired timer selection .

Display Shows

First Press

60 minutes

Second Press 45 minutes

Third Press 30 minutes

Fourth Press 15 minutes

Fifth Press

Timer Off

The display will count down the time.

18

Using Bluetooth
Your VTS-2000 includes Bluetooth technology so you can enjoy new music and sounds by connecting your VTS-2000 to your selected Bluetooth enabled device (e .g . smartphone, tablet, computer, etc .) . To stream music/sounds from your Bluetooth enabled device, please follow these steps: 1. Quickly press the Power On/Off Button twice . The word
Bluetooth will be visible on the Remote Control Display when Bluetooth is activated .
2. On your Bluetooth enabled device, turn Bluetooth on, locate the Bluetooth device list and select the device named VTS-2000 . Pair your VTS-2000 with your Bluetooth enabled device . You will hear a chime when pairing is successful .
19

3. Start playing music/sounds from your Bluetooth enabled device . You can adjust the sound volume and vibration intensity on your VTS-2000 Remote Control . You can also adjust the sound volume on your Bluetooth enabled device .
To enjoy new Sound Oasis VTS-2000 music, please download the Sound Oasis Vibroacoustic Therapy APP from iTunes or Google Play .
Please Note: If you insert the External Sound Source Cable into the External Input Jack during the Bluetooth mode, Bluetooth will be disabled and sounds from the device connected to the External Input Jack will begin to play.
20

Using an External Sound Source
Your Vibroacoustic Therapy System Plus can play sounds from external sources like an iPod®, iPhone®, iPad®, MP3 player, CD player, etc . To use this feature, please follow these steps: a. Connect your external product to the External Input Jack on
your Vibroacoustic Therapy System Plus using the included 1/8″ (3 .5 mm) External Sound Source Cable . One end of the External Sound Source Cable must exit your external product’s headphone jack (e .g . the earphone jack on your iPod) and the other end must connect with the External Input Jack on your Vibroacoustic Therapy System Plus .
External Input Jack b. Whatever sound you select on your external sound
source will now be played through your Vibroacoustic Therapy System Plus .
21

Using Headphones
You can use headphones with your Vibroacoustic Therapy System Plus for improved sound quality or privacy . Simply connect your headphones to the Headphone Jack located on the side of the Vibroacoustic Back Support . Headphone sound volume is controlled by the Sound Volume Buttons .
Headphone Jack
Note: Brainwave entrainment is even more effective with headphones .
22

Care & Maintenance
Always turn the unit off and unplug it before cleaning. Clean the outer surface of your unit by wiping it with a damp cloth soaked with mild soap . Do not use stronger chemical cleaners as they may damage the plastic and cushion material . CAUTION: DO NOT CLEAN ANY PART OF THE UNIT WHILE PLUGGED IN. Caution: Never operate unit near or in water.
iPod®, iPhone®, iPad® are trademarks of Apple, Inc . ARTWORK#: 11/14/22
23

1 Year Limited Warranty
Sound Oasis Company warrants that this product is free from defects in materials or workmanship for a period of one (1) year from the date of original purchase .
If the product fails to operate in accordance with our specifications, simply return the product to the retail location where you purchased it or call our toll free number below within one (1) year of the date of purchase . Proof of date of purchase is required . Sound Oasis Company will, at its option, repair or replace the product at no charge to you .
This warranty does not cover damage resulting from accident, misuse or abuse, lack of reasonable care, the affixing of any attachment not provided with the product, or loss of parts, or subjecting the product to anything but the specified batteries .
This warranty is in lieu of any other warranty, express or implied. All implied warranties, including any implied warranty of merchantability or fitness for any particular purpose, are limited in duration to one (1) year from the date of original purchase. In no event will Sound Oasis Company be responsible for incidental, consequential, or special damages resulting from the use of this product.
Some states do not allow limitation on how long an implied warranty lasts and/or the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you . This warranty gives you specific legal rights which vary from state to state .
To speak with a Sound Oasis representative, please call: 1-866-625-3218 or email us at info@soundoasis .com
Thank you for choosing Sound Oasis®.
FCC Notice: This device complies with Part 15 of the FCC Rules . Operation is subject to the following two conditions:
1 . This device may not cause harmful interference; and
2 . This device must accept any interference received, including interference that may cause undesired operation .
24

Online Registration
Thank you for purchasing the Sound Oasis® Vibroacoustic Therapy System Plus (VTS-2000) . Please register your purchase online at www.soundoasis.com/registration and receive a 20% discount toward any other Sound Oasis® product from our website . Use coupon code: SLEEP We will never sell your personal information or allow others to see it . We simply want to know how we are doing and if we can do anything better so we can bring more innovative products to you . Thank you!
25

Notes
26

Notes
27
