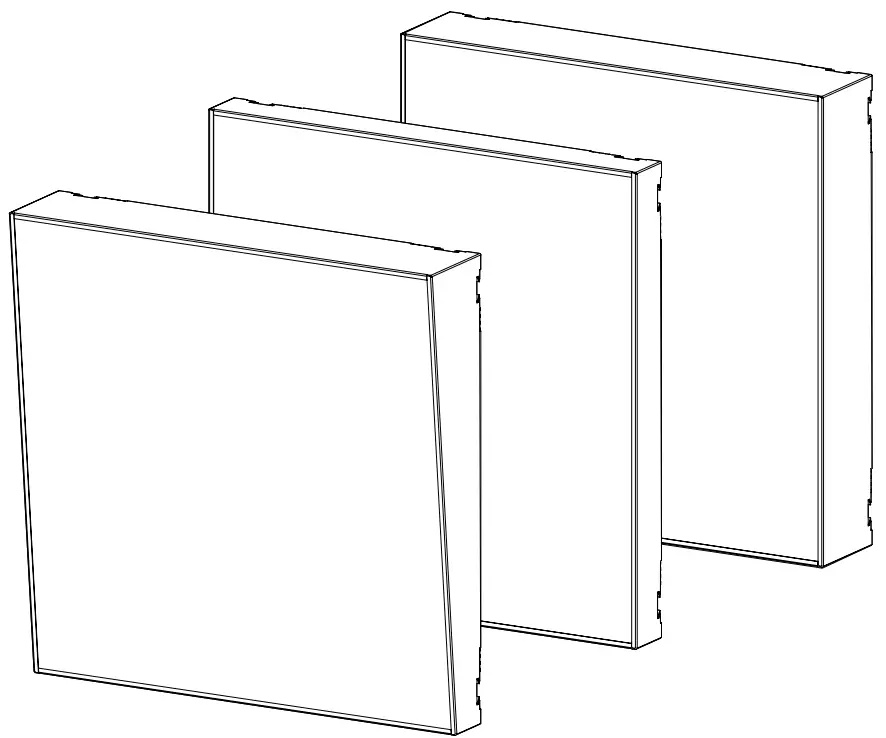

Cinema Piano VMT
Installation Manual

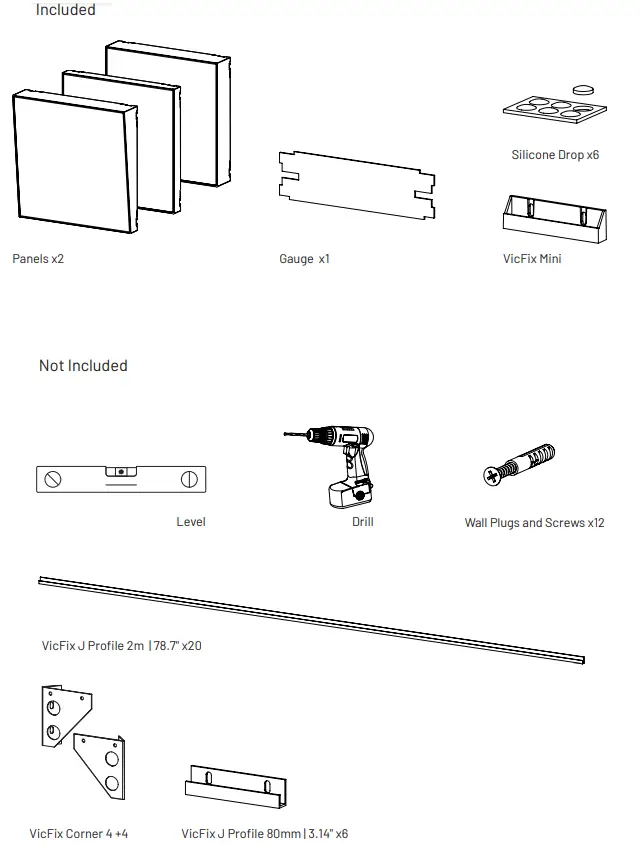

MATERIAL NEEDED
MATERIAL NEEDED
This product can also be installed with VicFix J Profile 2m (sold separately).

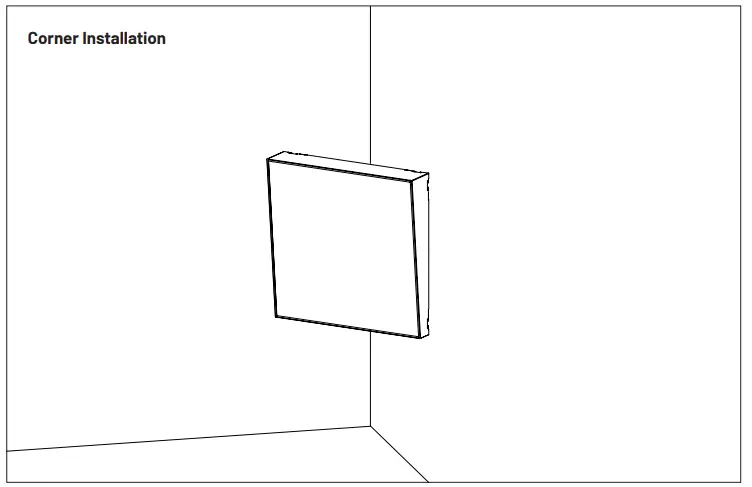

For corner installation, use the VicFix Corner and VicFix J profile 80mm (sold separately).

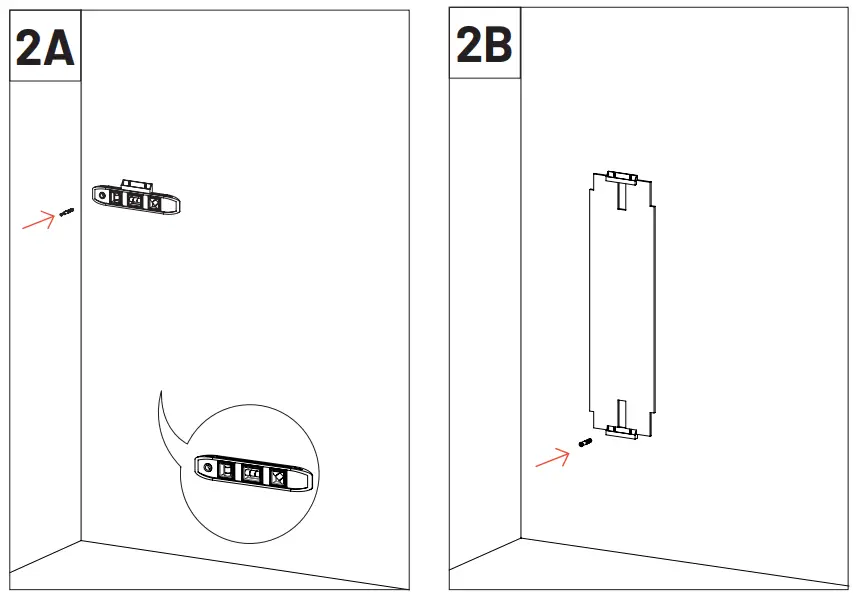

Ways of using the gauge

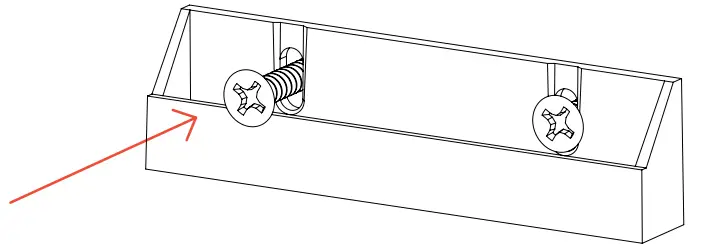

When installing the VicFix Mini, fix the screws in the centre of the slotted holes so that you can vertically readjust the level of the supports and allow alignment between panels. In multi-panel installations, we recomend the use of VicFix J Profile 2m (sold separately).

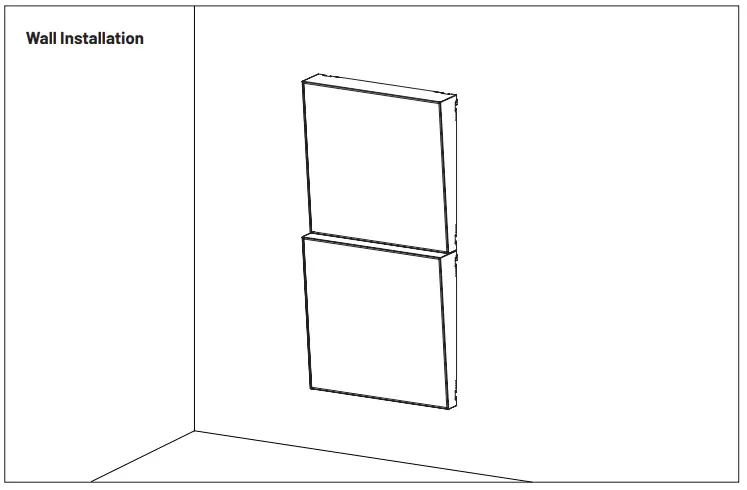

Wall installation – One panel

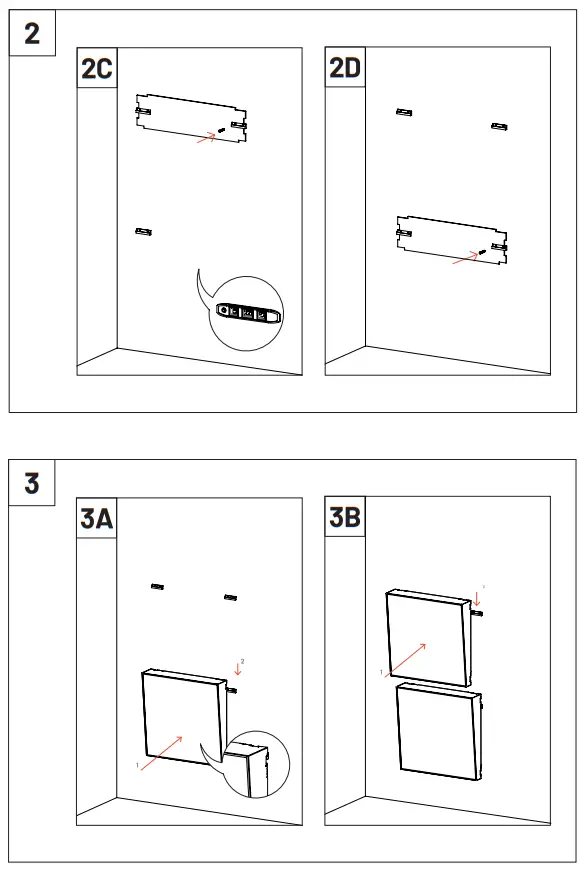

After defining the place where you want to install the panels, start marking the position of the VicFix Mini.

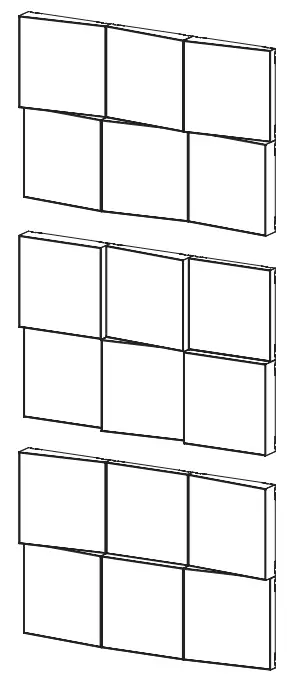

Possible setup examples
