PROFLO PFXC7512CP Pull-down Kitchen Faucet

Caution-Tips:
Always turn off water supply before removing existing faucet or replacing any part of the faucet. Open the faucet handle to relieve water pressure and ensure that water is completely shut off.

Care Instructions

To preserve the finish of your faucet, apply non-abrasive wax. Any cleaners should be rinsed off immediately. Do not use abrasive cleaners on the faucet.

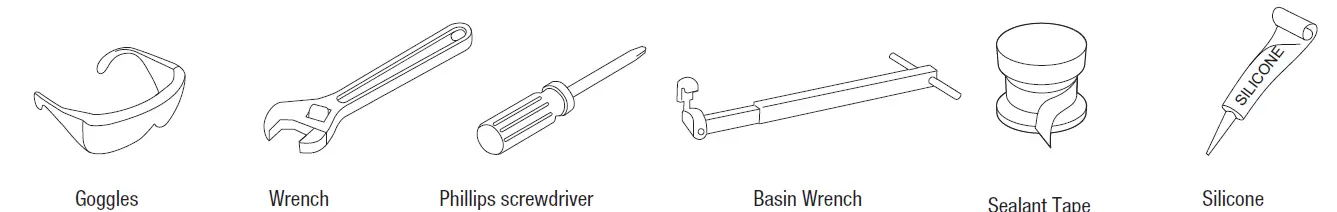

You may need

INSTRUCTION

1. Install base ring with washer (1) to the bottom of the spout. If installing the faucet with escutcheon, begin with 1b.
   • Install base ring with washer (1) to the bottom of the spout. Place escutcheon assembly (2) onto the faucet.

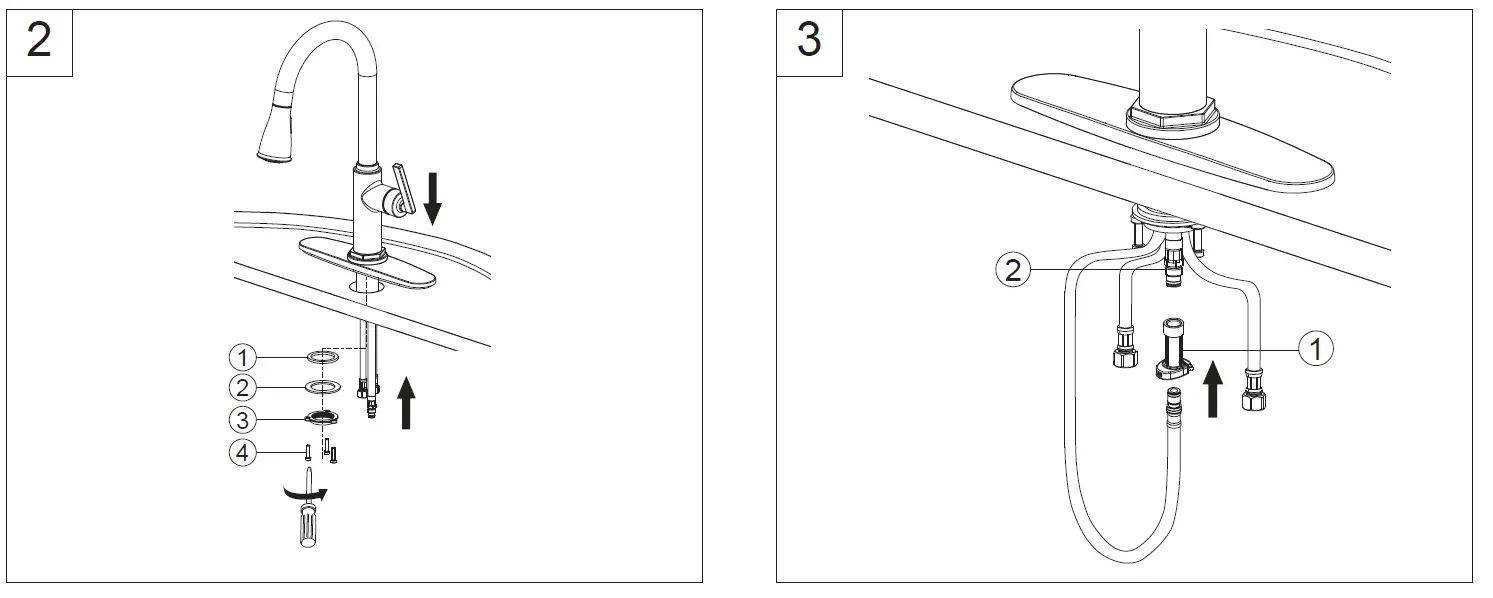

2. Place the new faucet through the hole in the top of the sink. From under sink slide seal washer (1), metal washer (2), and mounting nut (3) onto threaded. Hand tightens nut onto the shank. Lock nuts into position by tightening screws (4).
3. Install the quick connector (1) to the outlet hose (2).

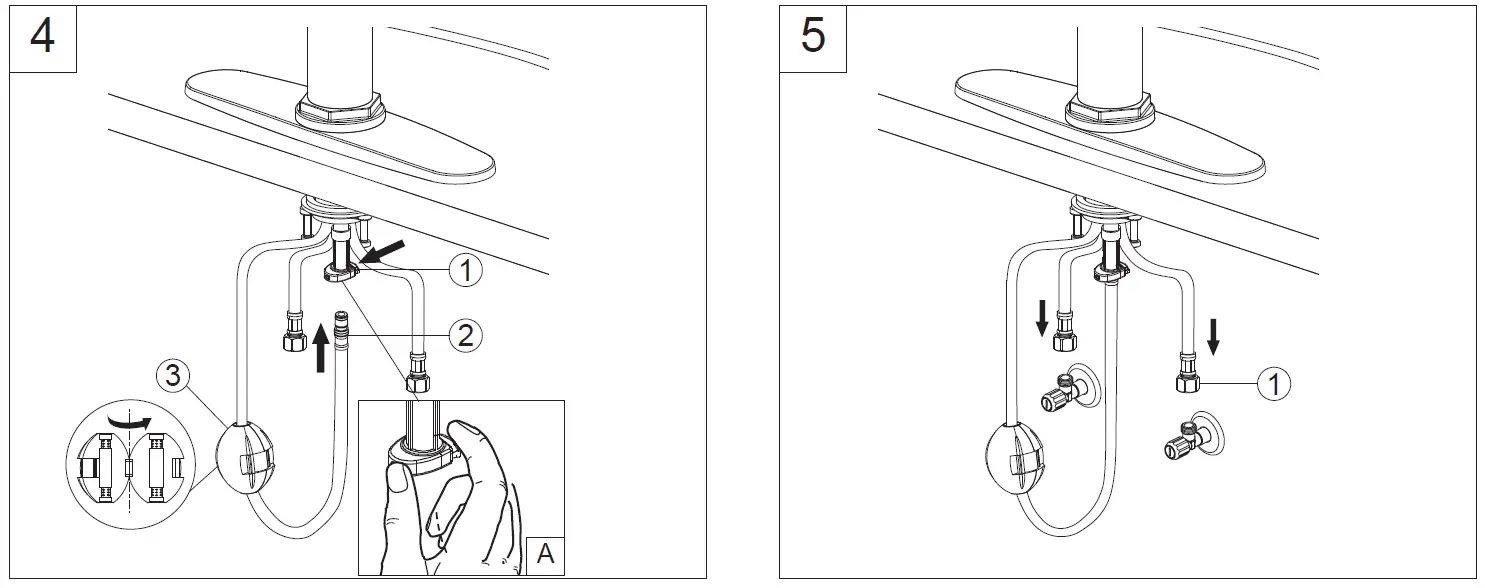

4. install the pull-down hose (1) to the quick connector (2). Press the retainer clip of quick connector (2) with your hand for quick connecting. See detail A. Set the weight (3) on the appropriate location of the pull-down hose (1).
5. Connect to water supplies (hot and cold angle valves).

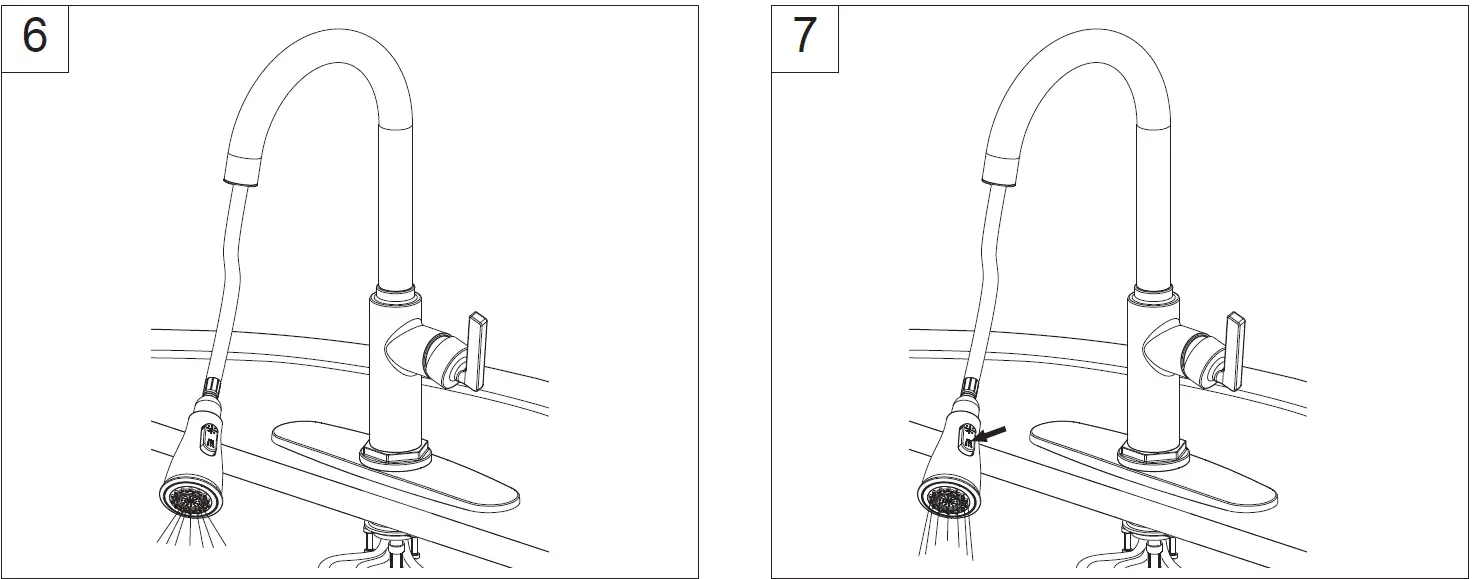

6. Turn on the handle to check the operation. This position is for stream function.
7. Press the spray head button into the other position as shown by the arrow to check for the operation. This position is for the spray function

Maintenance

If the faucet leaks from the spout outlet -Shut off the water supplies-replace cartridge (1). Note: Install cartridge (1) correctly for proper handle rotation.

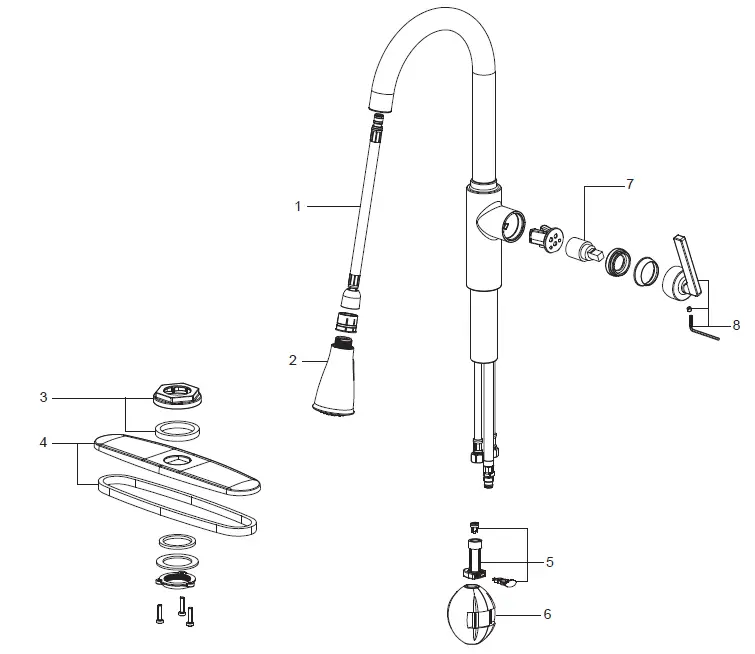

PARTS
