REPAIR SHEET
BRAND HART
MODEL NO. HPHD01
DESCRIPTION
20 Volt Hammer Drill

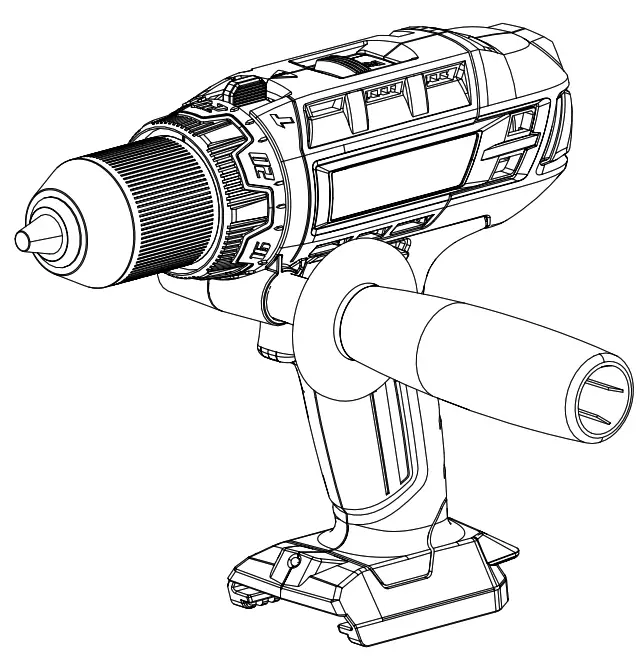

HPHD01 20 Volt Hammer Drill
The model number and manufacturing location will be found on a label attached to the product. Always mention this information in all communications regarding this product and when ordering parts.
HPHD01

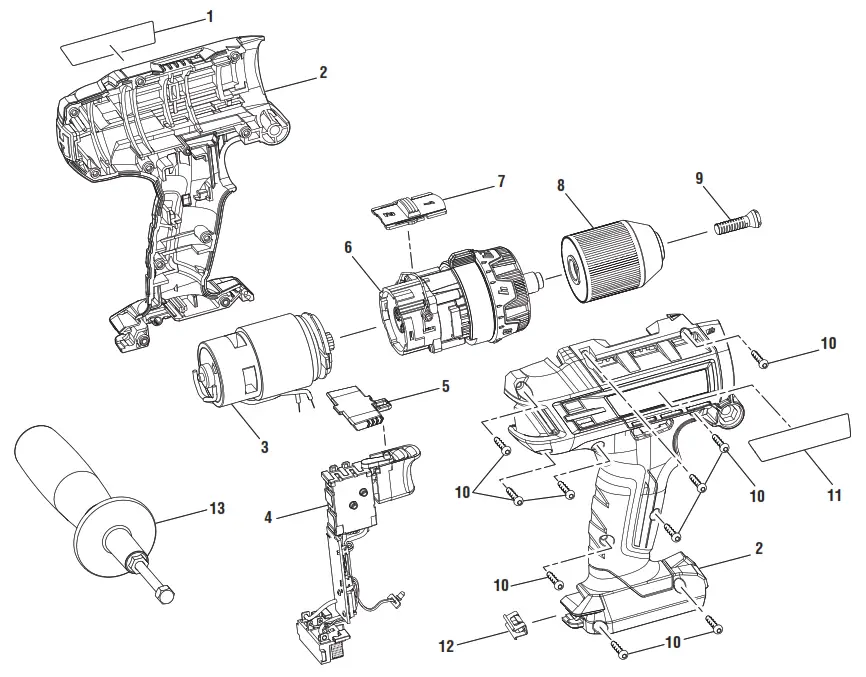

PARTS LIST

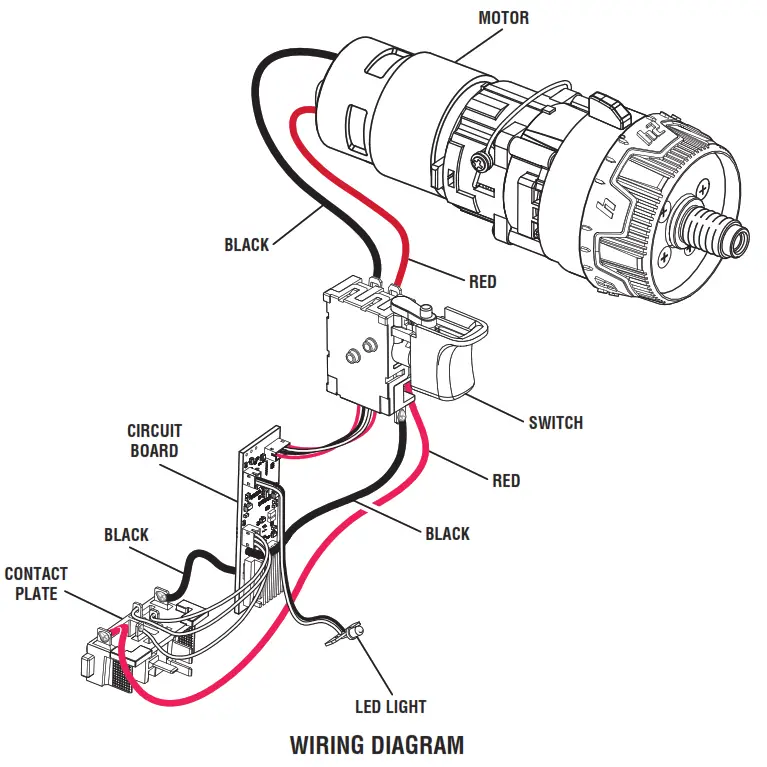

| KEY NO. | PART NO. | DESCRIPTION | QTY. |
| 1 | 941114254 | Logo Label | 1 |
| 2 | 204026003 | Housing Assembly (Inc. Key Nos. 1 and 11) | 1 |
| 3-CN | 206922001 | Motor Assembly | 1 |
| 3-VN | 206922002 | Motor Assembly | 1 |
| 4 | 204026004 | Circuit Board and Switch Assembly | 1 |
| 5 | 538372002 | Forward/Reverse Button | 1 |
| 6 | 206921001 | Gear Box Assembly | 1 |
| 7 | 538352001 | Two-Speed Gear Selector | 1 |
| 8 | 204026002 | Chuck | 1 |
| 9 | 660134006 | Screw (M6 x 18 mm, Pan Hd. Left Hand Thread) | 1 |
| KEY NO. | PART NO. | DESCRIPTION | QTY. |
| 10 | 660031018 | Screw (M3.5 x 14 mm, Pan Hd.) | 10 |
| 11-CN | 941122299 | Data Label | 1 |
| 11-VN | 941123121 | Data Label | 1 |
| 12 | 630206007 | Bit Clip | 1 |
| 13 | 204026005 | Auxiliary Handle Assembly | 1 |
| Not Shown: | |||
| 995000854 | Operator’s Manual (CN — 961153073) (VN — 961153213) |
HART CONSUMER PRODUCTS, INC.
P.O. Box 1348, Anderson, SC 29622 1-800-776-5191 www.HARTtools.com
