HPDD50 20 Volt 3 8 in Drill Driver
User Manual

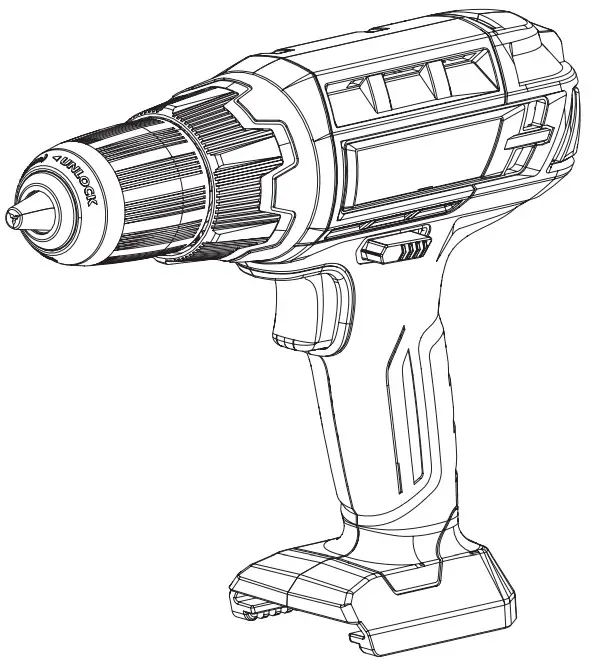

DESCRIPTION
HPDD50
If a key number has multiple part numbers, please order the part that corresponds with the country of origin shown on the product’s data label.
CN = China VN = Vietnam

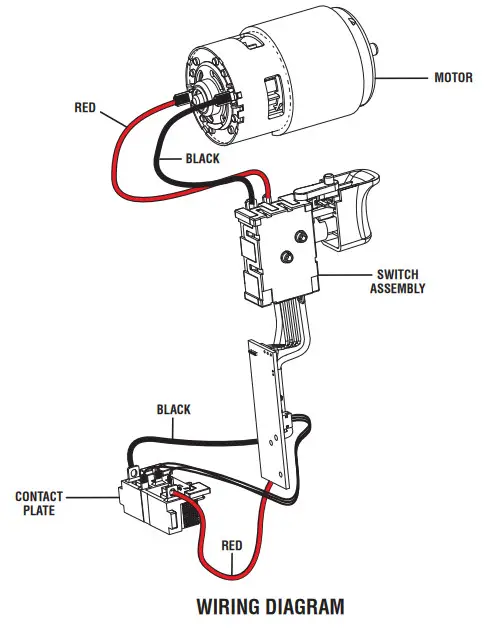

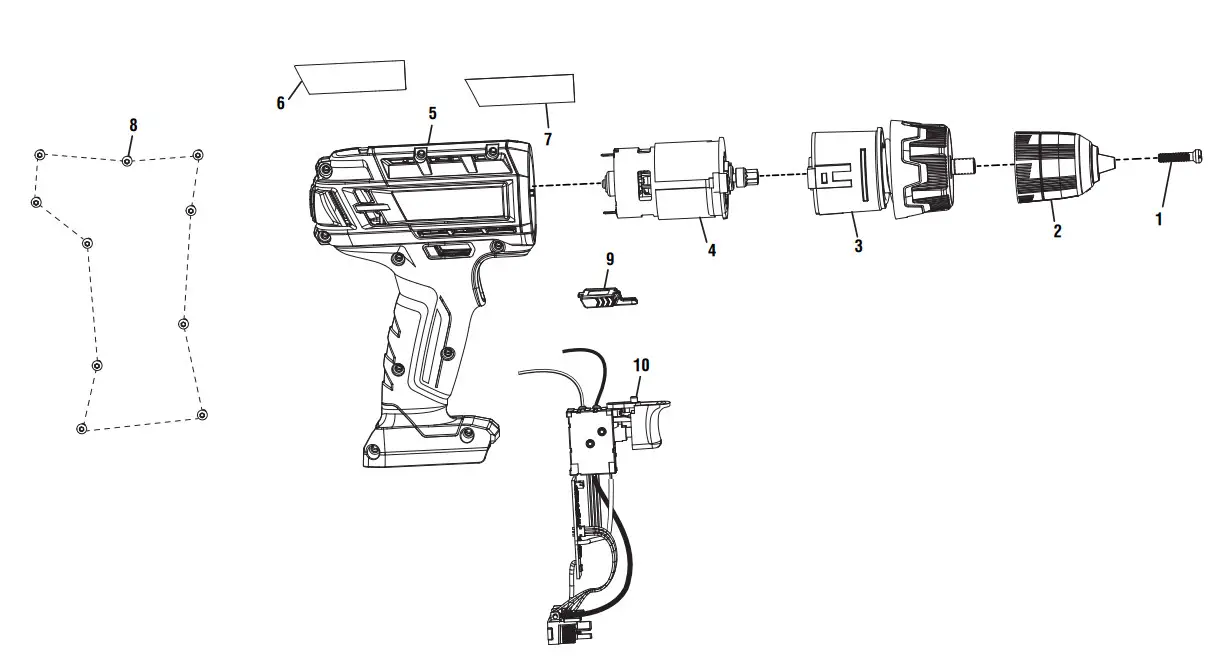

PARTS LIST
| KEY NO. | PART NO. | DESCRIPTION | QTY. |
| 1 | 660120006 | Screw (M5 x 26 mm, Left Hand Threads) | 1 |
| 2 | 204027008 | Chuck Assembly | 1 |
| 3-CN | 206915001 | Clutch and Gear Assembly | 1 |
| 3-VN | 206915002 | Clutch and Gear Assembly | 1 |
| 4-CN | 206916001 | Motor Assembly | 1 |
| 4-VN | 206916002 | Motor Assembly | 1 |
| 5-CN | 204027005 | Housing Assembly (Inc. Key Nos. 6-7) | 1 |
| 5-VN | 204027011 | Housing Assembly (Inc. Key Nos. 6-7) | 1 |
| 6-CN | 941122281 | Data Label | 1 |
| 6-VN | 941123120 | Data Label | 1 |
| 7 | 941114257 | Logo Label | 1 |
| 8 | 660031018 | Screw (M3.5 x 14 mm, T10 Torx Pan Hd.) | 10 |
| 9 | 538372002 | Forward/Reverse Selector | 1 |
| 10-CN | 204027009 | Circuit Board and Switch Assembly | 1 |
| 10-VN | 204027012 | Circuit Board and Switch Assembly | 1 |
| Not Shown: | |||
| 995000851 | Operator’s Manual (961153054) |
