3222264 Zigbee Motion Sensor
Instruction Manual
3222264 Zigbee Motion Sensor
220-240V~50/60Hz
| Description: | Motion |
| Detection Technology: | PIR (Passive IR) |
| Detection Angle: | 110°±10° |
| Protocal: | Zigbee 3.0 |
| Wireless Range: | 100m Outdoor, 30m Indoor |
| Power Source: | 3V, AAA*2 |
| Max. Working current: | 10.8mA |
| Standby current: | ＜10uA |
| Operating Temp: | -10°C~ 40°C |
| Operating Humidity: | Up to 85% non-condensing |
| Dimension: | Ø76*26.73mm |
MOUNTING
 |  |

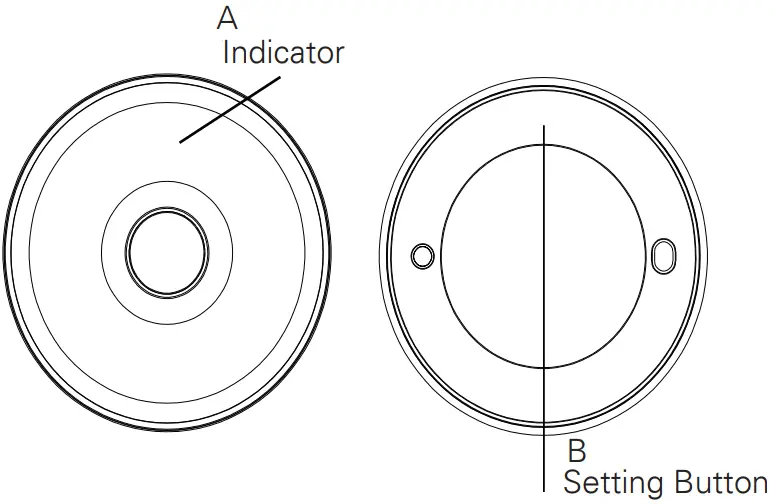

OPERATION
- FACTORY RESET
Long Press Button B for 10s, A will blink quickly in red after 10s, release B and A will stay solid for 3s to reset. - ADD TO THE ZIGBEE NETWORK
Short press B for 3 times,
• if the device is not in the network, A will blink slowly in orange, then it will start searching network and adding.
• if the device is in the network, A will blink slowly in green for 5s.
Then please do factory reset then pair. - INDICATOR MEANING
A blink slowly in green for 7 times: Device powered on
A blink slowly in orange:Network pairing(timeout 2mins)
A stay in solid green:Network pairing successful.
A stay in solid orange for 3s:Network pairing failed.
A blinking in orange once per minute:battery power empty soon
A blinking quickly in orange for 3s:Lost connection with hub

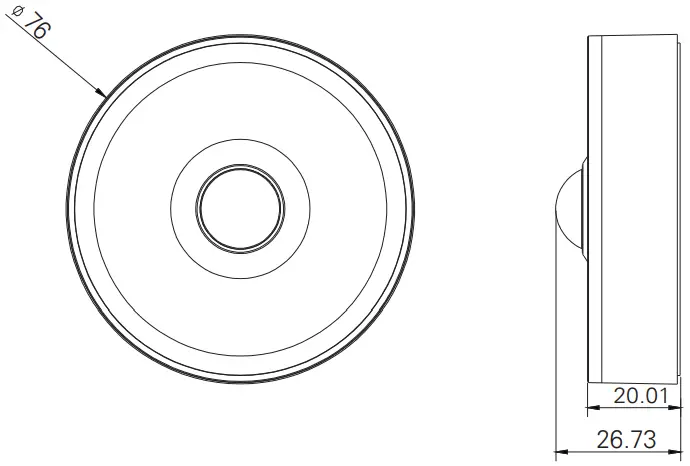

MEASURES
