Zigbee Door and Window Sensor
Instruction Manual
NAMRON ZIGBEE DØR- OG
VINDUSSENSOR
220-240V~50/60Hz

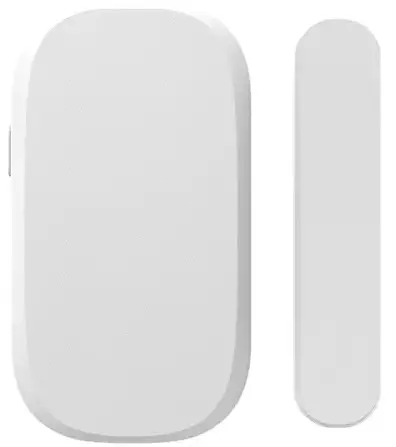

Zigbee Door and Window Sensor
| Description: | Door Sensor |
| Detection Technology: | Magnetic Reed Switch |
| Detection Angle: | 2cm |
| Protocal: | Zigbee 3.0 |
| Wireless Range: | 100m Outdoor, 30m Indoor |
| Power Source: | 3V, CR2450 |
| Max. Working current: | 10.8mA |
| Standby current: | ＜3uA |
| Operating Temp: | -10°C~ 40°C |
| Operating Humidity: | Up to 85% non-condensing |

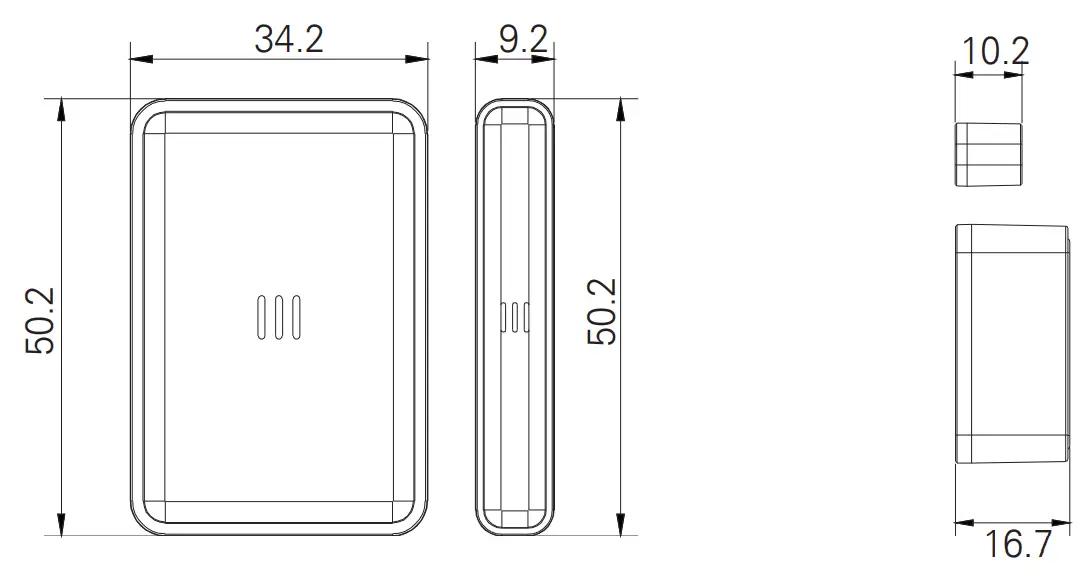

| Dimension: | 50.2*34.2*16.7mm 50.2*9.2*10.2mm |

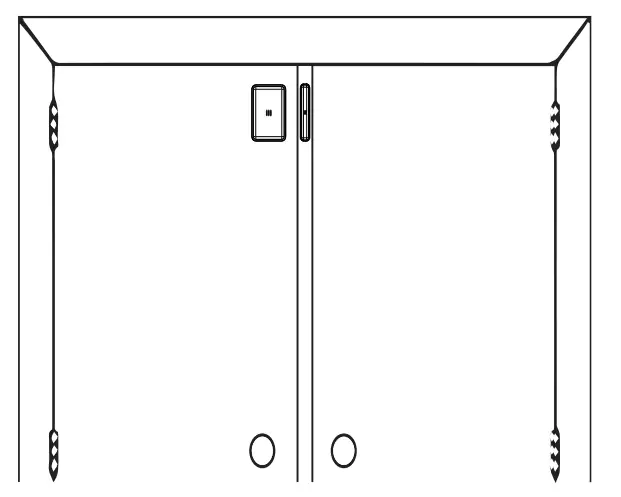

MOUNTING

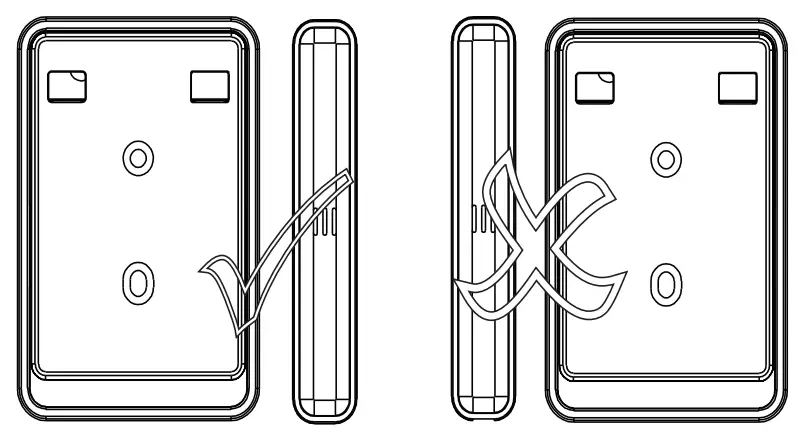

This Window/Door Sensor consists of two separate parts: master and slave. The master part includes the sensing circuit which detects the slave part. The slave part is a magnet.
OPERATION
FACTORY RESET
Long Press Button B for 10s, A will blink quickly in red after 10s, release B and A will stay solid for 3s to reset.- ADD TO THE ZIGBEE NETWORK
Short press B for 3 times,
• if the device is not in the network, A will blink slowly in orange, then it will start searching network and adding.
• if the device is in the network, A will blink slowly in green for 5s.
Then please do factory reset then pair. - INDICATOR MEANING
A blink slowly in green for 7 times: Device powered on.
A blink slowly in orange:Network pairing(timeout 2mins)
A stay in solid green:Network pairing successful.
A stay in solid orange for 3s:Network pairing failed.
A blinking in orange once per minute:battery power empty soon.
A blinking quickly in orange for 3s:Lost connection with hub.
FACTORY RESETMEASURES
