MOBILE RECEIVING DESK – 257RD2224C
ASSEMBLY INSTRUCTIONS

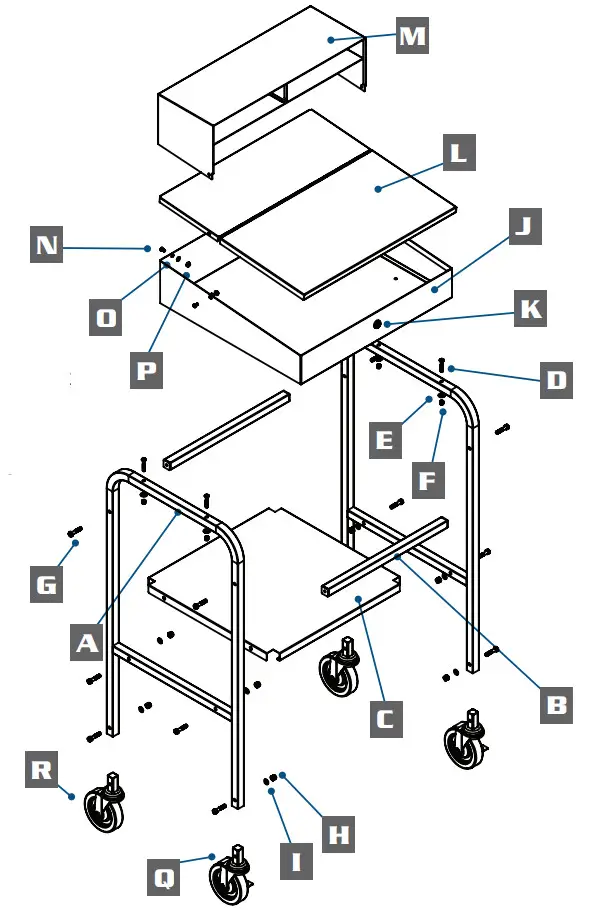

PARTS
A ( 2 ) Side Underframe
B ( 2 ) Top Horizontal Tube
C ( 1 ) Shelf
D ( 4 ) Cross recessed pan head screw
E ( 4 ) 1/4″ Flat Washer
F ( 4 ) 1/4–20″ Nylon Lock Nut
G ( 12 ) 5/16–18″ x 11/2″ Hex Screw
H ( 8 ) 5/16–18″ Nylon Lock Nut
I ( 8 ) 5/16″ Flat Washer
J ( 1 ) Drawer Box
K ( 1 ) MS743 Lock
L ( 1 ) Top Cover Plate
M ( 1 ) Top Storage Compartment
N ( 4 ) M6 x 12mm Cross Recessed Flat Head Screw
O ( 4 ) M6 Flat Washer
P ( 4 ) M6 Flange Nut
Q ( 2 ) Caster with Break
R ( 2 ) Caster without Break

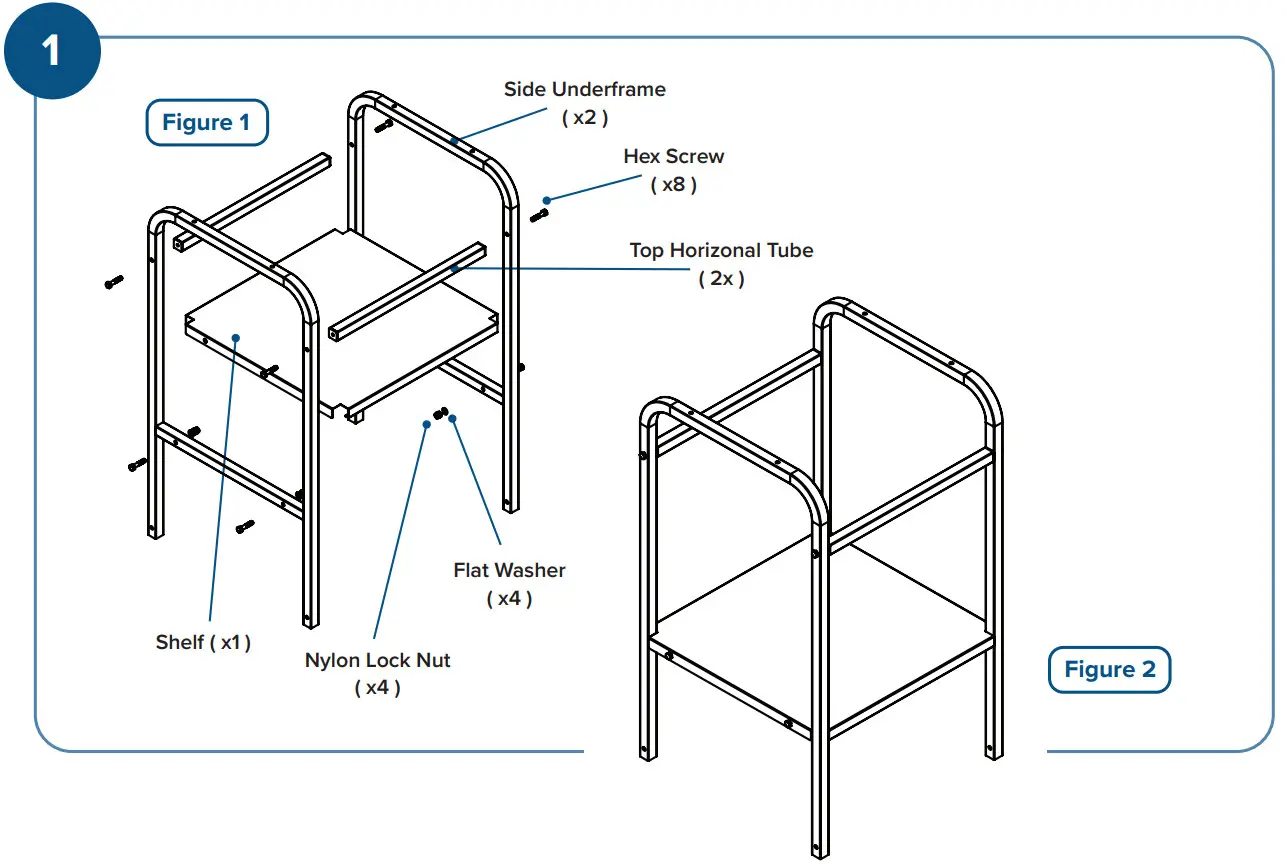

1. Install the underframes and the shelf. Use 5/16–18″ x 11/2″ hexagon screws to install the top horizontal pipes and use 5/16–18″ x 11/2″ hexagon screws, flat washers, and nylon lock nuts to fix the shelf. See figures 1 & 2.

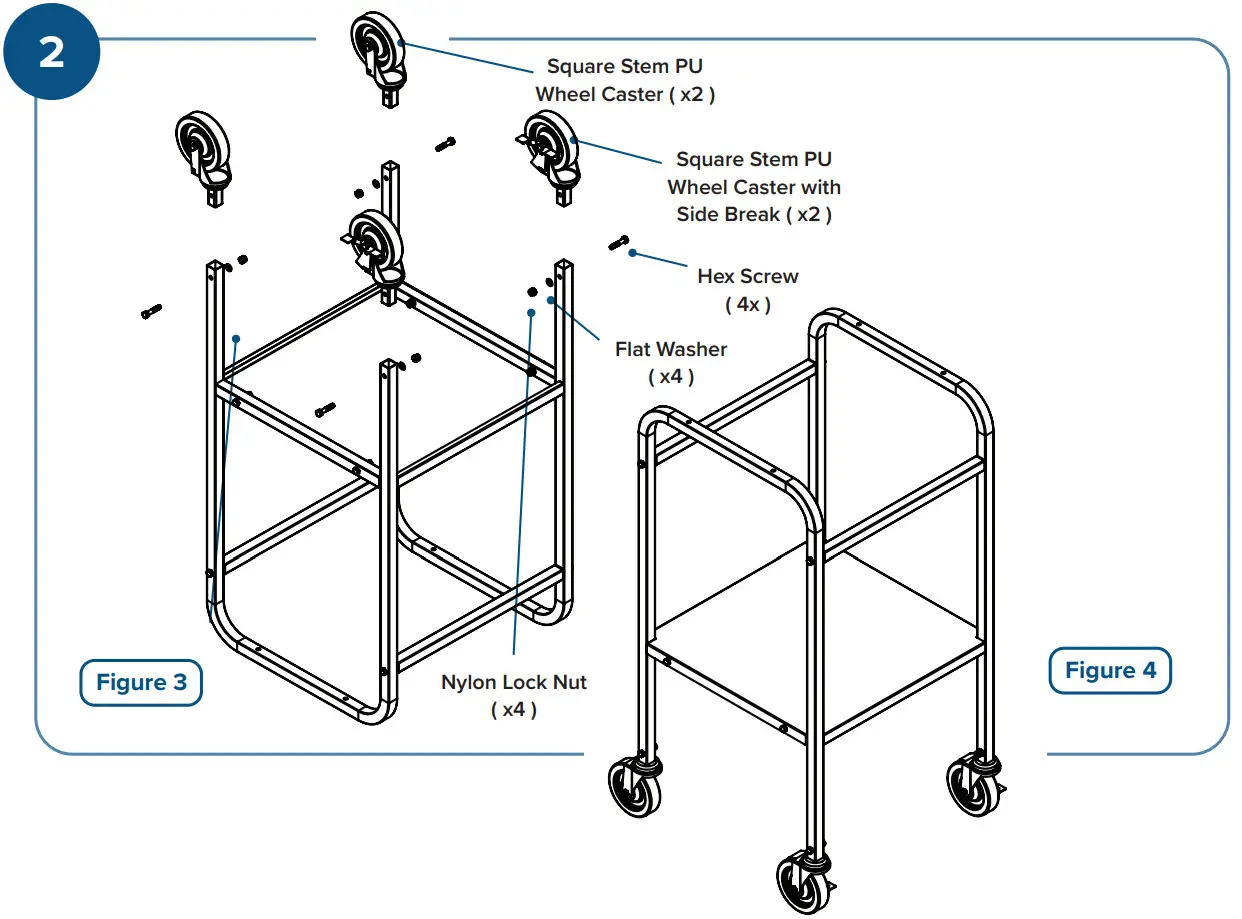

2. Install the casters. Turn around the assembled under frames, insert the square stems of the casters into the square tubes, align the holes, and fix with 5/16–18″ x 11/2″ hexagon screws, flat washers, and nylon lock nuts. See figures 3 & 4.

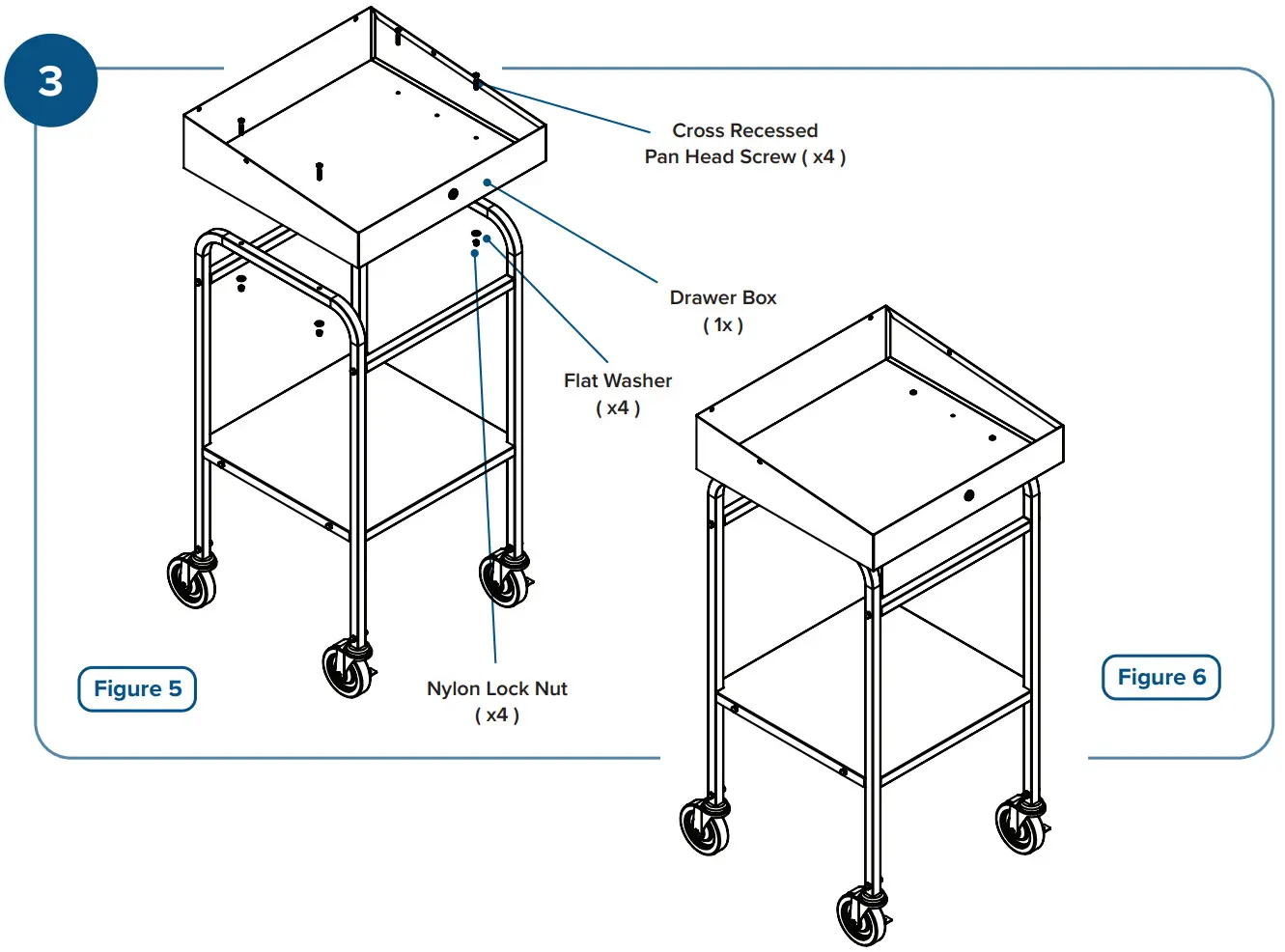

3. Install the drawer box. Fix the box to the under frames with 1/4–20″ x 11/2” cross recessed flat head screws, flat washers, and nylon lock nuts. See figures 5 & 6.

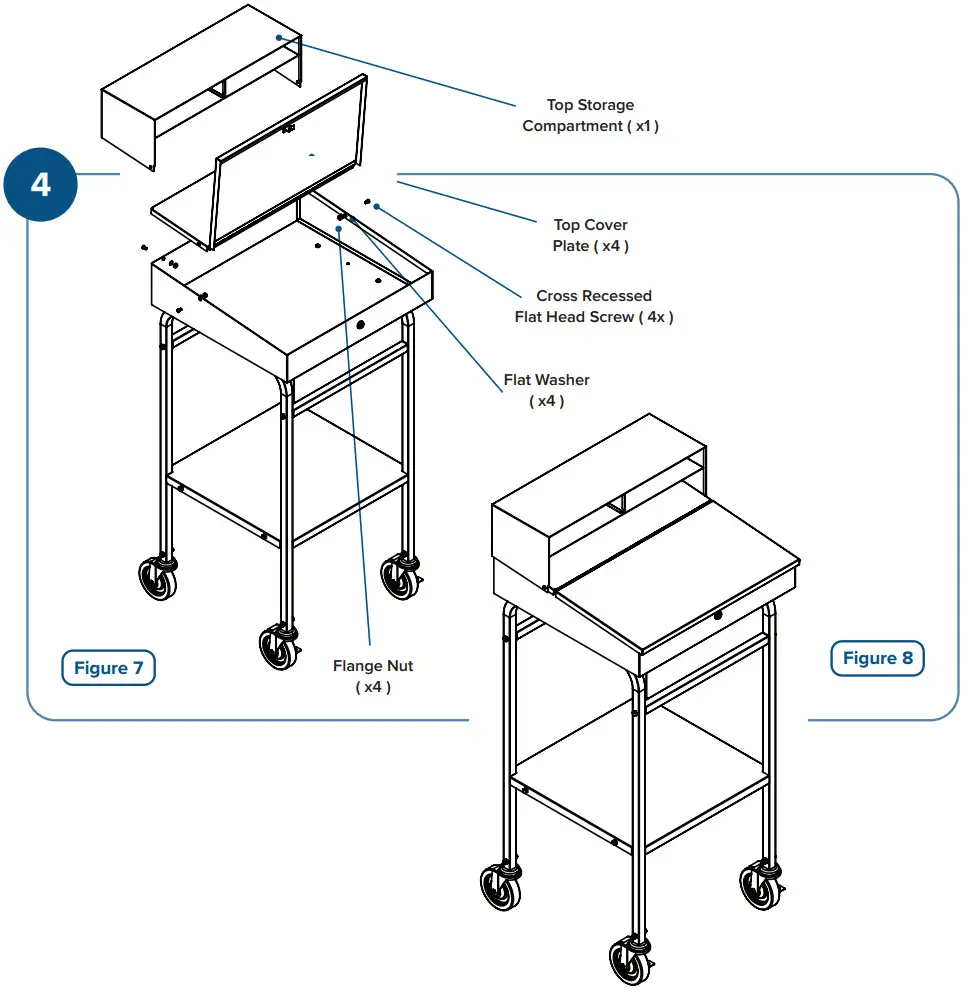

4. Install the top cover plate and the top storage compartment. Use M6 x 12mm cross recessed flat head screws, flat washers, and nylon lock nuts to fix the top cover plate and the top storage compartment to the drawer box. Turn up the cover plate when installing he screws for convenient assembly. See figures 7 & 8.
ASSEMBLY COMPLETE
