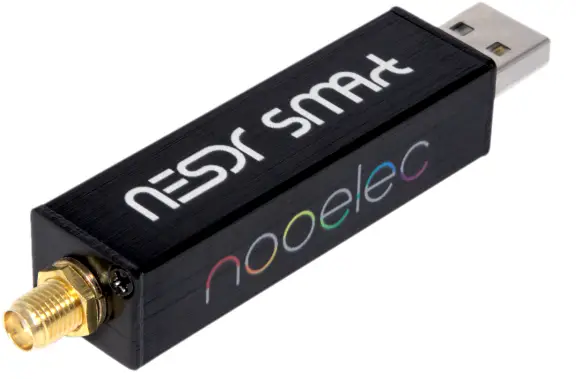

nooelec 100701 NESDR SMArt v5 RTL-SDR Software Defined Radio
Ordering Information
| SKU | Description | UPC |
| 100701 | NESDR SMArt | 0616469145864 |
Description
The NESDR SMArt has been upgraded to cover a wider range of radio frequencies with a range from 100kHz to 1750MHz. The SMArt is a versatile software-defined radio (SDR) that features an extremely accurate TCXO with a high quality heat sink, thermal pads and ESD protection to ensure stable and precise operation.
Features
- 0.5PPM TCXO
- 0.1 to 25MHz direct sampling tuning range
- 25 to 1750MHz quadrature sampling tuning range
- 0 – 49.6dB tuner gain
- 7 Bit ADC
- Up to 3.2MSPS sample rate
- 50Ω input SMA connector
- USB type A output
- Lightweight
- FCC, CE and IC certified
Applications
- Software defined radio
- General purpose radio reception
- Low cost radio systems
- Spectrum analysis
- Wideband reception
- Embedded application
- Remote installations
- Lightweight systems

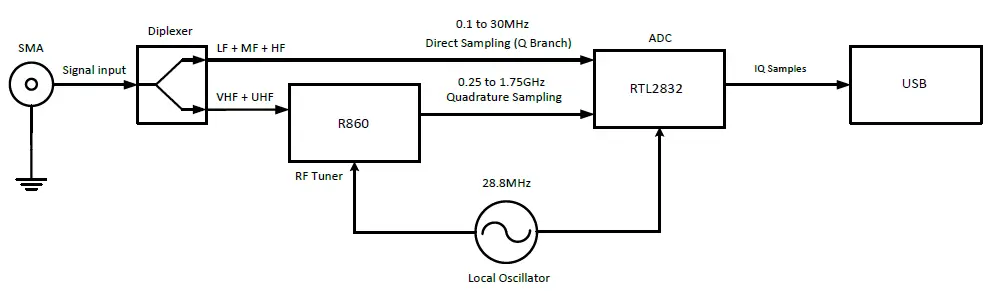

Simplified Schematic

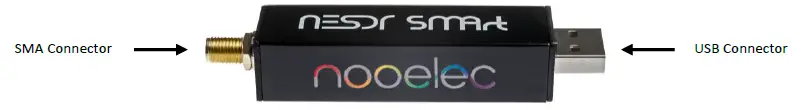

Connectors
Installation Guide
Visit: https://www.nooelec.com/store/qs
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit |
| Input Voltage | VUSB | – | 5 | – | Volts |
| Input RF Power | Pin | – | – | +10 | dBm |
Electrical Specifications
Test conditions unless otherwise specified: 50 Ohm system.
| Parameter | Symbol | Min | Typical | Max | Unit |
| Frequency Range (Direct Sampling Mode) | fL – fH | 0.1 | – | 25 | MHz |
| Frequency Range (Quadrature Sampling Mode) | fL – fH | 25 | – | 1750 | MHz |
| Instantaneous Bandwidth | BWIF | 0.25 | 2.4 | 3.2 | MHz |
| User Controlled Tuner Gain | S21 | 0 | – | 49.6 | dB |
| Input Return Loss @ 1 GHz | S11 | -8 | -12 | -16 | dB |
| Noise Figure @ 1 GHz | NF | – | 10 | – | dB |
| Operation Supply Current | Isupply | 270 | 300 | 330 | mA |
| TCXO Frequency Stability | – | ±0.5 | ppm | ||
| Phase Noise @ 1 kHz | – | -138 | dBc/Hz | ||
| Phase Noise @ 10 kHz | – | -150 | dBc/Hz | ||
| Phase Noise @ 100 kHz | – | -152 | dBc/Hz | ||
| ESD Protection Level | IEC 6100-4 | 23 | kV |
Physical Specifications
| Parameter | Value | Unit |
| Length | 59.1 (2.33) | Millimeter (Inch) |
| Width | 16.9 (0.66) | Millimeter (Inch) |
| Height | 14.2 (0.56) | Millimeter (Inch) |
| Weight | 34 (0.077) | Gram (Pound) |

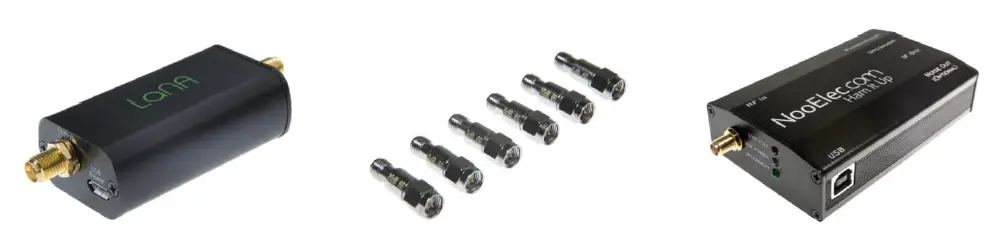

| LaNA | SMA Attenuator Kit – 1dB to 42dB | Ham It Up Plus |
| SKU: 100812 | SKU: 100815 | SKU: 100769 |
FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
2022-09-06
https://www.nooelec.com/
Revision 1
© 2022 Nooelec Inc. All Rights Reserved.
