CO2METER COM V6 Walk-In Draft Cooler Installation Guide
Walk-In Draft Cooler Installation single strobe outside

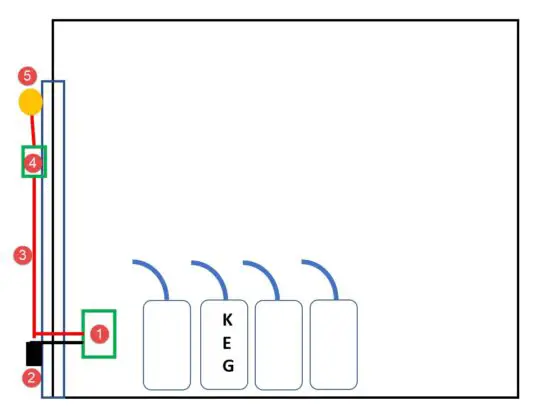

Components
1 –SEU main unit with sensor inside
2 –Wall Plug
3 –Standard CAT5E cable
4 –RDU remote display unit
5 –Amber Strobe
Notes
- Drill hole in cooler large enough to fit the CAT5 and power cable
- Unscrew power supply from SEU
- Fish power cable from outside to inside of cooler –reconnect
- Connect power plug to wall outlet
- Connect CAT5 from SEU to RDU
- Connect CAT5 from RDU to strobe

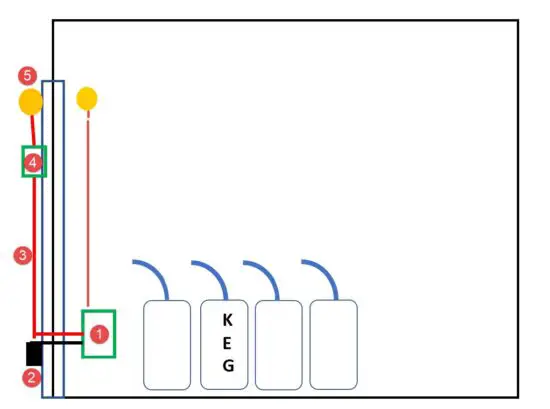

Walk-In Draft Cooler Installation double strobe
Components
1 –SEU main unit with sensor inside
2 –Wall Plug
3 –Standard CAT5E cable
4 –RDU remote display unit
5 –Amber Strobe
Notes
- Drill hole in cooler large enough to fit the CAT5 and power cable
- Unscrew power supply from SEU
- Fish power cable from outside to inside of cooler –reconnect
- Connect power plug to wall outlet
- Connect CAT5 from SEU to RDU
- Connect CAT5 from SEU & RDU to strobe
Read More About This Manual & Download PDF:
