UMF RUHLA 8215 15 Jewel Quadrant-Pattern Dial Watch User Manual
AUTOMATIK
8215, 82S5, 82S7, 8205, 8285, 8217

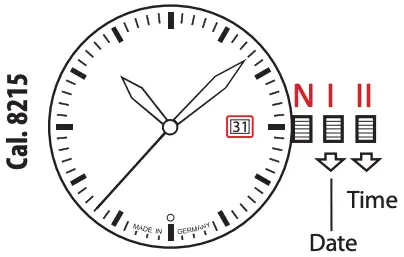

AUTOMATIC Cal. 8215
Date adjustment:
(version with date) Pull out the crown till position 1 and adjust the date by turning it counter-clockwise, then push the crown back into its neutral position [N].
Time adjustment:
Pull out the crown at position 2 and adjust the time by turning it counterclockwise, then push the crown back into its neutral position [N].

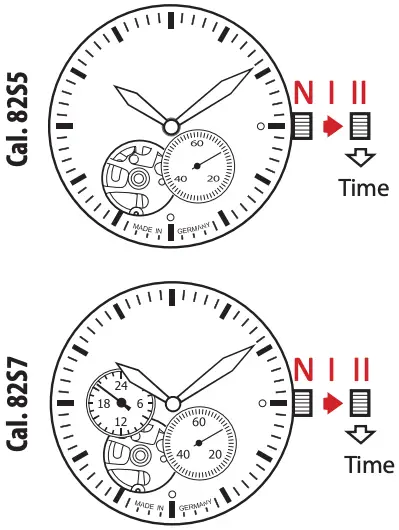

AUTOMATIC Cal. 82S5, Cal. 82S7
Time adjustment:
Pull out the crown at position 2 and adjust the time by turning it counterclockwise, then push the crown back into its neutral position [N].
24 hour display: shows time in 24 hour steps.

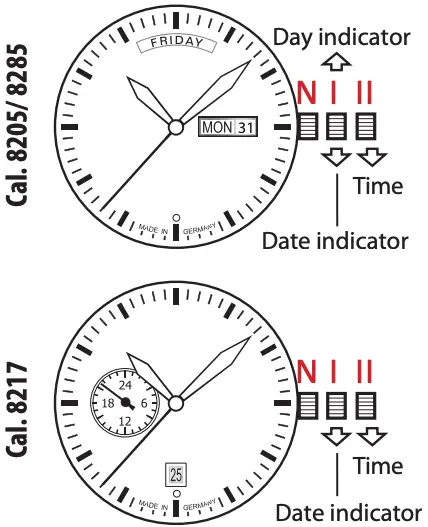

AUTOMATIC Cal. 8205, 8285, 8217
Time adjustment: Pull out the crown at position 2 and adjust the time by turning it counter-clockwise, then push the crown back into its neutral position [N].
Date adjustment: Pull out the crown till position 1 and adjust the date by turning it counter-clockwise, then push the crown back into its neutral position [N].
Weekday adjustment: Adjust the day by turning the crown clockwise in 1 position.
24 hour display: shows time in 24 hour steps.
CARE INSTRUCTIONS
NOTE: When the watch is stopped – i.e. no longer ticking – it must be wound before wearing (approximately 15 turns clockwise in neutral position [N] ). The remaining winding process of the automatic watch results from normal arm movement during wearing.
Please do not wear your watch while swimming in seawater. Saltwater destroys gaskets and insulation of glass, encasement and crown. If your watch should come into contact with seawater, please rinse it immediately with clear fresh water. You should check the functionality of the gasket twice a year regularly.
WARRANTY CONDITIONS
Your UMF Ruhla watch comes with a 24-month warranty, counting from the date of purchase. Excluded from the warranty are wearing parts such as bracelet, clasp, crown, watch glass – battery in quartz watches – as well as normal signs of wear and tear. The warranty is void if defects are caused by gross negligence by the buyer or third parties. Should you have legitimate complaints, you can send in the watch including the proof of purchase. Watches sent to us freight foward unfortunately cannot be accepted.
In case your watch needs to be repaired or to raise claims under a guarantee, please contact the point of sales.
