AUTOMATIK
mit Gangreserveanzeige

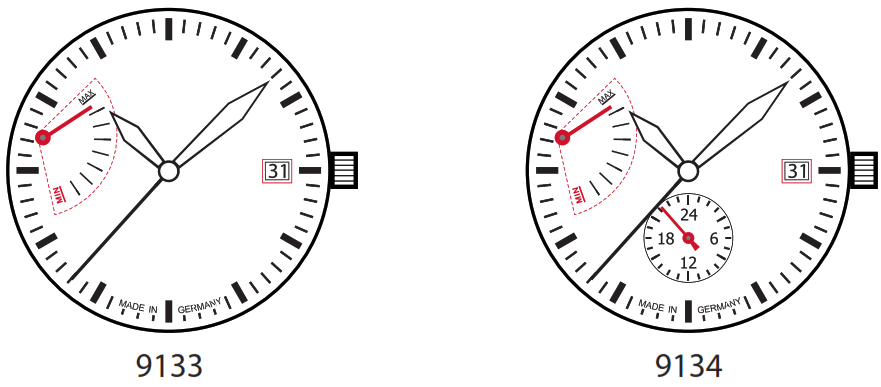

9133, 9134
User’s Manual
9133 Men’s Automatic Watch
AUTOMATIC WITH POWER RESERVE INDICATOR

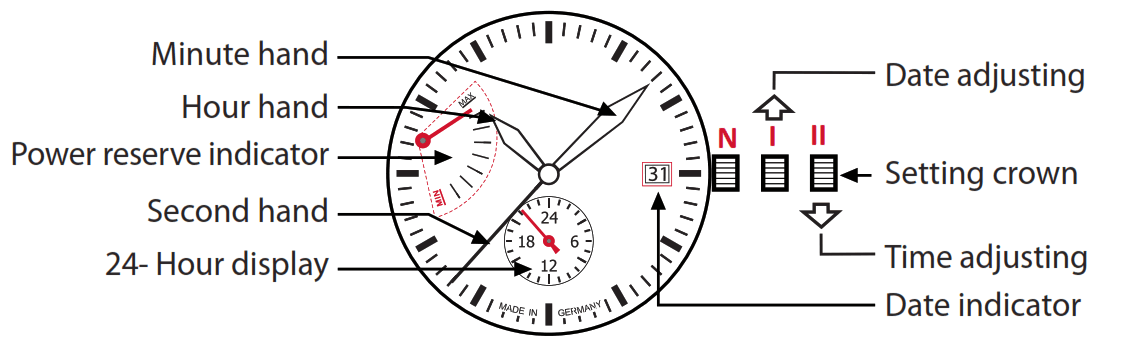

TIME ADJUSTMENT: Pull out the crown till position 2 and adjust the time by turning it clockwise. Then push the crown back into its neutral position [N].
24- HOUR DISPLAY: Shows time in 24 hour steps.
DATE ADJUSTMENT: Pull out the crown till position 1 and adjust the date by turning it counter-clockwise. Then push the crown back into its neutral position [N].
POWER RESERVE DISPLAY: Indicates running time of the watch in hours.
CARE INSTRUCTIONS
NOTE: When the watch is stopped – i.e. no longer ticking (hand for power reserve points to MIN) – it must be wound before wearing (approximately 15 turns clockwise in neutral position [N]). The remaining winding process of the automatic watch results from normal arm movement during wearing.
Please do not wear your watch while swimming in seawater. Saltwater destroys gaskets and insulation of glass, encasement and crown. If your watch should come into contact with seawater, please rinse it immediately with clear fresh water. You should check the functionality of the gasket twice a year regularly.
For additional useful information, visit www.pointtec.de
In case your watch needs to be repaired or to raise claims under a guarantee, please contact the point of sales.
Herstellung und Vertrieb:
POINTtec Electronic GmbH
Steinheilstraße 6
85737 Ismaning
Fax +49 (0)89 96 32 17
www.pointtec.de
POINTtec - Uhrmacherkunst Made in Germany
