URC UR5U-8780L Cable Remote Control

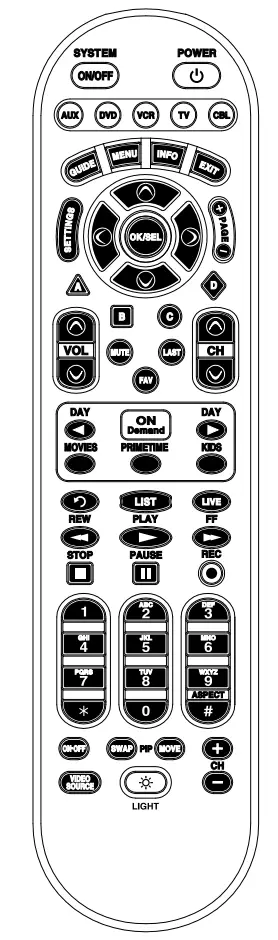

Introduction
The CLIKRTM-5 UR5U-8780L & UR5U-8790L is designed to operate the CISCO / SA, Pioneer, Pace Micro, Samsung and Motorola digital set tops, Plus the majority of TV, VCR, DVD and AUX equipment on the market as shown below.
CBL : Cable Set-top Box
TV : Televisions
VCR : VCRs and TV/VCRs
DVD: DVD Players
AUX: Audio Equipment, Media PC, etc.

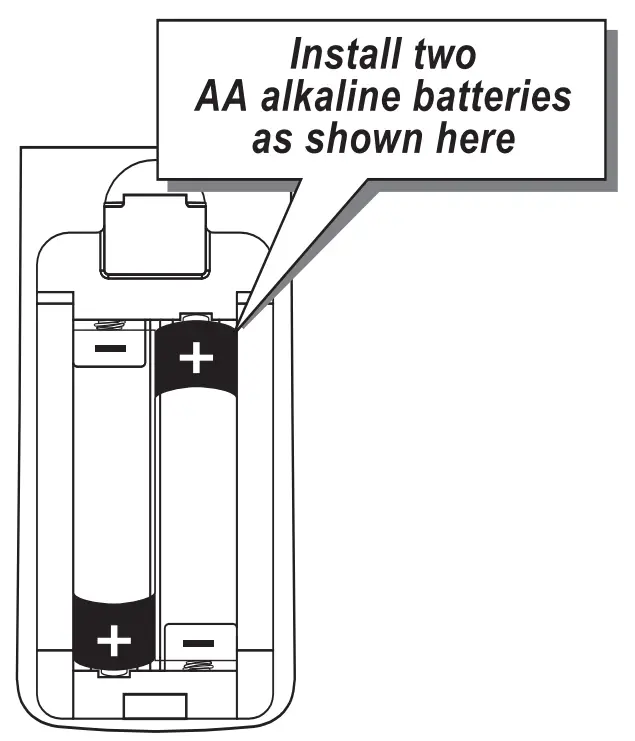

Replacing Batteries
Before you program or operate the remote control, you must install two new AA alkaline batteries.
STEP1 Remove the battery compartment cover on the back of your remote control.
STEP2 Check battery polarity carefully, and install the batteries as shown in the illustration below.
STEP3 Replace the battery compartment cover.

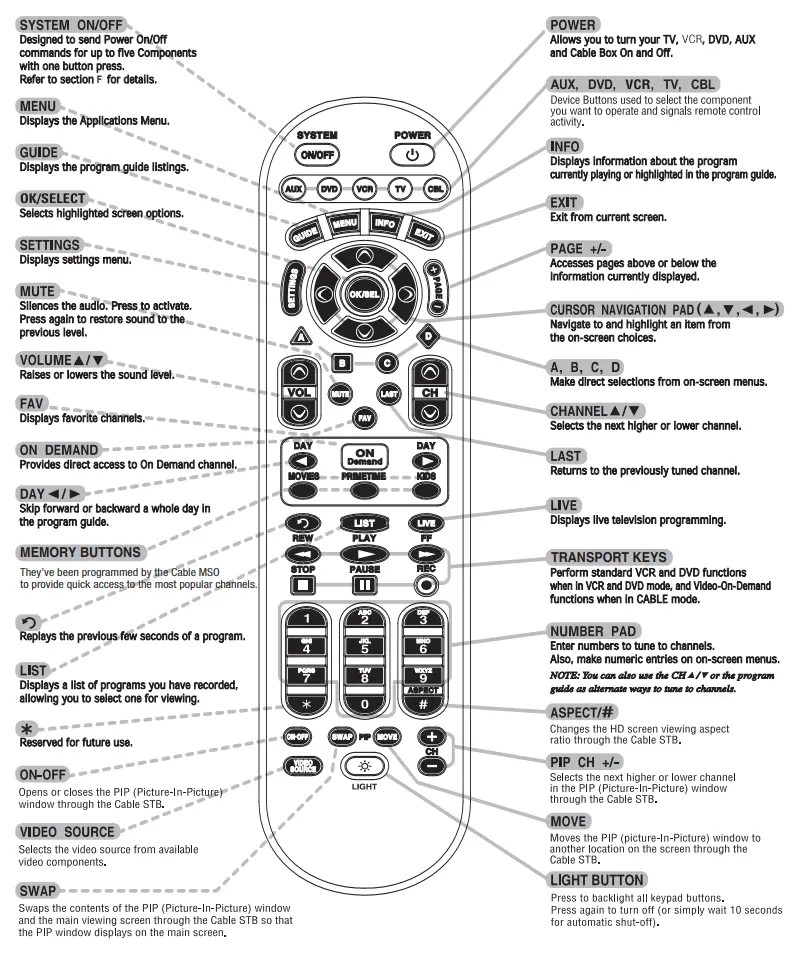

Operations
DEFAULT STATE:
Device Default: Cable Set-Top Box (STB)
Channel Default: CABLE channel and numbers through the CABLE STB. You have the option of controlling your CABLE channel and numbers through the TV or VCR. Refer to section H for programming steps.
Volume Default: Volume and Mute control are automatically transferred to the respective Component based on the Device selected:
CBL:TV ; TV:TV ; VCR:TV. DVD:TV ; AUX:AUX.
You have the option of controlling CABLE Volume and Mute through the TV, VCR or AUX. Refer to section G for programming steps.
Programming the Remote Control
IMPORTANT SETUP NOTE!
In this section when you are instructed to press a [DEVICE] button, that means to press either the CBL, TV, VCR, DVD or AUX button, depending on what device you are programming the remote to operate.
There are three ways you can program your remote:
* Quick Setup Method
* 3-Digit Code Method
* Auto Search Method
Quick Setup Method is a unique feature that enables the fastest and easiest setup by using a one digit code. This is the quickest way to set up devices made by popular manufacturers.
3-Digit Code Method allows you to setup by entering 3-digit code numbers that correspond with the components manufacturer/brand. Code tables for this method are on the backside of the operating instructions.
Auto Search Method scans through all of the codes in the remote control, one at a time allowing you to identify the correct code.
IMPORTANT SETUP NOTE!
This pertains to all programming steps. When you are in setup mode the device LED will light for 30 seconds. If you do not press a button within 30 seconds, the LED light will turn off and exit setup mode, and you will need to start over.
A. Quick Setup Method
It’s easy to program the remote control to operate your TV. Simply press the number buttons 0 through 9 that your TV brand is assigned to using the following four steps.
STEP1 Manually turn on the TV you wish to program.
STEP2 Press and hold simultaneously for 3 seconds both the TV and A (Yellow) buttons or B (Blue) buttons, based on the column your TV brand is assigned to. The TV button LED light will turn on for 30 seconds confirming that you are in the program mode.
STEP3 While the TV button LED is on, point the remote control at the TV and press the number button assigned to your TV brand as shown in the table (e.g. for Sharp TV, button 5 ). The TV should turn off. If it does not, press the same number button repeatedly until the TV turns off.
*Note :The remote will exit the programming mode automatically if it does not have matching codes and the LED will turn off.
STEP4 Once the TV has turned off, press the TV button once again to save the code. The remote control is now ready to control your TV.
Repeat the above steps for all other components (TV, VCR, DVD, etc.).
*Note :If the matching code could not be found in STEP3, use 3-Digit Code Method or Auto Search Method.
Quick Set-up Code Tables
TV
| Button Press | Button Number | Brand |
| TV&A Button | 0 | RCA |
| 1 | SAMSUNG | |
| 2 | SONY | |
| 3 | LG | |
| 4 | VIZIO | |
| 5 | SHARP | |
| 6 | PANASONIC | |
| 7 | SANYO | |
| 8 | TOSHIBA | |
| 9 | PHILIPS | |
| TV&B Button | 0 | COBY |
| 1 | MITSUBISHI | |
| 2 | HITACHI | |
| 3 | MAGNAVOX | |
| 4 | JVC | |
| 5 | ZENITH | |
| 6 | INSIGNIA | |
| 7 | EMERSON | |
| 8 | WESTINGHOUSE | |
| 9 | TCL |
VCR
| Button Press | Button Number | Brand |
| VCR&A Button | 0 | MITSUBISHI |
| 1 | HP | |
| 2 | PHILIPS | |
| 3 | JVC | |
| 4 | SAMSUNG | |
| 5 | PANASONIC | |
| 6 | PHILIPS MAGNAVOX | |
| 7 | TOSHIBA | |
| 8 | PIONEER | |
| 9 | LG |
DVD
| Button Press | Button Number | Brand |
| DVD&A Button | 0 | HITACHI |
| 1 | SONY | |
| 2 | PHILIPS | |
| 3 | SAMSUNG | |
| 4 | PHILIPS MAGNAVOX | |
| 5 | PANASONIC | |
| 6 | LG | |
| 7 | JVC | |
| 8 | DENON | |
| 9 | PIONEER |
AUX
| Button Press | Button Number | Brand |
| AUX&A Button | 0 | BOSE |
| 1 | HP | |
| 2 | ONKYO | |
| 3 | APPLE / iPod | |
| 4 | MICROSOFT / XBOX | |
| 5 | SONY / PS2 | |
| 6 | LUTRON | |
| 7 | X-10 | |
| 8 | YAMAHA | |
| 9 | ROKU |
B. 3-Dight Code Method
STEP1 Turn on the equipment that you want the remote control to operate (Cable Box, TV, VCR, DVD, etc.).
STEP2 Press the [DEVICE] button and the [OK/SEL] button simultaneously for three seconds. The corresponding device LED will turn on indicating that it is ready to be programmed. The LED will remain on for 30 seconds. The next step must be entered while the LED is on.
STEP3 Point the remote control toward the equipment and enter the three-digit code number assigned to your brand from the code tables. If there are more than one three-digit number listed for your brand, try one code number at a time until your equipment turns off.
*Note : You can verify that you have selected the correct code by pressing the [POWER] button. The equipment should turn back on. Then try all of the functions on the remote control (i.e. volume, mute, etc.) to ensure you have the correct code. If any of the functions do not operate as they should, repeat the instructions from STEP 3 above using the next three digit code number from the brand list.
STEP4 Store the three-digit code by pressing the same [DEVICE] button once again. The device LED will blink twice to confirm that the code has been stored.
C. Auto Search Method
If none of the three digit code numbers assigned to your brand of equipment works, or the code table does not list your brand, you can use the Auto Search Method to find the correct three-digit code number for your equipment by following steps:
STEP1 Turn on the equipment that you want the remote control to operate (Cable Box, TV, VCR, DVD, etc.).
STEP2 Press the [DEVICE] button and the [OK/SEL] button simultaneously for three seconds. The device LED will turn on indicating that it is ready to be programmed. The LED will remain on for 30 seconds. The next step must be entered while the LED is on.
STEP3 Press the [CH
] or [
] button one at a time or keep it pressed. The remote will emit a series of Power ON/OFF code signals. Release the [CH] or [CH] button as soon as the equipment turns off.
*Note :You can verify that you have selected the correct code by pressing the [POWER] button. The equipment should turn back on. Then try all of the functions on the remote control (i.e. volume, mute, etc.) to ensure you have the correct code. If any of the functions do not operate as they should, repeat the instructions from STEP 3 above to continue the Auto Search Method.
STEP4 Press the same [DEVICE] button to store the code. The Device LED will blink twice to confirm that the code has been stored.
D. To Identify the 3-Digit Code Programmed for a Device
STEP1 Press the appropriate [DEVICE] button and the [OK/SEL] button simultaneously for three seconds. The device LED will turn on for 30 seconds. The next step must be performed while the LED is on.
STEP2 Press the [INFO] button. The device LED will blink a number of times indicating the number of each digit for the code. Each digit is separated by a one second interval of the LED being off.
Example : One blink, (pause) three blinks, (pause) eight blinks indicates the code number 138.
*Note : Ten blinks indicates the number 0.
E. Programming the AUX Device
You can take advantage of the AUX function to program a devices such as a media PC, gaming console or satellite radio receiver. Follow the instruction in section B to program an AUX device. You can also program the AUX button for a second TV, VCR or DVD player. To do this follow the instructions below.
STEP1 Turn on the 5th device you want to program (TV, VCR, DVD, etc.).
STEP2 Press the [AUX] button and the [OK/SEL] button simultaneously for 3 seconds. The [AUX] device LED will turn on for 30 seconds.
STEP3 Press the [Device] button For the type of device you want to setup. Point the remote control toward the device and enter the 3-digit code number assigned to your brand.
*Note :To program a second TV press TV, etc.
STEP4 When the equipment turns off verify that you have selected the correct code by pressing the [POWER] button. The equipment should turn back on.
Then try all of the functions on the remote control (i.e. volume, mute, etc.) to ensure you have the correct code. If any of the functions do not operate as they should, enter the next 3-digit code number from the brand list.
STEP5 Once you have found the correct 3-digit code, save it by pressing the [AUX] button one more time. The [AUX] LED light will blink twice to confirm the code was stored.
F. Programming the System On/Off Button
This allows you to program the System On/Off button so it can send up to five power On/Off commands with one button press.
STEP1 Press the [CBL] button.
STEP2 Press the [SYSTEM ON/OFF] button and the [OK/SEL] button simultaneously for 3 seconds. The [CBL] button will turn on for 30 seconds.
STEP3 Press the first [DEVICE] button you want to store in the [SYSTEM ON/OFF] button and then press [POWER]. Repeat this for the other components you want to turn on/off with the [SYSTEM ON/OFF] button.
STEP4 Press the [CH] button to save the power commands you stored. The [CBL] button will blink twice to confirm the commands have been saved.
G. Programming Volume Control
Volume and Mute control are factory programmed to automatically transfer to the respective Device mode You select, as follows:
CBL : TV T V : TV VCR : TV DVD: TV AUX : AUX
If you wish to store the CBL volume control in CBL mode, use the following steps.
STEP1 Press the [OK/SEL] button and [CBL] button simultaneously for three seconds. The device LED will turn on for 30 seconds. The next step must be performed while the LED is on.
STEP2 Press the [VOL] button. The device LED will blink.
STEP3 Press [CBL] button. The device LED will blink twice to confirm the programming.
*Note : To return CBL device to TV volume repeat steps above replacing [CBL] with [TV] in Step 3.
H. Programming Channel Control
You can program the channel controls (Channel Up, Channel Down, Last and Numbers) from one Device to operate in another Device mode.
Default channel control settings on the remote control are as follows:
CBL : CBL T V : CBL VCR : CBL DVD : DVD AUX : AUX
If you wish to store the TV channel controls in TV mode, use the following steps.
STEP1 Press the [OK/SEL] button and [TV] button simultaneously for three seconds. The device LED will turn on for 30 seconds. The next step must be performed while the LED is on.
STEP2 Press the [VOL] button. The device LED will blink.
STEP3 Press [TV] button. The device LED will blink twice to confirm the programming.
*Note : To return TV device to CBL channel repeat steps above replacing [TV] with [CBL] in Step 3.
I. Programming a ‘Macro’ button.
If your remote model has custom-programmable Macro buttons available(See Section 4), they can be programmed to act as a ‘Macro’ or Favorite Channel button in CABLE mode. This allows you to program up to five 2-digit channels, four 3-digit channels or three 4-digit channels that can be accessed with one button press.
STEP1 Press the [CBL] button to select the CBL mode.
STEP2 Press the [MACRO] button and [OK/SEL] button simultaneously for 3 seconds. The [CBL] button will turn on for 30 seconds.
STEP3 Enter the the 2, 3 or 4-digit code for the channel you want programmed first (for example, 007) using the Number Pad, then press the [STOP] button. Then enter the code for the next channel (for example, 050), then press the [STOP] button. Repeat this process for the third channel. The [CBL] button will blink once for each channel entered.
STEP4 Press the [CH] button to store the channels that were selected. The [CBL] button will blink twice to confirm the storage of commands.
To access the programmed channels, press the [MACRO] button once. This will bring up the first channel. Press once again and it will bring up the second channel. Press again and it will bring up the third channel.
J Low Battery Warning
When the batteries are low and need to be replaced with fresh batteries, the Device LED lights will blink 2 times in sequence whenever a [POWER] button is pressed to turn on equipment.
K. Memory Lock System
This remote control is designed to retain programmed memory for 10 years even after batteries are removed from the remote control.
L. Record Your Component Set-up Codes
TV Set-up Code Number:
VCR Set-up Code Number:
DVD Set-up Code Number:
AUX Set-up Code Number:
For additional information about your remote control, go to www.universalremote.com
Setup Code Tables
CBL
| Manufacturer/Brand | Set-Up Code Number |
| MOTOROLA | 002 148 206 253 |
| PACE | 001 005 002 206 217 |
| PIONEER | 001 103 034 051 063 076 105 |
| SAMSUNG | 001 030 |
| SCIENTIFIC ATLANTA/CISCO | 001 003 041 042 045 046 |
| ADB | 254 |
| Amino | 219 235 260 321 |
| ARRIS | 172 216 140 234 242 |
| Bell Fibe | 229 |
| Blue Stream | 238 |
| BT Vision | 232 960 |
| Cincinnati Bell | 220 |
| Cox Digital Cable | 223 |
| Digital Multimedia Technology | 222 |
| Dish Network | 122 |
| Duoson | 218 |
| Entone | 221 213 |
| EVOLUTION | 189 215 |
| Foxtel | 228 |
| Frontier | 239 |
| Horizon | 225 |
| Humax | 231 |
| Layer3 | 226 |
| Optimum | 236 237 |
| Pico Digital | 224 |
| Sky | 240 241 |
| Spectrum | 231 |
| TECHNICOLOR | 365 |
| Virgin Media | 959 |
| WINDSTREAM | 212 |
| ZeeVee | 227 |
TV
| Manufacturer/Brand | Set-Up Code Number |
| A MARK | 112 143 |
| ACCURIAN | 036 |
| ADMIRAL | 072 251 333 |
| AD NOTAM | 672 |
| ADVENT | 247 388 |
| ADVENTURA | 002 |
| AFFINITY | 680 |
| AKAI | 116 248 404 405 473 475 323 387 391 615 |
| ALBATRON | 017 |
| ALERON | 028 |
| AMERICA ACTION | 043 |
| AMPRO | 073 |
| AMSTRAD | 052 |
| ANAM | 043 054 056 080 112 |
| AOC | 116 363 112 616 |
| APEX | 572 |
| APEX DIGITAL | 006 724 |
| AQUAVISION | 573 574 686 904 |
| ASTAR | 477 |
| AUDIOVOX | 076 454 388 |
| AUVIO | 689 |
| AVENTURA | 052 |
| Avera | 761 |
| AVIELO | 627 628 |
| AVION | 441 |
| AXESS | 711 |
| AXION | 039 |
| BELCOR | 116 |
| BELL&HOWELL | 333 072 |
| BENQ | 423 600 |
| BOXLIGHT | 266 |
| BRADFORD | 043 |
| BROCKWOOD | 116 |
| BROKSONIC | 238 |
| BYDESIGN | 031 032 |
| CANDLE | 116 002 003 363 |
| CARY AUDIO DESIGN | 266 |
| CELEBRITY | 001 |
| CENTURION | 116 |
| CETRONIC | 043 |
| CHANGHONG | 247 |
| CIELO | 714 |
| Ciil | 732 |
| CITIZEN | 116 002 003 363 043 258 143 |
| CLARION | 043 |
| CLASSIC | 043 |
| CLP CLASSIC | 333 |
| COBY | 640 641 671 363 |
| COLORTYME | 116 |
| CONCERTO | 363 |
| CONCIERGE | 073 |
| CONTEC | 043 050 051 |
| Continu-us | 161 746 747 |
| CORNEA | 116 |
| CORONADO | 143 |
| CRAIG | 043 054 |
| CROSLEY | 164 |
| CROWN | 043 143 |
| CURTIS MATHES | 116 258 363 143 |
| CXC | 043 |
| CYBERHOME | 015 |
| DAEWOO | 363 043 076 143 |
| DAYTRON | 363 143 |
| DELL | 320 164 363 618 |
| DIGITAL PROJECTION | 570 |
| DIMENSIA | 333 |
| DREAMVISION | 235 |
| DUKANE | 011 |
| DUMONT | 116 073 |
| DURABRAND | 096 052 |
| DWIN | 257 |
| DYNASTY | 043 |
| DYNEX | 400 |
| EIKI | 187 |
| ELECTROBAND | 001 |
| ELECTROGRAPH | 466 |
| ELECTROHOME | 143 024 076 |
| ELEKTRA | 072 |
| ELEMENT | 363 494 526 622 690 |
| EMERSON | 028 048 043 116 363 050 051 076 096 143 154 052 514 |
| ENVISION | 116 |
| EPSON | 324 590 |
| ESA | 323 |
| Evervue | 755 |
| FISHER | 007 057 |
| FREEMOTION | 688 |
| FUJITSU | 246 198 410 |
| FUNAI | 028 043 052 |
| FUSION | 642 |
| FUTURETECH | 043 |
| GATEWAY | 242 268 |
| GE | 073 116 008 009 034 056 333 363 |
| GEM | 391 |
| GIBRALTER | 116 073 |
| GO VIDEO | 026 |
| GOLDSTAR | 113 116 102 363 112 143 |
| GPX | 674 |
| GRUNPY | 028 043 |
| HAIER | 363 501 623 749 |
| HALL MARK | 363 |
| HANNSPREE | 349 381 |
| HARLEY DAVIDSON | 028 |
| HARVARD | 043 |
| HELLO KITTY | 076 |
| HIMITSU | 043 |
| HISENSE | 419 442 619 630 631 363 752 749 |
| HITACHI | 011 166 009 143 072 363 250 587 613 670 749 |
| HP | 378 316 327 421 |
| HUMAX | 518 |
| HYPERION | 609 |
| HYUNDAI | 337 338 |
| ILO | 472 399 |
| INFINITY | 164 |
| INFOCUS | 333 230 547 548 470 532 564 595 733 |
| INITIAL | 282 |
| INSIGNIA | 350 400 052 164 403 454 457 604 617 903 |
| INTEQ | 073 |
| JANEIL | 002 |
| JBL | 164 |
| JCB | 001 |
| JCPENNEY | 024 116 008 009 030 065 258 143 333 363 |
| JVC | 038 034 001 199 210 533 581 639 406 668 701 |
| KAWASHO | 116 001 |
| KEC | 043 |
| KENWOOD | 116 001 |
| KLEGG | 466 |
| KLOSS | 002 |
| KMC | 143 |
| KNOLL SYSTEMS | 230 659 |
| KONKA | 457 |
| KREISEN | 530 |
| KTV | 043 116 143 154 |
| KURAZAI | 072 |
| LG | 363 113 116 102 112 143 569 284 648 741 598 |
| LITEON | 268 |
| LODGENET | 072 |
| LOEWE | 164 738 |
| LOGIK | 072 |
| LUXMAN | 363 |
| LXI | 166 007 138 052 251 333 164 |
| MAGNAVOX | 164 116 003 363 333 226 390 467 431 594 |
| MAJESTIC | 333 072 |
| MARANTZ | 116 164 281 562 584 |
| MATSUI | 164 |
| MATSUSHITA | 080 |
| MAXENT | 242 |
| MEGATRON | 116 011 |
| MEMOREX | 007 072 363 |
| MGA | 116 363 024 028 |
| MIDLAND | 333 073 |
| MINTEK | 362 |
| MINUTZ | 008 |
| MISAKAI | 052 |
| MITSUBISHI | 124 109 024 028 363 348 450 658 |
| MONIVISION | 017 |
| MONTGOMERY WARD | 333 072 |
| MOTOROLA | 081 |
| MTC | 116 363 258 |
| MULTITECH | 043 |
| NAD | 138 |
| NEC | 272 197 116 024 056 019 262 236 281 575 717 758 |
| NET TV | 242 |
| NEXUS | 620 454 |
| NIKEI | 043 |
| NIKKO | 116 |
| NIKO | 527 |
| NORCENT | 390 |
| NUVISION | 351 567 |
| OLEVIA | 432 363 333 |
| ONKING | 043 |
| Onn. | 898 |
| ONWA | 043 |
| OPTOMA | 265 249 |
| OPTONICA | 019 251 |
| ORION | 096 |
| PANASONIC | 080 034 056 164 208 359 552 524 607 664 801 |
| PEERLESS-AV | 723 763 |
| PHILCO | 116 003 164 363 024 056 |
| PHILIPS | 164 038 116 003 363 206 431 333 161 594 629 727 773 |
| PILOT | 116 |
| PIONEER | 234 116 393 272 520 582 660 |
| PLANAR | 728 742 787 788 |
| POLAROID | 388 323 328 353 354 355 356 494 387 391 505 506 508 526 |
| PORTLAND | 363 143 |
| PRINCETON | 004 |
| PRISM | 034 |
| PROSCAN | 333 722 |
| PROTON | 363 112 143 528 |
| PROTRON | 392 398 498 499 500 |
| PROVIEW | 494 |
| PROX | 572 |
| PULSAR | 116 073 |
| PYLE HOME | 661 662 |
| QUASAR | 034 056 606 |
| RADIO SHACK | 019 363 143 043 |
| RCA | 333 065 116 363 024 056 161 588 713 751 |
| REALISTIC | 007 019 043 |
| REVOLUTION HD | 466 |
| RUNCO | 073 395 416 072 342 697 698 |
| SAMPO | 116 363 242 |
| SAMSUNG | 258 050 363 143 333 228 229 515 655 |
| SAMSUX | 116 |
| SANSEI | 076 |
| SANSUI | 096 400 615 454 762 |
| SANYO | 007 166 057 187 511 266 657 750 |
| SCEPTRE | 276 699 |
| SCOTCH | 116 |
| SCOTT | 028 043 048 143 363 497 |
| Sealoc | 897 |
| SEARS | 030 363 007 028 057 143 333 166 138 |
| SEIKI | 690 |
| SELECO | 205 011 |
| SEURA | 704 797 |
| SHARP | 251 019 028 363 143 175 308 684 692 735 765 766 |
| SHENG CHIA | 081 |
| SHERWOOD | 349 |
| SHOGUN | 116 |
| SIGNATURE | 072 |
| Silo | 001 |
| SIMPSON | 003 |
| Skyvue | 648 |
| Skyworth | 895 |
| SONY | 001 608 646 651 702 |
| SOUNDESIGN | 028 363 003 043 |
| SOVA | 041 |
| SOYO | 528 |
| SPECTRICON | 112 |
| SPECTRONIQ | 499 500 |
| SQUAREVIEW | 052 |
| SSS | 363 043 |
| STARLITE | 043 |
| SUNBRITE | 633 634 635 386 605 772 901 902 907 |
| SUPERSCAN | 052 081 |
| SUPRA | 116 |
| SUPRE MACY | 002 |
| SUPREME | 001 |
| SVA | 328 |
| SYLVANIA | 116 003 052 164 333 514 593 |
| SYMPHONIC | 052 |
| SYNTAX OLEVIA | 432 363 333 |
| TANDY | 251 |
| TATUNG | 056 |
| TCL | 705 749 |
| TECHNICS | 034 080 |
| TECHNOL ACE | 028 |
| TECHVIEW | 045 557 |
| TECHWOOD | 363 |
| TEKNIKA | 002 003 363 024 028 043 072 258 143 |
| TELEFUNKEN | 037 046 615 |
| TELERENT | 072 |
| THOMSON | 049 055 |
| TILEVISION | 663 |
| TMK | 363 |
| TNCI | 073 |
| TOSHIBA | 138 030 007 258 325 230 703 |
| TOTEVISION | 143 |
| TRUTECH | 529 |
| TVS | 096 |
| UNIVERSAL | 008 009 |
| UPSTAR | 708 |
| VENTURER | 721 |
| VICTOR | 038 |
| VIDIKRON | 174 164 188 192 342 |
| VIDTECH | 363 |
| VIEWSONIC | 242 389 720 |
| VIKING | 002 |
| VIORE | 472 592 258 |
| VISCO | 526 |
| VITO | 363 |
| VIZIO | 386 387 624 625 675 |
| WARDS | 363 008 009 019 028 072 143 164 034 |
| W Box Technologies | 731 |
| WESTINGHOUSE | 076 276 435 001 280 690 695 |
| WINBOOK | 339 |
| YAMAHA | 116 363 370 |
| YORK | 363 |
| YUPITERU | 043 |
| ZENITH | 363 073 072 |
| ZONDA | 112 |
TV-Projectors
| Manufacturer/Brand | Set-Up Code Number |
| AVIELO | 627 628 |
| AWOL Vision | 905 |
| BENQ | 423 |
| BOXLIGHT | 266 |
| DELL | 618 |
| DIGITAL PROJECTION | 570 |
| DREAMVISION | 235 |
| EPSON | 590 |
| FUJITSU | 410 |
| HITACHI | 250 |
| INFOCUS | 230 532 564 595 726 |
| JVC | 199 533 406 701 |
| KNOLL SYSTEMS | 230 659 |
| MARANTZ | 281 562 584 |
| MITSUBISHI | 348 658 |
| NEC | 236 281 |
| OPTOMA | 249 |
| PANASONIC | 359 607 |
| RUNCO | 342 |
| SANYO | 511 266 657 |
| SELECO | 205 |
| SHARP | 308 |
| SIM2 | 205 |
| SONY | 646 702 |
| TOSHIBA | 230 |
| VIDIKRON | 342 174 188 192 |
| YAMAHA | 370 |
VCR
| Manufacturer/Brand | Set-Up Code Number |
| ADMIRAL | 149 |
| ADVENTURA | 034 |
| AIKO | 117 |
| AIWA | 034 |
| AKAI | 016 146 043 124 |
| AMERICA ACTION | 117 |
| AMERICAN HIGH | 145 |
| AMPRO | 072 |
| ANAM | 145 |
| ASHA | 102 |
| AUDIO DYNAMICS | 012 023 039 043 |
| AUDIOVOX | 101 |
| BEAUMARK | 102 |
| BROKSONIC | 129 |
| CALIX | 101 |
| CANON | 145 |
| CAPEHART | 108 |
| CCE | 024 117 |
| CITIZEN | 101 117 |
| COLT | 024 |
| CRAIG | 003 022 102 |
| CURTIS MATHES | 145 |
| CYBERNEX | 102 |
| DAEWOO | 116 117 010 108 120 |
| DAYTRON | 108 |
| DBX | 012 023 039 043 |
| DYNATECH | 034 149 |
| ELECTROHOME | 059 |
| ELECTROPHONIC | 101 |
| EMERSON | 006 034 101 129 131 153 116 145 120 |
| FISHER | 003 010 008 009 |
| FUJI | 145 |
| FUNAI | 034 |
| GARRARD | 034 |
| GE | 072 147 063 144 145 |
| GO VIDEO | 102 |
| GOLDSTAR | 101 020 012 123 |
| GRADIENTE | 034 |
| HARLEY DAVIDSON | 034 |
| HARMAN KARDON | 012 |
| HARWOOD | 024 |
| HITACHI | 034 043 063 137 020 |
| HUGHES | 817 |
| HUMAX | 817 |
| HQ | 034 |
| INSTANTREPLAY | 145 |
| JCL | 145 |
| JCPENNEY | 012 015 101 020 102 |
| JENSEN | 043 |
| JVC | 048 043 055 012 050 145 |
| KEC | 101 |
| KENWOOD | 048 034 |
| KLH | 024 |
| KODAK | 101 145 |
| LG | 101 020 012 123 |
| LLOYD | 034 |
| LOGIK | 024 |
| LXI | 034 003 009 120 101 |
| MAGIN | 102 |
| MAGNAVOX | 067 034 068 145 |
| MARANTZ | 067 069 012 145 |
| MARTA | 101 |
| MATSUI | 030 |
| MATSUSHITA | 145 |
| MEI | 145 |
| MEMOREX | 101 003 010 034 072 102 134 145 149 |
| MGA | 059 |
| MGN TECHNOLOGY | 102 |
| MINOLTA | 020 |
| MITSUBISHI | 059 020 168 |
| MOTOROLA | 145 149 |
| MTC | 034 102 |
| MULTITECH | 024 034 |
| NEC | 012 023 039 043 048 |
| NIKKO | 101 |
| NOBLEX | 102 |
| NORDMENDE | 043 |
| OLYMPUS | 145 |
| OPTIMUS | 101 |
| OPTONICA | 149 |
| PANASONIC | 070 145 083 133 157 074 167 |
| PENTAX | 020 063 145 |
| PHILCO | 034 067 145 |
| PHILIPS | 067 034 101 145 817 |
| PILOT | 101 |
| PIONEER | 020 048 |
| PORTLAND | 108 |
| PROFITRONIC | 102 |
| PROTEC | 024 |
| PULSAR | 072 |
| QUASAR | 145 075 |
| RADIO SHACK | 123 |
| RADIX | 101 |
| RANDEX | 101 |
| RCA | 144 147 158 145 020 034 102 |
| REALISTIC | 003 008 010 034 101 102 145 149 |
| RICO | 058 |
| RUNCO | 148 |
| SAMSUNG | 102 104 120 144 147 |
| SANKY | 149 |
| SANSUI | 022 043 048 |
| SANYO | 003 010 134 102 |
| SCOTT | 120 129 131 |
| SEARS | 003 008 010 020 101 009 073 120 |
| SHARP | 159 145 149 |
| SHINTOM | 024 |
| SHOGUN | 102 |
| SIGNATURE | 034 |
| SINGER | 024 |
| SONY | 001 057 058 003 154 145 149 |
| SOUNDESIGN | 034 |
| STS | 020 |
| SYLVANIA | 034 059 067 145 |
| SYMPHONIC | 034 |
| TANDY | 010 034 |
| TATUNG | 039 043 |
| TEAC | 034 039 043 |
| TECHNICS | 070 145 |
| TEKNIKA | 019 034 101 145 |
| THOMAS | 034 |
| TIVO | 817 |
| TMK | 006 |
| TOSHIBA | 131 008 059 020 120 817 |
| TOTEVISION | 101 102 |
| UNITECH | 102 |
| VECTOR RESEARCH | 012 |
| VICTOR | 048 |
| VIDEO CONCEPTS | 012 034 |
| VIDEOSONIC | 102 |
| WARDS | 003 020 024 034 131 102 145 120 149 |
| WESTINGHOUSE | 024 |
| XR-1000 | 024 034 145 |
| YAMAHA | 012 034 039 043 |
| ZENITH | 072 048 101 034 058 001 |
VCR-TV/VCR Combos
| Manufacturer/Brand | Set-Up Code Number |
| AMERICA ACTION | 117 |
| DAEWOO | 117 |
| EMERSON | 153 |
| FUNAI | 034 |
| GOLDSTAR | 101 123 |
| HARLEY DAVIDSON | 034 |
| HITACHI | 034 |
| JCPENNEY | 101 |
| LG | 101 123 |
| LLOYD | 034 |
| MAGNAVOX | 034 067 |
| MEMOREX | 101 |
| PANASONIC | 070 167 |
| PHILIPS | 034 067 |
| RADIO SHACK | 123 |
| RCA | 034 144 |
| SEARS | 101 |
| SONY | 057 154 |
| SYLVANIA | 067 |
| SYMPHONIC | 034 |
| THOMAS | 034 |
| ZENITH | 034 |
DVD
| Manufacturer/Brand | Set-Up Code Number |
| ACCURIAN | 003 268 |
| ADCOM | 157 |
| ADVENT | 005 |
| AIWA | 146 |
| AKAI | 281 |
| ALLEGRO | 091 |
| ALPINE | 098 |
| AMW | 006 007 |
| ANTHEM | 361 |
| APEX DIGITAL | 087 111 115 |
| ARCAM | 122 374 |
| ASPIRE DIGITAL | 008 009 |
| AUDIOVOX | 003 010 014 015 149 |
| BEL CANTO DESIGN | 016 |
| BLAUPUNKT | 111 |
| BROKSONIC | 130 |
| BUFFALO | 264 |
| CALIFORNIA AUDIO LABS | 021 124 |
| CAMBRIDGE AUDIO | 323 333 360 |
| CARY AUDIO DESIGN | 174 266 |
| CENTRIOS | 019 |
| CINEVISION | 091 |
| CITIZEN | 020 |
| COBY | 260 |
| CYBERHOME | 271 |
| DAEWOO | 132 |
| DENON | 173 080 138 329 358 |
| DIAMOND VISION | 037 038 039 |
| DISNEY | 040 096 |
| DUNE | 366 |
| DURABRAND | 091 |
| DVD 2000 | 017 |
| DYNEX | 349 |
| EMERSON | 091 143 |
| ENTERPRISE | 074 |
| ESA | 022 143 |
| FISHER | 147 |
| FUNAI | 143 |
| GATEWAY | 222 |
| GE | 027 |
| GO VIDEO | 137 091 220 221 222 |
| GOLDSTAR | 091 |
| GPX | 044 045 |
| GRADIENTE | 021 |
| GREENHILL | 111 |
| GRUNDIG | 083 |
| HARMAN KARDON | 084 140 |
| HITACHI | 101 |
| HITEKER | 087 |
| ILO | 268 |
| INITIAL | 111 |
| INSIGNIA | 143 292 297 091 096 349 385 |
| INTEGRA | 142 180 280 273 338 |
| JATON | 046 |
| JBL | 084 |
| JSI | 047 |
| JVC | 012 |
| JWIN | 048 050 |
| KAWASAKI | 149 |
| KENWOOD | 151 |
| KISS | 279 |
| KLH | 135 |
| KONKA | 051 052 054 055 |
| KOSS | 047 058 059 |
| KREISEN | 060 |
| KRELL | 104 |
| LASONIC | 061 062 |
| LEXICON | 148 |
| LG | 091 057 074 350 |
| LITEON | 264 265 268 |
| LOEWE | 063 |
| MAGNAVOX | 066 096 282 386 |
| MALATA | 267 |
| MARANTZ | 066 332 |
| MCINTOSH | 125 |
| MEMOREX | 040 096 163 |
| MERIDIAN | 153 |
| MICROSOFT | 027 206 |
| MINTEK | 111 282 |
| MITO | 149 |
| MITSUBISHI | 017 |
| MYRYAD | 102 134 |
| NAD | 088 353 |
| NAKAMICHI | 103 |
| NESA | 111 |
| NEUNEO | 067 |
| NEXXTECH | 068 |
| NORCENT | 005 006 007 069 071 072 073 |
| ONKYO | 076 141 180 273 338 035 |
| OPPO | 266 341 |
| OPTIMUS | 023 |
| ORION | 130 |
| ORITRON | 058 |
| PANASONIC | 138 144 150 285 021 346 347 379 |
| PARASOUND | 245 |
| PHILIPS | 066 276 317 344 381 |
| PHILIPS MAGNAVOX | 035 141 066 |
| PIONEER | 023 099 131 304 337 354 364 377 |
| POLAROID | 233 284 295 297 |
| POLK AUDIO | 141 066 035 |
| PRESIDIAN | 003 096 |
| PRIMA | 005 |
| PRIMARE | 193 194 |
| PRINCETON | 078 |
| PROSCAN | 027 |
| RCA | 027 307 |
| RIO | 091 |
| RJTECH | 269 |
| ROTEL | 204 |
| SAMPO | 081 082 085 |
| SAMSUNG | 070 165 137 159 275 380 |
| SANSUI | 154 |
| SANYO | 147 |
| SEARS | 130 |
| SENSORY SCIENCE | 222 |
| SHARP | 094 |
| SHERWOOD | 245 345 361 |
| SHINSONIC | 033 |
| SONIC BLUE | 091 |
| SONY | 001 033 145 191 286 241 242 243 340 343 351 363 368 378 382 |
| SPECTRONIQ | 310 |
| SUNGALE | 090 223 |
| SUPERSCAN | 143 |
| SVA | 092 093 |
| SYLVANIA | 143 |
| SYMPHONIC | 143 |
| TAG MCLAREN | 156 |
| TASCAM | 012 |
| TATUNG | 102 |
| TEAC | 023 270 |
| TECHNICS | 138 |
| TECHWOOD | 088 |
| THETA DIGITAL | 023 |
| THOMPSON | 027 |
| TOSHIBA | 130 141 164 188 273 035 356 |
| TRUTECH | 293 |
| URBAN CONCEPTS | 035 |
| US LOGIC | 111 282 |
| VENTURER | 149 |
| VINC | 161 308 |
| VIZIO | 375 |
| X-BOX | 027 206 |
| YAMAHA | 089 066 197 138 334 383 |
| ZENITH | 057 074 091 |
DVD-Blu-ray & HD DVD
| Manufacturer/Brand | Set-Up Code Number |
| ANTHEM | 361 |
| CAMBRIDGE AUDIO | 360 |
| DENON | 329 358 |
| INSIGNIA | 096 349 |
| INTEGRA | 273 338 |
| LG | 091 350 |
| MAGNAVOX | 096 |
| MARANTZ | 332 |
| NAD | 353 |
| ONKYO | 273 338 |
| OPPO | 341 |
| PANASONIC | 285 346 |
| PHILIPS | 344 381 387 |
| PIONEER | 304 354 364 |
| Reavon | 966 |
| SAMSUNG | 275 380 |
| SHERWOOD | 345 361 |
| SONY | 286 340 351 363 368 378 382 |
| TOSHIBA | 273 356 |
| VIZIO | 375 |
| YAMAHA | 334 383 |
DVD-DVD Recorders
| Manufacturer/Brand | Set-Up Code Number |
| GO VIDEO | 220 221 222 |
| CYBERHOME | 271 |
| ILO | 268 |
| KISS | 279 |
| LITEON | 265 268 |
| MAGNAVOX | 096 |
| PANASONIC | 138 |
| PHILIPS | 317 |
| RCA | 027 |
| SAMSUNG | 301 |
| SENSORY SCIENCE | 222 |
| SONY | 191 |
| TOSHIBA | 188 273 |
DVD-TV/DVD Combos
| Manufacturer/Brand | Set-Up Code Number |
| AIWA | 146 |
| AKAI | 281 |
| AUDIOVOX | 284 |
| DURABRAND | 143 |
| ESA | 143 |
| FUNAI | 143 |
| INSIGNIA | 292 297 143 |
| MAGNAVOX | 282 |
| MINTEK | 282 |
| POLAROID | 284 295 297 |
| SAMSUNG | 165 |
| SV2000 | 143 |
| SYLVANIA | 143 |
| SYMPHONIC | 143 |
| TOSHIBA | 130 |
| TRUTECH | 293 |
DVD-TV/DVD/VCR Combos
| Manufacturer/Brand | Set-Up Code Number |
| DURABRAND | 143 |
| EMERSON | 143 |
| ESA | 143 |
| INSIGNIA | 143 |
| MAGNAVOX | 143 |
| PANASONIC | 144 |
| SUPERSCAN | 143 |
| SV2000 | 143 |
| SYLVANIA | 143 |
| SYMPHONIC | 143 |
| TOSHIBA | 164 |
DVD-DVD/VCR Combos
| Manufacturer/Brand | Set-Up Code Number |
| GO VIDEO | 137 |
| PANASONIC | 150 |
| PHILIPS | 066 (VCR Functions for VCR 067) |
| RCA | 027 (VCR Functions for VCR 144) |
| SAMSUNG | 137 159 |
| SANSUI | 154 |
| SONY | 145 |
| TOSHIBA | 141 |
| ZENITH | 091 (VCR Functions for VCR101) |
AUX-AUDIO
| Manufacturer/Brand | Set-Up Code Number |
| ADCOM | 082 092 225 161 269 356 |
| AIWA | 170 018 104 202 203 213 211 188 |
| AKAI | 189 |
| ANTHEM | 335 337 655 656 |
| ARAGON | 687 |
| ARCAM | 141 077 |
| ATLANTIC TECHNOLOGY | 342 |
| AUDIO FILE | 071 |
| B & K | 096 097 |
| BOSE | 070 170 224 347 409 460 532 |
| BOSTON ACOUSTICS | 447 |
| CAMBRIDGE AUDIO | 684 077 100 745 746 |
| CARVER | 006 028 061 071 201 214 226 185 013 077 284 |
| CARY AUDIO DESIGN | 378 |
| CITATION | 148 |
| CLARION | 026 |
| DELPHI | 515 556 |
| DENON | 340 109 215 230 234 330 679 564 774 913 636 |
| DIGITAL PROJECTION | 660 |
| DVICO | 570 |
| ELAN | 057 290 |
| Emotiva | 886 |
| ENLIGHTENED AUDIO | 099 098 |
| ESCIENT | 451 |
| FISHER | 214 182 |
| FLEXTRONICS | 378 |
| FOSGATE AUDIONICS | 148 342 |
| GOLDSTAR | 008 |
| HARMAN KARDON | 318 148 233 077 028 118 |
| HITACHI | 020 |
| INSIGNIA | 589 |
| INTEGRA | 275 017 046 108 080 209 381 |
| JAMO | 399 |
| JCPENNEY | 216 |
| JVC | 163 191 114 279 291 |
| KEF | 530 |
| KENWOOD | 026 066 145 192 182 005 280 374 |
| KLEGG | 686 |
| KLH | 331 |
| KLIPSCH | 687 |
| KOSS | 216 573 |
| KRELL | 072 384 672 |
| LEXICON | 357 120 235 236 237 360 |
| LINN | 124 377 |
| LUXMAN | 009 139 052 165 115 004 |
| MAGNAVOX | 086 164 152 077 |
| MARANTZ | 006 028 031 040 063 185 186 265 289 492 712 719 |
| MCINTOSH | 238 286 311 819 |
| MERIDIAN | 100 012 013 628 |
| MITSUBISHI | 242 204 |
| MONDIAL | 157 158 042 043 081 112 |
| MYRYAD | 077 |
| NAD | 186 113 598 |
| NAKAMICHI | 040 244 245 172 183 287 |
| NEC | 176 |
| NILES | 403 |
| NIRO | 343 |
| ONKYO | 046 275 017 108 080 209 552 381 |
| OPTIMUS | 026 041 |
| OUTLAW | 342 |
| PANASONIC | 032 195 219 177 292 626 516 |
| PARASOUND | 129 130 132 261 294 295 333 334 |
| PHILIPS | 249 250 063 690 |
| PIONEER | 480 014 039 044 069 168 116 035 063 198 556 513 |
| POLKAUDIO | 556 685 |
| PROCEED | 144 268 |
| RCA | 010 048 117 156 067 288 |
| REALISTIC | 019 073 075 095 |
| ROTEL | 083 074 085 654 |
| RUSSOUND | 445 |
| SAMSUNG | 016 653 571 |
| SANSUI | 040 048 110 063 065 228 |
| SANYO | 214 |
| SCOTT | 019 |
| SHARP | 026 094 175 652 |
| SHERWOOD | 024 102 106 447 370 |
| SIRIUS | 555 585 767 |
| Sonance | 750 |
| SONY | 001 018 247 248 166 101 184 218 271 380 560 |
| SOUNDESIGN | 036 |
| SUNFIRE | 344 345 182 |
| TEAC | 005 019 049 040 212 217 |
| TECHNICS | 122 176 193 219 178 177 200 257 262 |
| THETA DIGITAL | 136 |
| TOSHIBA | 060 087 198 278 510 |
| VIZIO | 551 |
| XM SATELLITE RADIO | 515 556 |
| YAMAHA | 644 205 026 253 169 067 173 264 232 089 264 274 715 717 695 738 756 661 |
| ZENITH | 143 210 |
AUX-DVR(TIVO)
| Manufacturer/Brand | Set-Up Code Number |
| CHANNEL MASTER | 859 |
| DSTV | 787 788 789 786 |
| SONY | 804 805 |
| Speco Technologies | 879 |
| TIVO | 858 |
| ZUUMMEDIA | 855 |
AUX-Home Theater Systems
| Manufacturer/Brand | Set-Up Code Number |
| BOSE | 347 409 460 |
| DENON | 564 |
| INSIGNIA | 589 |
| KEF | 530 |
| KOSS | 573 |
| NAD | 598 |
| NIRO | 343 |
| ONKYO | 552 |
| PANASONIC | 516 |
| PHILIPS | 690 705 |
| PIONEER | 513 |
| POLKAUDIO | 685 |
| ROTEL | 654 |
| SAMSUNG | 571 653 |
| SHARP | 652 |
| SONY | 317 319 321 322 324 697 |
| TOSHIBA | 510 |
| YAMAHA | 644 |
AUX-Tuners & Satellite Radios
| Manufacturer/Brand | Set-Up Code Number |
| BOSE | 532 170 |
| DELPHI | 515 |
| NEXUS AUDIO | 751 |
| PIONEER | 556 |
| RUSSOUND | 445 |
| SIRIUS | 555 585 767 |
| SONY | 380 |
| XM SATELLITE RADIO | 515 556 |
AUX-iPod Controls
| Manufacturer/Brand | Set-Up Code Number |
| APPLE / iPod | 828 824 |
| BOSE | 827 |
| DENON | 559 |
| DLO | 418 |
| GRIFFIN | 835 |
| KENSINGTON | 825 |
| MARANTZ | 834 |
| ONKYO | 833 |
| SONANCE | 831 |
AUX-Media Players
| Manufacturer/Brand | Set-Up Code Number |
| Apple | 836 917 |
| BrightSign | 995 |
| HP | 820 |
| Jadoo TV | 915 |
| Kaleidescape | 905 |
| Nvidia | 942 |
| ROKU | 565 739 992 |
AUX-Gaming Systems
| Manufacturer/Brand | Set-Up Code Number |
| MICROSOFT / XBOX | 851 |
| MICROSOFT / XBOX 360 | 826 |
| SONY / PS2 / PS3 | 829 498 |
AUX-Lighting Controls
| Manufacturer/Brand | Set-Up Code Number |
| COLORADIO VNET | 849 |
| CYRON | 436 |
| LEVITON | 850 |
| LIGHTOLIER CONTROLS | 848 |
| LITE TOUCH | 843 844 |
| LUTRON | 841 839 341 435 |
| RAKO | 846 847 |
| X-10 | 842 840 845 |
AUX-Digital to Analog Converter box
| Manufacturer/Brand | Set-Up Code Number |
| CISCO | 577 |
| DIGITAL STREAM | 609 |
| SONY | 646 647 |
AUX-SOUNDBAR
| Manufacturer/Brand | Set-Up Code Number |
| ARCAM | 100 |
| Autonomics | 795 |
| Bell’O Digital | 534 |
| Bose | 799 548 630 |
| BOWER & WILKINS | 467 |
| Cambridge Audio | 815 |
| DEFINITIVETECHNOLOGY | 582 703 537 |
| DENON | 728 774 927 |
| Dynex | 802 |
| ENERGY | 602 |
| Episode | 629 |
| Harman Kardon | 531 |
| iLive | 730 803 538 |
| Insignia | 802 |
| INTEGRA | 741 |
| JBL | 531 |
| KLIPSCH | 602 797 798 540 543 544 545 |
| LG | 700 541 |
| Magnavox | 520 |
| MARTINLOGAN | 763 517 |
| Onkyo | 557 741 |
| Panasonic | 257 |
| PARADIGM | 618 708 758 517 |
| Peerless-AV | 558 |
| PHILIPS | 727 526 |
| PINNACLE | 606 |
| POLK AUDIO | 605 732 |
| Pyle | 518 |
| RCA | 521 |
| Samsung | 522 |
| SENTRY | 729 |
| Sharp | 801 546 |
| Sony | 529 697 |
| SPEAKERCRAFT | 562 |
| TOSHIBA | 608 |
| VIZIO | 665 |
| YAMAHA | 568 644 725 |
| ZVOX | 796 535 477 |
Customer Support
Universal Remote Control, Inc. www.universalremote.com
URC Automation | Think Beyond Everyday
