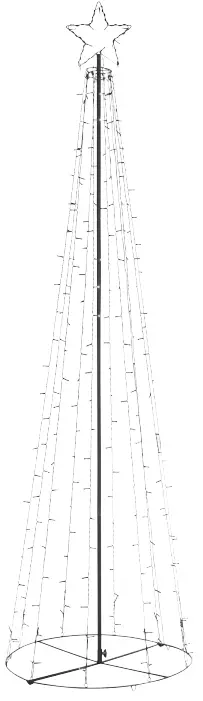

EKVIP Light Tree
Instruction Manual
Light Tree
022419
Jula AB reserves the right to make changes to the product. Jula AB claims copyright on this documentation. It is not allowed to modify or alter this document in any way and the manual shall be printed and used as it is in relation to the product. For the latest version of operating instructions, refer to the Jula website.
WWW.JULA.COM
© JULA AB • 2021-09-02
JULA AB
BOX 363, 532 24 SKARA, SWEDEN
SAFETY INSTRUCTIONS
- Do not connect the product to the mains power supply while the product is still in the pack.
- Designed for indoor and outdoor use.
- Check that no light sources are damaged.
- No part of the product can be replaced or repaired. The whole product must be discarded if any part is damaged.
- Do not use sharp or abrasive objects during assembly.
- Do not expose the cord or conductors to mechanical loads. Do not hang objects on the string of lights.
- This is not a toy. Exercise care if the product is used near children.
- Unplug the transformer from the mains power supply when the product is not in use.
- The string of lights must not be connected to strings of lights, transformers, or connectors from other manufacturers.
- The string of lights may only be connected using the enclosed connectors. There must be no open connectors during use.
- This string of lights must only be used together with strings of lights from the same manufacturer and must never be connected directly to the main supply without a transformer.
- The product is not intended to be as general lighting.
- Recycle products that have reached the end of their useful life according to local regulations.
WARNING!
The string of lights may only be used if all seals are fitted correctly.
SYMBOLS
| Read the instructions. |
 | Class II. |
 | Designed for indoor and outdoor use. |
 | Approved as applicable directives. |
 | Recycle discarded products as electrical waste. |
TECHNICAL DATA
| The input voltage, transformer | 230 V ~ 50 Hz |
| The output voltage, transformer | 31 V |
| Output | 5,9 W |
| Protection rating | IP44 |
USE
- Remove the string of lights from the packaging.
- Connect the string of lights to the string of lights connected to the transformer.
- Make sure that there are no open connectors.
- Plug the plug into the mains power supply.
PRODUCT INFORMATION SHEET
| Supplier’s name or trademark: | EKVIP | |||
| Supplier’s address (a): | Jula AB, Box 363, 532 24 SKARA | |||
| Model identifier: | 022419 | |||
| Type of light source: | LED | |||
| Lighting technology used: | LED | Non-directional or directional: | NDLS | |
| A light source connected to the mains supply or a light source not connected to the mains supply: | MLS | Connected light source (CLS): | no | |
| Colour-tuneable light source: | no | Envelope: | – | |
| High luminance light source: | no | |||
| Anti-glare shield: | no | Dimmable: | no | |
| Product parameters | ||||
| Parameter | Value | Parameter | Value | |
| General product parameters: | ||||
| Energy consumption in on-mode (kWh/1000 h) | 6 | Energy efficiency class | G | |
| Useful luminous flux (Φuse), indicating if it refers to the flux in a sphere (360˚), in a wide cone (120˚) or in a narrow cone (90˚). | 480 in the sphere (360°) | Correlated colour temperature, rounded to the nearest 100 K, or the range of correlated colour temperatures, rounded to the nearest 100 K, that can be set. | 2 700 | |
| On-mode power (Pon), expressed in W. | 5,9 | Standby power (PSB), expressed in W and rounded to the second decimal. | 0,00 | |
| Networked standby power (Pnet) for CLS, expressed in W and rounded to the second decimal. | – | Colour rendering index, rounded to the nearest integer, or the range of CRI-values that can be set. | 80 | |

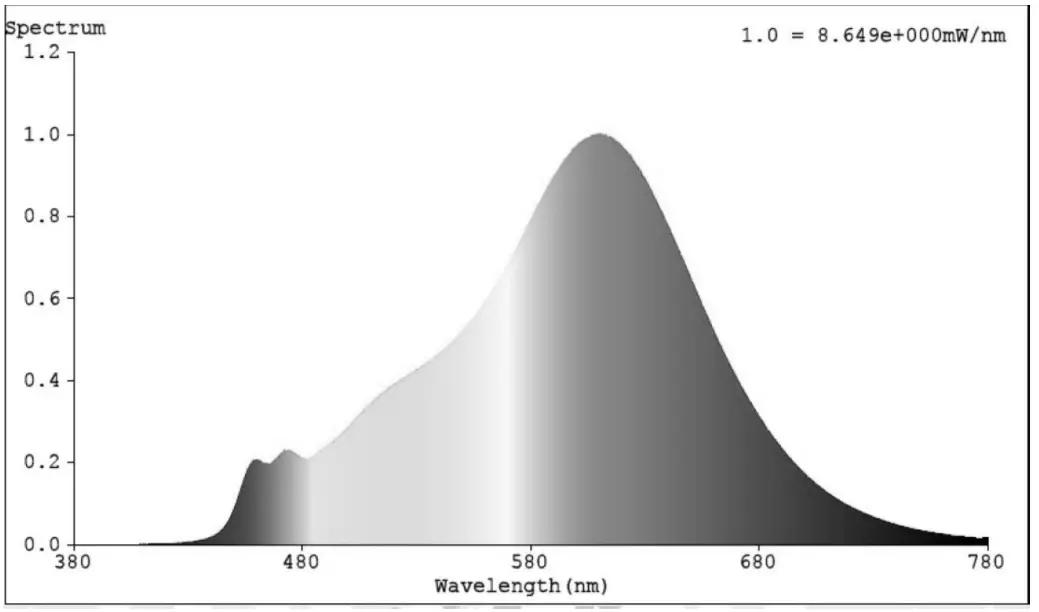

| Outer dimensions without separate control gear, lighting control parts and non-lighting control parts if any (millimetre). | Height | 2 500 | Spectral power distribution in the range 250 nm to 800 nm, at full load. | See the image on the last page |
| Width | 700 | |||
| Depth | 700 | |||
| The claim of equivalent power (c) | – | If yes, equivalent power (W) | – | |
| Chromaticity coordinates (x and y) | 0,479 0,434 | |||
| Parameters for LED and OLED light sources: | ||||
| R9 colour rendering index value | 12 | Survival factor | 1,00 | |
| The lumen maintenance factor | 0,96 | |||
| Parameters for LED and OLED mains light sources: | ||||
| Displacement factor (cos φ1) | 0,64 | Colour consistency in McAdam ellipses | 5 | |
| Claims that an LED light source replaces a fluorescent light source without integrated ballast of a particular wattage. | -(b) | If yes then replacement claim (W) | – | |
| Flicker metric (Pst LM) | 0,1 | Stroboscopic effect metric (SVM) | 0,1 | |
(a)”-”: not applicable;
(b)”-”: not applicable;
