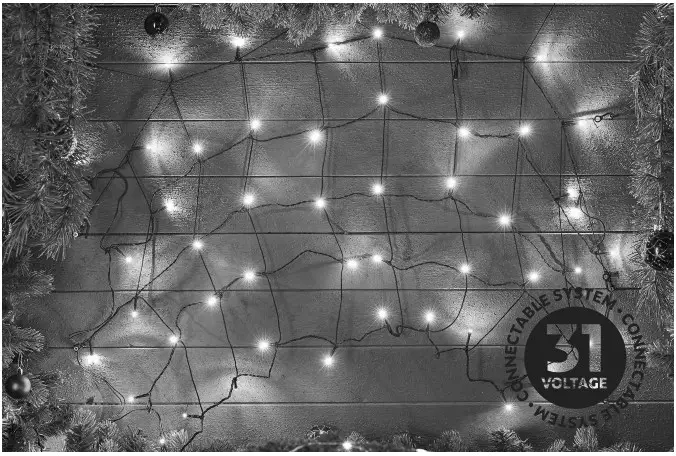

LIGHT NET
LIGHT NET
OPERATING INSTRUCTIONS
Original instructions
Jula AB reserves the right to make changes to the product. Jula AB claims copyright on this documentation. It is not allowed to modify or alter this documentation in any way and the manual shall be printed and used as it is in relation to the product. For the latest version of operating instructions, refer to the Jula website.
WWW.JULA.COM
© JULA AB • 2021-09-02
JULA AB
BOX 363, 532 24 SKARA, SWEDEN
SAFETY INSTRUCTIONS
- Do not connect the product to a power point while the product is still in the pack.
- Intended for indoor and outdoor use.
- Check that no light sources are damaged.
- No parts of the product can be replaced, or repaired. The whole product must be discarded if any part is damaged.
- Do not use sharp or pointed objects during assembly.
- Do not subject the power cord or wires to mechanical stress. Do not hang objects on the string light.
- This is not a toy. Be careful if using the product near children.
- Disconnect the transformer from the power point when the product is not in use.
- This product must never be connected directly to a power point without the transformer.
- The product is not intended to be used as general lighting.
- Recycle products that have reached the end of their useful life according to local regulations.
WARNING!
The product must only be used when all the seals are correctly fitted.
Symbols
 | Read the instructions. |
 | Safety class III. |
 | Approved as per applicable directives. |
 | Recycle discarded product in accordance with local regulations. |
TECHNICAL DATA
| Input voltage | 31 VDC |
| Output | 3.2 W |
| No. of LEDs | 50 |
| Safety class | II |
| Protection rating | IP44 |
| Size | 110×50 – 110×110 cm |
USE
- Remove the product from the packaging.
- Place the product in the required location.
- Connect the product to the intended transformer.
- Connect the transformer to the mains.
PRODUCT INFORMATION SHEET
| Supplier’s name or trademark: | EKVIP | ||
| Supplier’s address (a): | Jula AB, Box 363, 532 24 SKARA | ||
| Model identifier: | 22431 | ||
| Type of light source: | LED | ||
| Lighting technology used: | LED | Non-directional or directional: | NDLS |
| Light source connected to mains supply or light source not connected to mains supply: | NMLS | Connected light source (CLS): | no |
| Colour-tuneable light source: | no | Envelope: | |
| High luminance light source: | no | ||
| Anti-glare shield: | no | Dimmable: | no |
| Product parameters | |||
| Parameter | Value | I Parameter | Value |
| General product parameters: | ||||
| Energy consumption in on-mode (kWh/1000 h) | 4 | Energy efficiency class | F | |
| Useful luminous flux (Ouse), indicating if it refers to the flux in a sphere (3600), in a wide cone (120°) or in a narrow cone (90°). | 300 in sphere (360°) colour temperatures, rounded to the | Correlated colour temperature, rounded to C the nearest 100 K, or the range of correlated nearest 100 K, that can be set. | 2700 | |
| On-mode power (13), expressed in W. | 3,2 | s) expressed in W and Standby power (P i:, rounded to the second decimal. | 0,00 | |
| Networked standby power (Pre) for CLS, expressed in W and rounded to the seconddecimal. | – | Colour rendering index, rounded to the nearest integer, or the range of CRI-values that can be set. | 80 | |

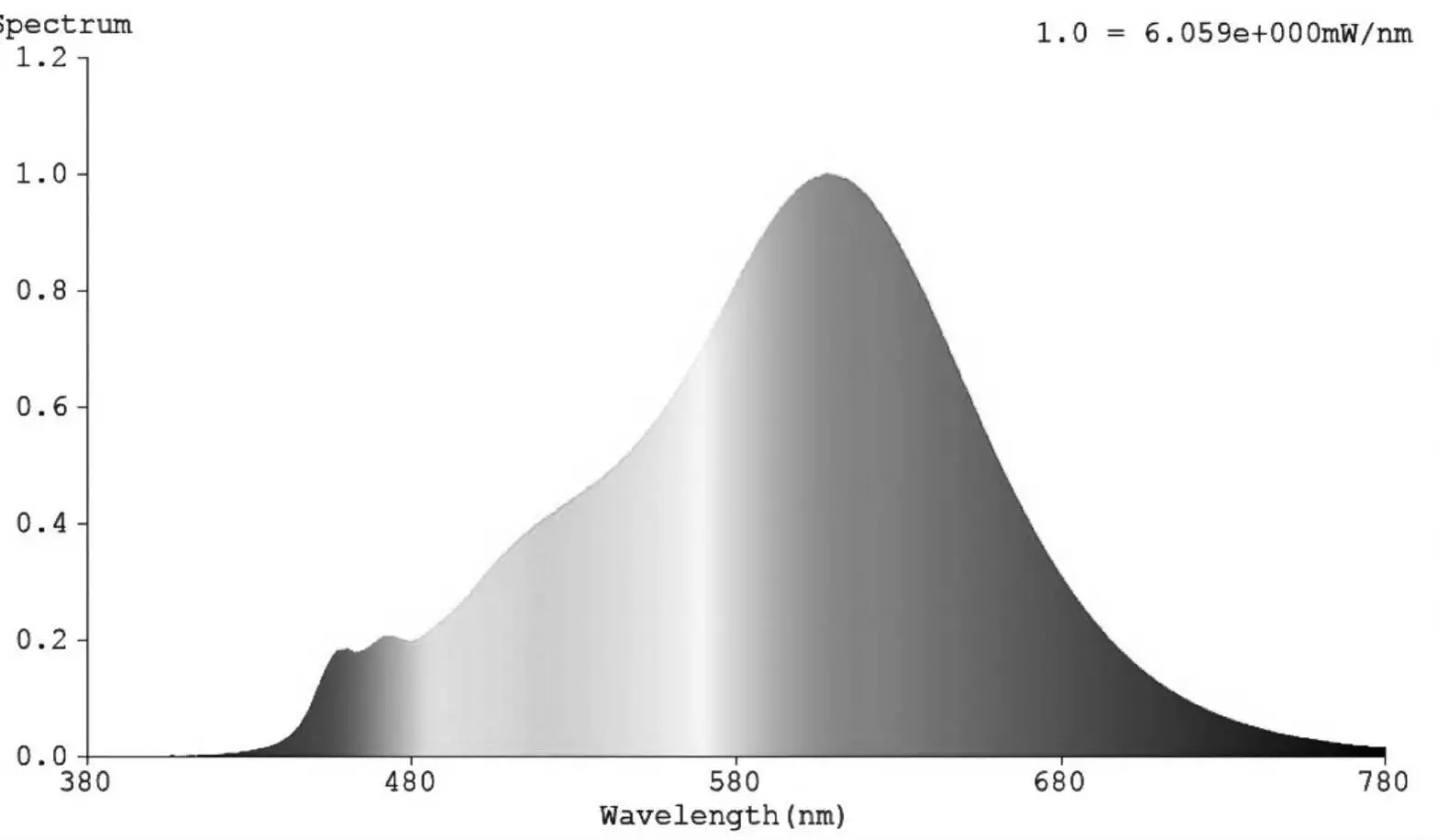

| Outer dimensions without separate control gear, lighting control parts and non-lighting control parts, if any (millimetre). | Height | – | Spectral power distribution in the range 250 nm to 800 nm, at full-load. | See image in last page |
| Width | ||||
| Depth | ||||
| Claim of equivalent power (C) | – | If yes, equivalent power (W) | – | |
| Chromaticity coordinates (x and y) | 0,478 0,438 | |||
| Parameters for LED and OLED light sources: | ||||
| R9 colour rendering index value | 9 | Survival factor | 1,00 | |
| The lumen maintenance factor | 0,96 | |||
| Parameters for LED and OLED mains light sources: | ||||
| Displacement factor (cos 91) | Colour consistency in mcadam ellipses | 5 | ||
| Claims that an LED light source replaces a fluorescent light source without integrated ballast of a particular wattage. | -(b) | If yes then replacement claim (W) | – | |
| Flicker metric (Pst LM) | – | Stroboscopic effect metric (SVM) | – | |
(a)”-”: not applicable;
(b)”-”: not applicable;
