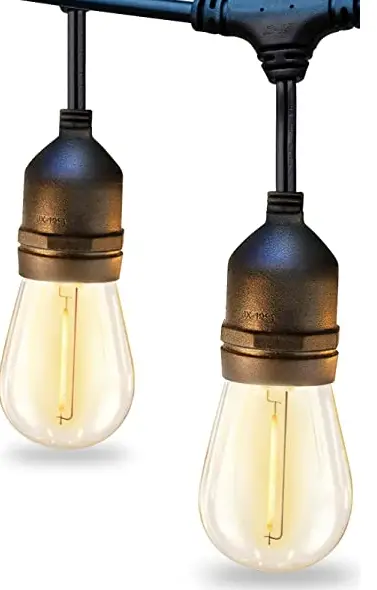

EKVIP 022421 String Lights
EKVIP 022421 String Lights
SAFETY INSTRUCTIONS
- Do not connect the product to the mains power supply while the product is still in the pack.
- Designed for indoor and outdoor use.
- Check that no light sources are damaged.
- Do not connect two or more string lights together.
- No part of the product can be replaced or repaired. The whole product must be discarded if any part is damaged.
- This string of lights must only be used together with the supplied transformer and must never be connected directly to the mains supply without a transformer.
- The product is not intended to be as general lighting.
WARNING!
The string of lights may only be used if all seals are fitted correctly.
Symbols
- Read the instructions.
- Class III.
- Approved as per applicable directives.
- Recycle a discarded product in accordance with applicable regulations.
TECHNICAL DATA
- Rated voltage, in 230 V ~ 50 Hz
- Rated voltage, out 31 VDC
- Output 2 W
- Bulbs 80
- Protection rating IP44
- Size L8.1 m
PRODUCT INFORMATION SHEET
| Supplier’s name or trademark: | EKVIP | |||
| Supplier’s address (a): | Jula AB, Box 363, 532 24 SKARA | |||
| Model identifier: | 022421 | |||
| Type of light source: | LED | |||
| Lighting technology used: | LED | Non-directional or directional: | NDLS | |
| Light source connected to mains supply or light source not connected to mains supply: | NMLS | Connected light source (CLS): | no | |
| Colour-tuneable light source: | no | Envelope: | – | |
| High luminance light source: | no | |||
| Anti-glare shield: | no | Dimmable: | no | |
| Product parameters | ||||
| Parameter | Value | Parameter | Value | |
| General product parameters: | ||||
| Energy consumption in on-mode (kWh/1000 h) | 2 | Energy efficiency class | F | |
| Useful luminous flux (Φuse), indicating if it refers to the flux in a sphere (360˚), in a wide cone (120˚) or in a narrow cone (90˚). |
190 in sphere (360°) | Correlated colour temperature, rounded to the nearest 100 K, or the range of correlated colour temperatures, rounded to the nearest 100 K, that can be set. |
2 700 | |
| On-mode power (Pon), expressed in W. | 2,0 | Standby power (Psb), expressed in W and rounded to the second decimal. | 0,00 | |
| Networked standby power (Pnet) for CLS, expressed in W and rounded to the second decimal. | – | Colour rendering index, rounded to the nearest integer, or the range of CRI-values that can be set. | 80 | |

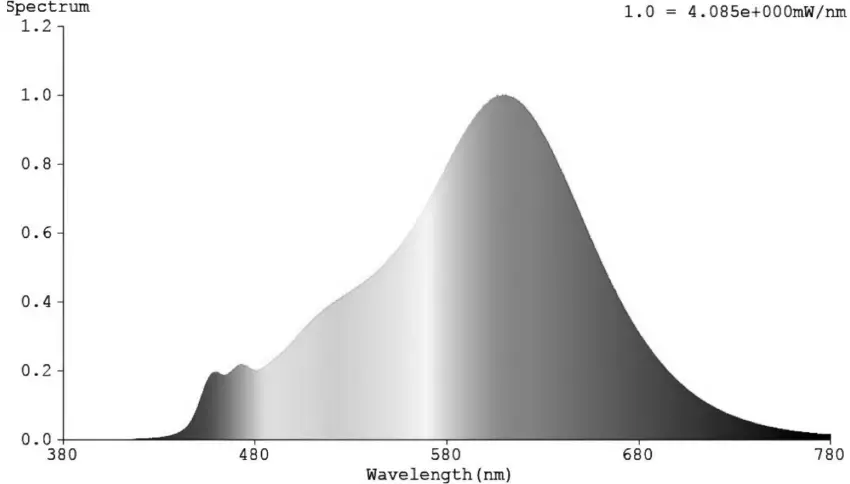

| Outer dimensions without separate control gear, lighting control parts and non-lighting control parts, if any (millimetre). | Height | – | Spectral power distribution in the range 250 nm to 800 nm, at full-load. | See image in last page |
| Width | 8 000 | |||
| Depth | – | |||
| Claim of equivalent power (c) | – | If yes, equivalent power (W) | – | |
| Chromaticity coordinates (x and y) | 0,480 0,437 | |||
| Parameters for LED and OLED light sources: | ||||
| R9 colour rendering index value | 12 | Survival factor | 1,00 | |
| The lumen maintenance factor | 0,96 | |||
| Parameters for LED and OLED mains light sources: | ||||
| Displacement factor (cos φ1) | – | Colour consistency in mcadam ellipses | 6 | |
| Claims that an LED light source replaces a fluorescent light source without integrated ballast of a particular wattage. | -(b) | If yes then replacement claim (W) | – | |
| Flicker metric (Pst LM) | – | Stroboscopic effect metric (SVM) | – | |
