RAVAK LogoNewDay – 150×150, 140×140
INSTALLATION INSTRUCTIONSRAVAK C651000000 New Day Bathtub 140 x 140 cmpage 2-18
RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig+ panel
page 19-31

Contents hide
1 C651000000 New Day Bathtub 140 x 140 cm
2 NewDay
3 Siphon not included.
4 Cover strip not included.
5 Maintenance
6 Documents / Resources
6.1 References
7 Related Posts

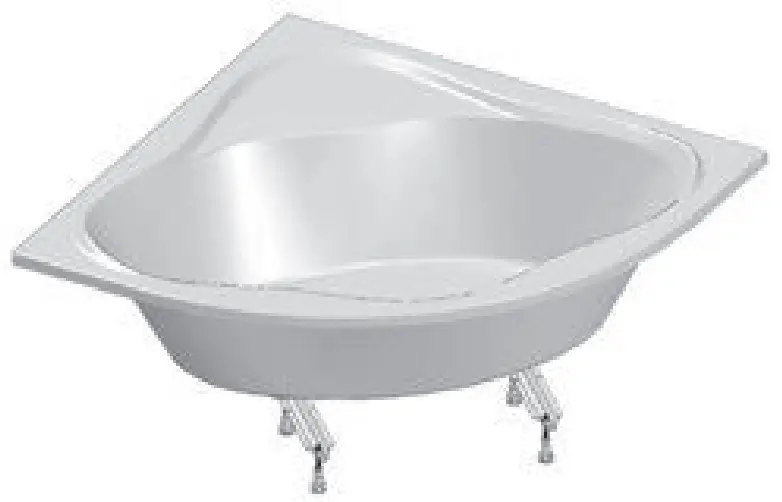

C651000000 New Day Bathtub 140 x 140 cm

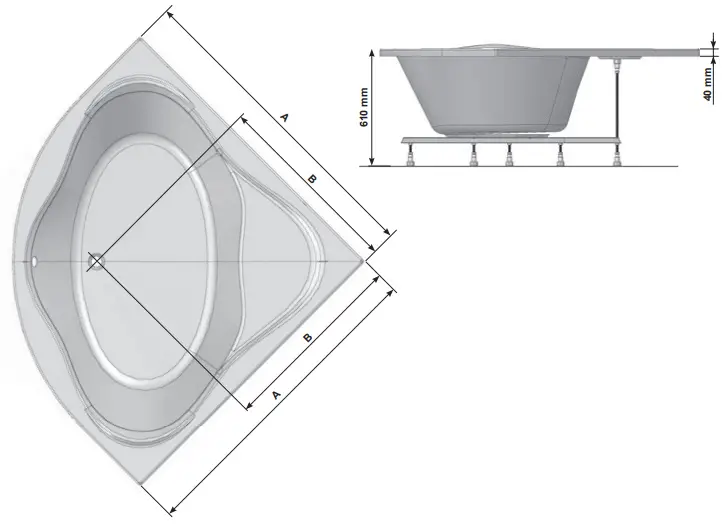

RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 1

NewDay
150×150140×140
A mm15001400
B mm930825

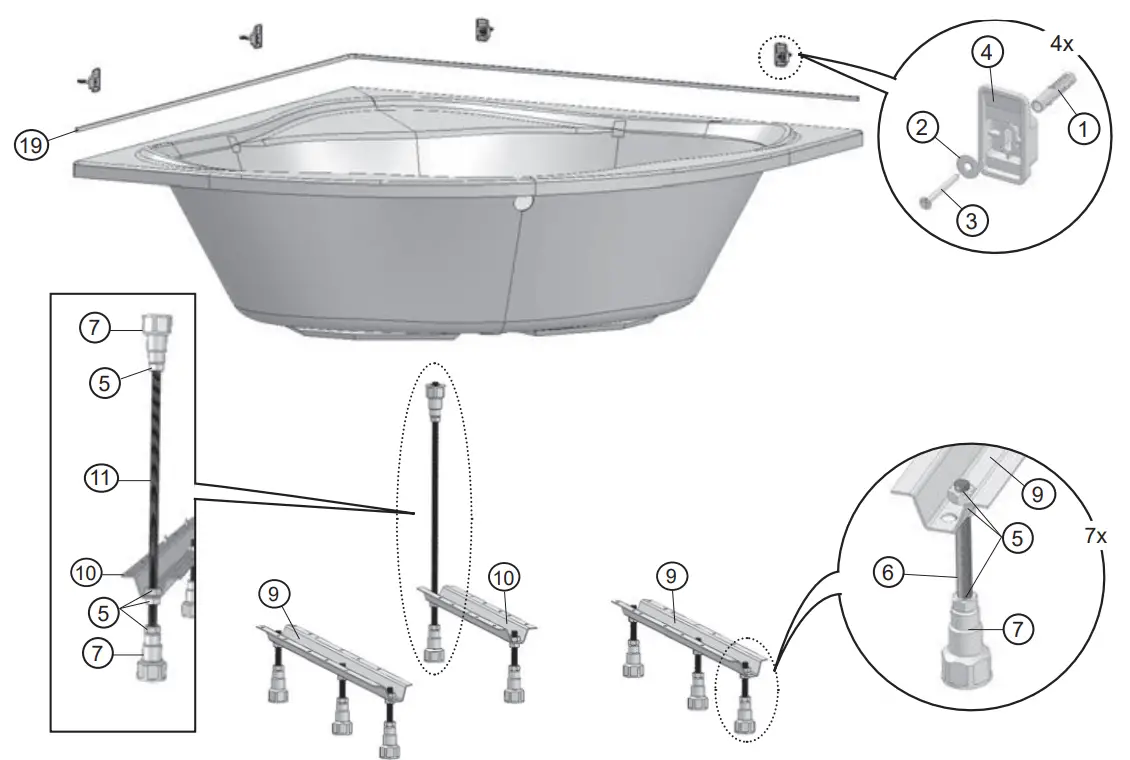

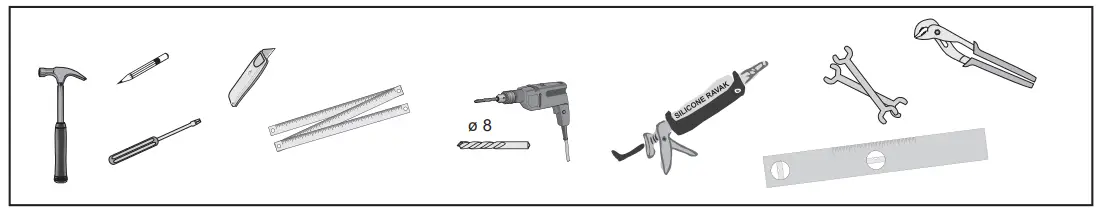

RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 2RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 3

NewDay

14xø8RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 4
24xø5RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 5
34x4×40RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 6
44xRAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 7
525xM12RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 8
67xM12x125RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 9
79xRAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 10
812x5,5×16RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 11
92xRAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 12
101x
111xRAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 13

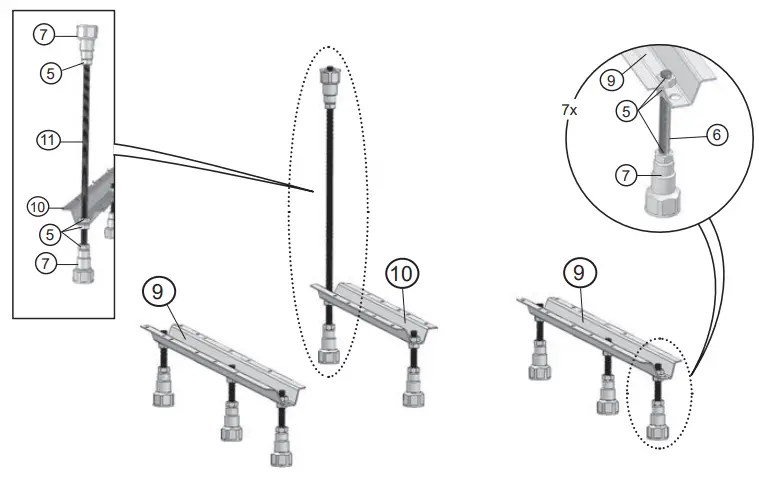

181xRAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 14
191xRAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 15

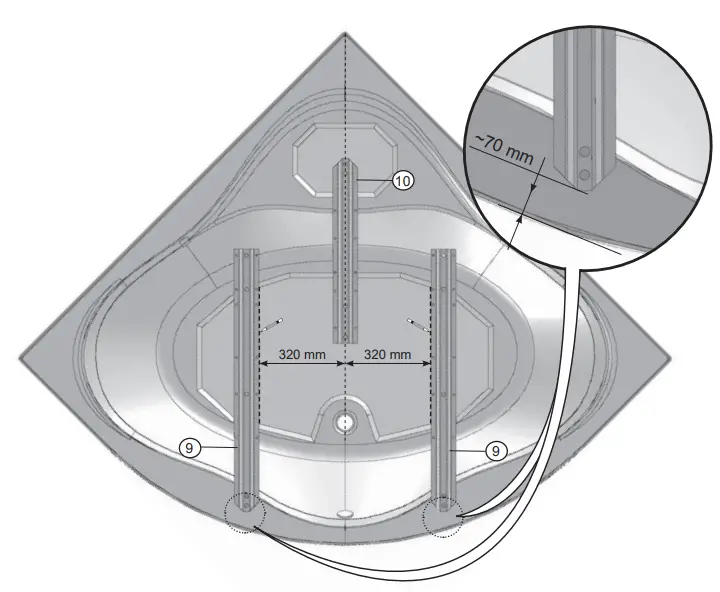

RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 16RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 17

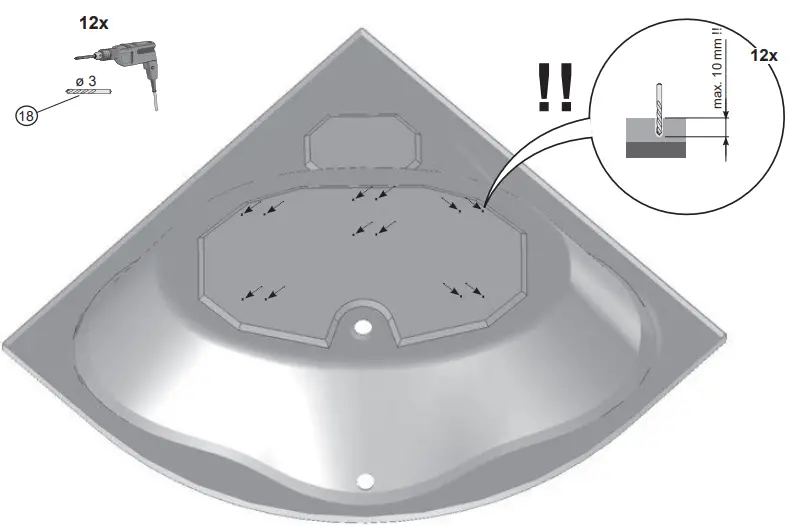

RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 18RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 19

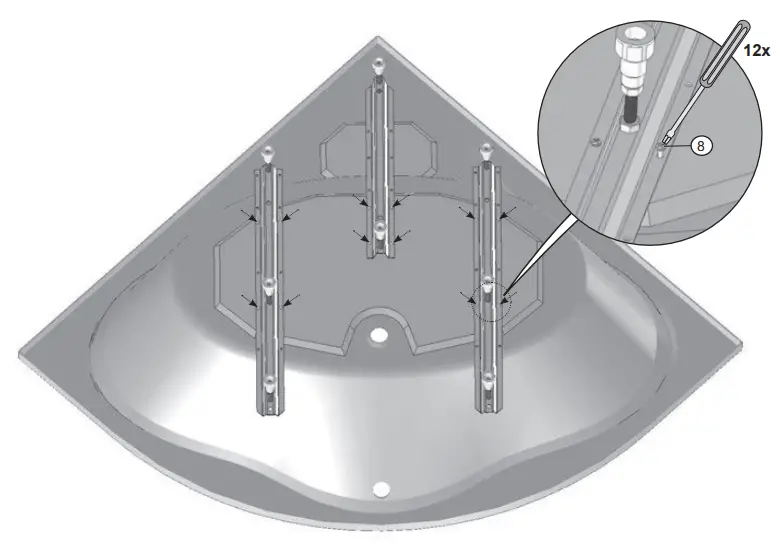

RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 20RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 21

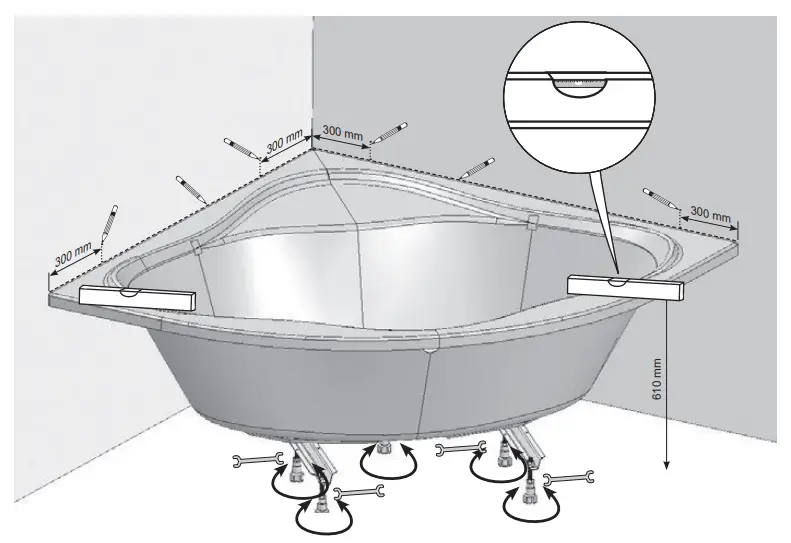

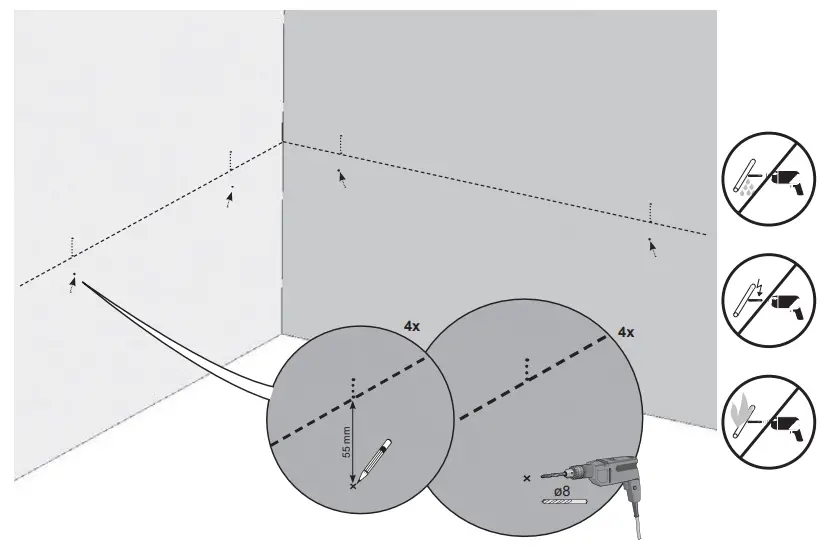

RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 22RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 23

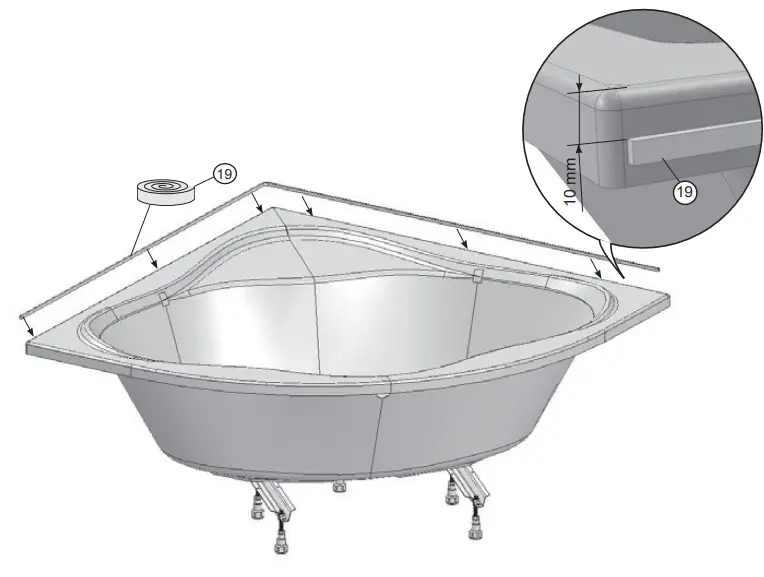

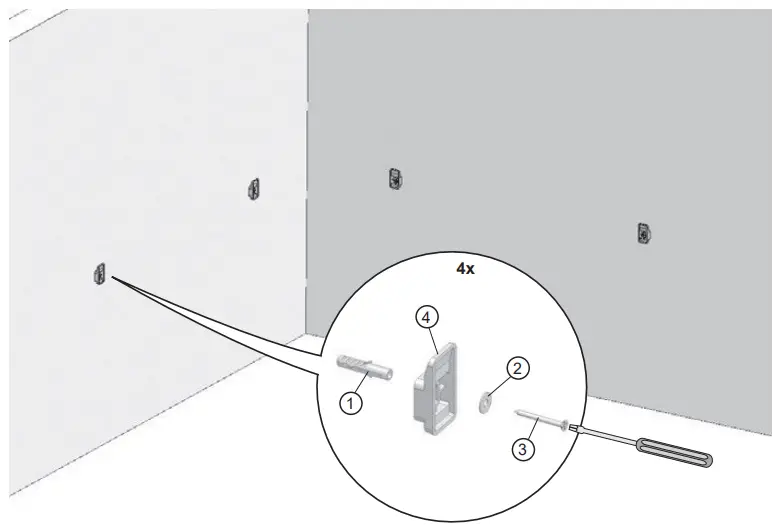

RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 24RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 25

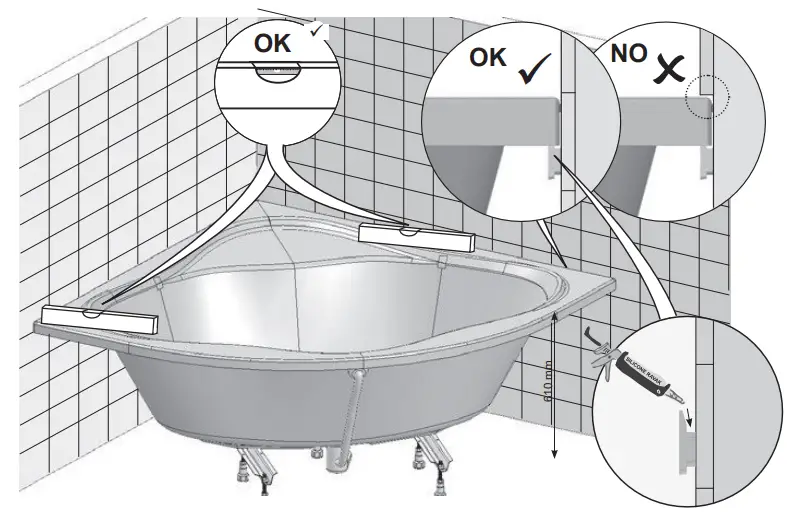

RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 26

Siphon not included.

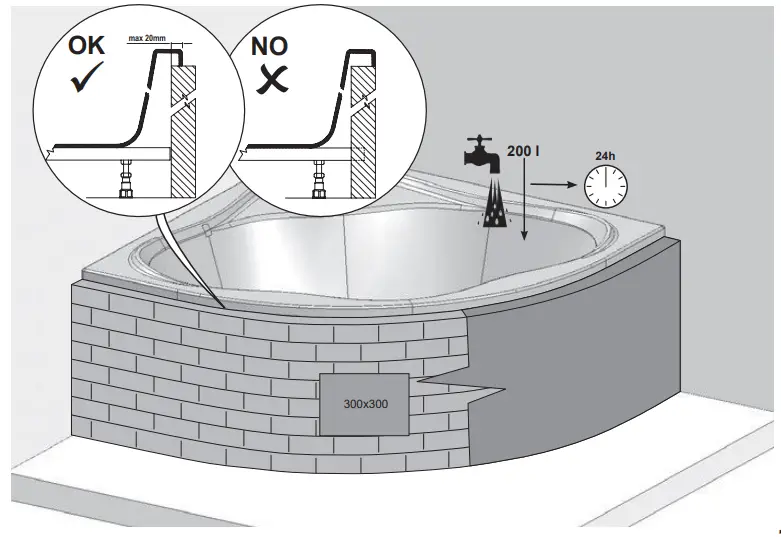

RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 27

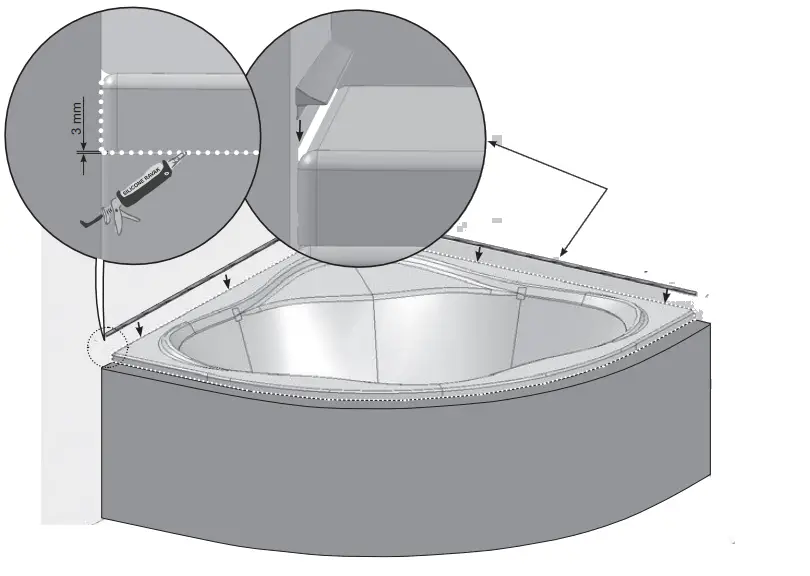

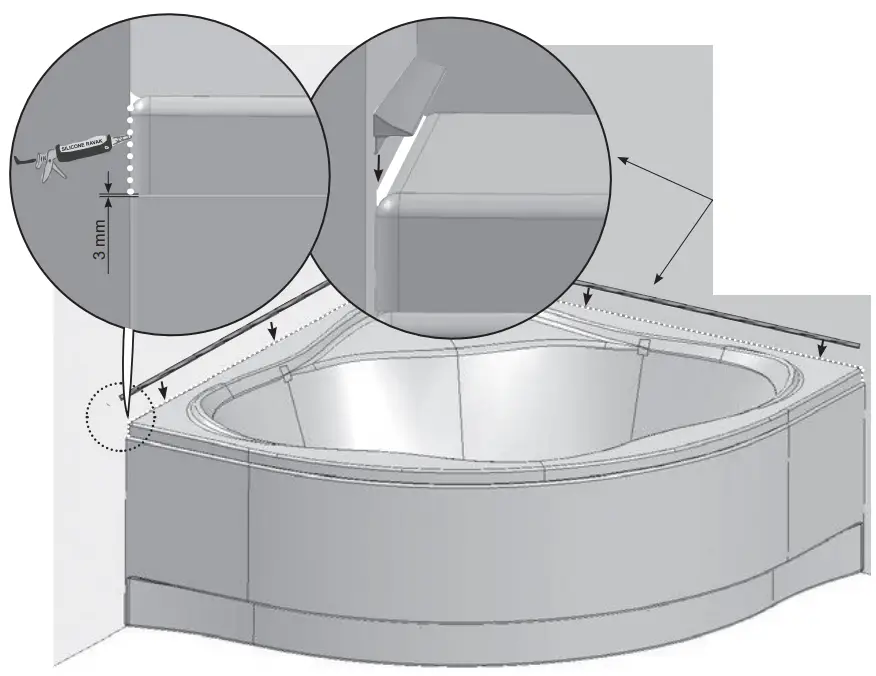

Cover strip not included.

RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 28

NewDay – 150×150, 140×140

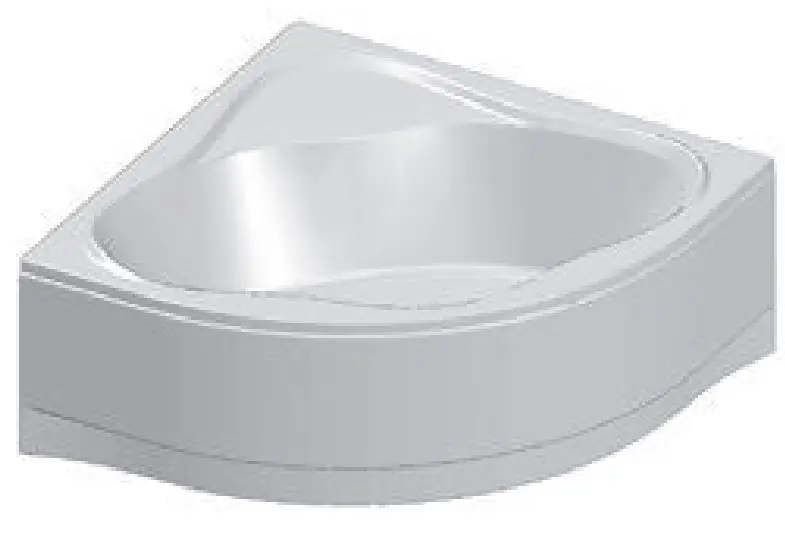

+ panel RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig

NewDay

18xRAVAK C651000000 New Day Bathtub 140 x 140 cm - Icon
38xv
58x
122x
132x
142xRAVAK C651000000 New Day Bathtub 140 x 140 cm - Icon 5
152xRAVAK C651000000 New Day Bathtub 140 x 140 cm - Icon 6
162xRAVAK C651000000 New Day Bathtub 140 x 140 cm - Icon 7
174xRAVAK C651000000 New Day Bathtub 140 x 140 cm - Icon 8
204xRAVAK C651000000 New Day Bathtub 140 x 140 cm - Icon9
214xRAVAK C651000000 New Day Bathtub 140 x 140 cm - Icon 10

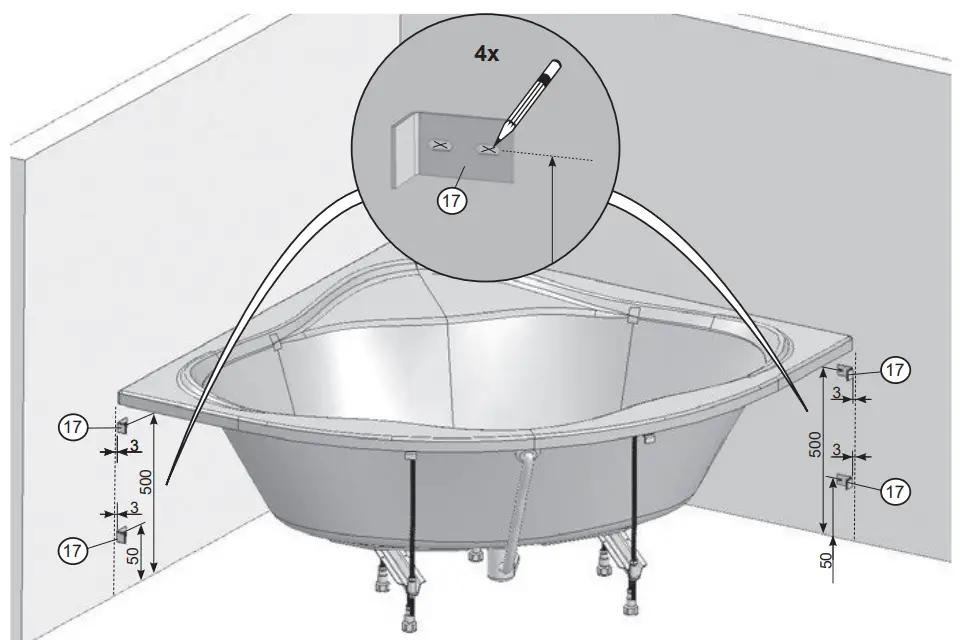

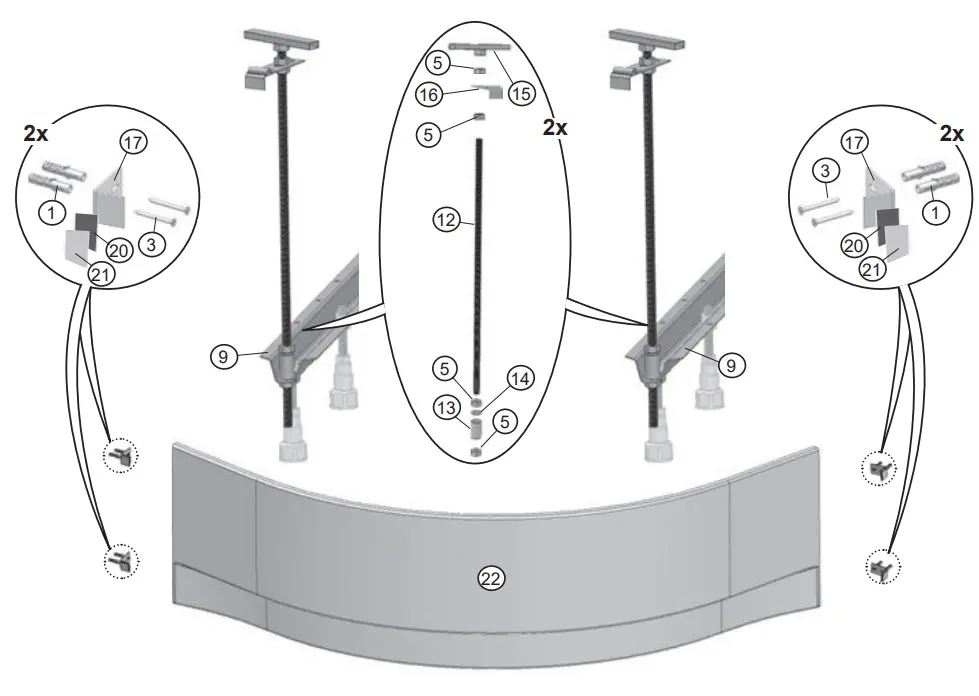

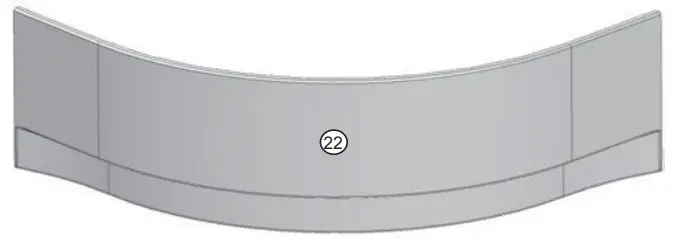

RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 29RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 30

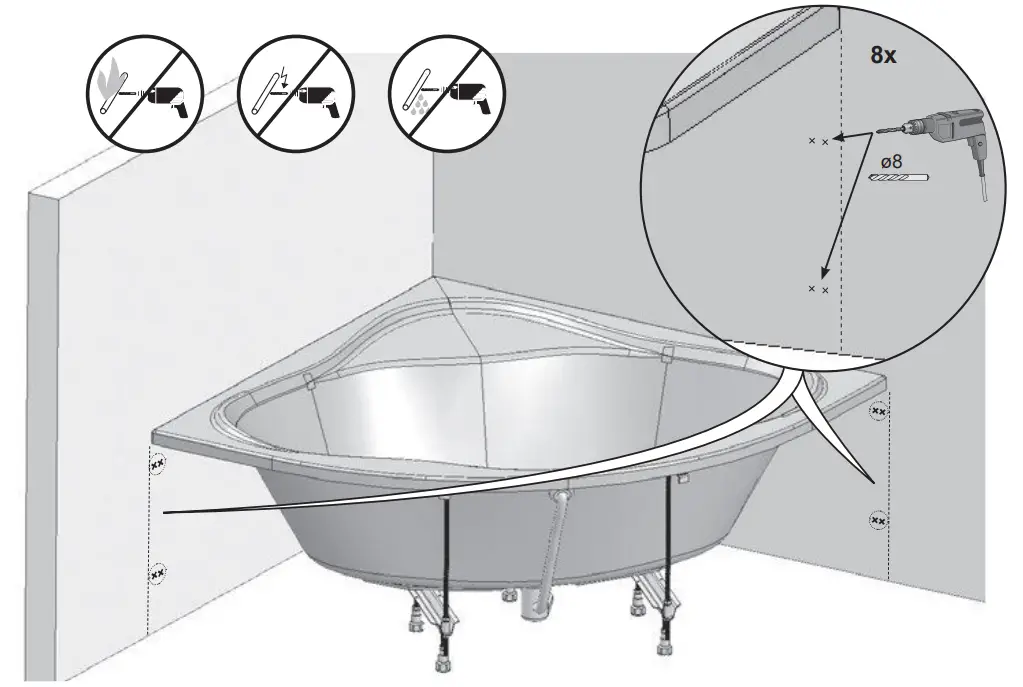

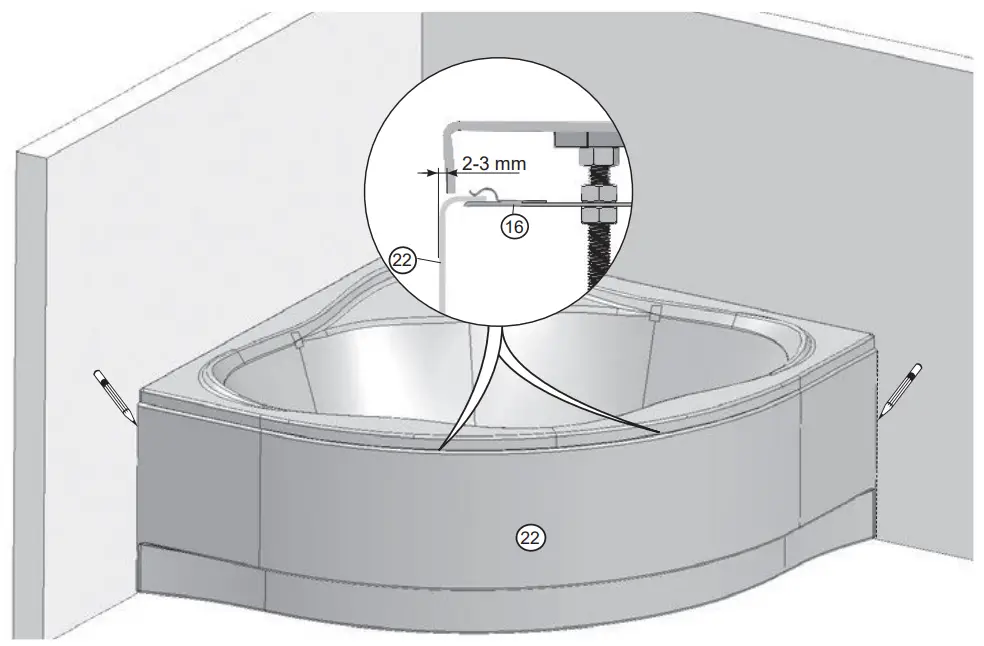

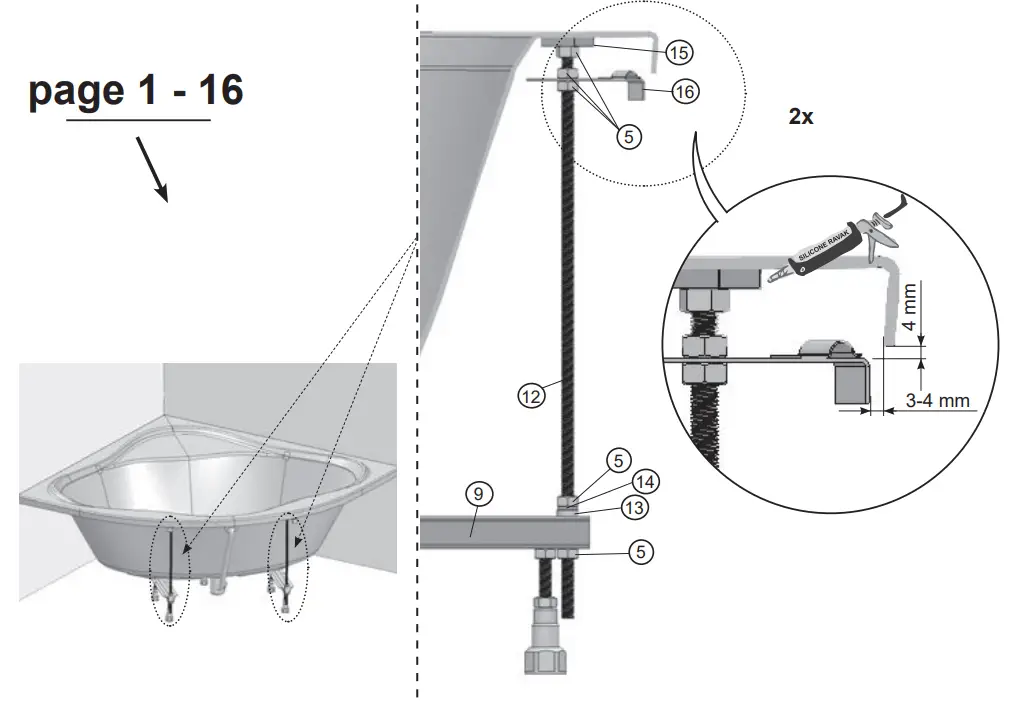

RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 31RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 32
vRAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 33RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 34

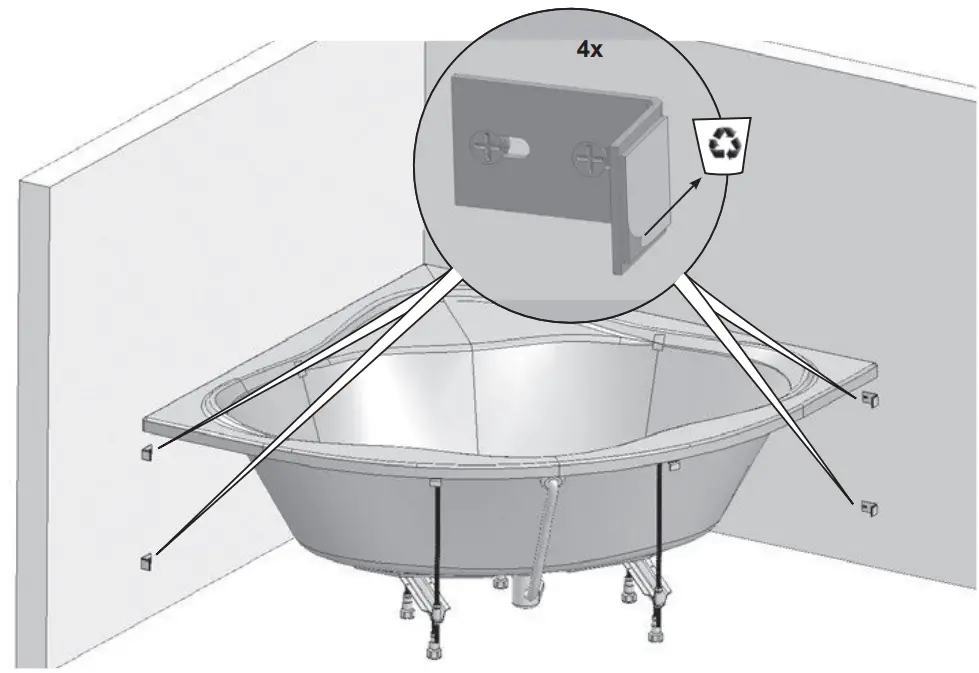

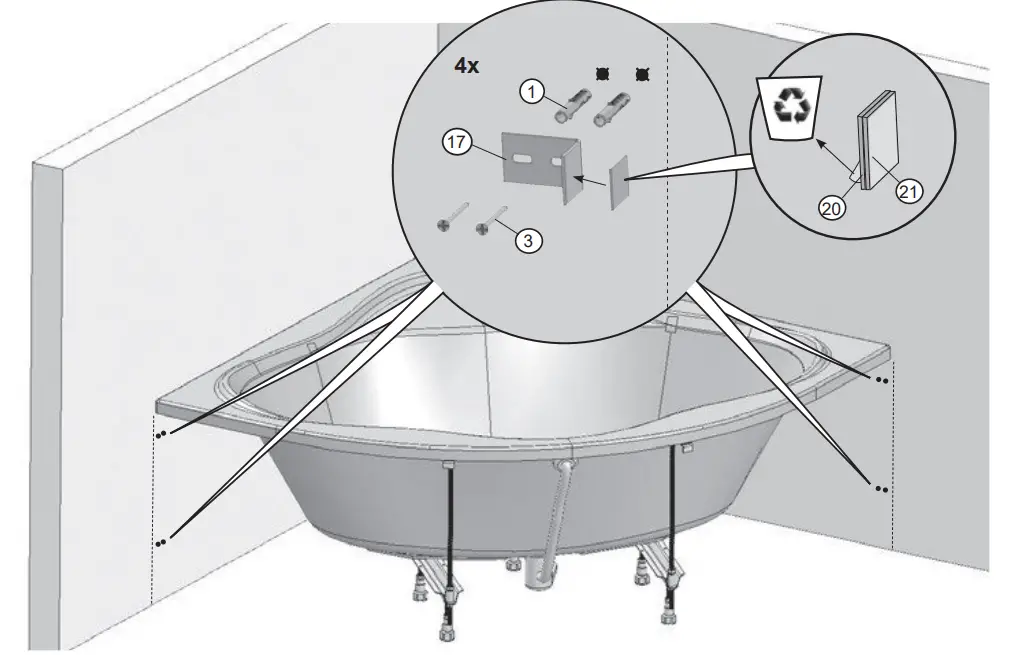

RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 35RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 36

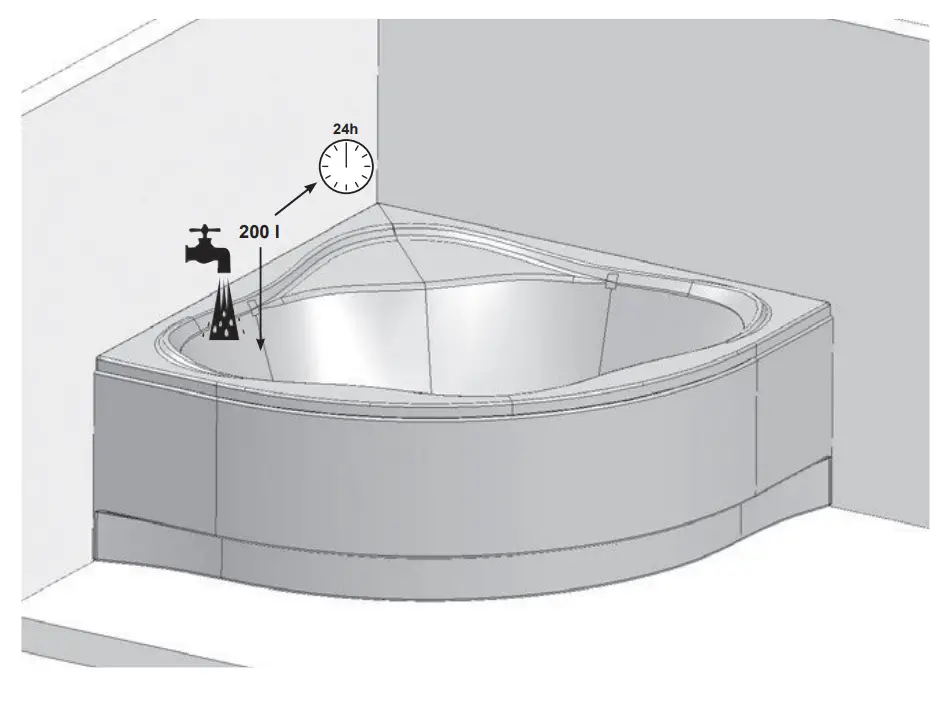

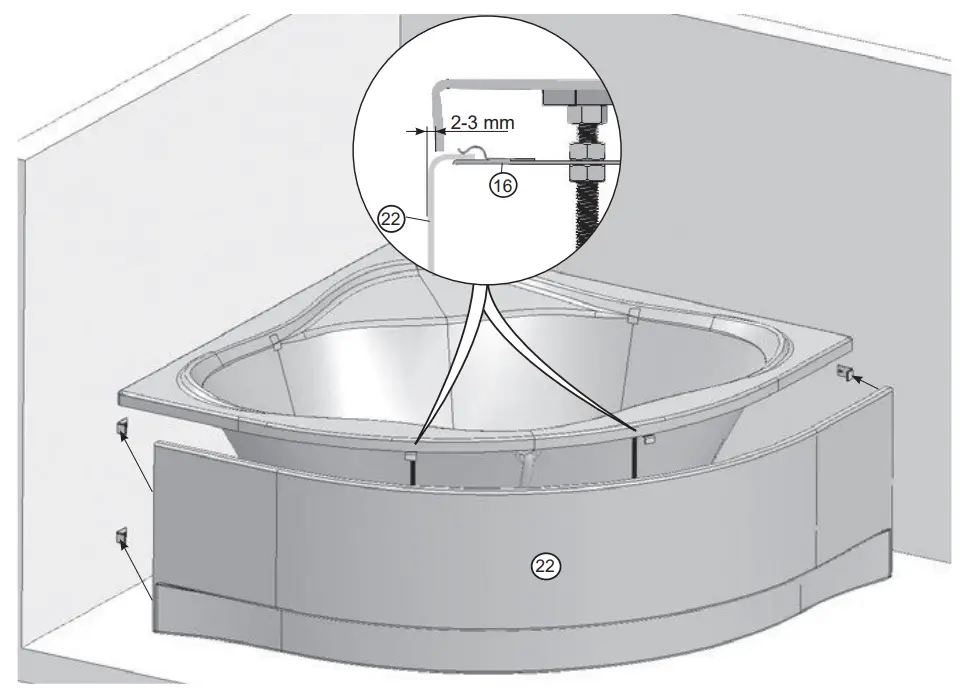

RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 37vRAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 37

Cover strip not included.
RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 39For further information, contact your local Ravak dealer.
The manufacturer reserves the right to amend or improve on existing designs or features. Please help preserve the environment by observing local country guidelines or laws regarding recycling. Materials that are not suitable for recycling must be disposed of at an official and suitable waste control center.

Maintenance

– clean the plastic parts with a cloth and mild detergent. never use any abrasive pastes, dissolvents, acetone or detergents, and disinfectants, that contain chlorine.

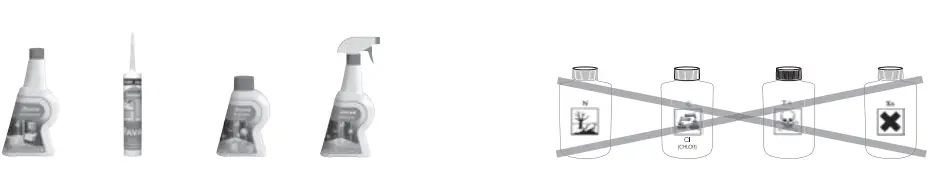

the manufacturer accepts no liability for any type of use or care other than those contained in these instructions. The manufacturer reserves the right to introduce technical changes without notice. For further information about assembly, use, and care contact your local dealer. The manufacturer recommends: RAVAK CLEANER – works to remove old and dried-on debris from glass surfaces, shower frames, enamel and acrylic bathtubs, washbasins and water taps; RAVAK DISINFECTANT – is a special preparation with considerable anti-bacterial and anti-fungal effects. RAVAK C651000000 New Day Bathtub 140 x 140 cm - Fig 40
