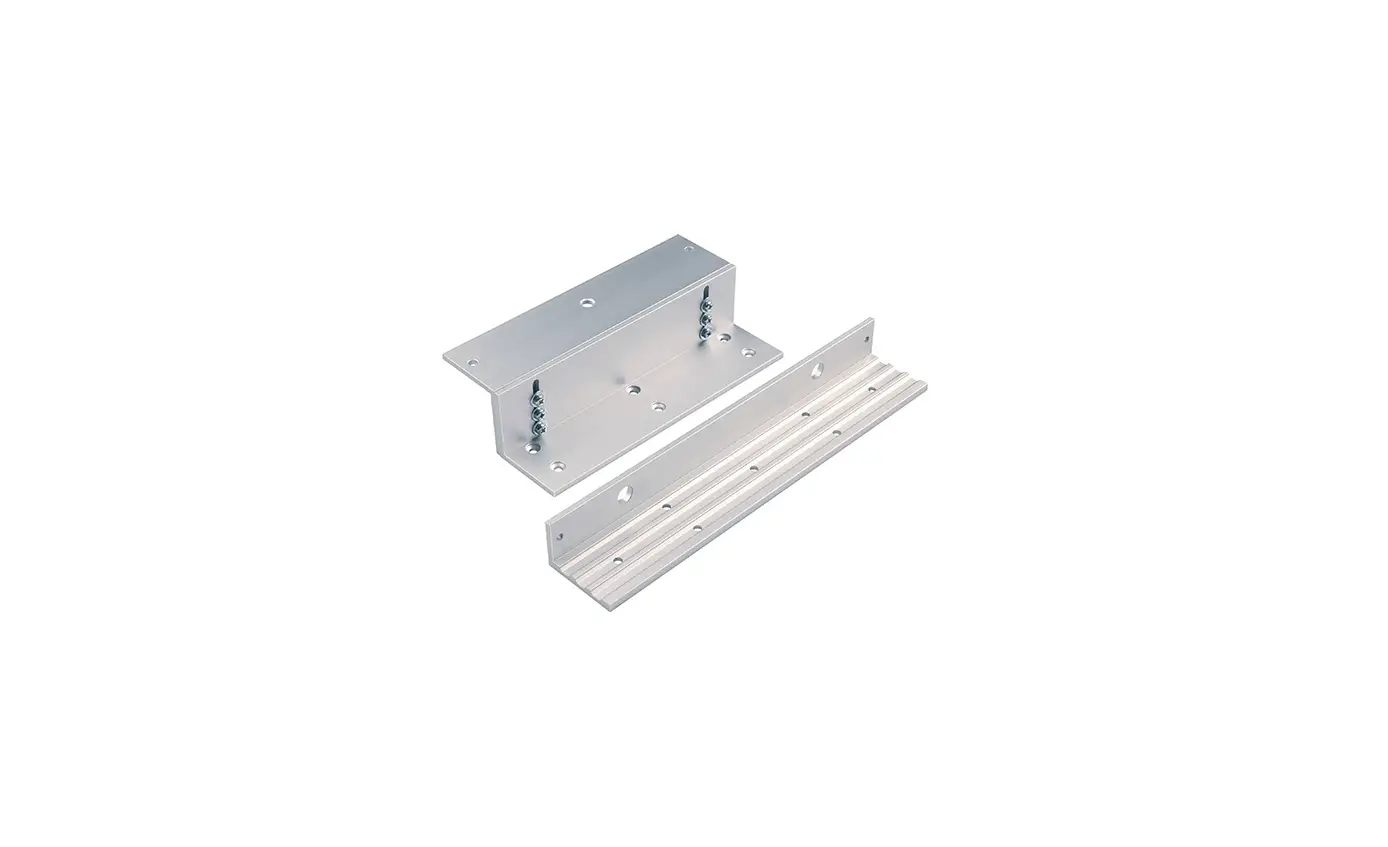

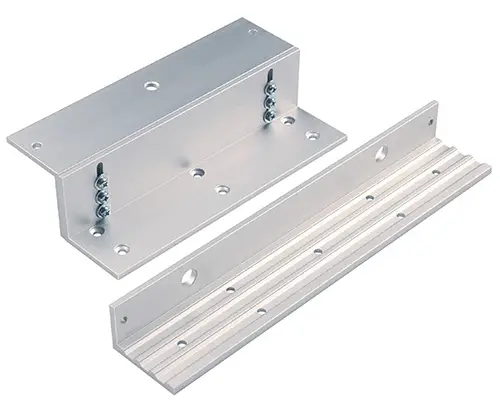

MAGNET SECURITY ZL Bracket for In Swing Door

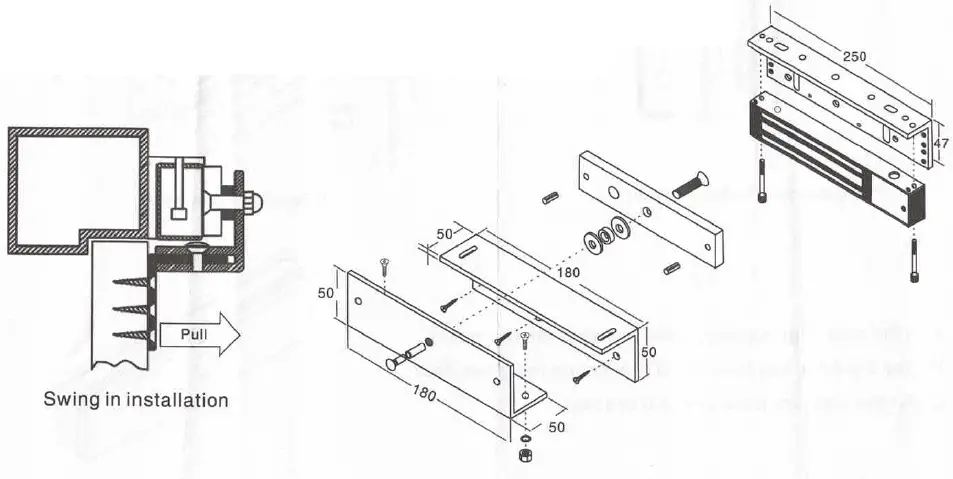

Installation of ZL Bracket for In-swing Door
- For the in-swing door, install the lock body inside and then need to install the ZL bracket at the same time.
- Discharge the mounting plate from the lock body.
- Fix the L bracket on the door frame and then fix the lock body on the L bracket.
- Assemble the Z bracket and then fix it on the door frame
- Fix the armature plate on the Z bracket

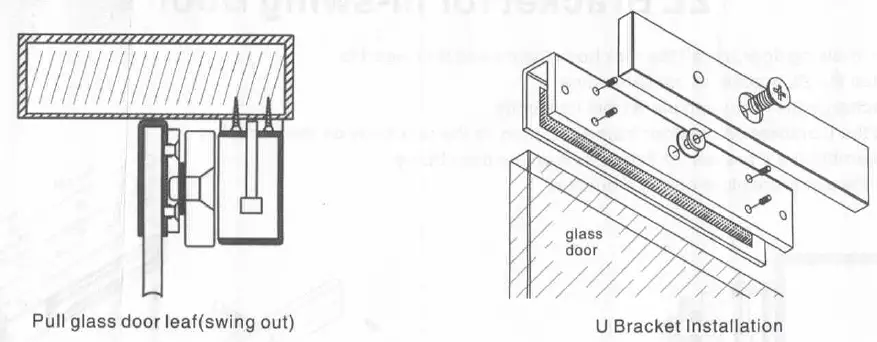

Installation Instruction of U Bracket for Glass Door
- If the door is glass door, need to install the U bracket.
- Use the Allen key to fix the U bracket on the glass door.
- Fix the armature plate on the U bracket.
