PIR3-RF
User manual V1.0
The device can be operated intelligently via working with the SONOFF 433MHz RF Bridge to communicate with other devices.
The device can work with other gateways supporting 433MHz wireless protocol. Detailed information is in accordance with the final product.
Operation instruction
1. Download APP
 |  |
| http://app.coolkit.cc/dl.html | |

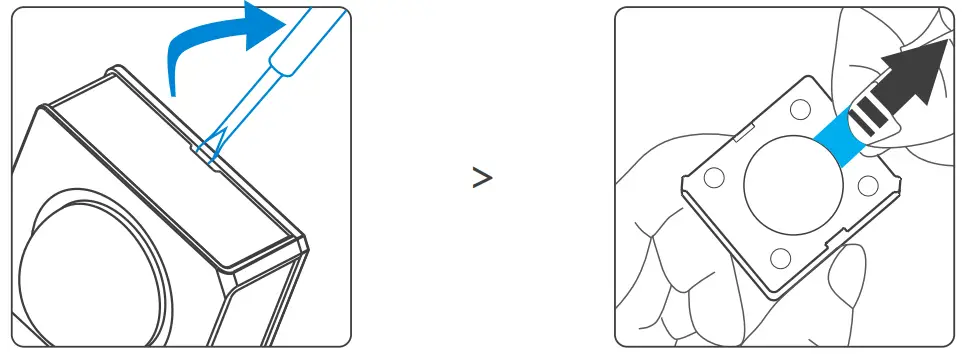

2. Pull out the battery insulation sheet
The device has a version with a battery and without battery(Battery model: CR2450).
3. Add sub-devices Connect the Bridge before adding the sub-device.
Launch eWeLink APP, select the Bridge to be paired, tap “Add” and select “Alarm”, and y ou will hear a “Beep” that indicates the Bridge enters the pairing mode, then short press the pairing button on the device (or make the device detect the movement ) that the pairing is successful when the red LED keeps on for 1s and the Bridge makes a“Beep-Beep” sound. If the addition failed, move the sub-device closer to the Bridge and try again.
Installation methods

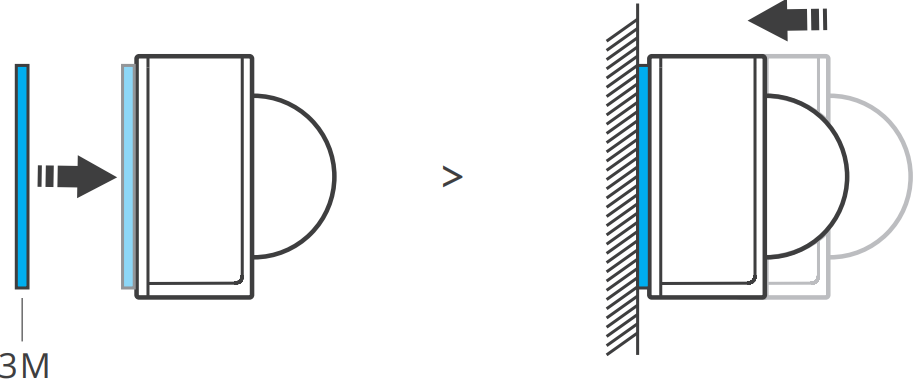

Method1:

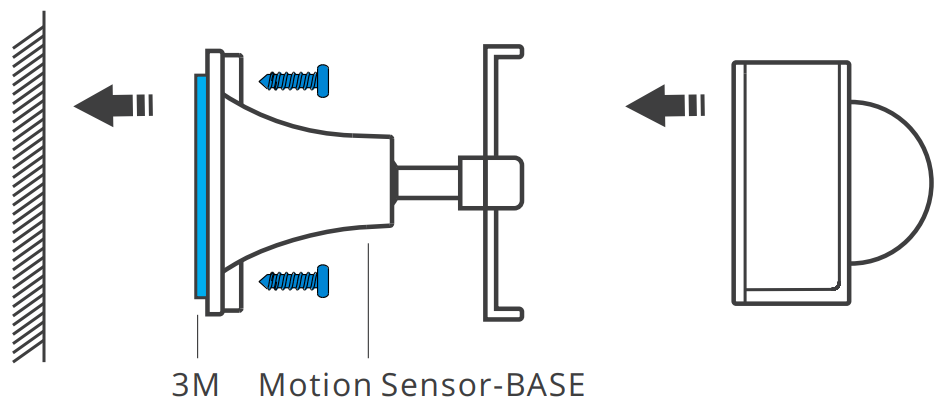

Method 2:
The motion sensor base is not included, please purchase it separately. Do not install on the metal surface, otherwise, it will affect the wireless communication distance. The device’s weight is less than 1 kg. An installation height of less than 2 m is recommended.
Specifications
| Model | PIR3-RF |
| RF | 433.92MHz |
| Power supply | 3V button cell(Battery model: CR2450) |
| Detection Distance | 8m (Indoor space) |
| Detection angle | 100° |
| Working temperature | -10°C-40°C |
| Working humidity | 10-90%RH (non-condensing) |
| Material | PC |
| Dimension | 40x35x28mm |

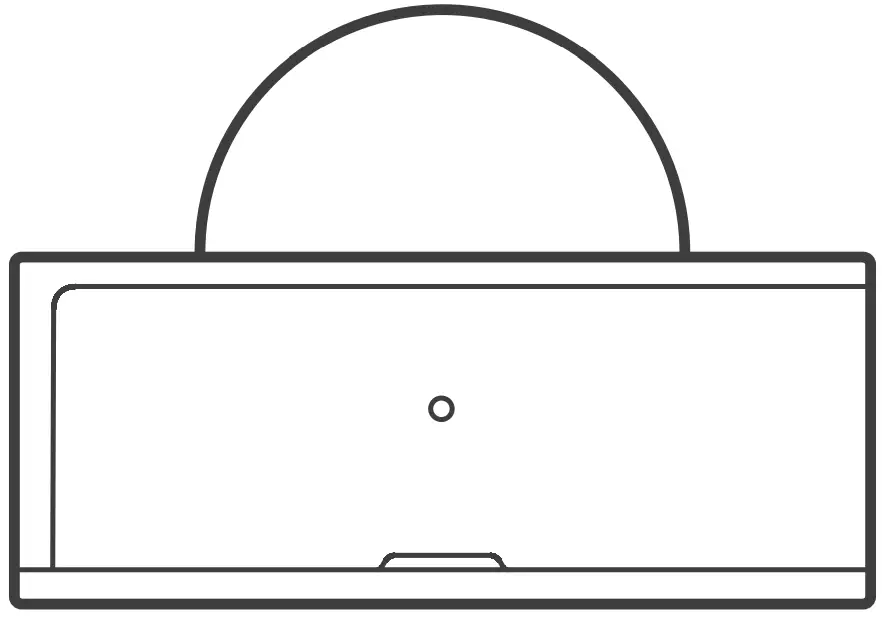

Product Introduction
LED indicator status instruction
| LED indicator status | Status instruction |
| Red LED stays on for ls | A movement is detected |
| Red LED stays on for 5s | Switched to the”home” mode |
| Red LED flashes twice | Low-battery notification |
| Green LED stays on for 5s | Switched to the “away” mode |
Features
 |  |  |  |  |
| Low-energy | Movement detection | Alarm push notification | Share control (available for SONOFF 433MHz RF Bridge) | Smart scene |
Application Mode

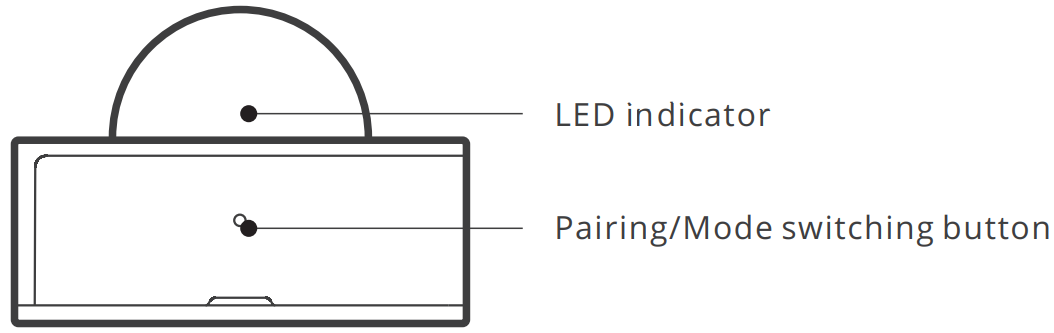

The device has“home” and“away” modes. The “away” mode is set by the factory default. In the “home” mode, long-press the mode switching button for 5s until the LED indicator flashes red and holds 5s, this indicates the device enters the“home” mode. In the “home” mode, long-press the mode switching button for 5s until the LED indicator flashes green and holds 5s, this indicates the device enters the“away” mode. “Away” mode: Trigger a message and push to the app once every 5s. “Home” mode: trigger and push a message once when no movement is detected for the 60s.
Hereby, Shenzhen Sonoff Technologies Co., Ltd. declares that the radio equipment type PIR3-RF is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.sonoff.tech/usermanuals
TX Frequency:
WiFi: 2412-2472MHz
RX Frequency:
WiFi: 2412-2472MHz SRD: 433.92MHz (RFR2)
Output Power:
14.43dBm(802.11b), 11.94dBm(802.11g), 11.96dBm(802.11n20)
Shenzhen Sonoff Technologies Co., Ltd.
1001, BLDG8, Lianhua Industrial Park, Shenzhen, GD, China
ZIP code: 518000 Website: sonoff.tech
MADE IN CHINA
