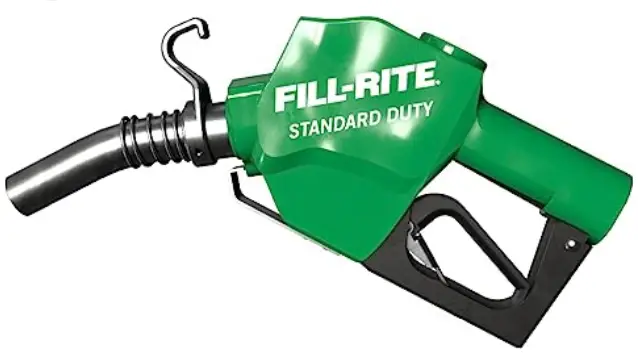

FILL-RITE SDN100GAN GPM Automatic Fuel Nozzle
Product Information
The SD Series nozzles from Fill-Rite are designed for use in light applications where heavy-duty performance is not required. These standard-duty nozzles are built to provide both value and performance. The SD Series nozzles are competitively priced and feature the trusted Fill-Rite reliability and durability that customers expect.
Specifications:
| Inlet Size | Spout Size | Flow Rate Range | Sleeve Color |
|---|---|---|---|
| Gasoline – 13/16 | 3 – 14.5 GPM | Red | |
| Diesel – 15/16 | 3 – 14.5 GPM | Green | |
| Diesel – 1 1/8 | 5 – 25 GPM | Green |
Fluid Compatibility:
Diesel, Biodiesel (to B20), E10, and Kerosene.
Product Usage Instructions
Follow these instructions to use the SD Nozzle Series:
- Choose the appropriate nozzle based on the fluid being dispensed.
- Insert the nozzle into the opening of the container. Ensure that the nozzle is securely in place.
- To activate the flow of fluid, press the lever on the nozzle handle.
- The nozzle will automatically shut off when the container is full, preventing overfilling and spilling.
- After use, hang the nozzle on the hook provided for convenient storage.
Note:

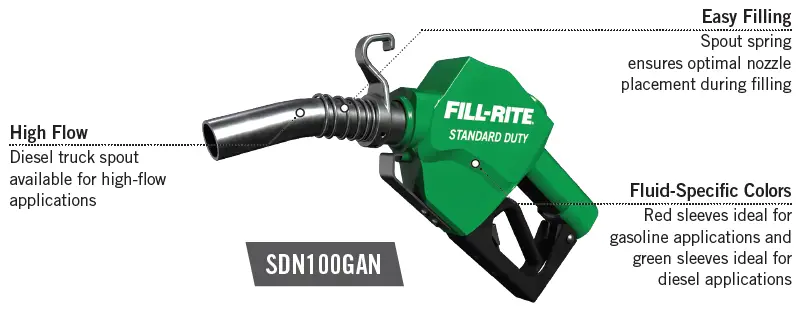

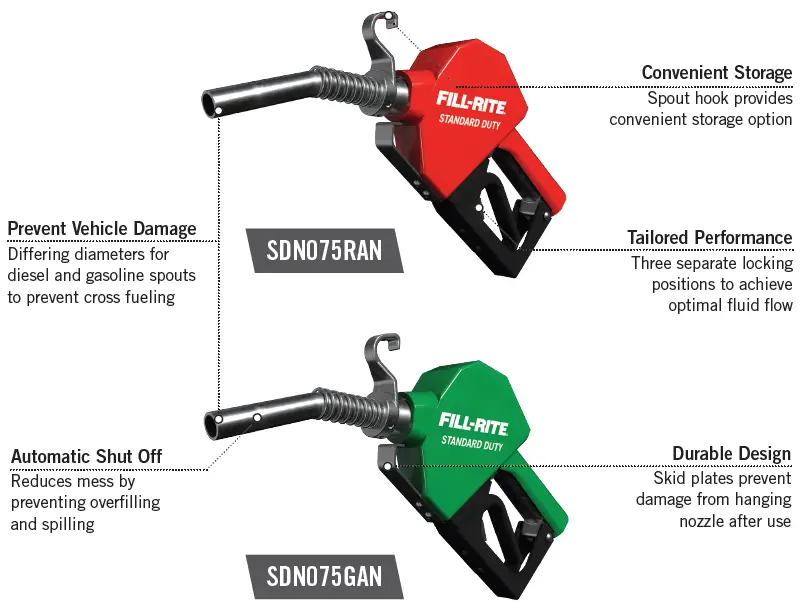

Skid plates prevent damage from hanging the nozzle after use and the spout spring ensures optimal nozzle placement during filling. The fluid-specific colors (red for gasoline and green for diesel) help to prevent cross-fueling.
If you have any questions about pricing, lead time information, or need further assistance, contact your Fill-Rite representative.
The SD Series nozzles from Fill-Rite usher in a new era of both value and performance. These standard-duty nozzles are built for use in light applications where heavy-duty performance is not needed. SD Series nozzles are offered at competitive prices, yet still feature the trusted Fill-Rite reliability and durability your customers expect!
Specification
| SDN075RAN | SDN075GAN | SDN100GAN | |
| INLET SIZE | ¾” | ¾” | 1″ |
| SPOUT SIZE | Gasoline – 13/16″ | Diesel – 15/16″ | Diesel – 1 1/8″ |
| FLOW RATE RANGE | 3 – 14.5 GPM | 3 – 14.5 GPM | 5 – 25 GPM |
| SLEEVE COLOR | Red | Green | Green |
FLUID COMPATIBILITY:
- GASOLINE / PETROLEUM
- DIESEL
- BIODIESEL (TO B20)
- E10
- KEROSENE
Overview
CONTACT YOUR FILL-RITE REPRESENTATIVE FOR PRICING AND LEAD TIME INFORMATION!
