REF 20608N PHB19 Protector Swingarm
Installation Guide
REF 20608N PHB19 Protector Swingarm
www.puig.tv
www.puigusa.com
[email protected]
[email protected]
APRILIA RS 660 ’21-’22
APRILIA TUONO 660 ’21-’22

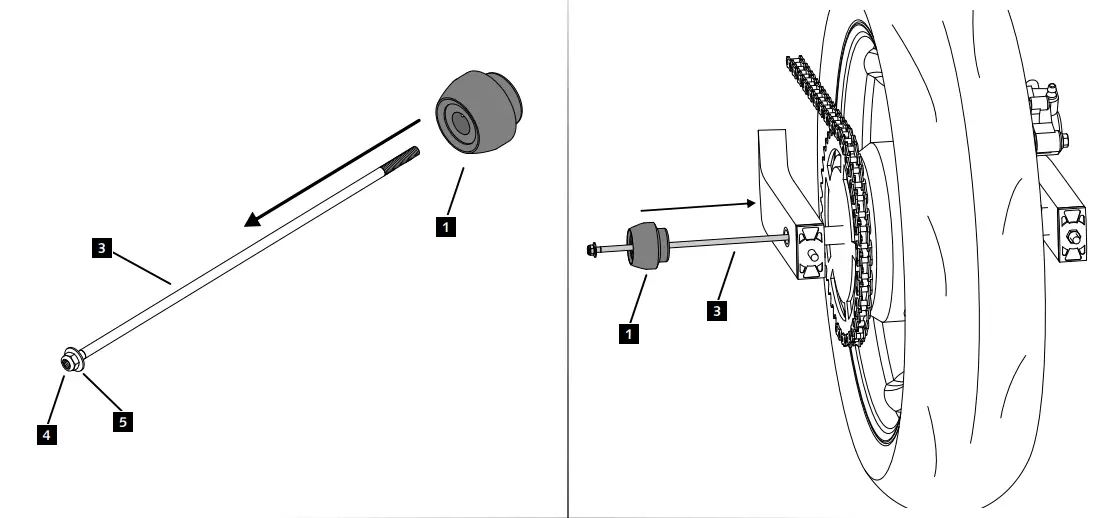

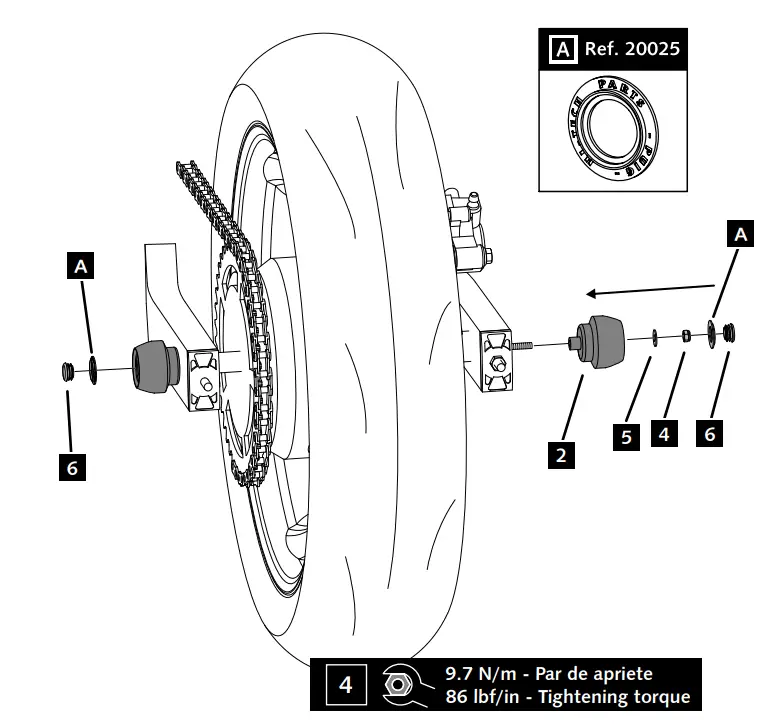

MOUNTING INSTRUCTIONS
REF 20608N
PROTECTOR BASCULANTE PHB19

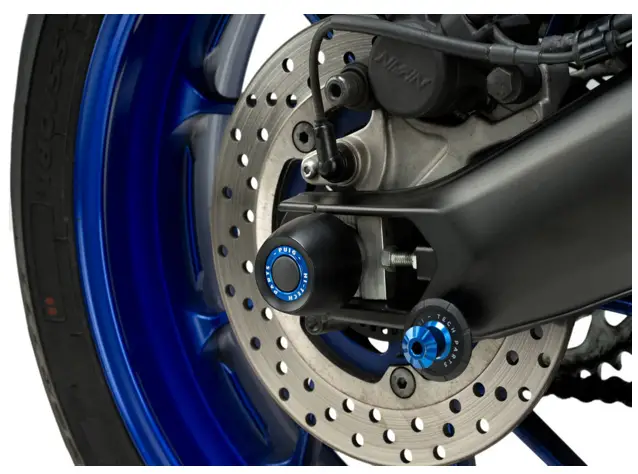

PHB19 PROTECTOR SWINGARM
| ID. | PART | QTY. | REF.: |
| 1 |  | 1 | PROBAS66-0-0066 |
| 2 |  | 1 | PROBAS67-0-0067 |
| 3 |  | 1 | VARIF09-1-0009 |
| 4 |  | 2 | TUZBM6000000024 |
| 5 |  | 2 | ARANDEPD125-054 |
| 6 |  | 2 | TAPAFINAL17-18 |
CONSULT OUR WEBSITE FOR THE VIDEO MOUNT AVAILABILITY OF THIS REFERENCE.
