DRKP2000B LED Lights
Instruction Manual

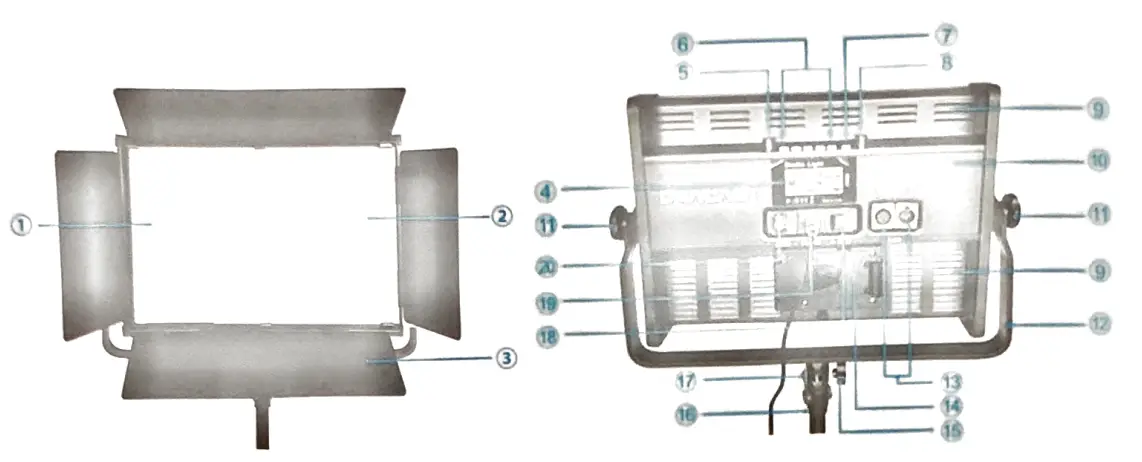

PRODUCT OVERVIEW
| 1. LED Surface | 11. Yoke Lock Knob |
| 2. Removeable Diffusion Panel | 12. Mounting Yoke |
| 3. Dimmer | 13. DMX Input and Output |
| 4. LCD Display | 14. V-Mount Battery Plate |
| 5. CCT Adjustment Knob | 15. 5/8′ Baby Pin Locking Knob |
| 6. CCT Preset Buttons | 16. Light Stand (Not included) |
| 7. Option Selector | 17.5/8′ Baby Pin Receiver |
| 8. Brightness Knob | 18. On / Off Switch |
| 9. Cooling Vent | 19. DC Power Input |
| 10. Aluminum Housing | 20. AC Power Input |
TECHNICAL DATA
| Model No. | DRKP1000B | DRKP2000B | DRKP3000B |
| Power | 60W | 120W | 150W |
| 0.5W SMD LED | 576PC5 | 1152PCS | 1440PCS |
| Luminous Flux | 7200LM | 14400LM | 18000LM |
| Brightness | 2300Lux/1M | 4800Lux/1M | 5700Lux/1M |
| CCT | Bi-Color 2800K-6500K | ||
| CRI | Raa96 | ||
| TLCI | Qaa96 | ||
| Beam Angle | Approx120° | ||
| LED Lifetime | 50000 hrs (estimated) | ||
| Power Adapter | DC15-18V,>5A | DC15-18V,>10A | DC28-32V, >7A |
| AC Power Supply | AC100-240V | ||
| Battery Compatibility | V-mount lithium battery | ||
| Control Mode | Host control + Mobile APP + DMX | ||
| Dimmer | 0-100% | ||
| Dimensions | 35.5x39x8CM | 62x39x8CM | 75x39x8CM |
| Weight | 2.9KG | 4.7KG | 5.6KG |
OPERATING INSTRUCTIONS
Remove the panel light from packaging, plug the output of the power adapter into the (19) DC
Power Input and connect to AC
Turn on (18) On / Off Switch. (4) LED Display will turn on and enter the default Bi- -Color mode
Turn (8) Brightness Knob to adjust the dimmer level. The (4) LCD Display will read 0% – – 100%
Rotate (5) CCTAdjustment
Knob to change the color temperature. The (4) LCD Display will read 2800K – – 6500K
Press (6) CCT Preset Buttons to quickly set the color temperature, (6) CCT Preset Buttons are set to 2800K, 3500K, 4500K, 5500K, and 6500K
Press (7) Option Selector once. The CH flashes on the (4) LCD Display and will enter the mobile APP channel value setting mode
Rotate (8) Brightness Knob to change the value of the mobile APP, the mobile APP channel ue is set to channel 1 – – 99
When the mobile APP channel value is set to CH. ,FF, the Bluetooth function of the panel light is ed off
Related mobile APP download and instructions, please refer to Mobile APP Operation Instruction
Press (7) Option Selector again. DMX flashes on the LCD Display and the light enters the DMX dress setting mode
Rotate (8) Brightness Knob to adjust the DMX address. DMX address can be set to DMX.001 MX.512 Connect DMX control device
Plug one end of the data cable into the (13) DMX Input and the other end into the DMX control device (or other lamp’s DMX socket controlled by DMX)
After connecting the DMX control device, if you need to modify the DMX address, press Option Selector once. DMX flashes on the (4) LCD Display. Follow step 3.4.1 to modify the DMX address, then press (7) Option Selector again to exit DMX address mode
With the DMX address set on the light, the corresponding channel on the DMX control device can now be used to adjust the brightness With the DMX address set on the light, the second channel after the corresponding channel on the DMX control device can now be used to adjust color temperature. (e.g. DMX address CCT is controlled on channel 2)
Press (7) Option Selector again to exit the settings mode and enter the default Bi- -Color mode
The Kala Plus Series will beep when adjustments are made in settings. Press and hold (7)
Option Selector for 3 seconds to mute or unmute the notification sound
The Kala Plus Series includes a v-mount battery plate that is compatible with most 14.4V v mount lithium-ion batteries
Some models have built- -in power supply, which can be used for AC direct power supply. When using DMX control mode, it is recommended to use power adapter (or battery) for power supply. AC direct power supply is prone to high- -frequency interference
All models are equipped with universal (12) Mounting Yoke and (17) 5/8” Baby Pin Receiver which can be used with a compatible light stand, c-clamp, or other mounting accessory
When using battery power, please pay attention to the display of battery power. When the battery power is insufficient, the light will automatically turn off and wait for the battery or power supply to be replaced
When used continuously for a long time the light may reach temperatures exceeding of 659ºC, if this happens, the light may need to shut down until the unit cools. Some models include built-in overheating protection and automatic power–off protection when temperature remains above 65ºC for an extended time period
Attention
- Please do not expose the light to excessive heat or moisture
- Please do not immerse the light in water or expose it to rain
- Never put the light or any battery into fire or excessive heat
- Remove the battery when not in use for a long time to avoid damage to the product
