INSTRUCTIONS MANUAL
for EDDIE LED
INTERIOR CEILING LIGHT(IP44) Art Nr. 80180-040-53
CAUTION:
The light source of this fixture is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
Pre-Installation
PLANNING THE INSTALLATION
Read all instructions before assembly and installation. Before starting the installation of the fixture or removal of a previous fixture, disconnect the power by turning off the circuit breaker or by removing the fuse at the fuse box. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard.

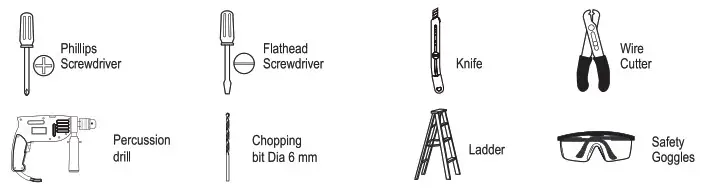

TOOLS REQUIRED
Installation (Make sure to turn off the main power)
Step 1.

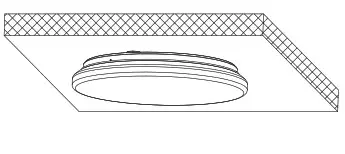

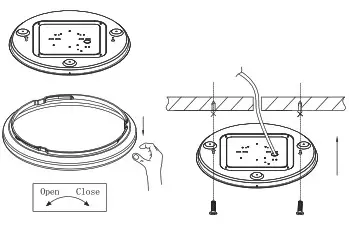

Remove the cover from the fixture, pull the power supply wires out of the fixture plate, screw the fixture plate on the ceiling.
Step 2.

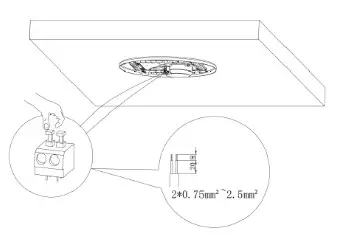

Connect the Power supply wires to the Terminal block.
Step 3.

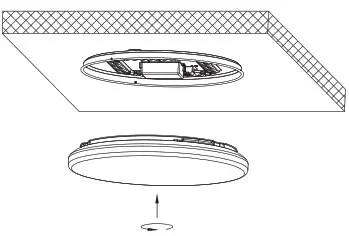

Twist the Fixture cover clockwise.
Step 4.
Turn the power switch back to verify if the product is working properly (The initial state of the lamp is white light-blink twice-white light).

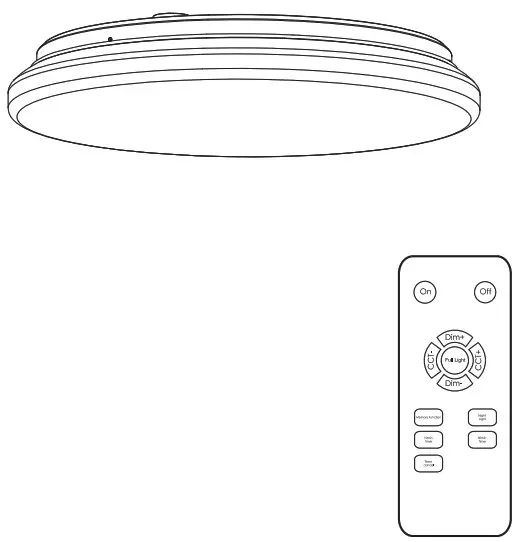

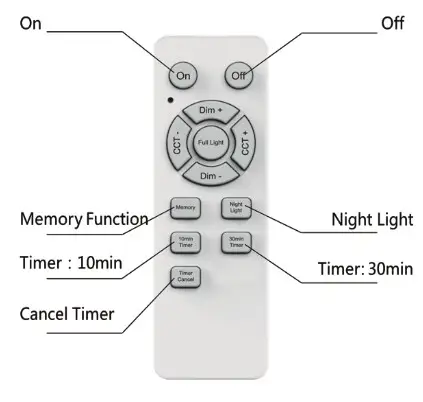

Remote Controller Instruction
| On | Turn on light |
| Off | Turn off light |
| Dim+ | 10 step dim; Long press on Tim +” •reach 100% brightness |
| Dim – | 10 step dim; Long press on ” Dim -°, reach 10% brightness |
| CCT+ | 5 step CCT tunable; Long press on “CCT +” ,reach 6500K CCT |
| CCT – | 5 step CCT tunable; Long press on “CCT +” , reach 3000K CCT |
| Full Light | 100% Brightness |
| Night Light | 1″ press, turn it on night light;2nd press, turn off the night light |
| Memory | Long press on “memory for 3s • ceiling light flashes once indicates that it s successfully memorized |
| 10min Timer | The ceiling light is turned off automatically, after 10 min |
| 30min Timer | The ceiling light is turned off automatically after 30 min |
| Timer Cancel | Cancel timer function |
Dim +/Dim -:
10 step dim.
Lax; press on – DIM″.rebeh 100% brightness,
Long press on “Dirn -″. reach 10% brightness.
CCT+ I CCT- :
5 step CCT tunable.
Long press on “CCT +”.reach 6500K.
Long press on “OCT reach 3000K.

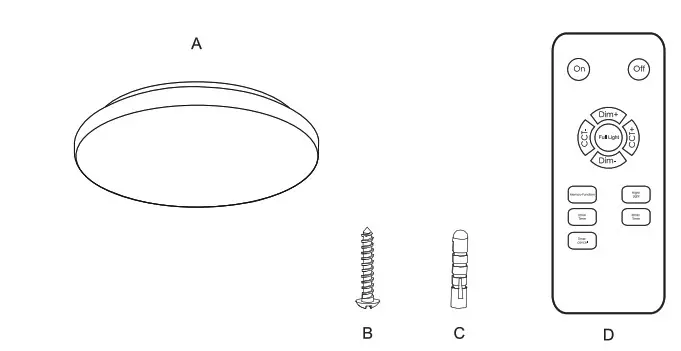

Package contents (parts are not to scale):
| Part | Description | Quantity |
A | Fixture body | 1 |
B | SS Self-Tapping screw | 4 |
C | Wall expansion particle | 4 |
D | Remote controller | 1 |

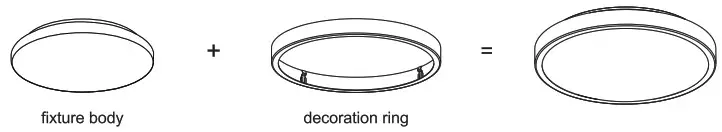

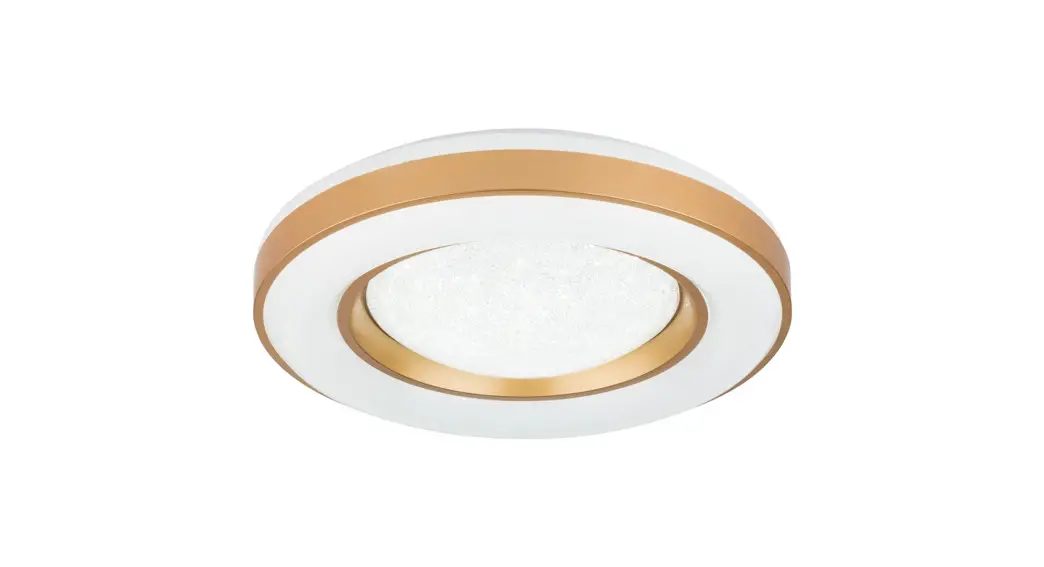

Decoration ring(not included):
Decoration ring for selectable (not include)
Parameters:
| Rated | Rated | Color | Lumen | Life | |||
| Wattage | Voltage | Temperature | (3000 -6500K) | Time | CRI | IP Class | Dimension |
| 14W | 220.240V | 3000-6500K | 1200LM | 2500011 | >80 | IP44 | 300•65mm |
Care and Cleaning
EXTERIOR MAINTENANCE
- To dean the outside of the fixture, use a dry or slightly dampened dean cloth (use clean water. never a solvent) to wipe the surface of the fixture.
- Do not use any cleaners with chemicals, solvents, or harsh abrasives. Use an only a dry soft cloth to dust or wipe carefully.
