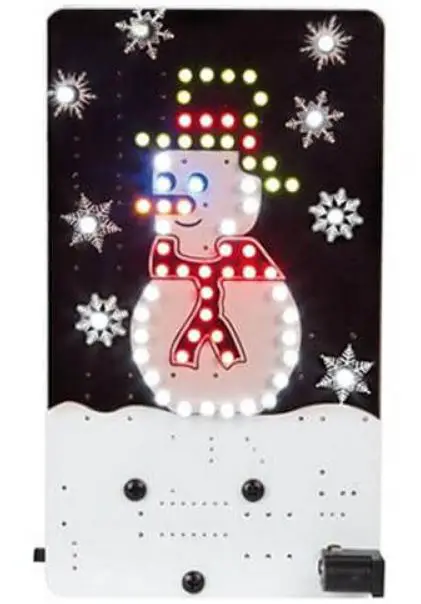

Velleman Wssa200 Snowman Led Electronics Kit Instruction Manual

velleman WSSA200 Snowman LED Electronics Kit

Installation

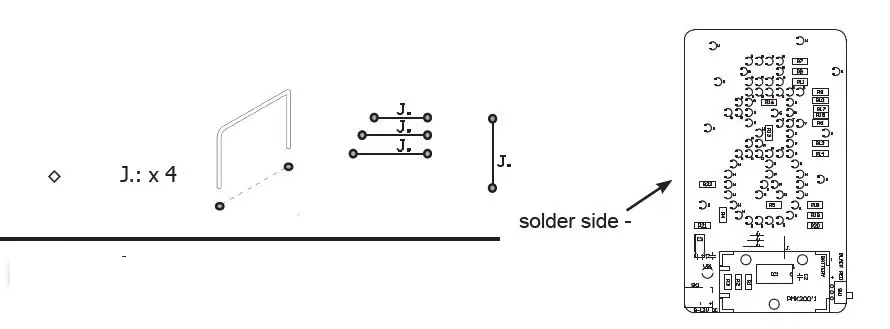

1. Jumper

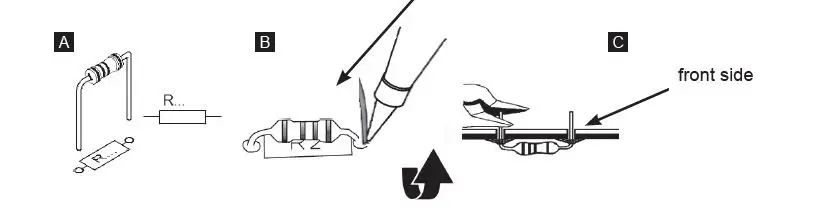

2. Resistor
   1. R1 … R4: 4K7
      1. (yellow, purple, red) – (geel, paars, rood) – (jaune, violet, rouge) – (gelb, lila, rot) – (gul, lila, röd) – (kel-tainen, violetti, punainen) – (amarillo, púrpura, rojo) – (amarelo, roxo, vermelho) – (giallo, viola, rosso)
   2. R5 … R10: 330
      1. (orange, orange, brown) – (oranje, oranje, bruin) – (orange, orange, brun) – (orange, orange, braun) – (orange, orange, brun) – (oranssi, oranssi, ruskea) – (naranjado, naranjado, marrón) – (laranja, laranja,
   3. R11 … R13: 470
      1. (yellow, purple, brown) -(geel, paars, bruin) -(jaune, violet, brun) -(gelb, violet, braun) -(gul, lila, brun) -(keltainen, purppura, ruskea) – (amarillo, morado, marrón) -(amarelo, violeta, castanho) – (giallo, viola,
   4. R14: 680
      1. (blue, gray, brown) – (blauw, grijs, bruin) – (bleu, gris, brun) – (blau, grau, braun) – (blå, grå, brun) – (sininen, harmaa, ruskea) – (azul, gris, marrón) – (azul, cinza, marrom) – (blu, grigio, marrone) – (nie-
   5. R15 … R22: 22K
      1. (bieski, szary, brązowy) (red, red, orange) – (rood, rood, oranje) – (rouge, rouge, orange) – (rot, rot, orange) – (röd, rött, orange) – (punainen, punainen, oranssi) – (rojo, rojo, naranja) – (vermelho, vermelho, laranja) – (rosso, rosso, arancione) – (czerwony, czerwony, pomarańczowy)

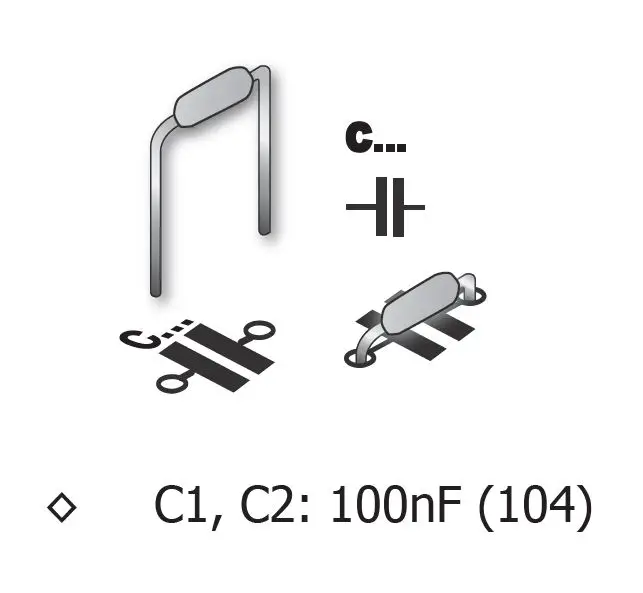

3. Cermaic capacitor

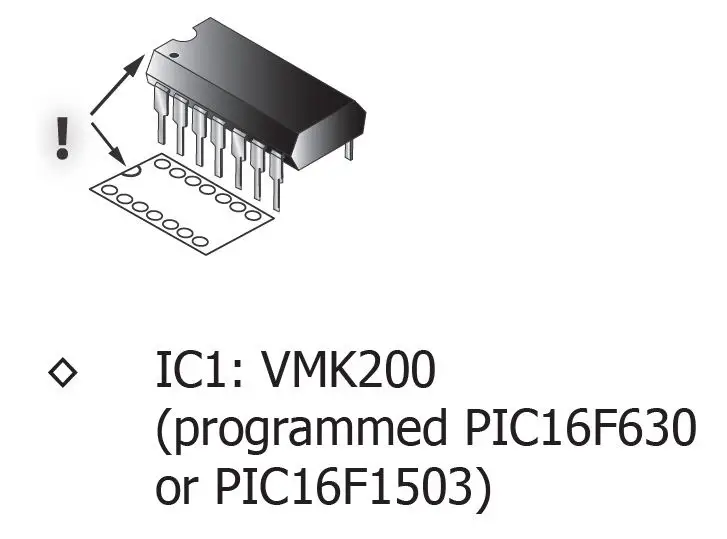

4. IC

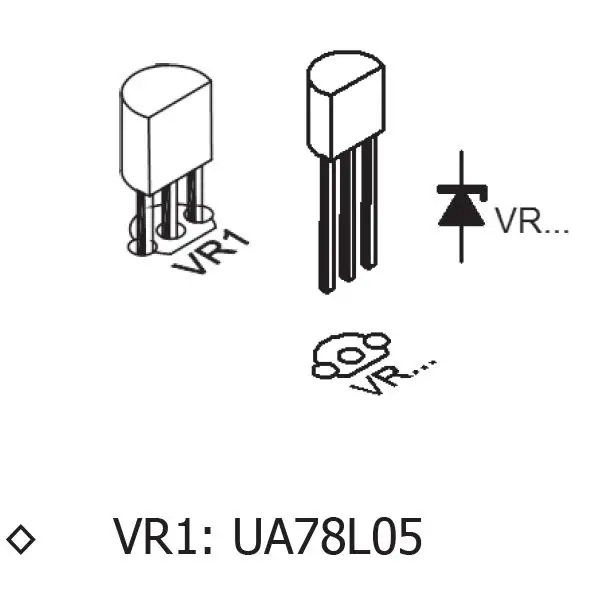

5. Voltage regulator

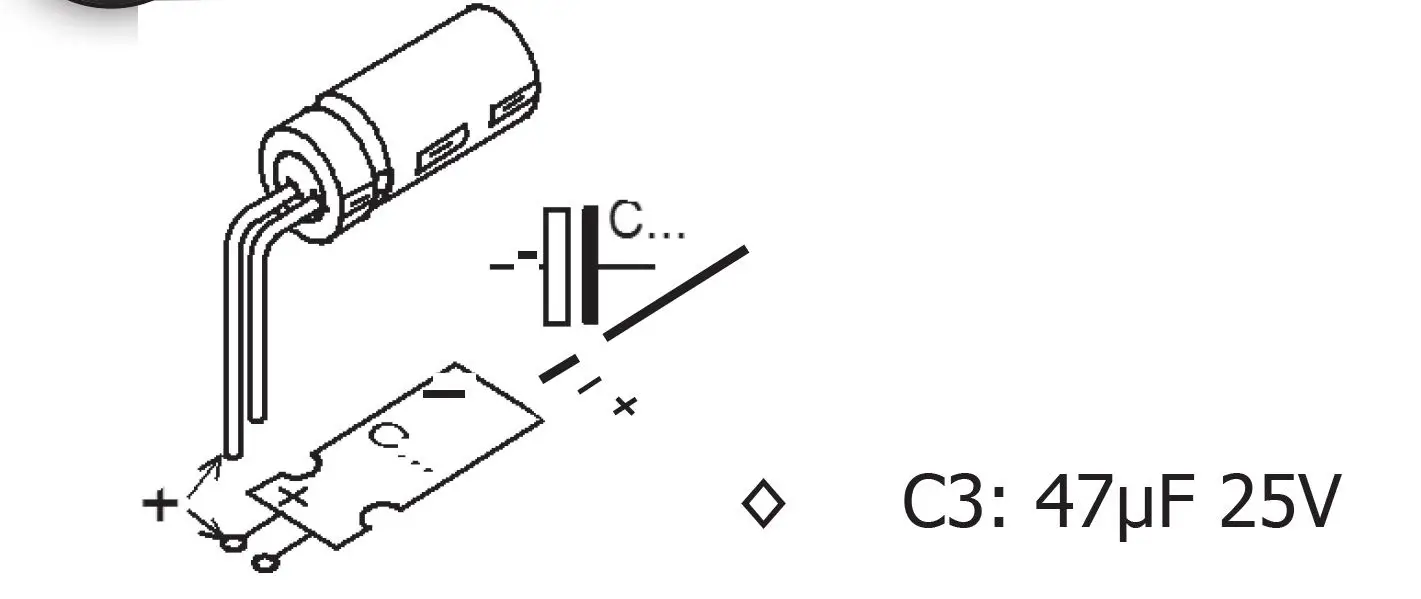

6. Capacitor

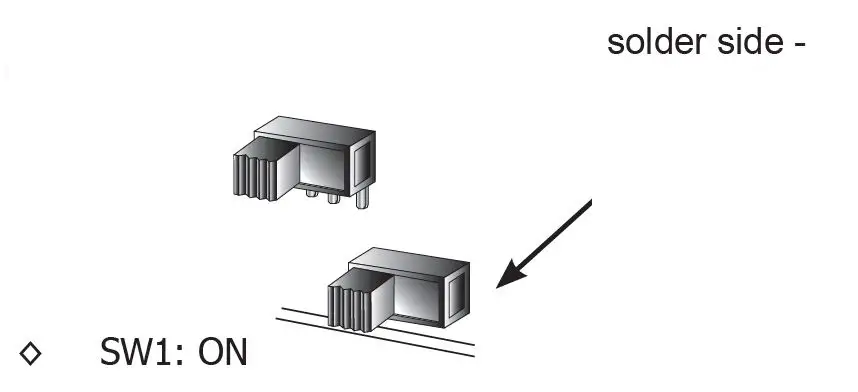

7. On/off

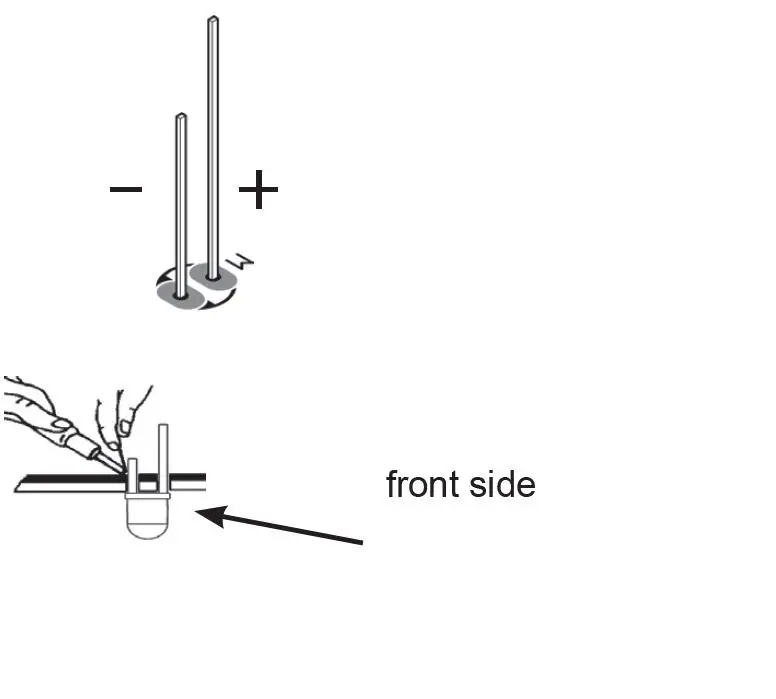

8. LED
   1. W: x 29 white – wit – blanc – weiß – vit – valkoinen – blanco
   2. G: x 16 green – groen – vert – grün – grön – vihreä – verde – zielony
   3. R: x 19 red – rood – rouge – rot – röd – punainen – rojo – vermelho
   4. B: x 2 blue – blauw – bleu – blau – blå – sininen – azul – azul – blu
   5. Y: x 3 yellow – geel – jaune – gelb – gul – keltainen – amarillo
9. DC socket

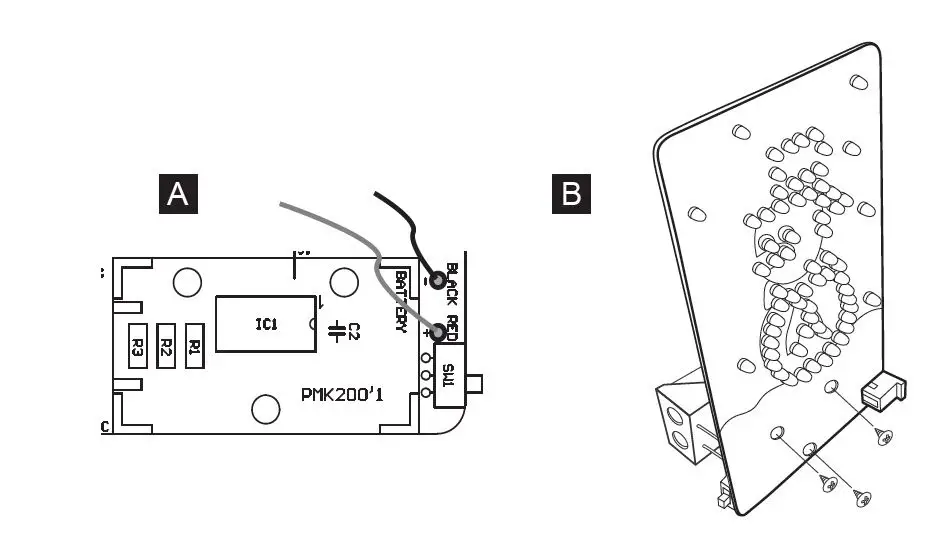

10. Battery holder

front side
