Propel Sliding Tray Fiber Panel
Instruction Manual
760252004 | PPL-4U

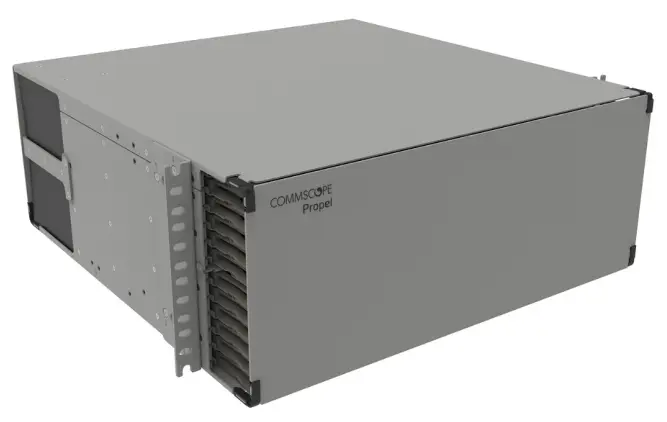

PPL-4U Propel Sliding Tray Fiber Panel
Propel sliding tray fiber panel, accepts Propel ULL modules or adapter packs, providing up to 288 duplex LC ports, 288 MPO ports or 576 SN ports
- Any size Propel component can be used in each panel or blade
- Components can be installed and removed from the front or rear of the panel
- Supports 8f, 12f, 16f, and 24f applications while maintaining full panel density
- The cable mounting system allows for multiple trunk cables to be securely attached in the rear of the panel
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Fiber patch panel |
| Product Brand | Propel |
| Product Series | PPL |
General Specifications
| Access | Front | Rear |
| Color | Gray |
| Rack Type | EIA 19 in |
| Rack Units | 4 |
| Shelf Movement | Sliding |
Dimensions
| Height | 178 mm | 7.008 in |
| Width | 483 mm | 19.016 in |
| Depth | 470 mm | 18.504 in |
Port Configuration
| Product Number | 8-fiber components | 12-fiber components | 16-fiber components | 24-fiber components |
| PPL-1U | up to 6 per blade up to 18 per panel | up to 4 per blade up to 12 per panel | up to 3 per blade up to 9 per panel | up to 2 per blade up to 6 per panel |
| PPL-2U | up to 6 per blade up to 36 per panel | up to 4 per blade up to 24 per panel | up to 3 per blade up to 18 per panel | up to 2 per blade up to 12 per panel |
| PPL-4U | up to 6 per blade up to 72 per panel | up to 4 per blade up to 48 per panel | up to 3 per blade up to 36 per panel | up to 2 per blade up to 24 per panel |
| Each Blade has 12 Lanes | ||||
| Requires 2 lanes | Requires 3 lanes | Requires 4 lanes | Requires 6 lanes | |
Material Specifications
| Material Type | Steel |
Packaging and Weights
| Packaging quantity | 1 |
| Weight, net | 14.742 kg | 32.5 lb |
©2022 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: March 29, 2022
