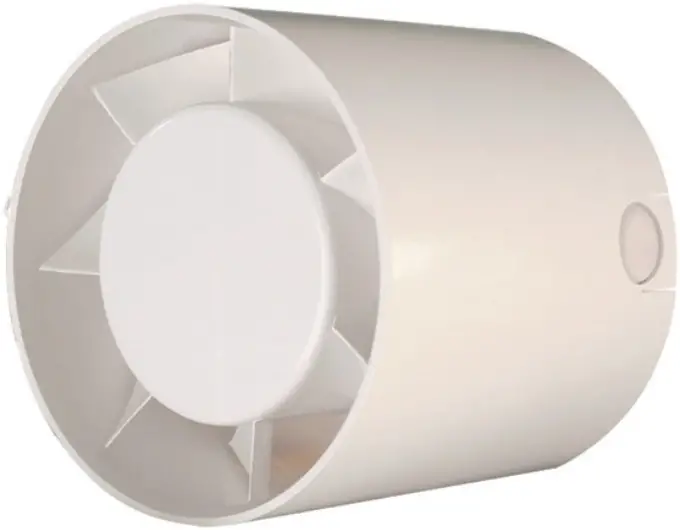

cata MT-100 Pipe Fan Instruction Manual
Instruction
- Duct fans for installation in rigid and flexible tubes
- White color
- Motor class B and thermal cut out, ambient temperature max. 40ºC
- Minimum sound level of 41 dB
- protection IP-X2
- Maximum Airflow 98 m3/h
- Maximum power 15 W
- 220-240V 50/60Hz, class B
- Outlet diameter 100
- Speed 2500 r.p.m
- Weight 0,4 Kg
- Units per box 1

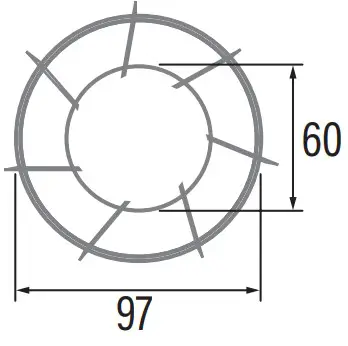

Dimensions
