Nature Power 60023 30 Amp Solar Charge Controller User Manual

Icons	Name	Description
	High Voltage	High voltage device. Installation should be performed by an electrician.
	High Temperature	This device will produce heat. Mount device away from other items.
	Environmental Hazard	Electronic Equipment. Do not put in landfill.
	Wire Cutter	A wire cutter is needed for cutting and stripping prior wires to connect.
	Multi-meter	A multi-meter is needed for testing equipment and verifying polarity of cables.
	Anti-static Glove	Anti-static gloves are recommended to prevent controller damage caused by static electricity.
	Electrical Tape	Electrical tape is recommended to safely insulate spliced or bare wires.
	Screwdriver	A common size screwdriver is needed to attach wires to the controller.

Product Features

Thank you for choosing our product. This PWM solar charge controller is a device for solar charge regulation and direct current output load control. This device is mainly used in small & medium sized off­grid solar power systems, up to l.2KW.
These charge controllers have these features:

• Pre-set charging modes available for most common deep-cycle battery types in the market, including AGM (sealed lead acid batteries), GEL, Flooded, and Lithium mode with customized parameters. User mode for professions to set for full battery parameters (operation on APP).
• Automatic recognition of 12V/24V battery system for AGM/GEI/Flooded battery.
• Provides multiple load control mode options for light based, time based and manually adjusted scenarios.
• Industrial grade design with reverse polarity protection for solar panels, battery and load.
• SV 1A USB outlet provides charging for mobile devices.
• We provide for this controller APP ChargePro for mobile phone monitoring and operation.
•  You can search “ChargePro” and download the APP at IOS APP Store and Google Play Store.

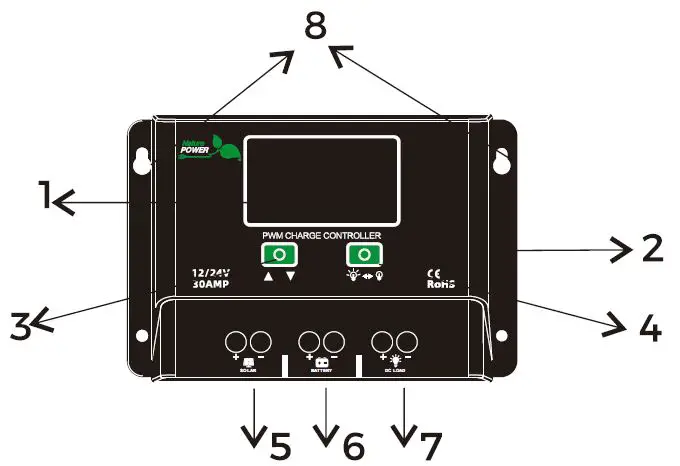

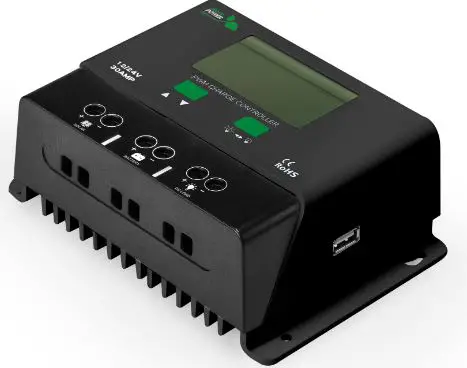

Device Diagram

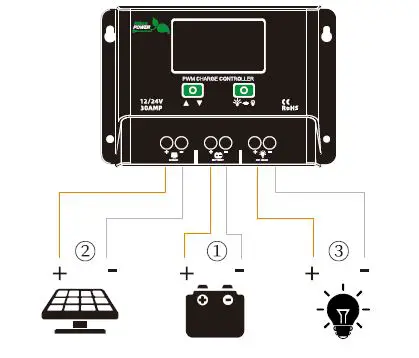

Wire Connection Sequences

During installation of your PWM conb’oller, please follow below order of connection:

1. Connect the positive battery wire followed by the negative battery wire.
2. Make sure your solar panels are fully covered to prevent electrical shock. Connect the positive solar
   array output wire followed by the negative solar array output wire.
3. Connect the DC load wiring to the DC load output (if applicable)
4.  Download APP ChargePro and tum on the Bluetooth function in the mobile phone. Testing the APP
   function with the controller.

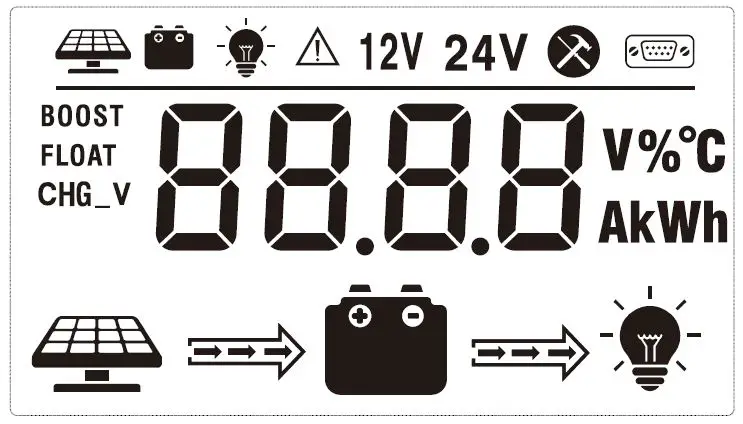

LCD Display Interface Overview

Key Functionality Chart

Function Key	System Mode	Input	Input Function
	View Mode	Long Press	Enter SET mode
		Short Press	View Next Page
	View Mode	Long Press	N/A
		Short Press	Switch Load On/Off (Manual Control Program Only)
	Set Mode	Long Press	Save Data & Exit SET Mode
		Short Press	View Next Page
	Set Mode	Long Press	N/A
		Short Press	Adjust parameter

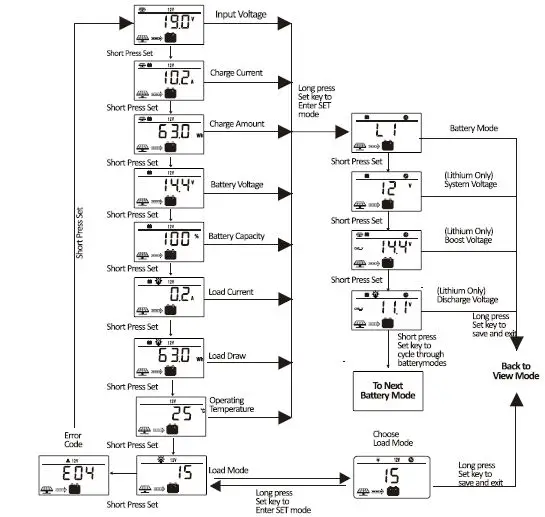

LCD Display Rules & Cycles

•  The information pages in the screen will be automatically turning ID the next page every 5 seconds and keep lasting. The user also can use up and down keys ID cycle through different pages.
• The error code page will be displayed when an error is detected.

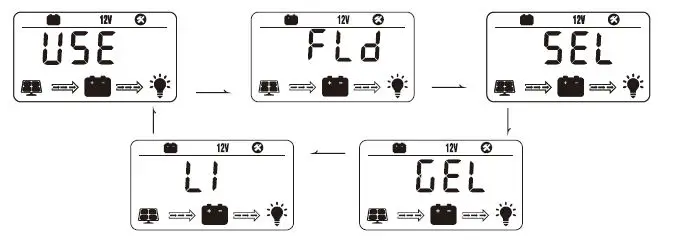

Advance Battery Settings

• In Lithium mode, short press the arrow key again to cycle through each parameter view.
• Use the load key to adjust parameter value, then long press arrow key to save and exit.

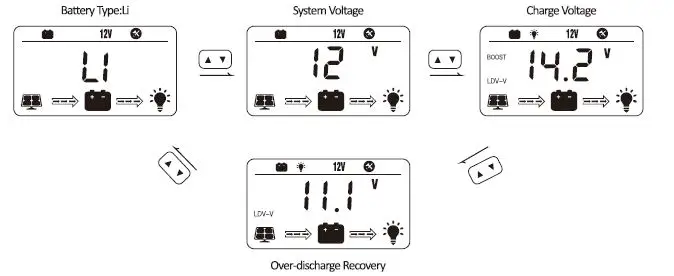

For Battery Type: Li

For Battery Type: USE

Please search “0,argePro” and download the relevant APP In either 105 APP Store or Google Play Store. For USER battery mode setting please use APP for operation.

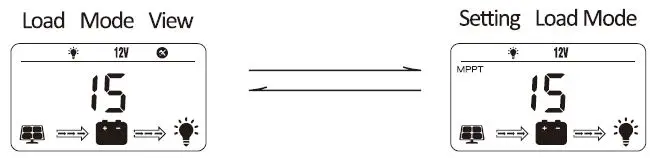

Load Mode Settings
Enter Load SET Mode by Pressing the function key in Load Mode view only. Short press the arrow letch cycle through load modes before long pressing the function Key Again save and exit.

Error Code Chart

Controller Specification

The variable “n” is adopted as a multiplying factor when calculating parameter voltages, the rule for “n” is listed as: if battery system voltage is 12\/, n=l; 24\/, n=2.

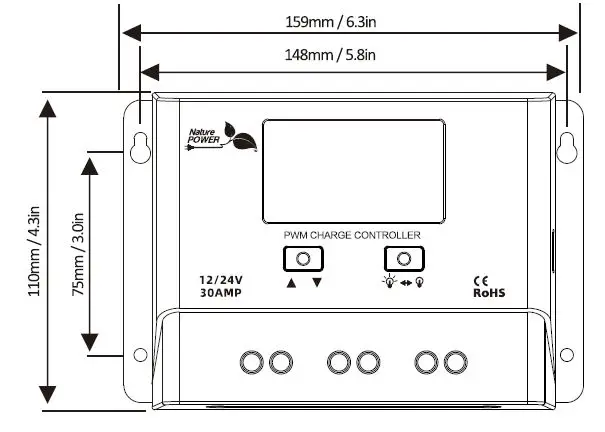

Product Dimensions

Product Dimension:
159*110*59mm / 63*43*23 inch Installation Area Dimension:
148*75mm I 5.8*3.0 inch

Installation Hole Size:
CD45 and CD7mm / CD0.18 and CD0.28 inch

Please contact Nature Power Products to acquire more Information:
1-800-588-0590

i[email protected]
www.naturepowerproducts.com
Made in China
