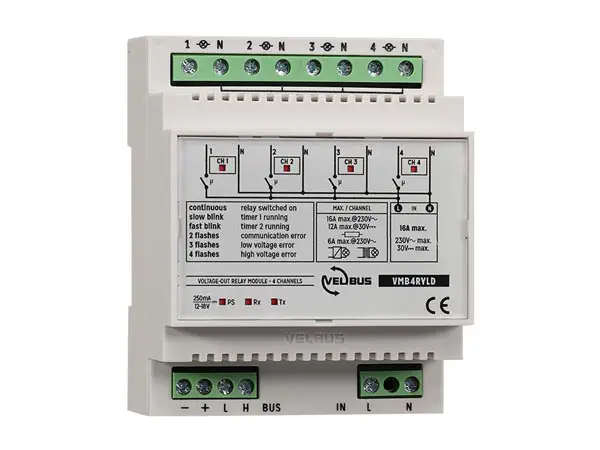

Velbus® VMB4RYLD Datasheet
4-channel relay module with voltage outputs for DIN rail
4-channel relay module with 40 modes.
Protocol manuals for developers: available for download at https://github.com/velbus
VELBUS · VMB4RYLD
Legen Heirweg 33 · 9890 Gavere · Belgium
velbus.eu
Features
- different operation modes: moment control, on/off control, start/stop timer, staircase lighting timer, non-restartable timer, switch-off delay, switch-on delay, start timer by releasing push button, timer with blinking effect, 2-way timer…
- free programmable timer functions (using Velbus Link software and USB/ RS232 interface (VMB1USB, VMB1RS or VMBRSUSB))
- 250 possible id addresses
- manual push buttons on board for testing purposes
- Velbus® connection
- 4 Modules wide on the DIN rail
- firmware upgradeable through the Velbus system
Specifications
high inrush (80A) current relays are used
| relays | type: 4 voltage outputs DC: 12A / 30VDC max. voltage outputs AC: 16A / 230VAC max. voltage outputs |
| max. total current | 12A / 30VDC or 16A / 230VAC all channels combined |
| power supply | 15±3VDC |
| max. power consumption | 250mA |
| dimensions | 90 x 71 x 58mm / 3.5 x 2.8 x 2.3” |
| width | 4 DIN modules |
| standby current consumption | 30 mA |
