Art nr: 480063.480064.480065.480066

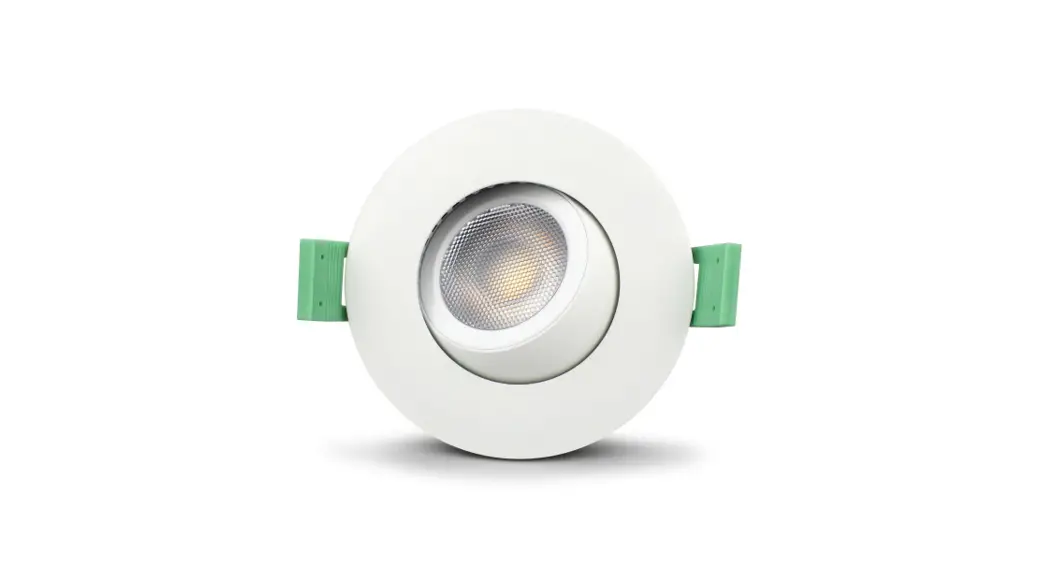

Sanna 230V LED Downlight
User Guide
Sanna 230V LED Downlight
LED not replaceable, control gear replaceable by professional
This product contains a light source of energy efficiency class E
SAFE INSTALLATION
Read these instructions before beginning the installation and hand them over to the user of the system. Only persons with the requisite knowledge are to perform the installation or maintenance. If you lack this knowledge, contact a qualified electrician.
Make sure that the mains power is switched off before installation or maintenance. Install the luminaire as described below. Position the LED luminaire and driver unit far from heat sources and in a well ventilated area.

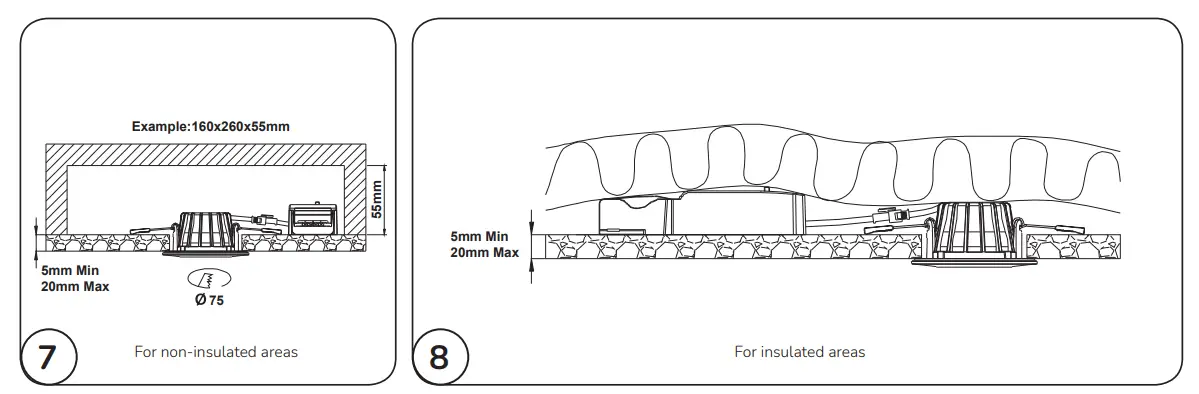

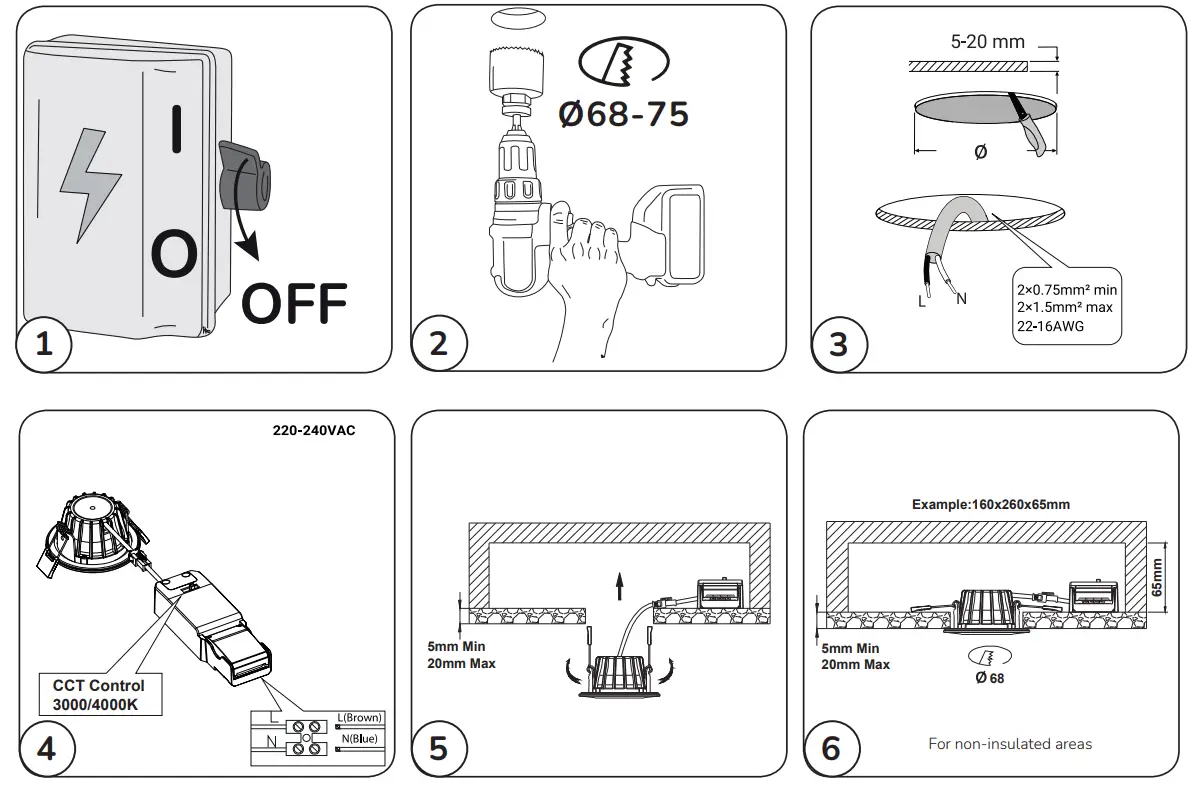

Installation
qr.oem.se/r?sourceId=124
* Scan QR code for more info.
Made in China
We reserve the right to change specifications without notice. Keep for future reference.
Elektro Elco AB
Tallvägen 5, SE-564 35 Bankeryd, Sweden
[email protected]
www.llitt.se
Artnr: UM1022 Version: 2022/01
Life is Llitt
