AERO 15 15.6 Inch OLED Intel 9th Gen Laptop
User Guide
Using GIGABYTE Notebook for the First Time
- Connect the power cord to the AC adapter.
- Connect the AC adapter to the DC-in jack on the right side of the notebook.
- Connect the power cord to the power outlet.

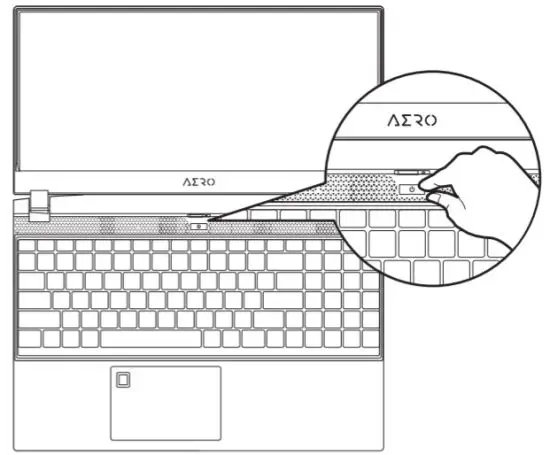

Switching on the Power
After you turn on the notebook for the very first time, do not turn it off until the operating system has been configured.
Please note that the volume for the audio will not function until Windows® Setup has been completed.
IMPORTANT:
- Ensure that your Notebook PC is connected to a grounded power adapter before turning it on for the first time.
- When using your Notebook PC on power adapter mode, the socket-outlet must be near to the unit and easily
- Locate the input/output mark on your Notebook PC and ensure that it matches the input/output rating information on your power adapter. Some Notebook PC models may have multiple rating output currents based on the available SKU.
- Power adapter information:
– Input voltage: 100-240Vac
– Input frequency: 50-60Hz
– Rating output voltag:19.5V, 11.8A
Full User Manual
For more user guide and software instruction, please refer to the below link: https://www.gigabyte.com/Support
- Product specifications and product appearance may differ from country to country.
We recommend that you check with your local dealers for the specifications and appearance of the products available in your country. - Although we endeavor to present the most accurate and comprehensive information at the time of publication, we reserve the right to make changes without prior notice.

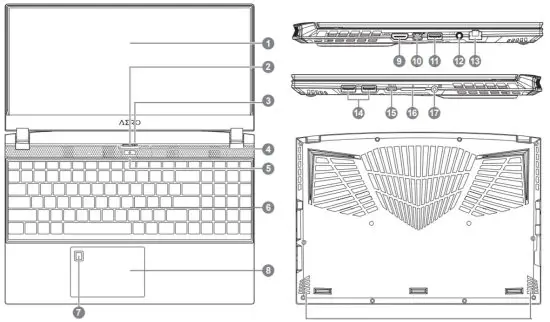

GIGABYTE Notebook Tour
| 1 Display Panel | 10 Mini Display 1.4 Port |
| 2 Webcam Cover | 11 USB 3.2 Port (USB type-A) |
| 3 Webcam | 12 Audio Combo Jack |
| 4 Microphone | 13 Ethernet Port (LAN) |
| 5 Power Button | 14 USB 3.2 Port (USB type-A) |
| 6 Keyboard | 15 Thunderbolt 4 Port (USB type-C)* |
| 7 Fingerprint Sensor | 16 SD Card reader (UHS-II)* |
| 8 Touchpad | 17 Power Input Port (DC) |
9 HDMI 2.1 Port | 18 Speaker |
* Option
IMPORTANT:
- Do not remove the built-in lithium battery.
For any service needs, please contact your local GIGABYTE Authorized Service Center. - Do not install the Notebook PC on a slant or a place prone to vibrations, or avoid using the Notebook PC in that location for a long time. This increases the risk that a malfunction or damage to the product will occur.
- Do not store and use Notebook PC in direct sunlight or the location where temperatures exceed 112°F (45°C) such
as inside a vehicle. There is a danger of Lithium-ion battery expansion and aging. - Do not use the Notebook PC in a badly ventilated location such as on bedding, on a pillow or cushion, etc, and do not use it in a location such as a room with floor heating as it may cause the computer to overheat.Take care that the Notebook PC vents (on the side or the bottom) are not blocked especially in these environments.
If the vents are blocked, it may be dangerous and cause the Notebook PC to overheat.
Hotkeys
The computer employs hotkeys or key combinations to access most of the computer’s controls like screen brightness and volume output. To activate hotkeys, press and hold the <Fn> key before pressing the other key in the hotkey combination.
Hotkey | Function | Description | |
| Fn+ESC |  | Maximize Fan Speed | To increase the fan speed to 100% |
| Fn+F1 |  | Sleep | Put the computer in Sleep mode. |
| Fn+F2 |  | Wireless LAN | Enables/disable the Wireless LAN function. |
| Fn+F3 |  | Brightness Down | Decrease the screen brightness. |
| Fn+F4 |  | Brightness Up | Increase the screen brightness. |
| Fn+F5 |  | Display Toggle | Switch display output between the display screen, external monitor (if connected), and both. |
| Fn+F6 |  | Screen Display Toggle or Lock ( UHD OLED Panel Only ) | Turn the screen display on and off Lock your PC or switch accounts |
| Fn+F7 |  | Speaker Toggle | Turn the speaker on and off. |
| Fn+F8 |  | Volume Down | Decrease the sound volume. |
| Fn+F9 |  | Volume Up | Increase the sound volume. |
| Fn+F10 |  | Touchpad Toggle | Turn the internal touchpad on and off. |
| Fn+F11 |  | Airplane Mode | Enable/disable the Airplane Mode function. |
| Fn+Space |  | Keyboard Backlight Toggle | Turn the keyboard backlight on and off. |
Recovery Guide
System recovery ( Restore your laptop operating system )
When something is going wrong with the laptop operating system, the storage of the laptop has a hidden partition containing a full backup image of the operating system that can be used to restore the system to factory default settings.
Note
- If the storage has been switched or the partition deleted, the recovery option will no longer be available and a recovery service will be needed.
- The recovery function is only available on devices with O/S preinstalled. Devices with EFI SHELL do not have the recovery function.
Launch system recovery
The system recovery feature is preinstalled before the laptop is shipped from the factory. The options menu allows you to launch the Windows recovery tool to reinstall the operating system to factory default.
The brief introduction below will show you how to start the recovery tool and restore your system.All ready to go
Make sure your PC is plugged in. This will take a few minutes.
Windows 10 Recovery Guide
- Turn off and restart the laptop.
- During the laptop turn on process, press and hold F9 key to launch the tool.
Choose “Troubleshoot” to enter the recovery settings.
( Also you can choose “Continue” to exit the recovery system and continue to Windows 10 for files or data backup.)
There are two options for system recovery
• Reset this PC -You can choose to keep or remove your files and then reinstalls Windows without losing your files.
• GIGABYTE Smart Recovery -Your PC settings will be restored to factory default settings. Caution: All personal data and files will be lost.

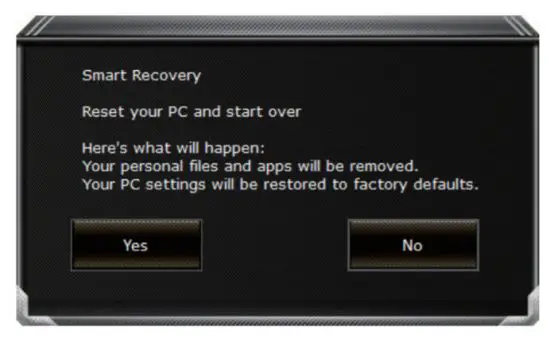

GIGABYTE Smart Recovery
The recovery will be activated and you will see the option buttons on the window.
Click on “Yes” to start it.Caution
• Once the “Recovery” is selected, your personal data and files will be deleted after the laptop starts restoring, and the operating system will be reset to factory default settings.
• A progress indicator bar will show on the window when the recovery process is running. Please make sure the AC adapter is plugged in and do not turn off the laptop.

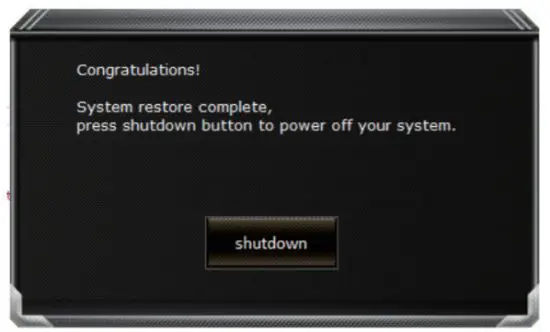

After the system recovery is completed, you will see the options button on the window, please click on “Shutdown”.
Advanced options
System Restore
Use a restore point recorded on your PC to restore Windows.
System Image Recovery
Recover Windows using a specific system image file.
Startup Repair
Fix problems that keep Windows from loading.
Command Prompt
Use the Command Prompt for advanced troubleshooting.
UEFI Firmware Settings
Change settings in your PC’s UEFI firmware.
Startup Settings
Change Windows Startup behavior.
Choose “Troubleshoot” to enter the recovery settings.
GIGABYTE Smart Recovery
The recovery will be activated and you will see the option buttons on the window.
After the system recovery is completed, you will see the options button on the window, please click on “Shutdown”.
Advanced options
Appendix
- Warranty & Service:
Warranty and service and related information please refer to the warranty card or GIGABYTE service website as the below link: https://www.gigabyte.com/Support/Laptop - FAQ:
FAQ (Frequent Asked Questions) please refer to the below link: https://www.gigabyte.com/Support/Faq
