AERO 17 Quick Start Guide

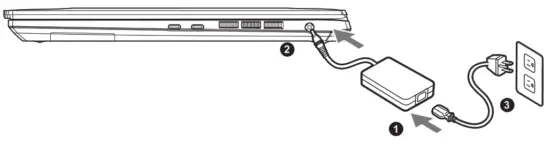

1-1. Using GIGABYTE Notebook for the First Time
- Connect the power cord to the AC adapter.
- Connect the AC adapter to the DC-in jack on the right side of the notebook.
- Connect the power cord to the power outlet.

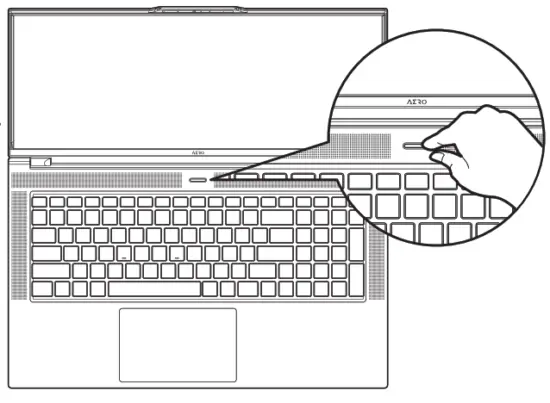

1-2. Switching on the Power
After you turn on the notebook for the very rst time do not turn it o until the operating system has been congured Please note that the volume or the audio will not function until Windows® etup has completed.
IMPORTANT:
- Ensure that your Notebook PC is connected to a grounded power adapter before turning it on for the first time.
- When using your Notebook PC on power adapter mode, the socket-outlet must be near to the unit and easily accessible.
- Locate the input/output mark on your Notebook PC and ensure that it matches the input/output rating information on your power adapter. Some Notebook PC models may have multiple rating output currents based on the available SKU.
- Power adapter information:
– Input voltage: 100-240Vac
– Input frequency: 50-60Hz
– Rating output voltag:19.5V, 11.8A
1-3. Full User Manual
For more user guide and software instructions, please refer to the below link: https://www.gigabyte.com/Support
- Product specifications and product appearance may differ from country to country. We recommend that you check with your local dealers for the specifications and appearance of the products available in your country.
- Although we endeavor to present the most accurate and comprehensive information at the time of publication, we reserve the right to make changes without prior notice.

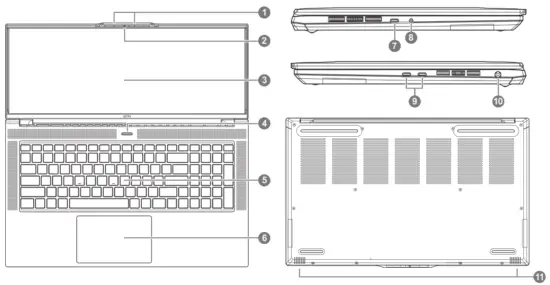

GIGABYTE Notebook Tour
| 1 Microphone | 7 DisplayPort Port type |
| 2webcam | 8 audio Combo Jack |
| 3 Display Panel | 9 Thunderbolt Port type |
| 4 Power Button | 10 Poer nput Port D |
| 5 Keyboard | 11 Speaker |
| 6 Touchpad | |
IMPORTANT:
- Do not remove the built-in lithium battery. For any service needs, please contact your local GIGABYTE Authorized Service Center.
- Do not install the Notebook PC on a slant or a place prone to vibrations, or avoid using the Notebook PC in that location for a long time. This increases the risk that a malfunction or damage to the product will occur.
- Do not store and use Notebook PC in direct sunlight or the location where temperatures exceed 112°F (45°C) such as inside a vehicle. There is a danger of Lithium-ion battery expansion and aging.
- Do not use the Notebook PC in a badly ventilated location such as on bedding, on a pillow or cushion, etc, and do not use it in a location such as room with floor heating as it may cause the computer to overheat. Take care that the Notebook PC vents (on the side or the bottom) are not blocked especially in these environments. If the vents are blocked, it may be dangerous and cause the Notebook PC to overheat.
Hotkeys
The computer employs hotkeys or key combinations to access most o the computer controls like screen brightness and volume output To activate hotkeys press and hold the
Fn key beore pressing the other key in the hotkey combination
| Hotkey | Function | Description | |
| Fn+ESC |  | Maimize Fan peed | To increase the an speed to |
| Fn+F1 |  | Sleep | Put the computer in leep mode |
| Fn+F2 |  | Wireless LN | Enables disable the ireless LN function. |
| Fn+F3 |  | Brightness Down | Decrease the screen brightness. |
| Fn+F4 |  | Brightness Up | Increase the screen brightness. |
| Fn+F5 |  | Display Toggle | Switche display output between the display screen eternal monitor i connected and both |
| Fn+F6 |  | Screen Display Toggle | Turn the screen display on and off. |
| Fn+F7 |  | Speaker Toggle | Turn the speaker on and off. |
| Fn+F8 |  | Volume Don | Decrease the sound volume |
| Fn+F9 |  | Volume Up | ncrease the sound volume |
| Fn+F10 |  | Touchpad Toggle | Turn the internal touchpad on and off. |
| Fn+F11 |  | AirplaneMode | Enabledisable the irplane Mode function. |
| Fn+F12 |  | AI Mode | AI Mode Switch. |
| Fn+Space |  | Keyboard Backlight Toggle | Turn the keyboard backlight on and off. |
Recovery Guide
System recovery ( Restore your laptop operating system )
when something is going rong ith the laptop operating system the storage o the laptop has a hidden partition containing a ull back up image o the operating system that can be
used to restore the system to actory deault settings Note:
- If the storage has been switched or the partition deleted, the recovery option will no longer be available and a recovery service will be needed.
- The recovery function is only available on devices with OIS preinstalled. Devices with EFI SHELL do not have the recovery function.
Launch system recovery
The system recovery feature is preinstalled before the laptop is shipped from the factory. The option menu allows you to launch the Windows recovery tool to reinstall the operating system to factory default. The brief introduction below will show you how to start the recovery tool and restore your system. All ready to go
Make sure your PC is plugged in. This will take a few minutes.
Recovery Guide
- Turn off and restart the laptop.

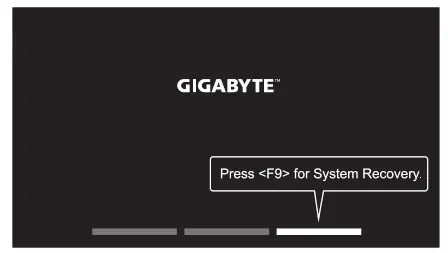

During the laptop turn on process, press and hold F9 key to launch the tool.
Choose “Troubleshoot” to enter the recovery settings.
( Also you can choose “Continue” to exit recovery system and continue to system for files or data backup. )
During the laptop turn on process, press and hold F9 key to launch the tool.
Choose “Troubleshoot” to enter the recovery settings.There are two options for system recovery
- Reset this PC -You can choose to keep or remove your files and then reinstalls Windows without losing your files.
- Smart Recovery -Your PC settings will be restored to factory default settings. Caution: All personal data and files will be lost.
Smart Recovery
The recovery will be activated and you will see the option buttons on the window. Click on “Yes” to start it. Caution
- Once the “Recovery” is selected, your personal data and files will be deleted after the laptop starts restoring, and the operating system will be reset to factory default settings
- A progress indicator bar will show on the window when the recovery process is running. Please make sure the AC adapter is plugged in and do not turn off the laptop.
After the system recovery is completed, you will see the option button on the window, please click on “Shutdown”.
Advanced options
Advanced options | System Restore Use a restore point recorded on your PC to restore Windows. |
| System Image Recovery Recover Windows using a specific system image file. | |
| Startup Repair Fix problems that keep Windows from loading. | |
| Command Prompt Use the Command Prompt for advanced trobleshooting. | |
| UEFI Firmware Settings Change settings in your PC’s UEFI firmware. | |
| Startup Settings Change Windows Startup behavior. |
Appendix
■ Warranty & Service: Warranty and service and related information please refer to the warranty card or GIGABYTE service website as the below link: https://www.gigabyte.com/Support/Laptop
■ FAQ: FAQ (Frequent Asked Questions) please refer to the below link: https://www.gigabyte.com/Support/Faq
