Norauto 2291689 Type 2 To Type 2 Electric Car Charging Cable User Manual

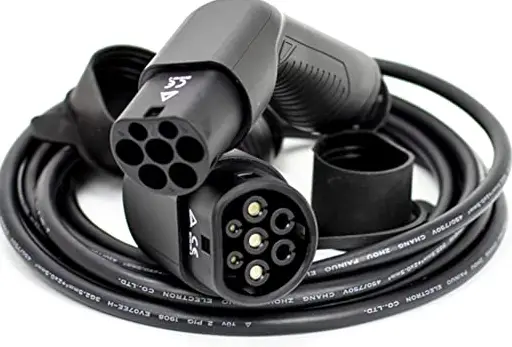

Norauto 2291689 Type 2 to Type 2 Electric Car Charging Cable

PRECAUTIONS

• It is forbidden to disassemble, modify, knock or throw this product by yourself. If there is a problem with the product, please contact your dealer;
• It is forbidden to use the product under abnormal conditions (such as swelling, liquid leakage, burnt smell, etc.);
• It is forbidden to put the product in microwave ovens, ovens, high-pressure containers, and vacuum chambers;
• It is forbidden to put this product in water or flush it for cleaning;
• This product is not a toy, please keep it away from children’s reach when storing;
• The plug must not be in contact with water or heat sources;
• Before and after each use, check whether the surface of the charging gun is damaged and whether the cable is broken;
•  When cleaning the charging gun, wipe it with a cloth. The tip of the gun should not be washed in water, and it should not be wiped with organic solvents.

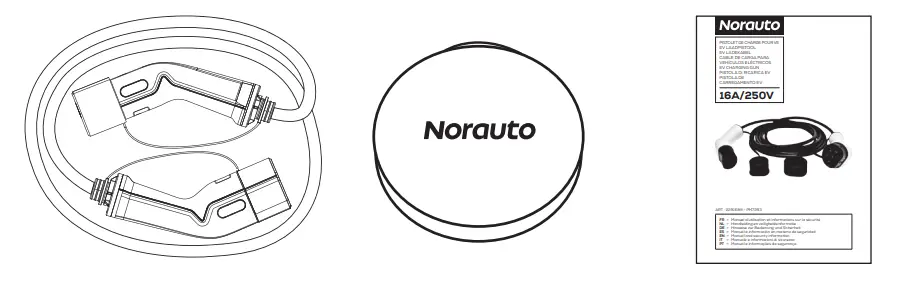

PRODUCT PACKAGING

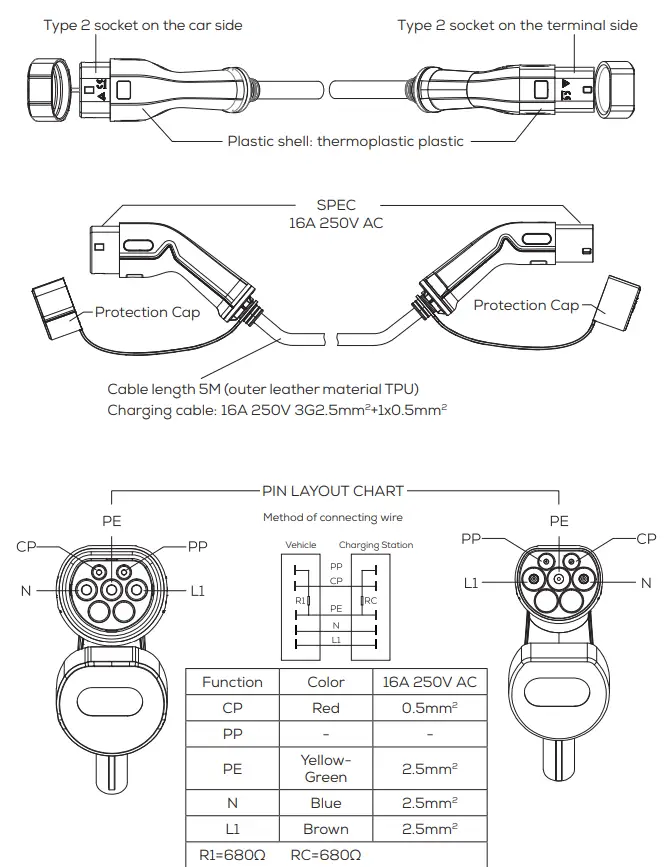

PRODUCT FEATURE DIAGRAM

CHARGING YOUR VEHICLE

The higher temperature of the electronic products during the charging process is normal. If it is not abnormal, don’t worry, but pay attention to the choice of the charging environment. Do not charge in a high temperature environment;

• It is forbidden to charge in dangerous places such as gas stations, filling stations, and places marked with no fire;
• It is forbidden to charge in a closed car, high temperature place, high humidity and humid environment under outdoor sunshine;
• When charging, the charging cable must be fully extended, and the charging cable must not be knotted;
• The charging cable must not be used with extension cords or similar types of charging cables;
• After use, roll up the cable neatly and place the cap (included) on the plug to avoid kinking the cable;
• Improper use of the charging cable can cause short circuits and serious injuries, and negligence can cause life-threatening electric shocks;

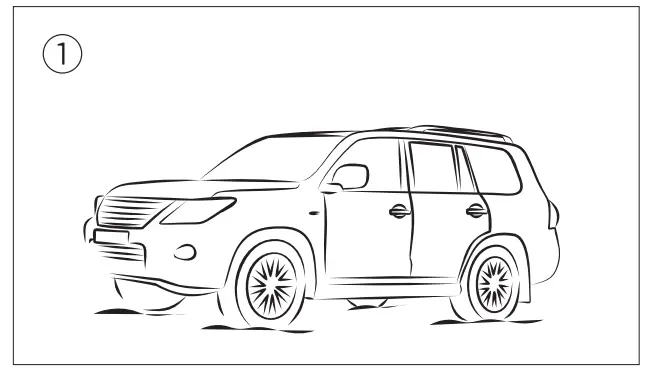

1. Make sure the vehicle is in park and is turned off. Make sure the power of the charging pile is turned on, if not, please turn on the power of the charging pile first;

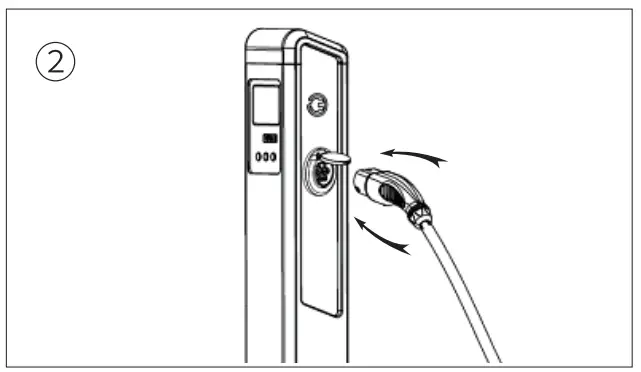

2. Remove the protective cover of the charging gun tip of the adapting charging pile, and insert the tip of the gun into the output interface of the charging pile until it is fully inserted, indicating that the power supply of the charging gun has been connected;

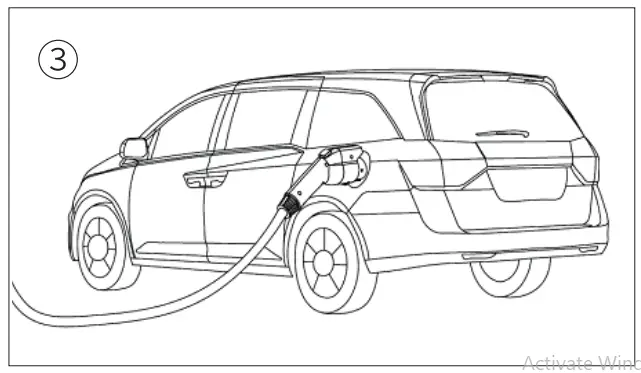

3. Insert the charging coupler at the other end of the charging gun into the charging socket of the vehicle, and until the charging gun head is fully inserted, the car shows that it is charging, indicating that the power is turned on;

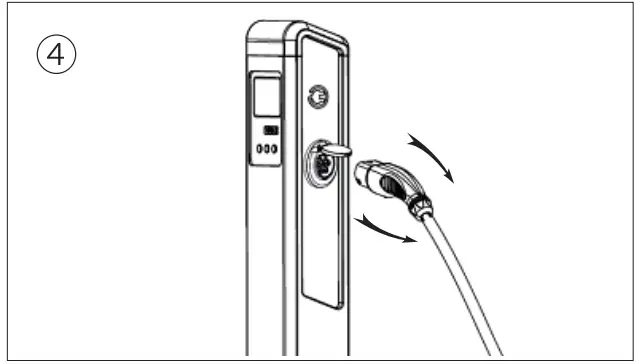

4. When charging is complete, pull out the two charging plug heads in order.

APPLY TO

SPECIFICATIONS
