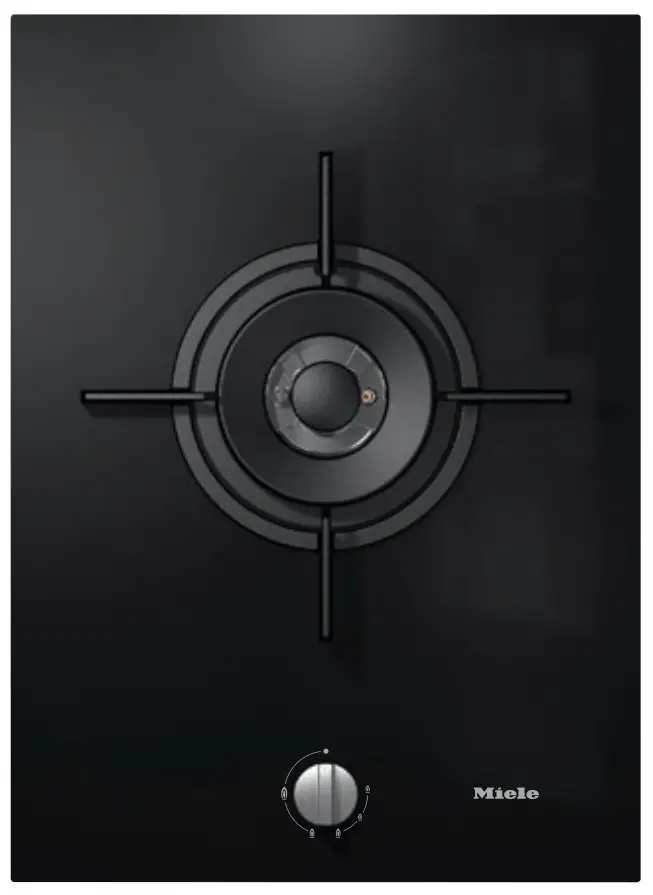

Miele CS7101-1 FL Gas Cooktop
CS 7101-1 FL
SmartLine element with a dual wok burner
- Simple controls -single-handed operation via rotary dial control
- Elegant design – for flush or raised installation
- Seamlessly integrates with any SmartLine element
- Broad performance spectrum – dual wok with up to 4.500 kW kW of power
- Easy cleaning – dishwasher-safe ComfortClean pot rests
EAN: 4002516306245 / Material number: 11402720 / Old Material Number: 27710151GB
| Heating type | |
| Heating type | Gas |
| Construction type | |
| SmartLine | • |
| Design | |
| Elegant glass ceramic surface | • |
| Flush | • |
| Ceramic surface colour | Black |
| Surface-mounted installation | • |
| Cooking zone details | |
| Number of cooking zones | 1 |
| 1st cooking zone/cooking area | |
| Position | Centred |
| Type | Dual wok burner |
| Max. rating in W | 4500 |
| User convenience | |
| Operation via sensor controls | Knob |
| Operation via knobs | • |
| Electronic ignition with single-hand operation | • |
| Cleaning convenience | |
| Easy to clean ceramic glass | • |
| Dishwasher-proof pot rests | • |
| Safety | |
| GasStop | • |
| Technical data | |
| Dimensions in mm (width) | 378 |
| Dimensions in mm (height) | 92 |
| Casing height incl. connection box in mm | 92 |
| Dimensions in mm (depth) | 520 |
| Cutout dimensions in mm (width) with surface-mounted installation | 358 |
| Cutout dimensions in mm (depth) with surface-mounted installation | 500 |
| Internal cutout dimensions in mm (depth) with flush installation | 500 |
| Weight in kg | 7 |
| External cutout dimensions in mm (width) with flush installation | 382 |
| External cutout dimensions in mm (depth) with flush installation | 524 |
| Total rated load in kW | 4.50 |
| Internal cutout dimensions in mm (width) with flush installation | 358 |
| Length of supply lead in m | 1.4 |
| Voltage in V | 230 |
| Frequency in Hz | 50-60 |
| Accessories supplied | |
| CSFG 7000 FlameGuard | • |
| Number of mains cables with plug | Yes |
| Jets for natural gas | • |
| Jets for liquid gas | • |
Overview

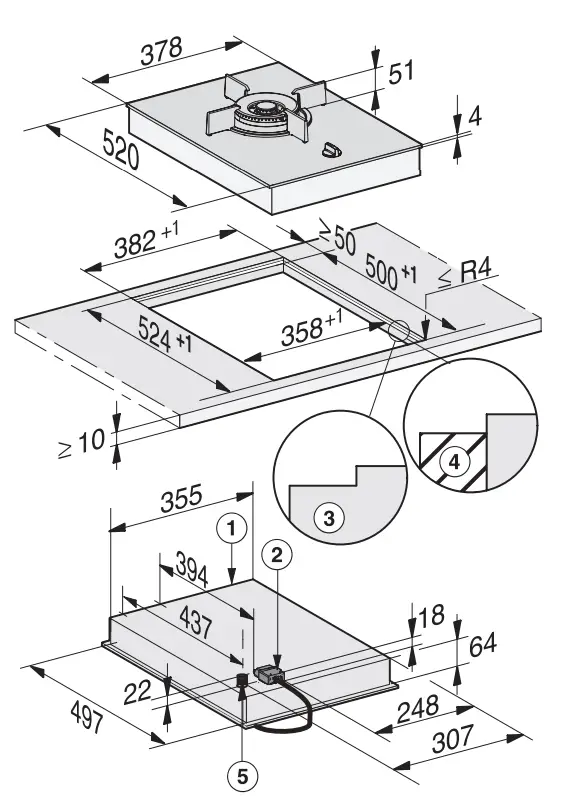

CS 7101 FL flush (installation drawing)
1) Front, 2) Mains connection box with mains connection cable, L = 2000 mm, 3) Stepped cut-out, 4) Wooden frame 12 mm (supplied loose), 5) Gas connection R 1/2 – ISO
7-1 (DIN EN 10226)
