XS-W122ES Mobile ES MRC Honeycomb Subwoofer
Instructions Manual
5-035-201-11(3)

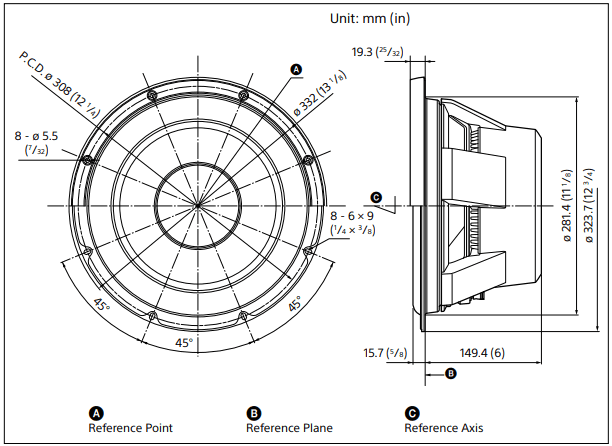

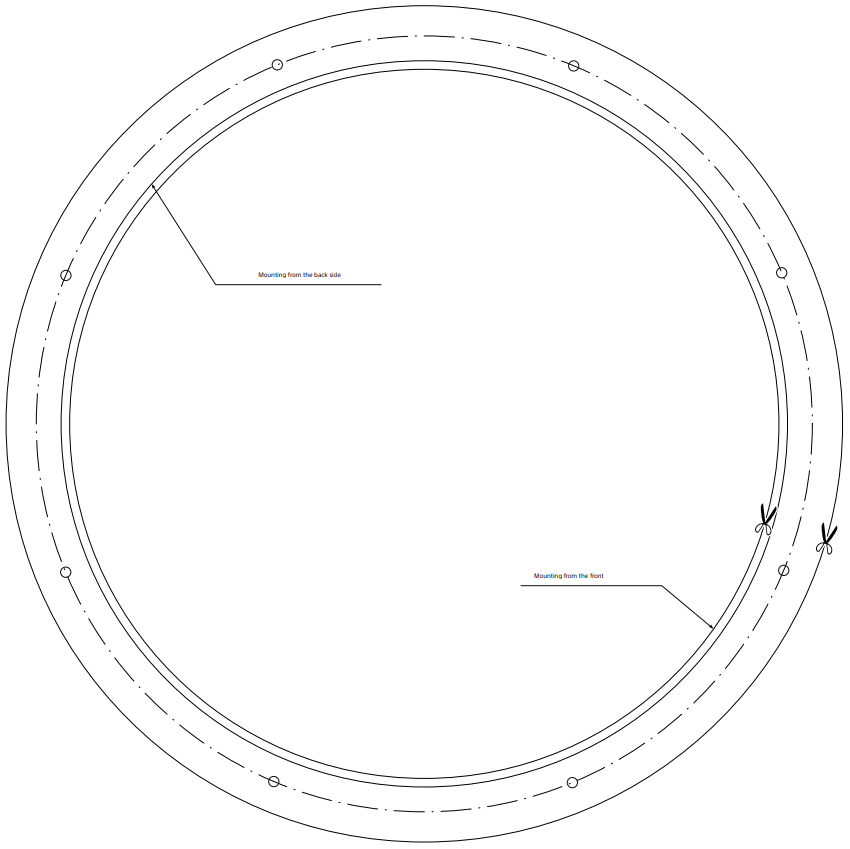

Dimensions

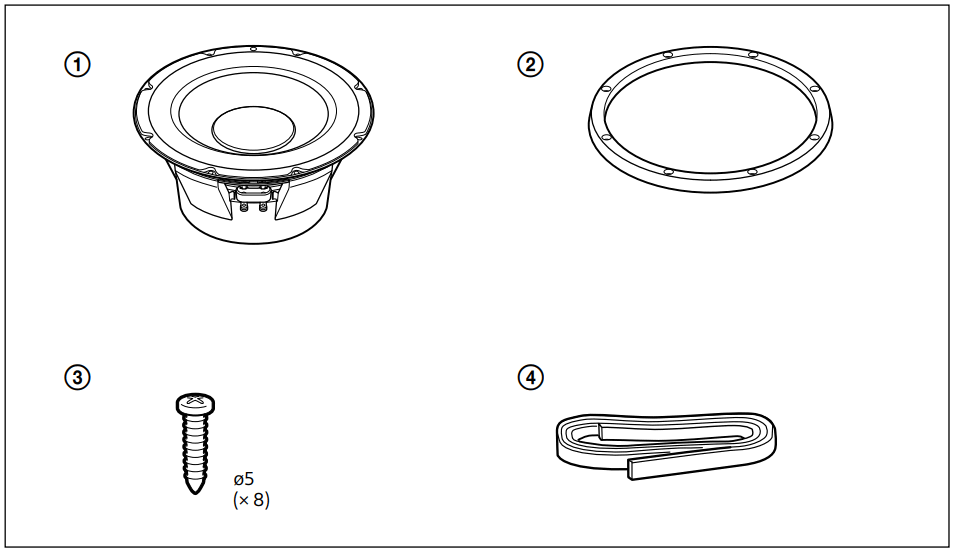

Parts list
Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives
This product has been manufactured by or on behalf of Sony Corporation.
EU Importer: Sony Europe B.V.
Inquiries to the EU Importer or related to product compliance in Europe should be sent to the manufacturer’s authorized representative, Sony Belgium, bijkantoor van Sony Europe B.V., Da Vincilaan 7-D1, 1930 Zaventem, Belgium.
Disposal of old electrical & electronic equipment (applicable in the European Union and other countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring that this product is disposed of correctly, you will help to prevent potential negative consequences for the environment and human health, which could be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
Notice for customers: the following information is only applicable to equipment sold in UK applying relevant statutory requirements
This product has been manufactured by or on behalf of Sony Corporation.
UK Importer: Sony Europe B.V.
Inquiries to the UK Importer or related to product compliance in the UK should be sent to the manufacturer’s authorized representative, Sony Europe B.V., The Heights, Brooklands, Weybridge, Surrey KT13 0XW, United Kingdom.
Disposal of old electrical & electronic equipment (applicable in the European Union and other countries with separate collection systems)This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring that this product is disposed of correctly, you will help to prevent potential negative consequences for the environment and human health, which could be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
Specifications
| Speaker | Woofer 30 cm (12 in),cone type |
| Short-term Maximum Power*¹ | 2,000 W*² |
| Rated power | 400 W*² |
| CTA 2031 RMS Power | 500 W |
| Rated impedance | 2 Ω |
| Output sound pressure level | 80.5 dB±2 dB (1 W, 1 m)*² |
| In-car output sound pressure level | 83.5 dB (1 W, @driver’s seat)*² |
| Effective frequency range | 20 – 700 Hz*² |
| Mass | Approx. 5,500 g (12 lb 2 oz) per speaker |
| Supplied accessory | Parts for installation |
Design and specifications are subject to change without notice.
*¹ “Short-term Maximum Power” may also be referred to as “Peak Power”.
*² Testing Condition : IEC 60268-5 (2003-05)*
*³ Testing Condition : Inside the car

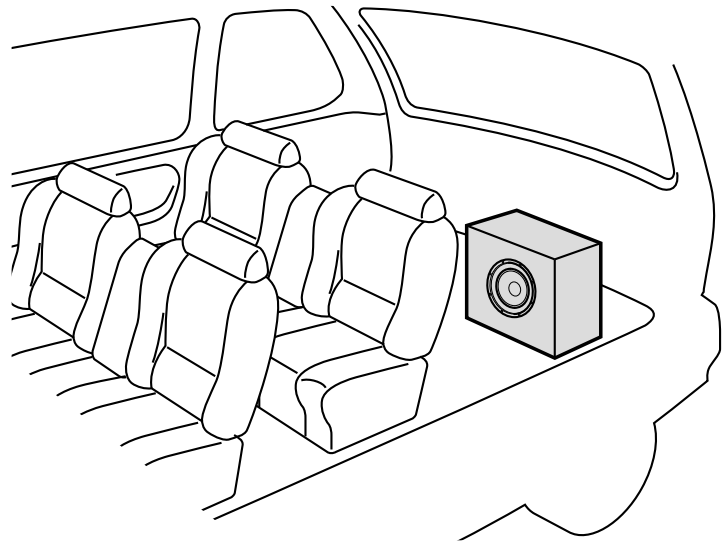

Example

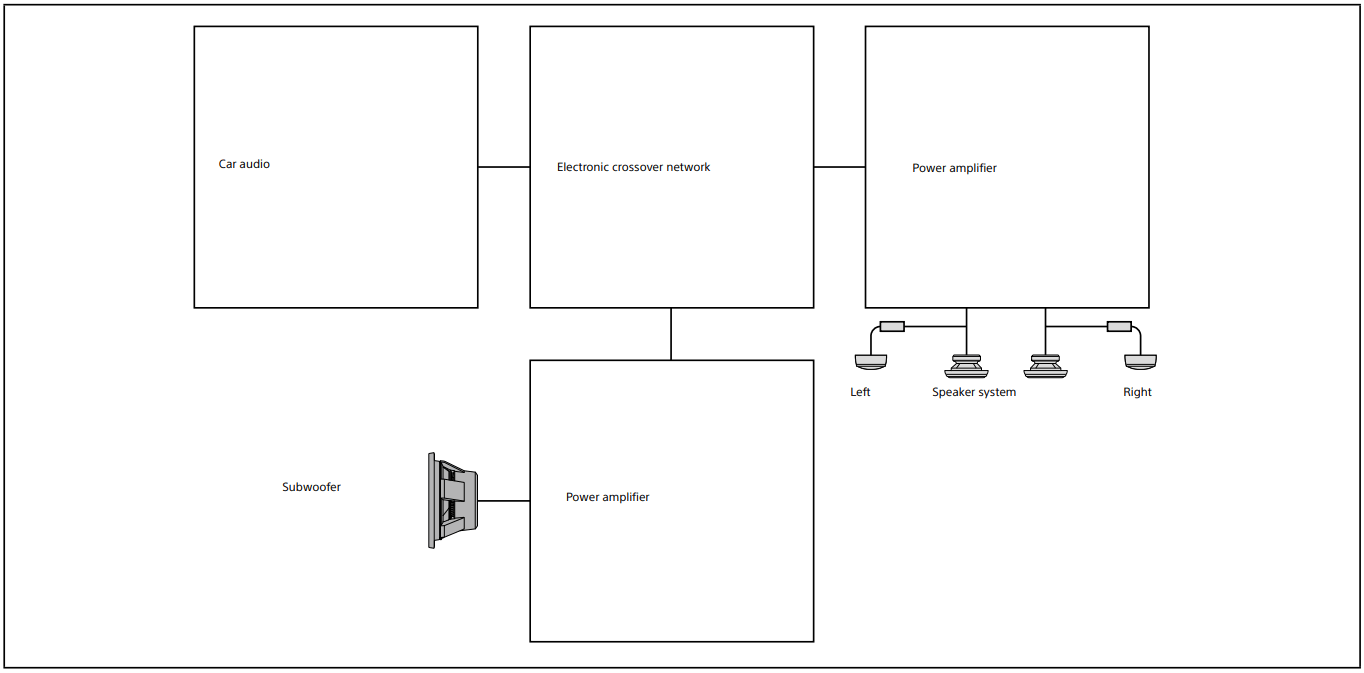

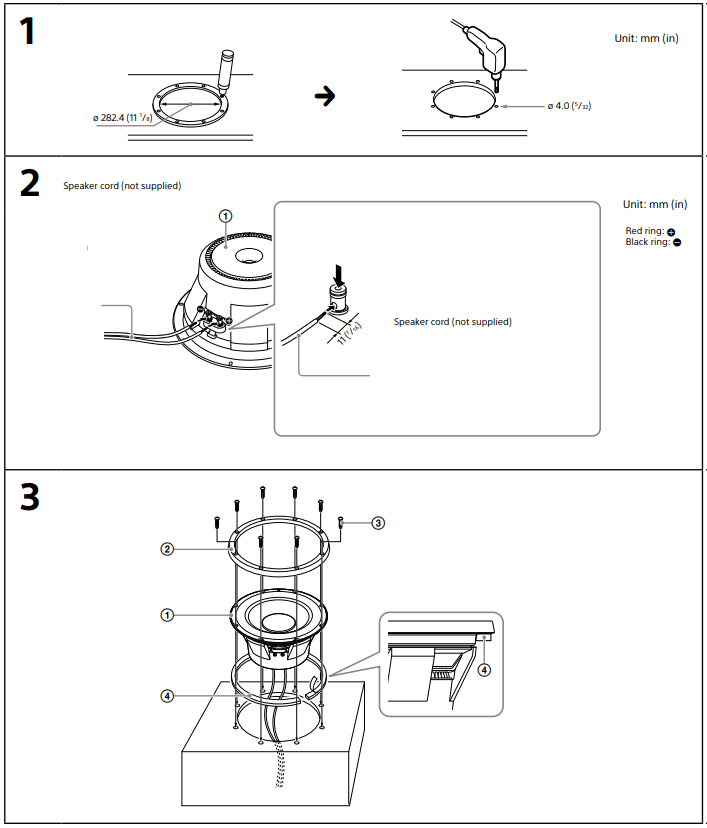

Connections
Thiele/Small parameters
| Rated impedance | 2 Ω |
| d (mm) | 254 |
| d (inch) | 10 |
| Rdc (Ω) | 2.73 |
| Fs (Hz) | 35.3 |
| Qts | 0.74 |
| Qes | 0.8 |
| Qms | 8.88 |
| Vas in litres | 35.3 |
| Vas in cu.ft | 1.25 |
| Mms (g) | 197 |
| Lvc (mH) | 15.4 |
| Xmax (mm) | 7.7 |
| Xmax (inch) | 5/16 |
| BL (Tm) | 12.2 |
Enclosure design information
Sealed Type
Unit: mm (in)

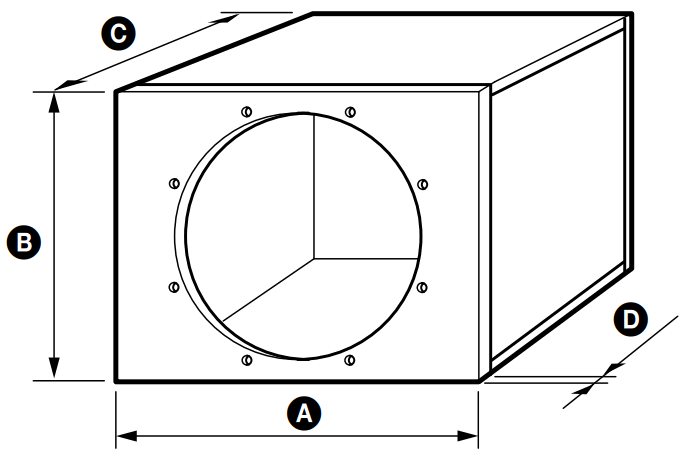

| A | B | C | D |
| 430 (17) | 370 (14 5/8) | 240 (9 1/2) | 18 (23/32) |
| Enclosure Volume (Net)* |
| 23.8 Lit. (0.84 cu.ft) |
* Net volumes do not include the air volume displaced by the speaker.
Ported Type
Unit: mm (in)

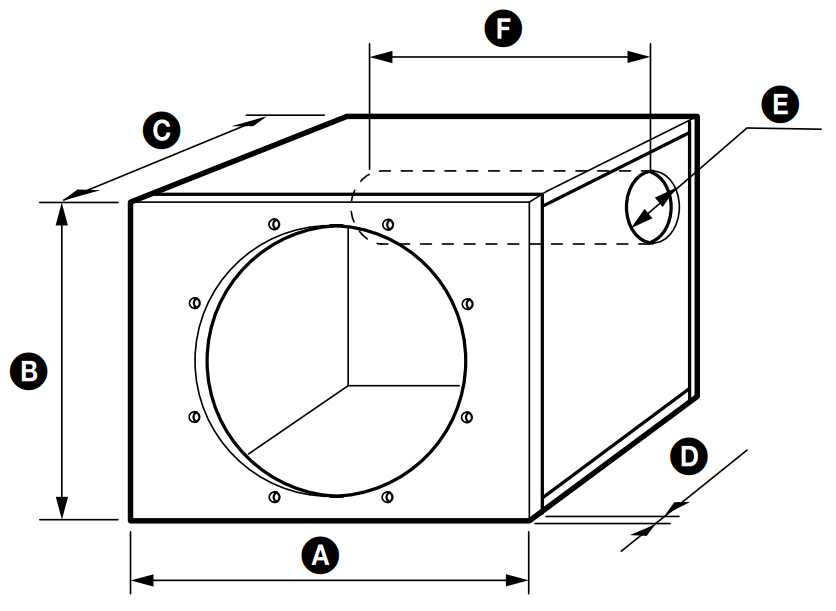

| A | B | C | D | E | F |
| 430 (17) | 370 (14 5/8) | 360 (14 1/4) | 18 ( 23/32) | Ø 85 (3 3/8) | 280 (11 1/8) |
| Enclosure Volume (Net)* |
| 38.0 Lit. (1.34 cu.ft) |
* Net volumes do not include the air volume displaced by the speaker and port. This port should be a solid, not a hollow object.
