Leveone Igp-0102 Industrial Gigabit Poe Injector User Guide

leveone IGP-0102 Industrial Gigabit POE Injector

Power connection

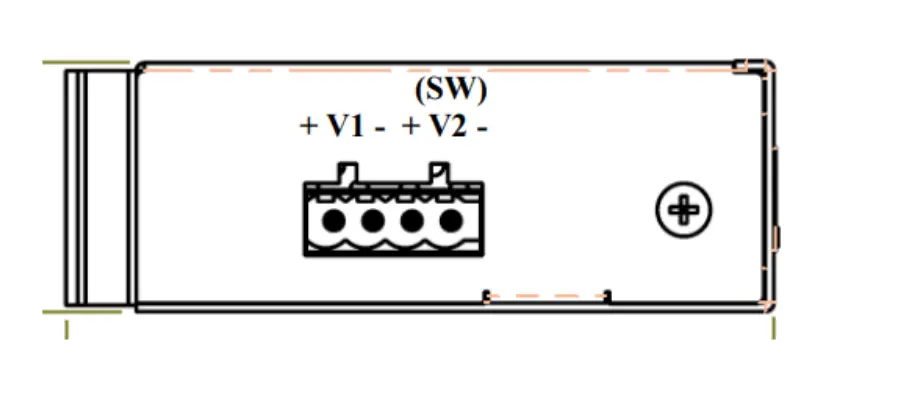

This unit provides 4 pin terminal block. The PoE port can be operated from 48-56VDC power source input.

Power connecting procedure:

1. STEP 1 – Pull out 4 pin terminal block.
2. STEP 2 – Connect wire to V1+, V1-, or V2+, V2-, and Ground the neutral wire to the ground screw.
3. STEP 3– Plug back 4 pin terminal block to its place.
