Scigiene HP5LDT Magnetic Hotplate Stirrer with Digital Display
Product Brief
Scigiene heating magnetic stirrer adopts international advanced design concept and manufacturing technology. It is a rare instrument for scientific research and experiment. This heating magnetic stirrer is mainly used to stir and heat low viscosity liquid or solid-liquid mixtures.
Features
- Full Set includes support stand and probe. Also available without the stand and probe (Part #: HP5LDT).
- Digital display for time and speed control.
- Accurate temperature control.
- Over temperature protection.
- Strong magnetic power.
Product Overview
Models:
| Part # | Description |
| HP5LDTS | Magnetic Hotplate Stirrer – Full set with stand and probe |
| HP5LDT | Magnetic Hotplate Stirrer – No stand or probe |
Product Introduction
Product Data
| Control Type | Digital control panel |
| Motor type | Brushless motor |
| Speed | 50 – 1500 rpm |
| Direction of Rotation | Right |
| Max Stirring Volume | 2L (H2O) |
| Working Plate | 135MM (anti-corrosion ceramic plate) |
| Plate Temperature | 260˚C |
| Liquid Temp Control Accuracy | ±1˚C |
| Plate Temp Control Accuracy | ±3 ˚C |
| Power | 400W |
| Stir Bar Size | 20 – 40mm |
| Temperature Sensor | Inside and outside PT1000 |
| Shell Protection Level | IP42 |
| Product Size | 155 x 220 x 700 mm |
| Net Weight | 0.7 KG |
Correct Usage
Application
It is mainly used for stirring and heating liquid or solid-liquid mixture with low viscosity.
Usage
It is widely used as an experimental tool in colleges and universities, environmental protection, health, epidemic prevention, chemical industry, tap water, medical treatment and other units.
Steps for Usage
- Turn on the power
- Press the menu key to select the temperature, press the up and down keys to set, and then the temperature is adjusted to “–: –” without heating
- Press the menu key to select the number of revolutions, press the up and down keys to set, and the speed is adjusted to 00:00 without stirring
- Press the menu key to select the time, press the up and down keys to set, and the time is adjusted to “–: –” as long-term action (the time area of long-term action state will be hidden) , Timing status (time is displayed)
- Press the start/stop key to start/stop
Instrument Use Environment
- Indoor use
- Altitude: <2000m
- The working temperature range of the instrument is +5℃~+40℃
- The applicable temperature range of the instrument is <80%
- There is no vibration and airflow that affect performance around
Safety Precautions
- Do not unplug or plug the power connector or toggle the power button when your hands are wet with liquid
- Do not unplug the power plug when the instrument is powered on
- Do not clean the instrument when it is powered on
- Do not install the instrument on an uneven, swaying and vibrating work surface

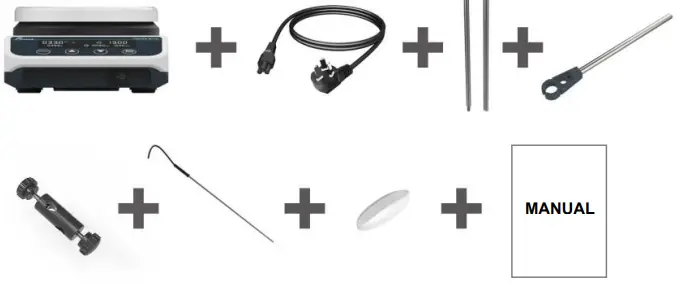

Package List
