UCTRONICS U603001 DC 12V Programmable-- LOGO

Assembly Instruction

SKU: U603001
UCTRONICS U603001 DC 12V Programmable-- Module Installation Guide

www.uctronics.com

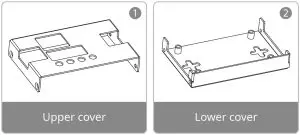

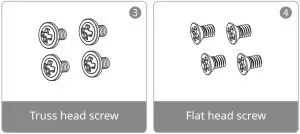

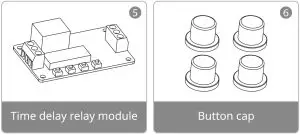

PACKING LIST

UCTRONICS U603001 DC 12V Programmable-- Module Installation Guid1UCTRONICS U603001 DC 12V Programmable-- Module Installation Guid3UCTRONICS U603001 DC 12V Programmable-- Module Installation Guid4

STEP

STEP 1: Mount the timer module on the lower cap, fix with the truss head screw.

UCTRONICS U603001 DC 12V Programmable-- Module Installation GuideKK

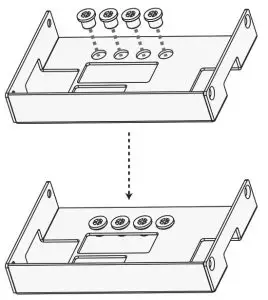

STEP 2: Turn the upper cap upside-down, fill the button caps into the round cuts.UCTRONICS U603001 DC 12V Programmable-- Module Installation GuideKKJ

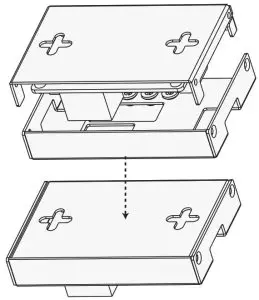

STEP 3: Keep the upper cap upside-down and assemble it with the lower cap.

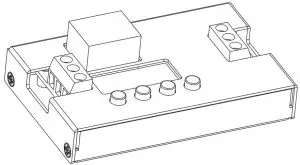

UCTRONICS U603001 DC 12V Programmable-- Module Installation GuideKFGSTEP 4: Fix the upper cap and lower cap with flat head screws.
UCTRONICS U603001 DC 12V Programmable-- Fix the upper
