Global 10-55℃ Power Supply D Installation Guide

Monitor the status of doors, windows, appliances furniture cabinet doors, drawers, etc.

PRODUCT`S CHARACTERISTICS

Fast and easy to install Hall sensing technology
Low battery indication function
Send status reports to the gateway periodically
Low power consumption microprocessor, long standby time Anti-tamper function

Network settings

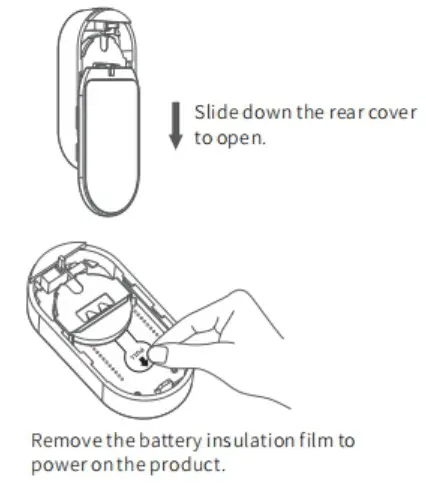

1. Turn on the product.

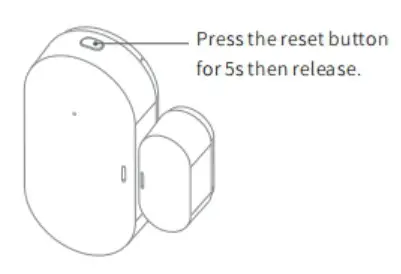

2. Press and release the reset button 5S, the green LED will Flash for network settings.

Distribution network tips:
Press and hold the reset button for 5 to 10 seconds, the green LED will light up once
The green LED goes out, releases the reset button, and the green LED flashes to indicate that you are ready for network settings. Blinks for 20 seconds during the network setting process, and then cancel the network setting after more than 10 seconds.
The green LED indicator will light up for 5 seconds to indicate the network settings Success, if it fails, the green indicator goes off.

Installation instructions

Install the product on the door or window together with the main body Fixed on the door frame or window frame (please install on wood Door or window), as shown in the figure below.

Do not install the product outdoors, in an unstable place, or in Any place not protected by rain.
Do not place a magnetic metal or other objects near the product. When pasting and installing, you must ensure that the surface in contact with the double-sided tape is smooth, dry, and clean.

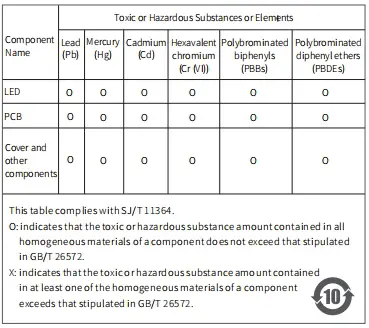

Toxic or harmful substances or elements This product

Warranty certificate

Warranty policy:

1. If the product has quality problems within 7 days after payment
   On the date, you can apply for a refund based on the invoice price, or you can
2. If the product has quality problems within 15 days after payment, please replace it with the same model or repair it.
   Date, you can apply to replace the product with the same model or the following model Repaired.
3. If the product has quality problems within 12 months after warranty, On the payment date, you can apply for repairs.

This warranty does not include:

1. The product owner has no warranty certificate or warranty
   The service has expired.
2. Damage caused by improper use, maintenance, or storage.
3. Damage was caused without Tuya’s disassembly and repair. Authorization
4. Damage caused by force majeure
5. The product will change color and depreciate normally after being used
