Vivo Hub Hjs-0-fm Ps-j-20w-unv Power Supply Installation Guide

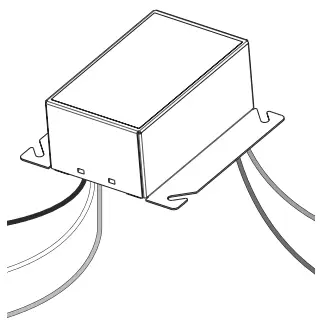

Power Supply (PS-J-20W-UNV):
Input: 120–277 V~ 50 / 60 Hz 0.6 A
Output: 24 V- 830 mA
Vive Hub (HJS-): 24-36 V- 350 mA

Installation Instructions

Please Read Before Installing P/N 041803 Rev A

Included Components

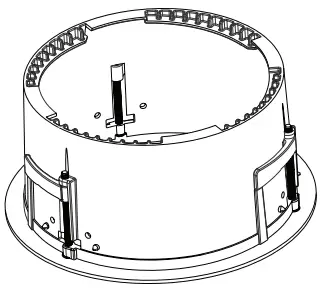

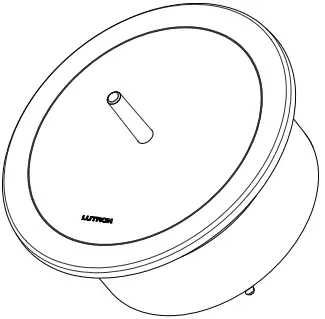

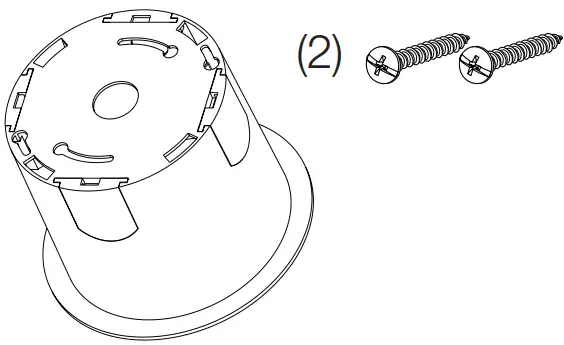

Vive Hub	Power Supply	Flush-mount Adapter –FM models	Surface-mount Adapter and Screws –SM models

Important Notes

General

1. For installation by a qualified electrician in accordance with all local and national electrical codes.
2. In Canada, separate over-current protection is required to be in accordance with the Canadian Electrical Code, Part 1.
3. The primary branch circuit must be protected by a 15 A or 20 A breaker (as applicable).
4. The primary wiring must be 18 AWG to 14 AWG (1.0 mm2 to 2.5 mm2) and rated for at least 167 °F (75 °C).
5. If moisture or condensation is evident, allow the product to dry completely before installation.
6. Operate between 32 °F and 104 °F (0 °C and 40 °C).
7. 0% to 90% humidity, non-condensing.
8. For indoor use only.

CAUTION: Risk of Fire, Explosion, Leakage, and Burns. Do Not Recharge, Disassemble, Heat Above 212 °F (100 °C) or Incinerate. This product contains a lithium button/coin cell battery. Keep batteries away from children. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours. Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep the batteries away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. The battery in this device contains Perchlorate Material special handling may apply. For more information, visit www.dtsc.ca.gov/hazardouswaste/perchlorate
Vive Hub

1. Clean the Vive hub with a soft damp cloth only. DO NOT use any chemical cleaners.
2. DO NOT paint the Vive hub.
3. The Vive hub is part of a system and cannot be used to control a load without a compatible system device. Please refer to
   the system device(s) instruction sheet or www.lutron.com for installation information.
4. Up to 700 Lutron wireless devices can be associated with the Vive hub.
5. Installation near metal, other than a junction box, may reduce RF range. The Vive hub should be at least 12 in (305 mm) away from metal objects.
6. All wireless devices must be within 71 ft (22 m) of the Vive hub. This range applies to both Clear Connect devices and Wi-Fi.
7. A corporate Wi-Fi network can interfere with the Wi-Fi on the Vive hub. Where a corporate Wi-Fi network exists, it is recommended to connect the Vive hub to the corporate network using the Ethernet connection on the hub and disable the hub’s Wi-Fi.
8. Must be mounted a minimum of 10 ft (3 m) from the Wi-Fi router.
9. For a secure way to de-commission the Vive hub, please contact Lutron Customer Assistance.

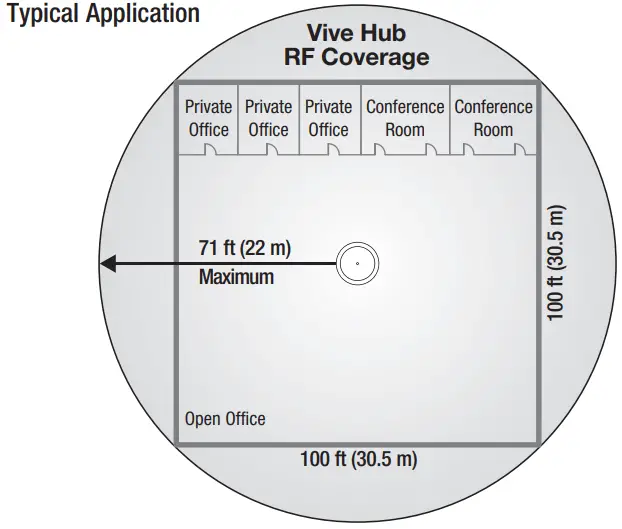

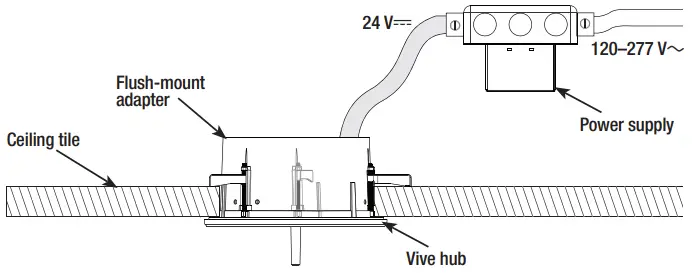

Typical Application

Instructions

Product Overview
(Flush-mount Adapter shown)

Installation

Turn OFF the power at the circuit breaker.

WARNING! Shock Hazard. May result in serious injury or death. Turn off power at the circuit breaker before installing the unit.

Installing the Mounting Adapter
The Vive hub can be mounted on a variety of ceiling materials (thickness ranging from 1/4 into 11⁄4 in (6 mm to 32 mm) with the mounting bracket provided.
Flush-Mount adapter

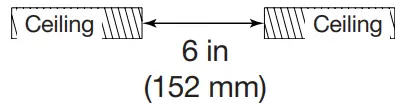

A. Cut a 6 in (152 mm) diameter mounting hole in the ceiling to insert the mounting bracket.

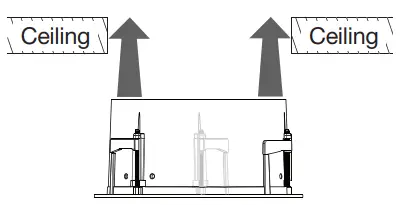

B. Insert the flush-mount Adapter into the hole and rotate the three brackets outwards by turning screws.

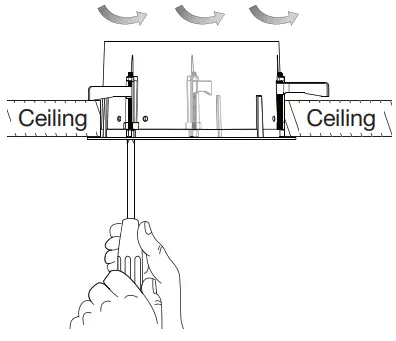

C. Using a Phillips head screwdriver, hand-tighten the brackets, clamping the adapter to the ceiling. DO NOT overtighten.

Surface-Mount adapter
A.
1. Remove installed doors to access the optional conduit knockouts. The knockouts provide a connection point for ` in or 2 in (13 mm or 19 mm) conduit.

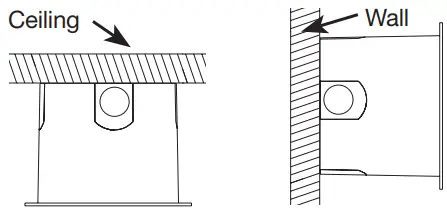

2. Attach the surface-mount adapter to the wall or ceiling using the included screws or appropriate screws that will securely mount the device.

Note: The provided screws may not be suitable for your application.

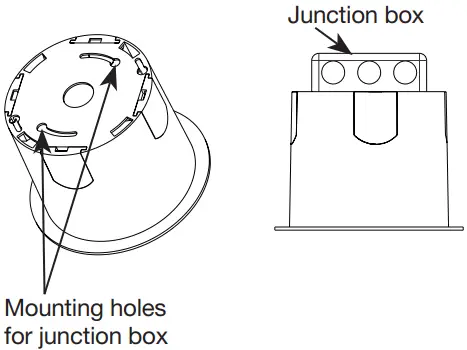

B. Alternate installation methods: Attach the surface-mount adapter to a junction box (4 in x 4 in (102 mm x 102 mm) square or 4 in (102 mm) octagonal).

Wiring
A. Power Supply

1. Ground the junction box in accordance with NEC® / local codes.
2. Mount the power supply to the junction box. The power supply must be mounted within 100 ft (30 mm) of the Vive hub.

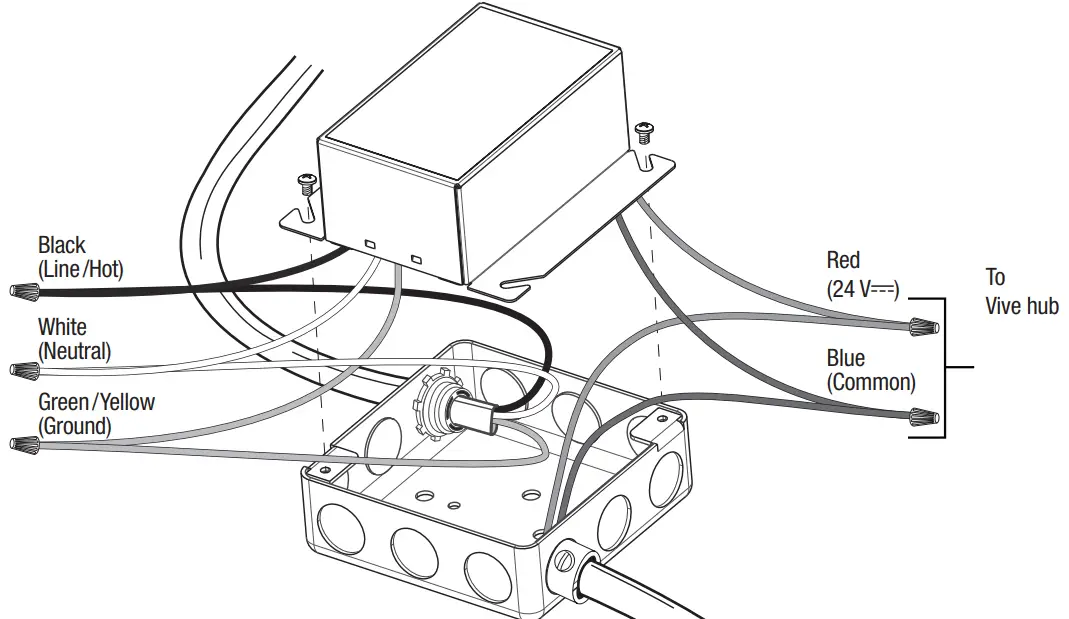

3. Make wiring connections as shown.
   Note: DO NOT power the Vive hub with an Uninterruptable Power Supply (UPS) or emergency generator power. The Vive hub must be powered with normal power only when emergency PowPak /Fixture Controllers are utilized in the system. If the Vive hub is powered from UPS or emergency generator power any emergency PowPak utilized in the system will either not enter emergency mode, or exit emergency mode prematurely.
   Note: Maintain separation of the power supply Class 2 output wiring from all other conductors by a minimum of 1/4 in (6.4 mm) or by a non-conductive sleeve or non-conductive barrier.

B. Vive Hub

1. Run the low-voltage wiring from the power supply to the Vive hub. Most applications will require an additional length of wire to connect the junction box with the Vive hub. Wiring should be 24 AWG–12 AWG (0.2 mm 2 –2.5 mm2).
2. Wire the Vive hub terminal block. Contact Closure Input 1 (CCI1) is programmed by default to meet Title 24 Automatic Demand Response (where applicable). Closing this input will shed the lighting load by 20% for connected Vive compatible lighting devices. Contact Closure Input 2 (CCI2) is programmed by default to have no effect. CCI2 can be configured during programming.
   Note: Terminal blocks are removable for ease of wiring.

3. Connect the Ethernet cable to connect to Building Management Systems, wired networks, and other Vive hubs.

Attaching the Vive Hub to the Adapter

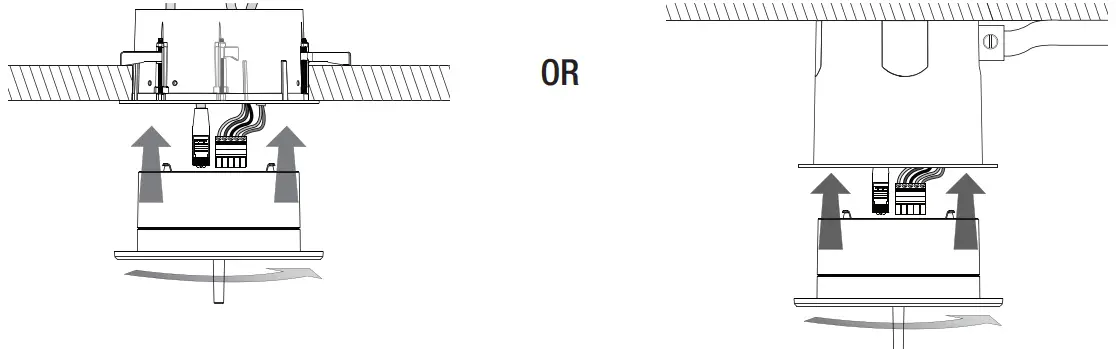

Note: Prior to installing the hub, record the Wi-Fi SSID printed on the label. Attach the Vive hub into the ceiling-mount adapter by inserting and twisting in a clockwise direction until the hub locks into place.

Flush-mount Adapter	Surface-mount Adapter

Turn ON power at the circuit breaker.
Programming
The Vive hub can be set up easily with any Wi-Fi enabled iOS® or Android® compatible device.
a. Download the Lutron Vive app.

b. Open the app and follow the instructions.

LED Feedback

Troubleshooting

www.lutron.com/vive

Customer Assistance:
U.S.A. / Canada / Caribbean: 1.844.LUTRON1
Mexico: +1.888.235.2910
Others: +1.610.282.3800
www.lutron.com/support
Limited Warranty: www.lutron.com/TechnicalDocumentLibrary/warranty.pdf
For FCC/IC information: Please visit: www.lutron.com/fcc-ic
