ESBE SYSTEM UNITS – ACCESSORIES

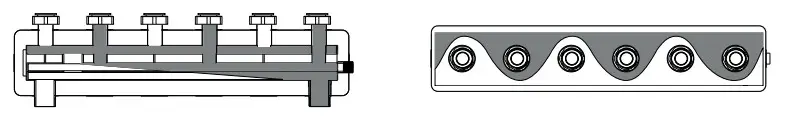

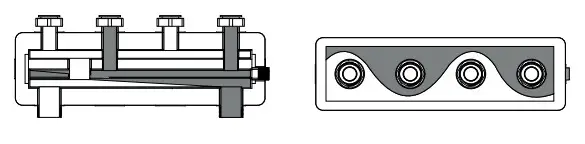

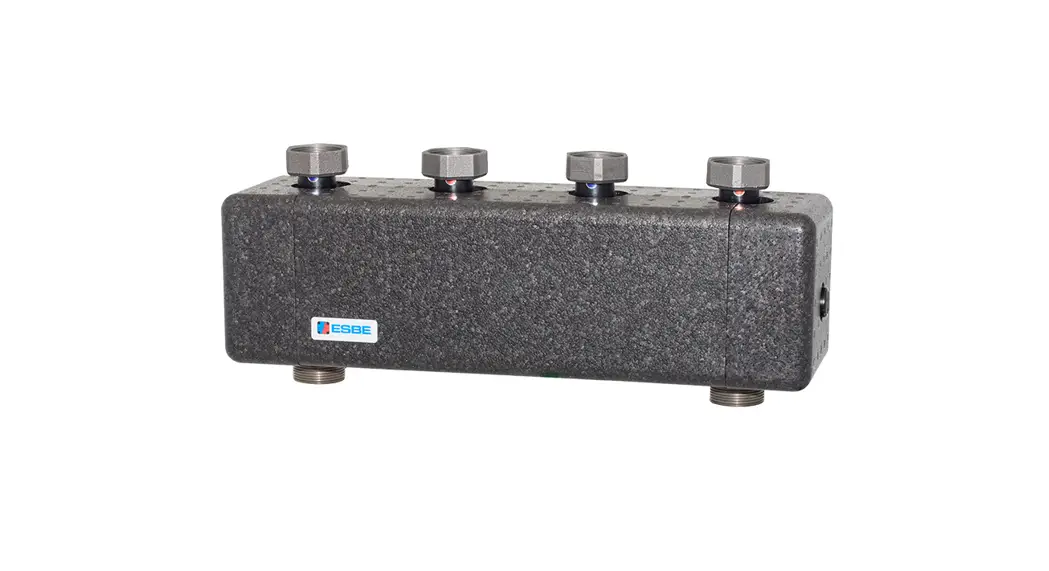

MANIFOLD 1.2

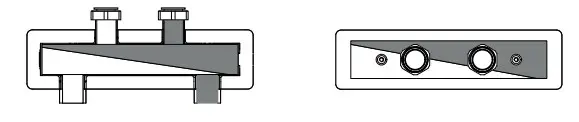

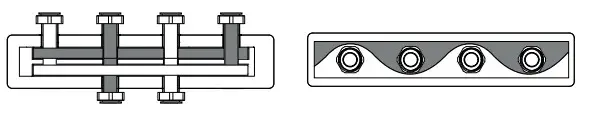

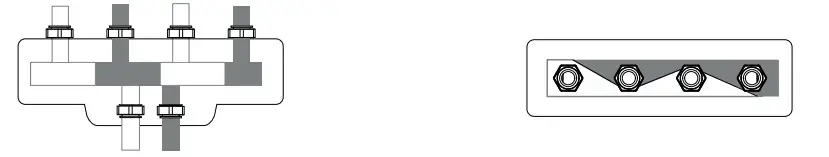

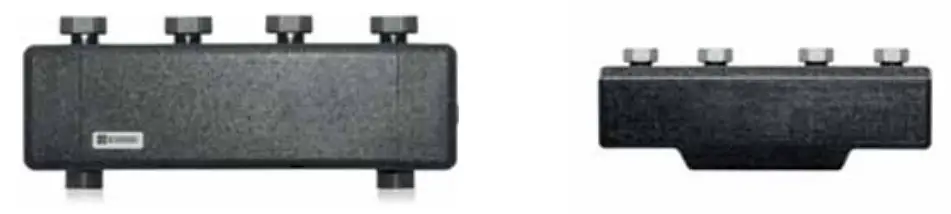

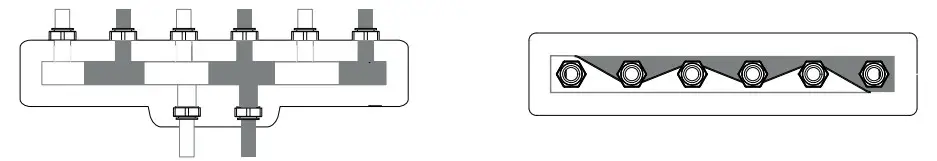

SERIES	FUNCTION
ESBE GMA421		Manifold for 2 Circulation Units, without integrated hydraulic separator function.
ESBE GMA431		Manifold for 3 Circulation Units, without integrated hydraulic separator function.
ESBE GMA521		Manifold for 2 Circulation Units, with integrated hydraulic separator function.
ESBE GMA441		Manifold for 4 Circulation Units, without integrated hydraulic separator function
ESBE GMA451		Manifold for 5 Circulation Units, without integrated hydraulic separator function.
ESBE GMA531		Manifold for 3 Circulation Units, with integrated hydraulic separator function.
ESBE GMA411		Manifold for 1 Circulationunit, with integrated hydraulic separator function.
ESBE GMA321		Manifold for 2 Circulation Units, without integrated hydraulic separator function.
ESBE GMA331		Manifold for 3 Circulation Units, without integrated hydraulic separator function.

Contents hide

1 MULTIPLE INSTALLATIONS OF CIRCULATION UNITS

2 Documents / Resources

3 Related Posts

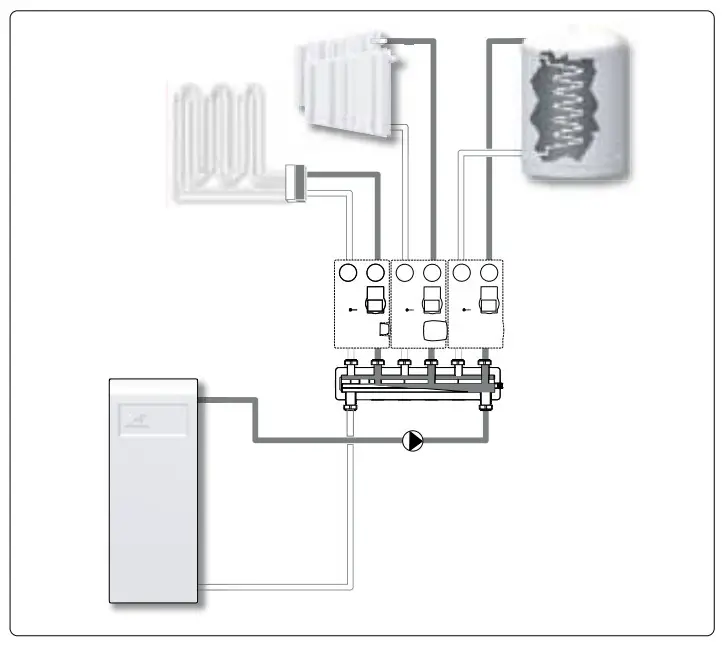

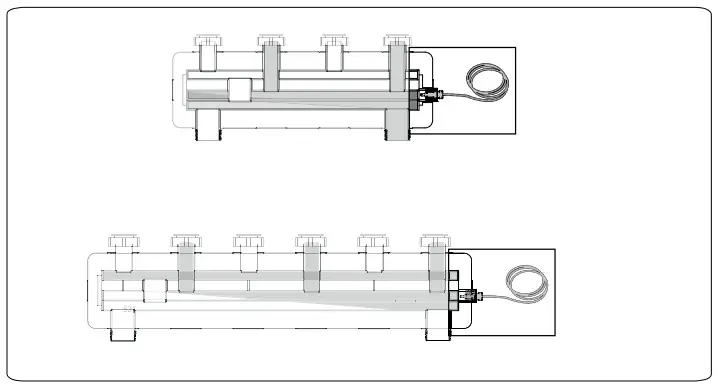

MULTIPLE INSTALLATIONS OF CIRCULATION UNITS

If more than one Circulation Unit should be used we recommend the use of Serie ESBE GMA manifold, with or without a hydraulic separator.

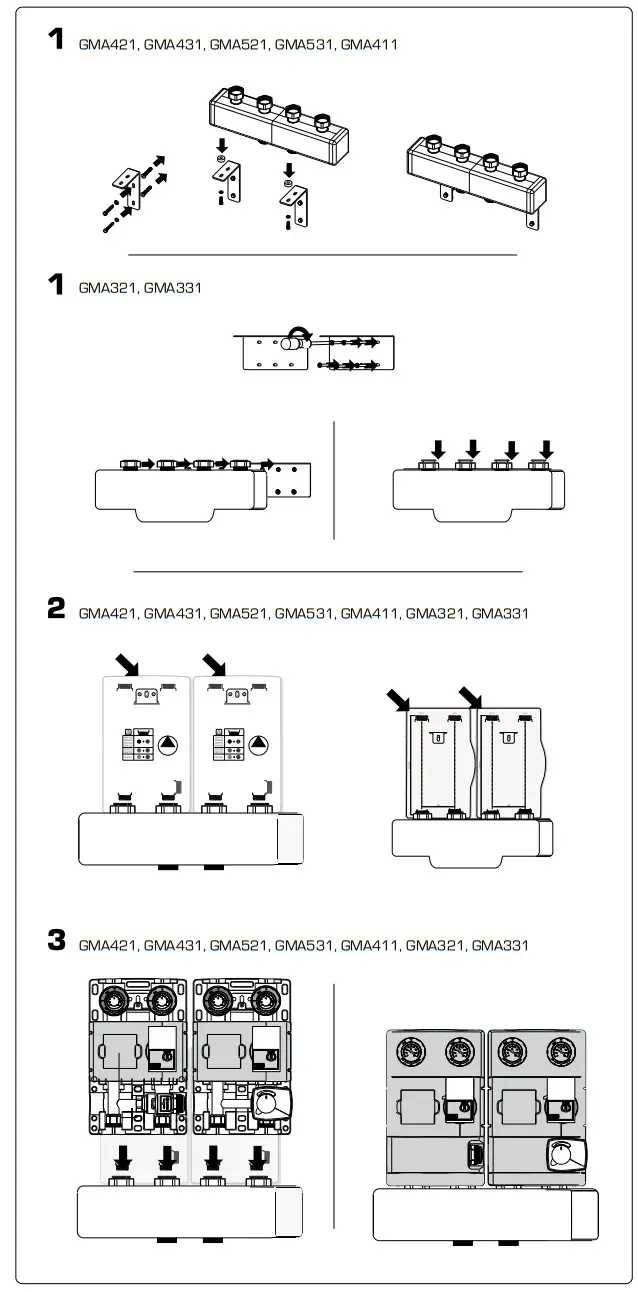

INSTALLATION ON THE WALL
Install the appliance on a solid wall that is not subject to vibration. It´s important to position the hydraulic manifold considering its size and all the units connected.
When drilling holes in the wall for installation purposes, take care not to damage any electrical wiring or existing piping.

Drill holes and insert suitable plugs. Mount the manifold with the submitted wall brackets. Fix the brackets to the wall and position the manifold.
Choose the correct position for the piping for the circulation unit by the usage of the mounting template supplied with the circulation units package.

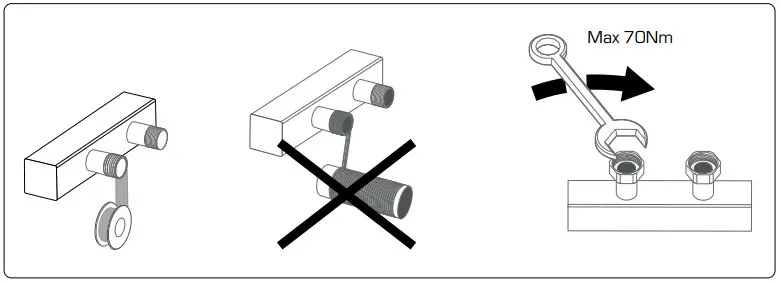

Connect the circulation units to the manifold.
