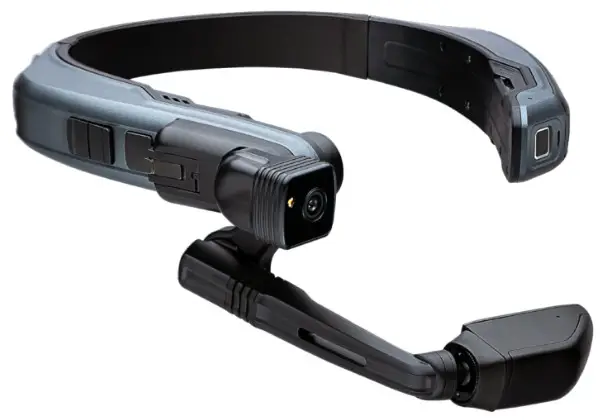

RealWear Navigator 500
Quick Start Guide
ATTENTION: Before using the Navigator 500 for the first time, visit https://www.realwear.at/en/support from another device (phone or computer).

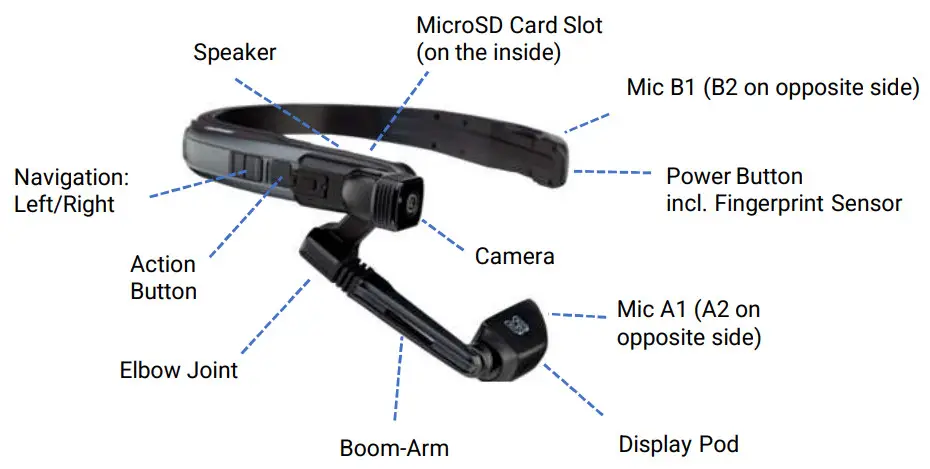

Front View

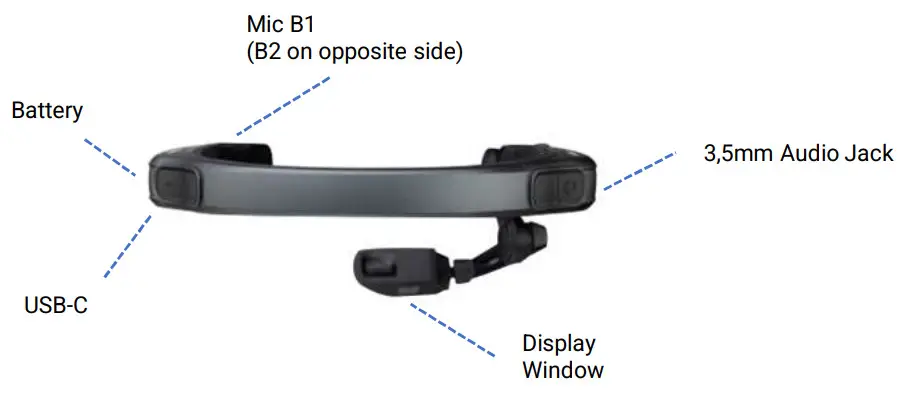

Rear View

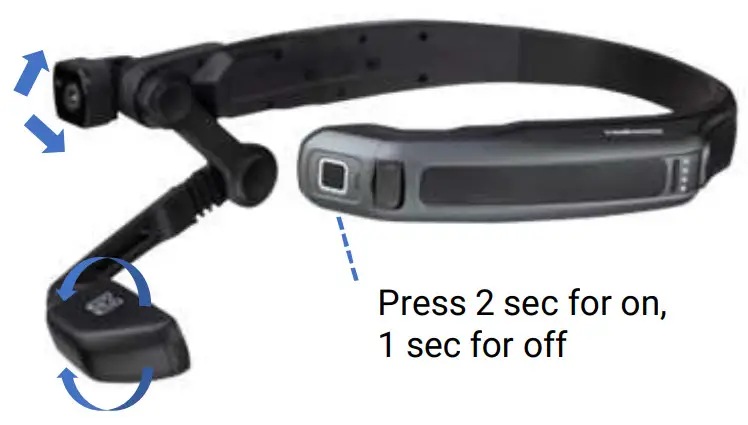

Switching on and Adjusting
Adjust camera position by rotating up / down for the best view
Adjust the Display so you can see all 4 corners of the display and then lock it intoposition using the locking ring
Setting up the Display
Adjust the workband so that the Nav500 rests horizontally, and the display slightly below the line of sight

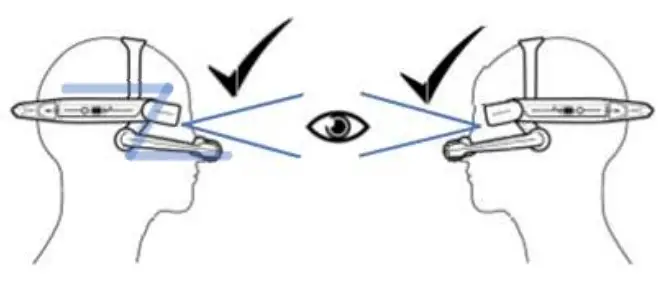

Position the boom arm and elbow joints into a “Z” shape, below the line of sight, left or right eye.
Do not extend the display too far from your eye. Keep the display as close to the eye as possible for the best view.
NOTE: Your Navigator 500 is shipped partially charged from the factory. If the battery level is too low, please see charging instructions below.
Voice Input

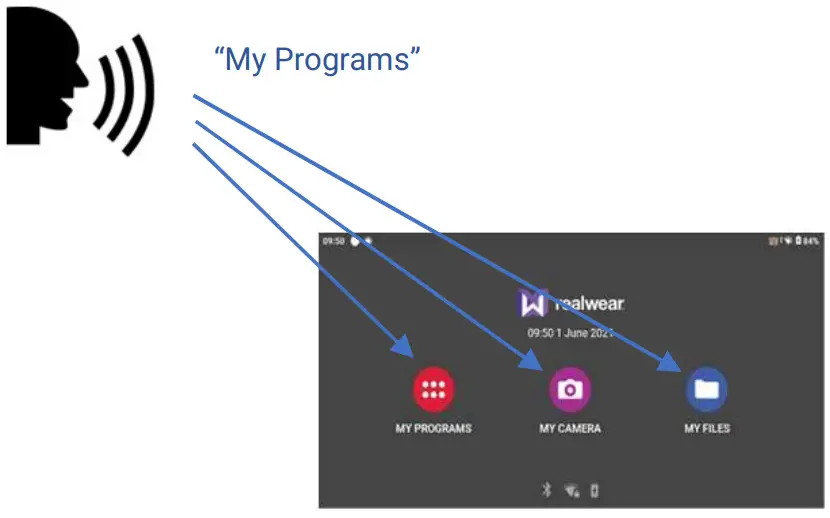

The Navigator 500 is controlled simply by using your voice and head motion. Speak out clearly, say what you can see on the screen. Just say the name of the icon you want to open. To use the bubbles 1 with numbers, just say “select item 1”.
Charging the Navigator 500
Charging the Navigator 500

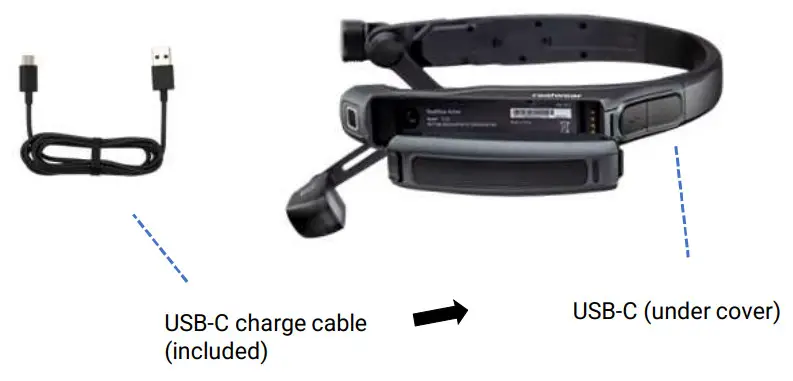

- Connect the USB-C charging cable to the USB-C port located under the rear cover on the same side as the boom arm.
- Connect the charging cable to the wall charger and plug the charger into a wall socket. The power button lights up ORANGE while charging. The Power button will light up GREEN, once it reached 90% battery status.
Rechargeable Battery

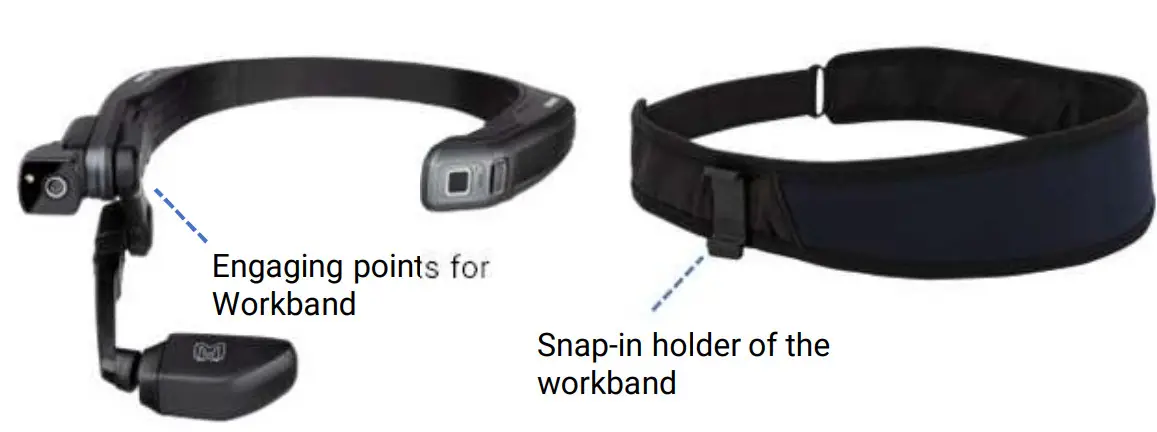

Workband
Barcotec Support Contact
E-Mail: [email protected]
Phone: +43 1 786 39 40
Barcotec GmbH, Julius Welser Straße 15
5020 Salzburg
https://www.realwear.at/support
