Zebra Ws50 Wearable Computer Accessories User Guide

WS50 WEARABLE COMPUTER
ACCESSORIES GUIDERevised April 5, 2022

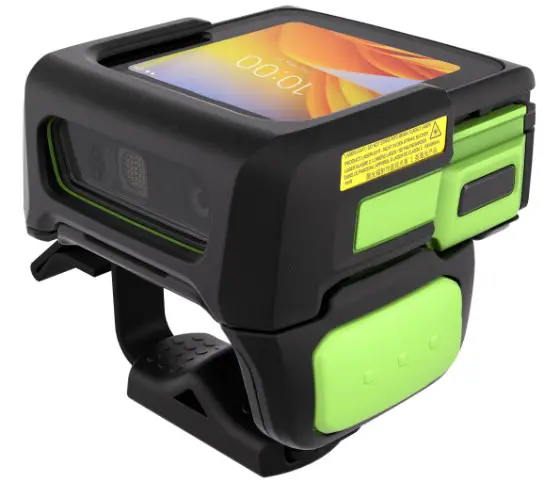

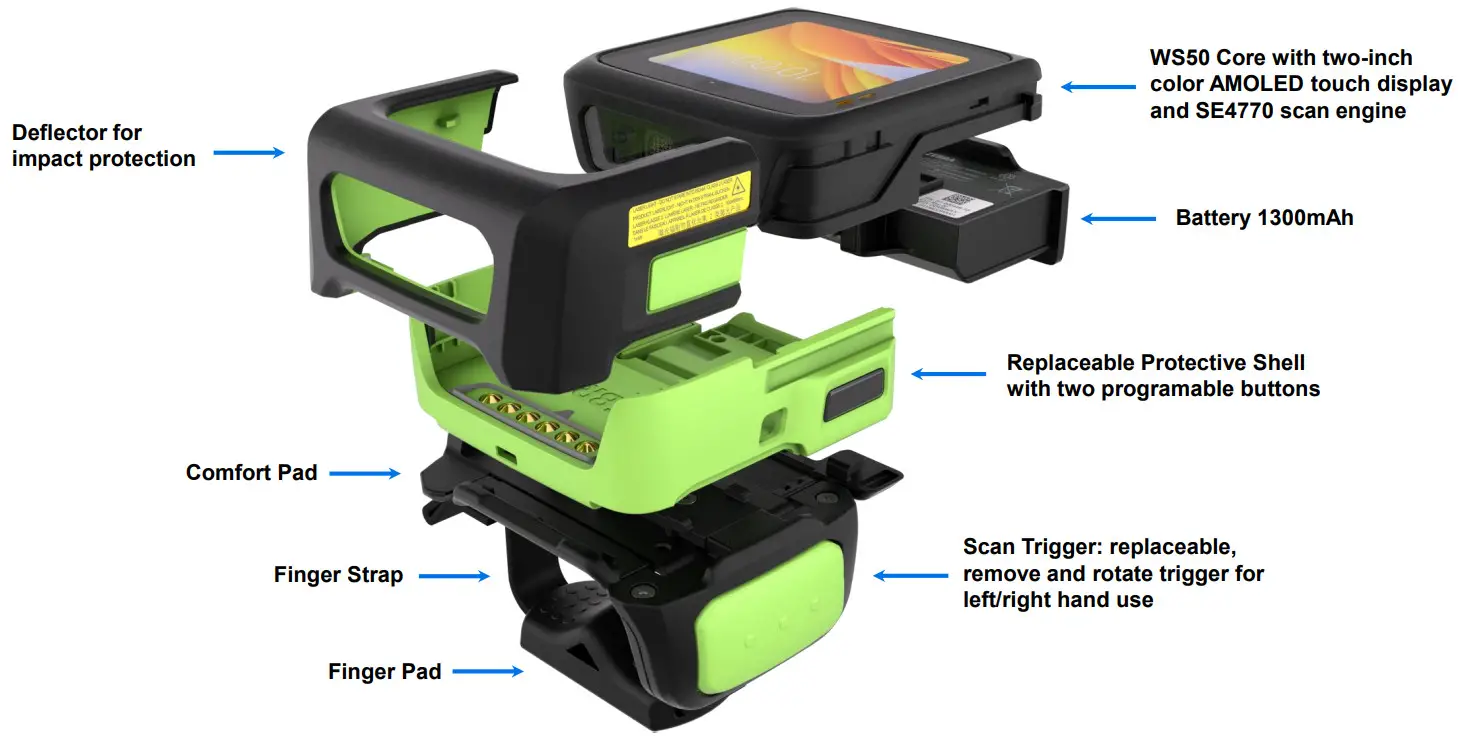

WS50 Converged Assembly

WS50 Converged Spare Battery and Charger

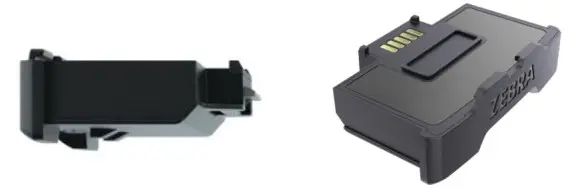

Spare 1300mAh Li-ion Battery
BTRY-WS5X-13MA-01
PowerPrecision Spare Lithium-Ion battery, 1300mAh, for WS50 Converged

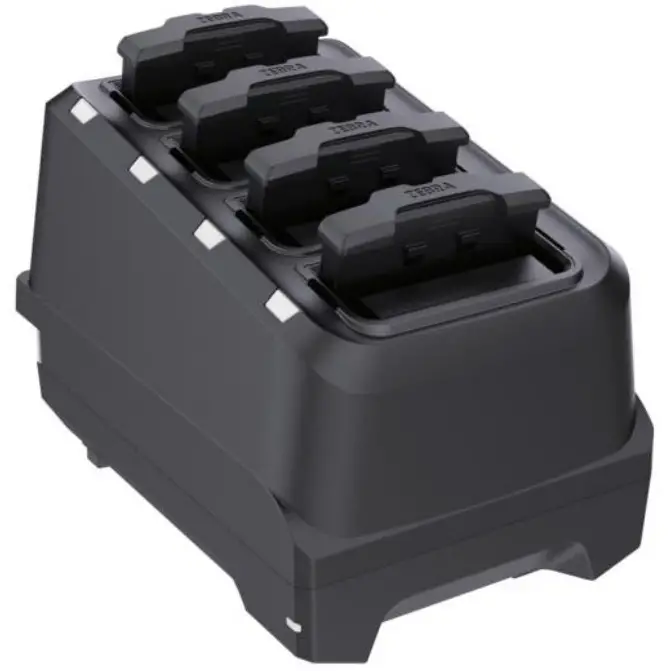

WS50 Converged, Four Slot Spare Battery Charger
SAC-WS5X-4S13-01: WS50
Converged four slot spare battery charger, charges four 1300mAh batteries. LEDs on the cradle indicate charge status of each battery.
Power supply for single cradle

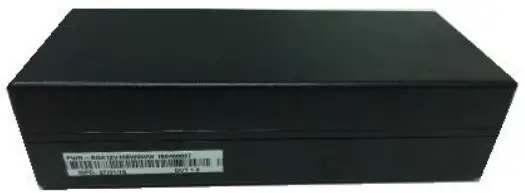

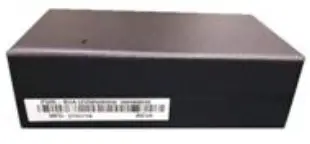

	PWR-BGA12V50W0WW Level VI AC/DC Power Supply AC Input: 100-240V, 2.4A DC Output: 12V, 4.16A, 50W Requires: DC line cord and Country specific grounded AC line cord.

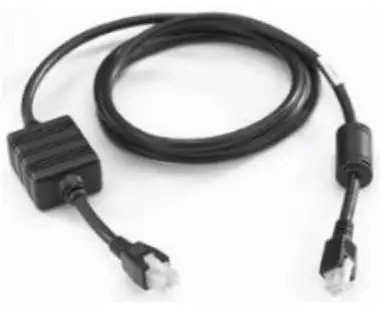

	CBL-DC-388A1-01 DC Line Cord for running the single slot cradles or battery chargers from a single Level VI power supply PWR-BGA12V50W0WW

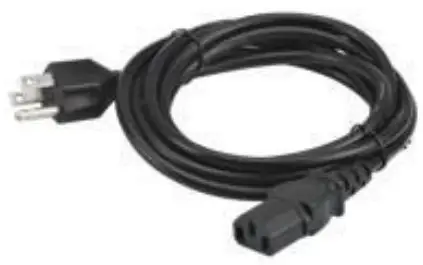

	23844-00-00R US AC line cord, 7.5 feet long, grounded, three wire for power supplies.

Charging LED indicators

WS50 Converged Single Charging Cradle

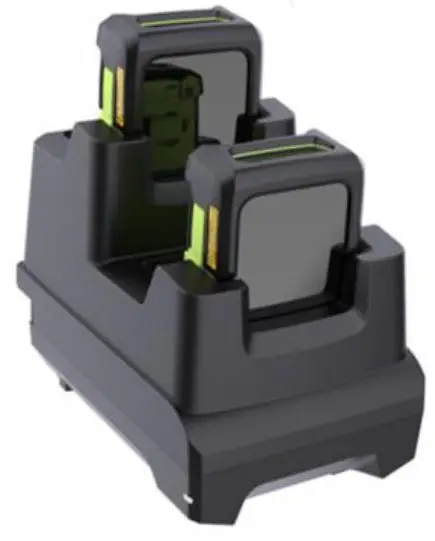

WS50 Converged, Two Slot Device Cradle
CRD-WS5X-2SCV-01: Two slot charge-only cradle, charges two WS50 Converged devices. LED near the top of the WS50 display indicate charge status of each device. “Stadium” positioning enables viewability of the display on the rear device while a device is placed in the front slot.
Power supply for single cradle

	PWR-BGA12V50W0WW Level VI AC/DC Power Supply AC Input: 100-240V, 2.4A DC Output: 12V, 4.16A, 50W Requires: DC line cord and Country specific grounded AC line cord.
	CBL-DC-388A1-01 DC Line Cord for running the single slot cradles or battery chargers from a single Level VI power supply PWR-BGA12V50W0WW
	23844-00-00R US AC line cord, 7.5 feet long, grounded, three wire for power supplies.

Charging LED indicators

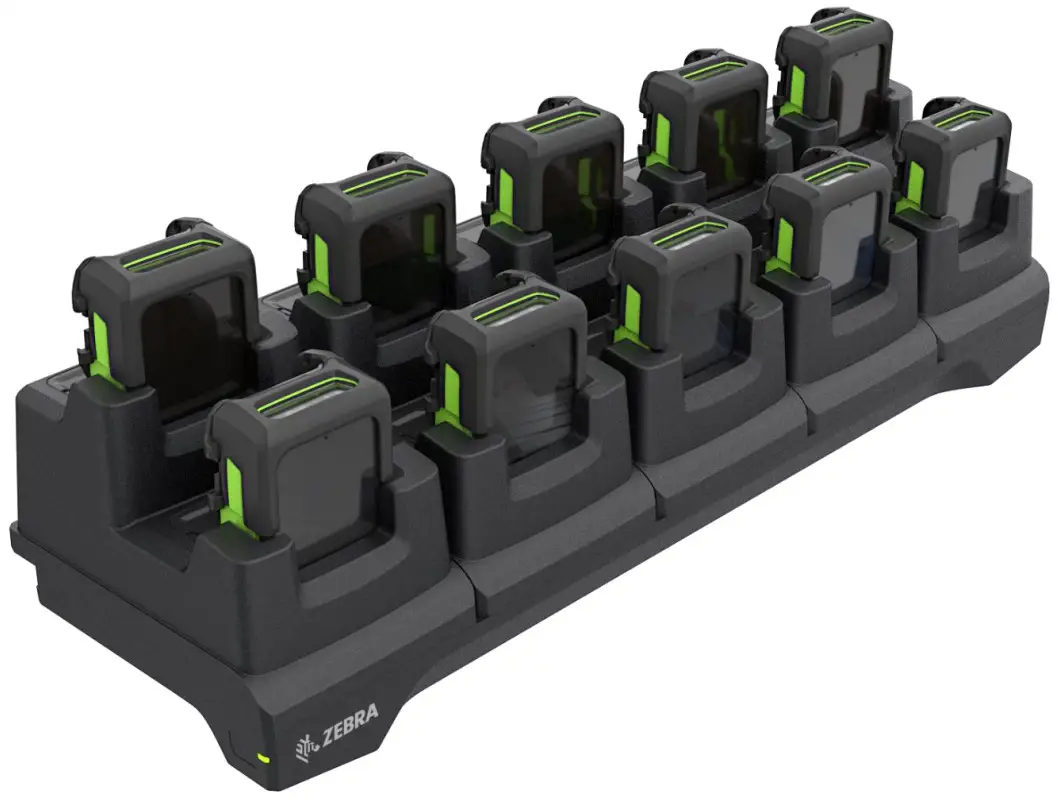

WS50 Converged Multi-Slot Device Cradle

WS50 Converged, 10 Slot Device Cradle
CRD-WS5X-10SCV-01: Ten slot charge-only cradle, charges ten WS50 Converged devices. LED near the top of the WS50 display indicate charge status of each device.

Power supply for multi-slot cradle

	PWR-BGA12V108W0WW Level VI AC/DC Power Supply AC Input: 100-240V, 2.8A DC Output: 12V, 9A, 108W.
	CBL-DC-381A1-01 DC Line Cord for running multi-slot cradles from a single Level VI power supply PWR-BGA12V108W0WW
	23844-00-00R US AC line cord, 7.5 feet long, grounded, three wire for power supplies.

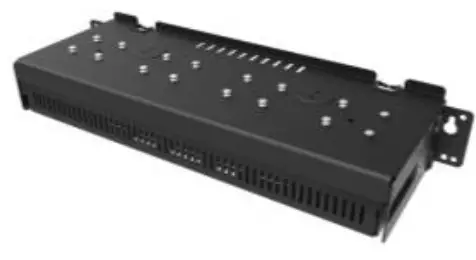

	BRKT-SCRD-SMRK-01 Rack/Wall Mounting bracket for multi-slot cradles.

Charging LED indicators

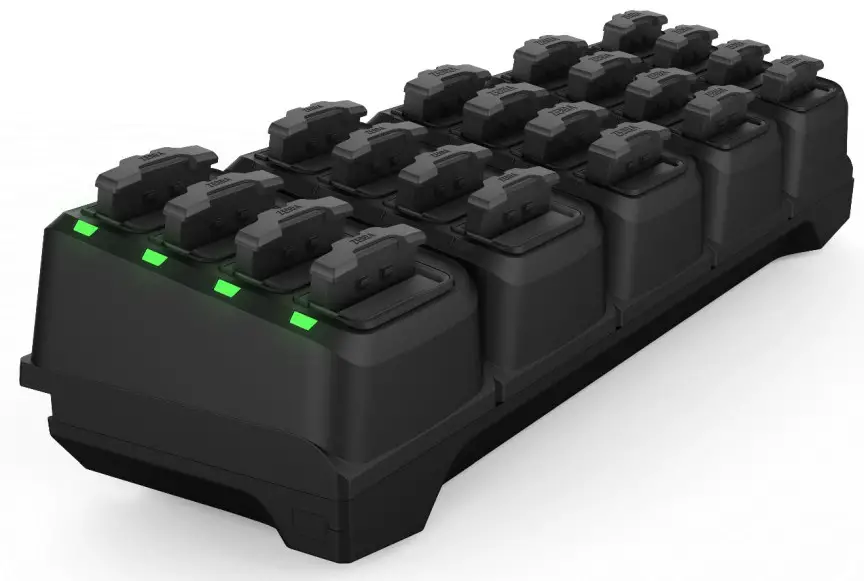

WS50 Converged Multi-Slot Battery Charger

WS50 Converged, 20 Slot Spare Battery Charger
SAC-WS5X-20S13-01: WS50 Converged twenty slot spare battery charger, charges four 1300mAh batteries. LEDs on the cradle indicate charge status of each battery.
Power supply for multi-slot cradle

	PWR-BGA12V108W0WW Level VI AC/DC Power Supply AC Input: 100-240V, 2.8A DC Output: 12V, 9A, 108W .
	CBL-DC-381A1-01 DC Line Cord for running multi-slot cradles from a single Level VI power supply PWR-BGA12V108W0WW
	23844-00-00R US AC line cord, 7.5 feet long, grounded, three wire for power supplies.
	BRKT-SCRD-SMRK-01 Rack/Wall Mounting bracket for multi-slot cradles.

Charging LED indicators

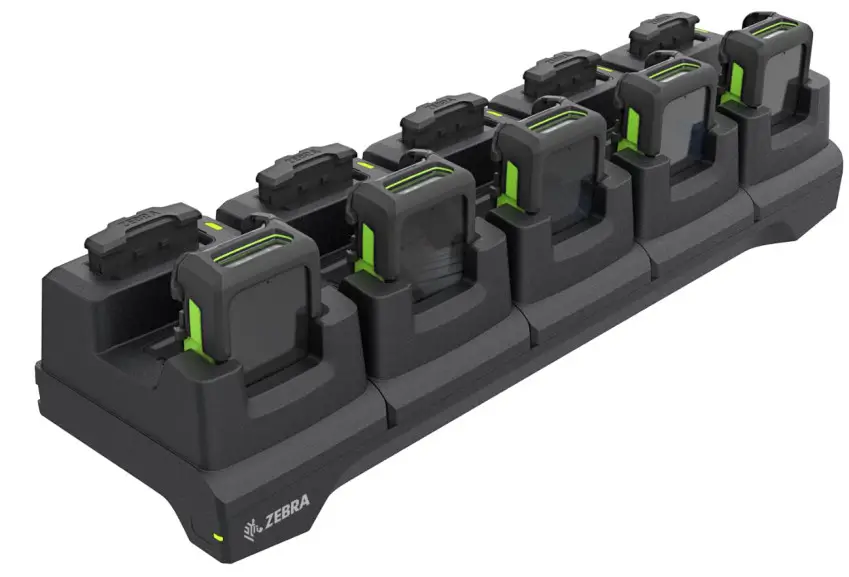

WS50 Converged Multi-Slot Ethernet Cradle

WS50 Converged, 5 Slot Ethernet Cradle with Spare Battery Charger
CRD-WS5X-5SECV-01: WS50 Converged Five Slot Ethernet Cradle with Spare Battery Charger, charges 5 WS50 Converged devices and 5 spare 1300mAh batteries. LED near the top of the WS50 display indicate charge status of each device. LEDs on the cradle indicate charge status of each battery.
Power supply for multi-slot cradle

	PWR-BGA12V108W0WW Level VI AC/DC Power Supply AC Input: 100-240V, 2.8A DC Output: 12V, 9A, 108W .
	CBL-DC-381A1-01 DC Line Cord for running multi-slot cradles from a single Level VI power supply PWR-BGA12V108W0WW
	23844-00-00R US AC line cord, 7.5 feet long, grounded, three wire for power supplies.
	BRKT-SCRD-SMRK-01 Rack/Wall Mounting bracket for multi-slot cradles.

Charging LED indicators

WS50 Charge Cable

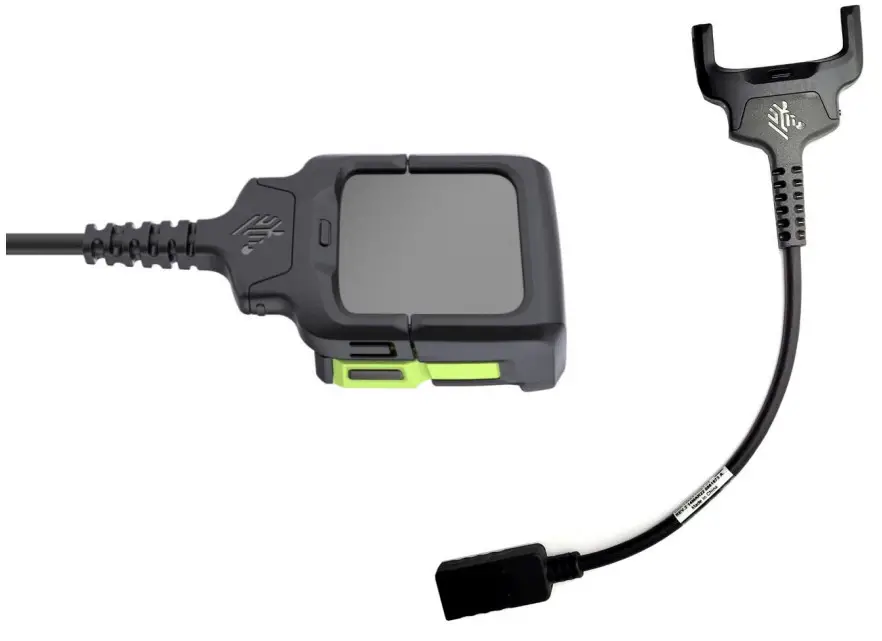

WS50 Charge Cable
CBL-WS5X-USB1-01 : WS50 charge cable. Provides charging and communications. Snaps on to bottom of WS50 device. Cable length 6 inches / 15cm. USB-C female port enables client-host connectivity. Requires separate purchase of USB-C cable and AC power adapter.

Accessories for WS50 charge cable

	PWR-WUA5V12W0XX Power Supply-100-240 VAC, 5 V, 2.5 A with country specific plugs.

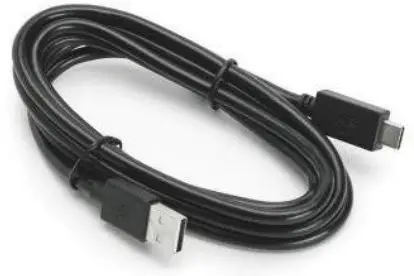

	CBL-TC5X-USBC2A-01 USB-C to USB-A communication and charging cable, 1M length

Charging LED indicators

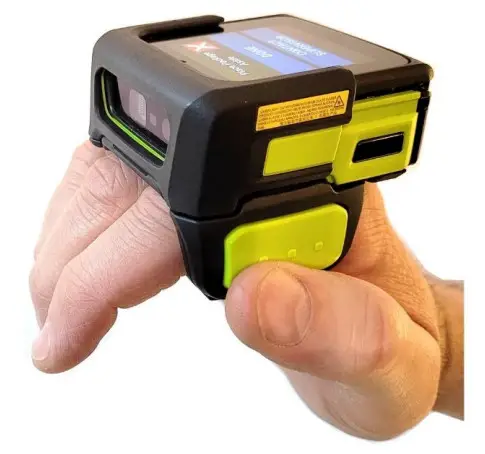

WS50 Converged Two Finger Mount

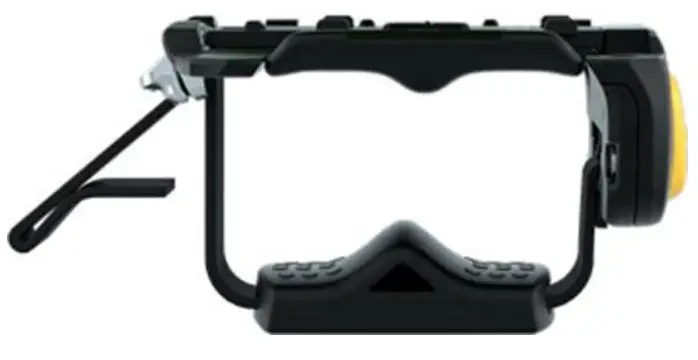

WS50 Two Finger Trigger Mount
SG-WS5X-TRGA-01: WS50 Converged replacement trigger mount. Includes strap and finger pad.
Accessories for WS50 back of hand mount

	SG-WS5X-STRP-10 Replacement finger strap for WS50 Converged,10 pack
	SG-WS5X-SHLCS-01 Replacement protective shell for WS50 Converged. Two input buttons.
	SG-WS5X-DFLTC-01 Replacement protective deflector for WS50 Converged. Includes mounting screws.
	SG-WS5X-SCRNP1-01  Replacement screen protector for WS50 display.

WS50 Converged Back of Hand Mount

WS50 Back of Hand Mount
SG-WS5X-BHMT-01 : WS50 Converged back of hand mount. Includes mounting plate and trigger assembly. Requires separate purchase of hand wrap.

Accessories for WS50 back of hand

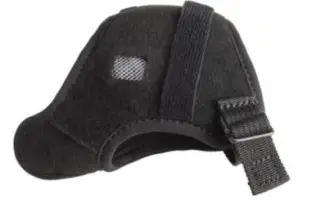

	SG-WEAR-HNWPXX-01 Spare Hand Wrap for WS50 Back of Hand Mount. Available in small, medium, large and left, right.
	SG-WS5X-SHLCS-01 Replacement protective shell for WS50 Converged. Two input buttons.
	SG-WS5X-DFLTC-01 Replacement protective deflector for WS50 Converged. Includes mounting screws.
	SG-WS5X-SCRNP1-01 Replacement screen protector for WS50 display.
