SDC DI-320IPS-28 20M IR 2MP Fixed Lens Dome/Turret Camera
IP S-SIGHT SERIES
Provision-ISR S-SIGHT series provides you with all that you need for a simple installation. S-Sight cameras guarantee a superior image quality, improved night performance and make an outstanding value for money solution.
20M IR 2MP FIXED LENS DOME/TURRET CAMERA
Equipped with a 2.8mm fixed lens, this 2MP Dome/Turret camera is designed for short distance surveillance (up to 20m) in both indoor and outdoor scenarios. With its great performances, reliability and affordable price DI-320IPS-28 camera is the perfect solution for basic installations.
MAIN FEATURES
- 2MP
- 1920×1080 Resolution
- Wide field of view 107°
- 3D-DNR
- IP67
- Built in microphone
ANALYTICS
- General Analytics: Camera Tampering
- Standard Analytics: Line Crossing, Sterile Area
SPECIFICATIONS
| Image Sensor | 1/2.9″ CMOS (16:9) |
| Effective Pixels | 1920×1080 |
| Electronic Shutter | 1/25s ~ 1/100000s |
| Frame Rate | 1-25/30FPS |
| Day & Night | ICR |
| Min. Illumination | Day: 0.1lux / Night: 0.013lux (@F2.0, AGC On) 0lux with IR on |
| Audio compression | G.711A/G.711U |
| Communication | One-way Audio |
| Image Settings | AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable |
| Image Enhancement | Digital WDR, BLC, HLC, ROI |
| Noise Reduction | 3D-DNR |
| Image Orientation | Mirror/Flip |
| Privacy Zone | Yes |
| Motion Detection | Yes |
| Analytics | General Analytics: Camera Tampering Standard Analytics: Line Crossing, Sterile Area |
| Video Compression | H.265 / H.264 / MJPEG (Sub-Stream Only) |
| Resolution | 2MP (1920×1080) / D1 (704×576) / QVGA (480×240) / CIF (352×288) |
| Multi-Stream | Master Stream: 2MP (1920×1080) / 1MP (1280×720) (1~30fps) Sub-Stream: QVGA/D1/CIF (1~30fps) |
| Bit rate | 64Kbps ~ [email protected] / 64Kbps ~ [email protected] |
| Encode Mode | VBR/CBR |
| Image Quality | Five levels under VBR; Free adjustment under CBR |
| IR Distance | 20m (1 High Power IR LED) |
| Lens (Field of View) | 2.8mm (107°) |
| Iris | Fixed Iris |
| Lens Mount | M12 mount |
| Protection Rate | Water Proof: IP67 |
| Bracket | 3-Axis Bracket |
| Dimensions | Ø97mm×82.6mm |
| Weight (gross) | ~450g |
| Network | RJ45 (+PoE) |
| Power | DC Socket |
| Analog Video Output | No |
| Audio Connectivity | Built-In Microphone |
| SD Card | Event/Schedule based Main/Sub-Stream recording (Up to 128Gb) |
| Hard Reset Button | Yes |
| Alarm | No |
| Remote Monitoring | IE Browsing, CMS Software, Provision Cam2 Mobile App |
| User Access | Supports simultaneous monitoring for up to 3 users with multi-stream real time transmission |
| Network Protocol | IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS |
| ONVIF | Yes |
| Ethernet | 100Mbps |
| PoE | Yes |
| Power Supply | DC12V/~400mA / PoE/~5.2W |
| Work Environment | -30°C~60°C, 10%~90% Humidity |
| Junction Box | PR-JB12IP66 – PR-JB12IP64 – PR-WB-A |

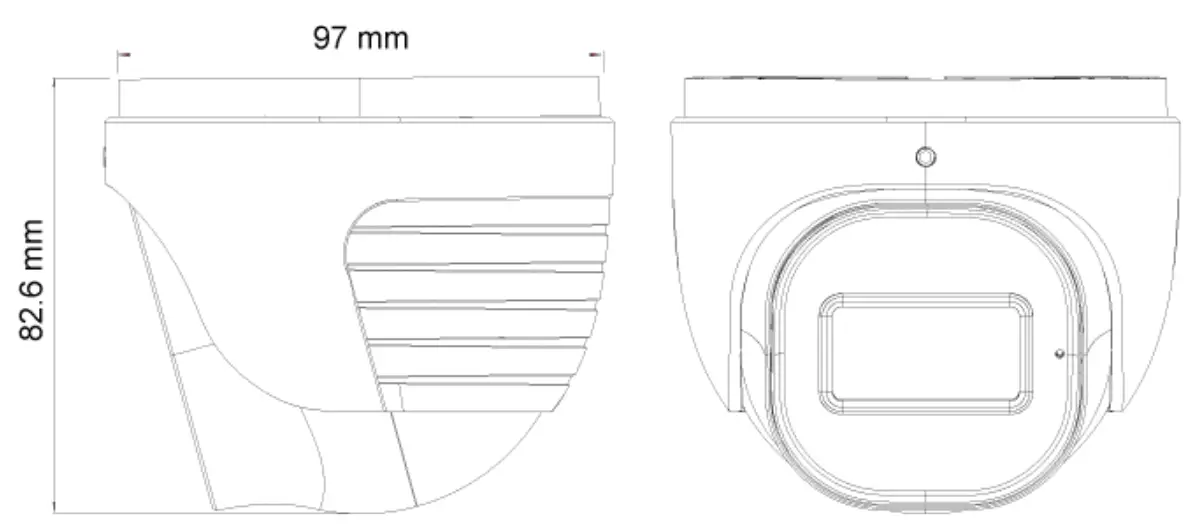

DIMENSIONS

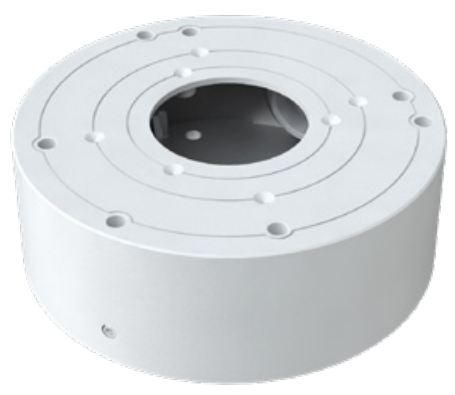

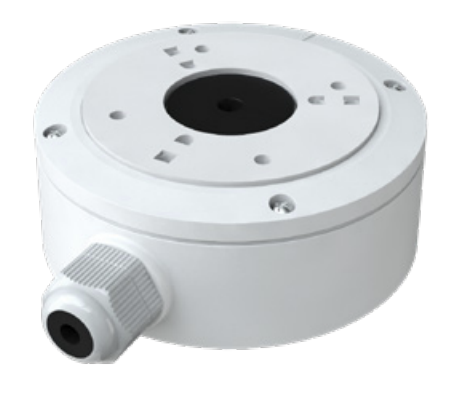

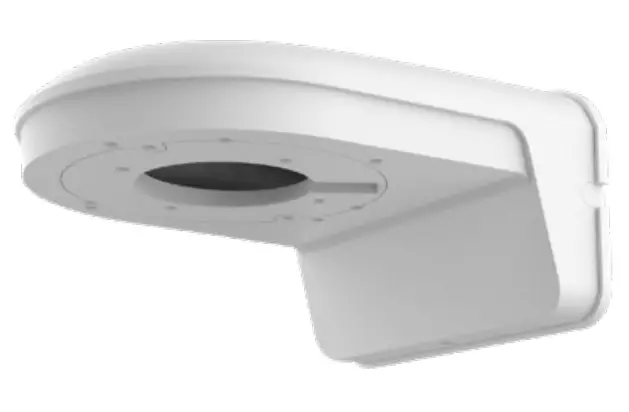

ACCESSORIES
- PR-JB12IP66
- PR-JB12IP64
- PR-WB-A
