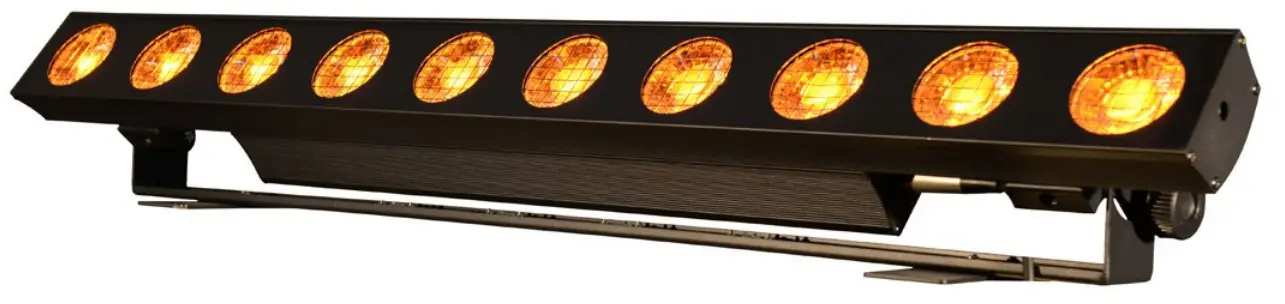

FOS SunStrip LED
User Manual
INTRODUCTION
Thank you for having chosen our LED lighting
Unpack the device, inside the box you should find:
The fixture device
One power cable
One XLR connection cable This manual
Please check carefully that there is no damage caused by transportation. Should there be any problems, consult your dealer and do not install this device.
DESCRIPTION
Features
- Easy multi fixture hanging system, the outdoor version available
- 50w *10pcs LEDs, no ultraviolet radiation
- More than 50,000 hours for the LED light source
- 120 degrees
- 4/2/14/25/2/5/10/20 DMX channels
- 16 Bit Dimmer
- DMX Mode /Master-slave mode
- AC 100-240V 50/60Hz 500W
- Diecasting heatsinks, convection cooling, no fans, no noise
- With temperature sensor to extend the lamp life
- 500 Hz LED scan rate
- L: 840mm H:173mm W:74mm, Weight 4.5Kg
- IP20
SAFETY INSTRUCTIONS
This device has left the factory in perfect condition. To maintain this condition and to ensure a safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this user manual.
This device falls under protection-class I. Therefore, it is essential that the device should be earthed.
The electric connection must carry out by a qualified person.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similarly qualified person in order to avoid a hazard.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges.
If this would be the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains when the device is not in use or before cleaning it. Hold the power cord by the plug. Never pull out the plug by tugging the power cord.
Never look directly into the light source, as sensitive persons may suffer an epileptic shock.
Important:
Damages caused by the disregard of this user manual are not subject to a warranty. The dealer will not accept liability for any resulting defects or problems.
DMX-512 control connection
The product has a DMX 512 input fitted with 3-pin XLR connectors. Screened cables in compliance with EIA
RS-485 specifications and the following characteristics must be used for connections:
- 2 conductors plus screen
- 120Ohm impedance
- low capacitance
- max. transmission rate 250kBaud.
DMX-512 connection with DMX terminator
For installations where the DMX cable must run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR plug with a 120 OHM resistor connected between pins 2 and 3, which is then plugged into the output XLR socket of the last fixture in the chain.
Operation
Display Menu
System InfoTemperature RDMRDM_StatusLed All OnLed All On Auto TestAuto Mode 1Fan TestOn/OffLed LoadDefault False/True
System InfoTemperature RDMRDM_StatusLed All OnLed All On Auto TestAuto Mode 1Fan TestOn/OffLed LoadDefault False/True
| Menu | Sub-menu | |
| Config Mode | Channel Mode | 4CH |
| 7CH | ||
| 14CH | ||
| 25CH | ||
| 2CH | ||
| 5CH | ||
| 10CH | ||
| 20CH | ||
| Keep Screen On | Enable/Disable | |
| Keep DMX Data | Enable/Disable | |
| Fan speed | low/standard/high | |
| Fast Dimmer | Enable/Disable | |
| System Info | Temperature | Head XX ℃ |
| Body XX ℃ | ||
| RDM | RDM_Status | Enable/Disable |
| RDM_UID | XXX | |
| RDM_ID | XXX | |
| RDM_Label | XXX | |
| Led All On | Led All On | |
| Auto Test | Auto Mode 1 | |
| Auto Mode 2 | ||
| Auto Mode 3 | ||
| Auto Mode 4 | ||
| Fan Test | On/Off | |
| Led Load Default | False/True |
Main functions
- Address: Current DMX address
A. Setting the DMX address by button press ENTER button when showing the address menu, then adjust the DMX address by pressing [UP] or [DOWN] button
Press [ENTER] to confirm or press [ESC] to return to the main menu.
B. Setting DMX address by the controller- Set the DMX value of channel 5 to 10-15, channel 17 to 20-26, channel 7 to 30-36, and channel 8 to 40-46, then the devices connected to the controller will enter to the setting address mode
- Set the DMX value of channel 1 from 0-59, then you will see the first number of the Address change to (channel 1 value) /10.
For example, when setting the value of channel 1 to 20, the first DMX address number will be 2(20/10=2). - Set the DMX value of channel 2 from 0-99, then you will see the second number of the Address change to (channel 2 value)/10.
For example, when setting the value of channel 2 to 30, the first DMX address number will be 2(30/10=3). - Set the DMX value of channel 3 from 0-99, then you will see the third number of the Address change to (channel 3 value)/10.
For example, when setting the value of channel 1 to 40, the first DMX address number will be 3(40/10=4) ,
And the DMX address you set by the controller will be 234. - Set the DMX value of channel 4 to 255, then you will save the DMX address settled by the controller.
Caution: It won’t save the address if the address number is over 512 - set the value of channel 5-8 out of the value range shown in step 1, and the device will exit the setting address mode
- Config
Setting DMX mode Press ENTER button when showing the channel menu, then select the DMX mode by pressing [UP] or [DOWN] button
Setting Dimmer Curve press ENTER button when showing the dimmer curve menu, then select the dimmer curve by pressing [UP] or [DOWN] button
Setting Cipher press ENTER button when showing the cipher setup menu, then setup cipher by pressing [UP] or [DOWN] button
Key mode press the ENTER button when showing the key mode menu, then select lock or unlock by pressing the [UP] or [DOWN] button
Show Temperature press ENTER button when showing the Temp Uint CS menu, and select the way of showing the fixture’s temperature in ℃ or ℉ by pressing the [UP] or [DOWN] button
DMX status press ENTER button when showing the DMX Status menu, then select a clear value or hold value by pressing the [UP] or [DOWN] button
DMX direct press ENTER button when showing the DMX direct menu, then select DMX to direct positive or negative by pressing the [UP] or [DOWN] button
Display mode press ENTER button when show the Display Mode menu, then select auto or on by pressing [UP] or [DOWN] button - System info
Temperature press ENTER button when showing the Temperature menu, then it will show the temperature of the fixture
Fixture time press ENTER button when showing the Fixture time menu, then it will show how long time of the fixture has already used - Color menu
- White balance press ENTER button when showing the white balance menu, press Enter button to select the color mode, then adjust the color by pressing the [UP] or [DOWN] button
- Static test press ENTER button when showing the static test menu, select a different color by pressing [UP] or [DOWN] button
- Auto test press ENTER button when show the auto test menu, select test mode by pressing [UP] or [DOWN] button
- Factory setting press ENTER button when showing the Factory setting menu, adjusting color calibration by pressing [UP] or [DOWN] button
DMX functions and values
25CH12Ch15Ch110Ch120CH1
| Mode | Channel | Function | value | Remark |
| 4CH | 1 | Master Dimmer | 000 – 255 | 0 – 100% |
| 2 | Duration | 000 – 255 | 0 – 100% | |
| 3 | Strobe | 000 – 010 | No function | |
| 011 – 255 | From slow to fast | |||
| 4 | Flow Effect | 000 – 255 | Effect 1- 5 | |
| 7CH | 1 | Master Dimmer | 000 – 255 | 0 – 100% |
| 2 | ALL White | 000 – 255 | 0 – 100% | |
| 3 | All Amber | 000 – 255 | 0 – 100% | |
| 4 | Duration | 000 – 255 | 0 – 100% | |
| 5 | Strobe | 000 – 010 | No function | |
| 011 – 255 | From slow to fast | |||
| 6 | Flow Effect | 000 – 255 | Effect 1- 5 | |
| 7 | Speed | 0 | Tungsten Speed Mode | |
| 001 – 254 | Fast to slow | |||
| 255 | Tungsten Effect | |||
| 14CH | 1 | Master Dimmer | 000 – 255 | 0 – 100% |
| 2 | Pixel-1 | 000 – 255 | 0 – 100% | |
| 3 | Pixel-2 | 000 – 255 | 0 – 100% | |
| 4 | Pixel-3 | 000 – 255 | 0 – 100% | |
| 5 | Pixel-4 | 000 – 255 | 0 – 100% | |
| 6 | Pixel-5 | 000 – 255 | 0 – 100% | |
| 7 | Pixel-6 | 000 – 255 | 0 – 100% | |
| 8 | Pixel-7 | 000 – 255 | 0 – 100% | |
| 9 | Pixel-8 | 000 – 255 | 0 – 100% | |
| 10 | Pixel-9 | 000 – 255 | 0 – 100% | |
| 11 | Pixel-10 | 000 – 255 | 0 – 100% | |
| 12 | Duration | 000 – 255 | 0 – 100% | |
| 13 | Strobe | 000 – 010 | No function | |
| 011 – 255 | From slow to fast | |||
| 14 | Flow Effect | 000 – 255 | Effect 1- 5 | |
| Master Dimmer | 000 – 255 | 0 – 100% | ||
| 2 | Pixel-1 White | 000 – 255 | 0 – 100% | |
| 3 | Pixel-1 Amber | 000 – 255 | 0 – 100% | |
| 4 | Pixel-2 White | 000 – 255 | 0 – 100% | |
| 5 | Pixel-2 Amber | 000 – 255 | 0 – 100% | |
| 6 | Pixel-3 White | 000 – 255 | 0 – 100% | |
| 7 | Pixel-3 Amber | 000 – 255 | 0 – 100% | |
| 8 | Pixel-4 White | 000 – 255 | 0 – 100% | |
| 9 | Pixel-4 Amber | 000 – 255 | 0 – 100% | |
| 10 | Pixel-5 White | 000 – 255 | 0 – 100% | |
| 11 | Pixel-5 Amber | 000 – 255 | 0 – 100% | |
| 12 | Pixel-6 White | 000 – 255 | 0 – 100% | |
| 13 | Pixel-6 Amber | 000 – 255 | 0 – 100% | |
| 14 | Pixel-7 White | 000 – 255 | 0 – 100% | |
| 15 | Pixel-7 Amber | 000 – 255 | 0 – 100% | |
| 16 | Pixel-8 White | 000 – 255 | 0 – 100% | |
| 17 | Pixel-8 Amber | 000 – 255 | 0 – 100% | |
| 18 | Pixel-9 White | 000 – 255 | 0 – 100% | |
| 19 | Pixel-9 Amber | 000 – 255 | 0 – 100% | |
| 20 | Pixel-10 White | 000 – 255 | 0 – 100% | |
| 21 | Pixel-10 Amber | 000 – 255 | 0 – 100% | |
| 22 | Duration | 000 – 255 | 0 – 100% | |
| 23 | Strobe | 000 – 010 | No function | |
| 011 – 255 | From slow to fast | |||
| 24 | Flow Effect | 000 – 255 | Effect 1- 5 | |
| 25 | Speed | 0 | Tungsten Speed Mode | |
| 001 – 254 | Fast to slow | |||
| 255 | Tungsten Effect | |||
| Pixel 1-5 | 000 – 255 | 0 – 100% | ||
| 2 | Pixel 6-7 | 000 – 255 | 0 – 100% | |
| Pixel 1-2 | 000 – 255 | 0 – 100% | ||
| 2 | Pixel 3-4 | 000 – 255 | 0 – 100% | |
| 3 | Pixel 5-6 | 000 – 255 | 0 – 100% | |
| 4 | Pixel 7-8 | 000 – 255 | 0 – 100% | |
| 5 | Pixel 9-10 | 000 – 255 | 0 – 100% | |
| Pixel-1 | 000 – 255 | 0 – 100% | ||
| 2 | Pixel-2 | 000 – 255 | 0 – 100% | |
| 3 | Pixel-3 | 000 – 255 | 0 – 100% | |
| 4 | Pixel-4 | 000 – 255 | 0 – 100% | |
| 5 | Pixel-5 | 000 – 255 | 0 – 100% | |
| 6 | Pixel-6 | 000 – 255 | 0 – 100% | |
| 7 | Pixel-7 | 000 – 255 | 0 – 100% | |
| 8 | Pixel-8 | 000 – 255 | 0 – 100% | |
| 9 | Pixel-9 | 000 – 255 | 0 – 100% | |
| 10 | Pixel-10 | 000 – 255 | 0 – 100% | |
| Pixel-1 White | 000 – 255 | 0 – 100% | ||
| 2 | Pixel-1 Amber | 000 – 255 | 0 – 100% | |
| 3 | Pixel-2 White | 000 – 255 | 0 – 100% | |
| 4 | Pixel-2 Amber | 000 – 255 | 0 – 100% | |
| 5 | Pixel-3 White | 000 – 255 | 0 – 100% | |
| 6 | Pixel-3 Amber | 000 – 255 | 0 – 100% | |
| 7 | Pixel-4 White | 000 – 255 | 0 – 100% | |
| 8 | Pixel-4 Amber | 000 – 255 | 0 – 100% | |
| 9 | Pixel-5 White | 000 – 255 | 0 – 100% | |
| 10 | Pixel-5 Amber | 000 – 255 | 0 – 100% | |
| 11 | Pixel-6 White | 000 – 255 | 0 – 100% | |
| 12 | Pixel-6 Amber | 000 – 255 | 0 – 100% | |
| 13 | Pixel-7 White | 000 – 255 | 0 – 100% | |
| 14 | Pixel-7 Amber | 000 – 255 | 0 – 100% | |
| 15 | Pixel-8 White | 000 – 255 | 0 – 100% | |
| 16 | Pixel-8 Amber | 000 – 255 | 0 – 100% | |
| 17 | Pixel-9 White | 000 – 255 | 0 – 100% | |
| 18 | Pixel-9 Amber | 000 – 255 | 0 – 100% | |
| 19 | Pixel-10 White | 000 – 255 | 0 – 100% | |
| 20 | Pixel-10 Amber | 000 – 255 | 0 – 100% | |
CLEANING AND MAINTENANCE
We recommend frequent cleaning of the device. Please use a soft lint-free and moistened cloth. Never use alcohol or solvents!
CAUTION! Disconnect from mains before starting maintenance operation.
There are no serviceable parts inside the device. Maintenance and service operations are only to be conducted by authorized dealers.
If you need any spare parts, please use genuine parts.
If the power supply cable of this device becomes damaged, authorized dealers must replace it only in order to avoid hazards.
If you have further questions, please contact your dealer.
INSTALLATION
The device must only be installed at a vibration-free, oscillation-free and fire-resistant location.
