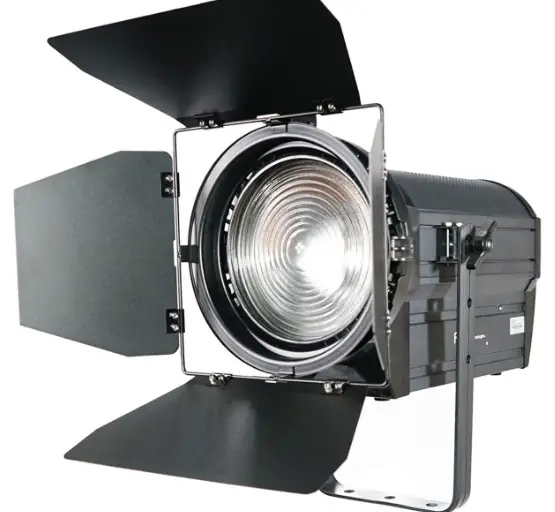

FOS technologies L005614 Fos TV Fresnel Light
TECHNICAL DATA
Light source / Optics
- Light source: COB warm white LED.
- Power: 100W.
- Color rendering index: ≥92Ra CRI
- Color temperature: 3200 Kelvin. – Warm white
- electronic smooth linear diming from 0 to 100%.
- Local Manual Zoom from 15 to 60°
- Barndoors included.
Control
- DMX-512
- 1 DMX channel.
- On board menu control.
- LCD Control Panel.
- 3pin XLR Input/Output.
- Powercon In/out.
Installation / Dimension details
- Power supply: 100/240V, 50/60 Hz.
- Power consumption: 250 Watt maximum.
- LED lifespan: approx. 50,000 hours.
- IP rating: IP20.
- Aluminum alloy housing.
- Operation temperatures: -25 to +40 degrees.
- Dimensions: 420 x 250 x 260 mm (height with yoke in vertical possition 435 mm).
- Weight: 5 Kg.
Photometric Data
- Measuring Distance : 2 meters
- Max Zoom 60°
- Color Temperature (K): 3009
- Illuminance (lx): 3028
- CRI (Ra): 97
- TLCI (Qa): 98.1
- Flicker Frequency (Hz): 12
- Flicker(%): 0
- Min Zoom 15°
- Color Temperature (K): 3022
- Illuminance (lx): 19635
- CRI (Ra): 97
- TLCI (Qa): 98.1
- Flicker Frequency (Hz): 2
- Flicker(%): 1
