WR430 Waveguide Switch
Instructions
WR430 Waveguide Switch
Waveguide Switch, 1.7-2.6 GHz
WR430 Package, CPRG Flange, volts DC
| Voltage | Amps |
| +22 to +32 | 3 |
| -22 to -32 | 3 |
| +10 to +14 | 3 |
| -10 to -14 | 3 |
| +44 to +54 | 2 |
| -44 to -54 | 2 |
| 117VAC | 1.4 |
| 235VAC | 1 |
| Manual | ** |
The manual switch does not include a receptacle
| Code | Flange |
| p | Plain |
| C | Choke |
| O | O-Ring |
| F | CPRF |
| G | CPRG |

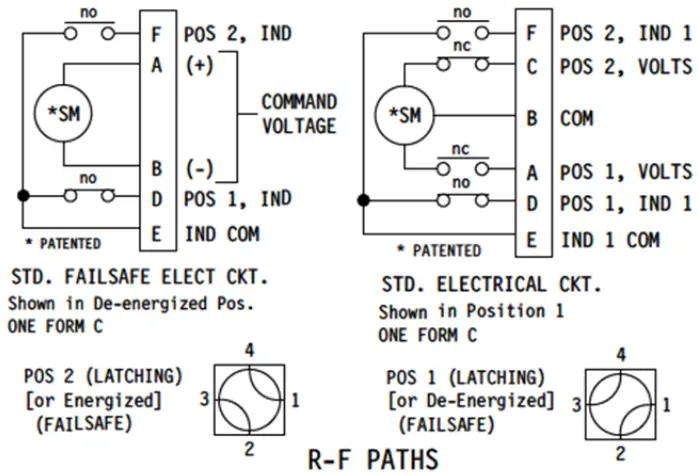

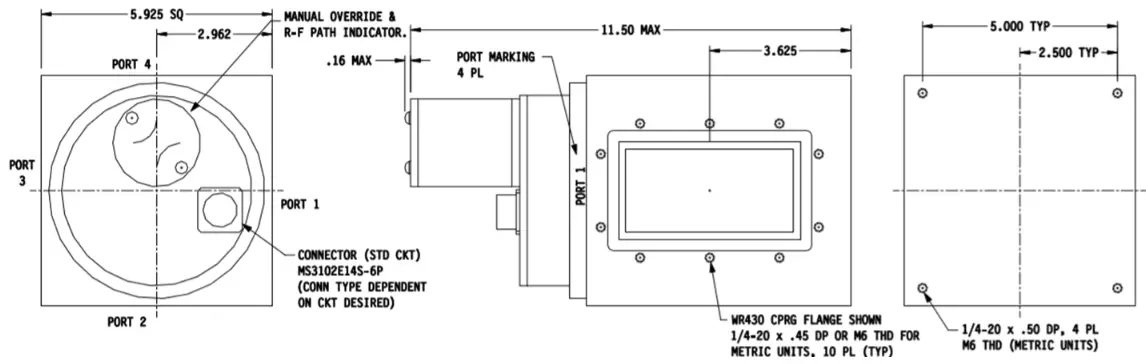

Units: Inches
Tolerances:
At x Decimals
2 Places: ±0 .03
3 Places: ±0.01
Fractions: ± 1/64
Angels: ± 1/2 deg.
Order Examples: RWS-1.7-2.6-WR430-CPRG-28V-u18
Description:
(Waveguide Switch, 1.7-2.6GHz, WR430 Package, CPRG Flange, 28 Volts)
Specifications
| Waveguide | WR-430 |
| Flange | CPRG |
| Frequency range | 1.7-2.6GHz |
| VSWR | 1.05:1 (max) |
| Insertion loss | 0.01 dB (max) |
| Isolation | 80 dB (min) |
| Switching time | 0.5 Sec (Typ.) |
| Drive @ 28V | 3 Amps |
| Drive @ 117 Vac | 1.5 Amps |
| Pressure | To 30 PSIG (R-F Head only) |
| Life | 100,000 operations |
| Finish | riding, Satin black enamel |
RWS-1.7-2.6-WR430-CPRG-28V-u18
Specifications may be subject to change
