Suraielec Urkw11a 3 Way Wireless Light Switch And Receiver Kit Instruction Manual

Model No: URKW11A, URKW21A

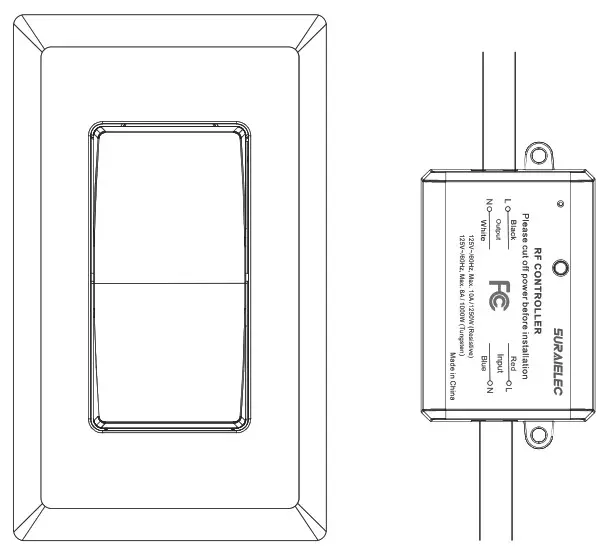

Wireless Light Switch and Receiver Kit

If you have any problems or questions, please contact our Consumer Care by the Email: [email protected]

Warning: To reduce the risk of fire, electric shock or personal injury, please strictly follow the instructions.

1. Do not connect any devices that may exceed the performance limits of the outlets.
2. For indoor use only.
3. Do not disassemble or repair the product, but only by authorized service personnel.
4. To prevent children from suffocation and chocking, keep them away from packing materials.
5. Do not dispose any part of this product in a fire.
6. Avoid exposing to high-temperature sources, direct sunlight, or exposure to moisture.
7. If the remote is not in use for an extended period of time, remove battery.
8. Any questions or accessories inquiry, please contact us first by E-mail: [email protected]

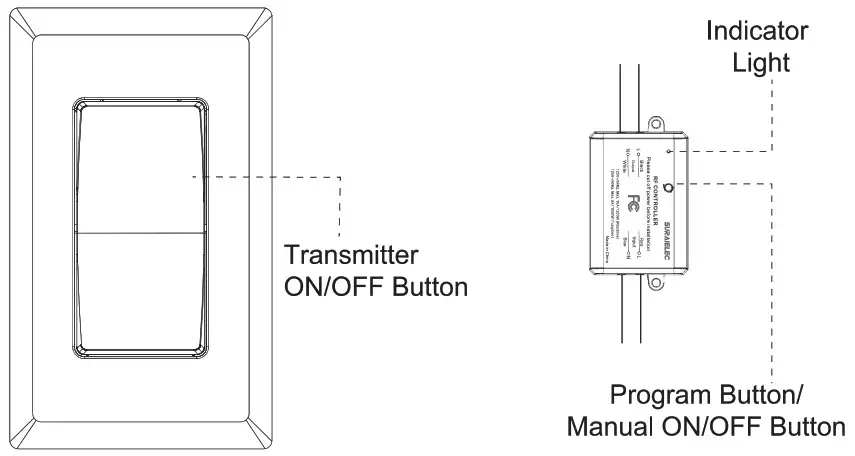

Product Layout

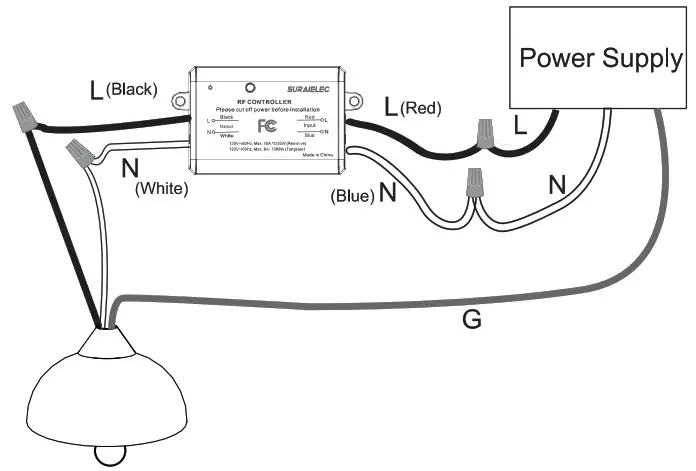

Wiring Diagram

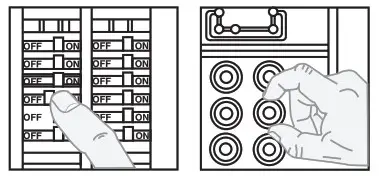

1. TO AVOID FIRE SHOCK OR DEATH; TURN OFF POWER at circuit breaker or fuse and test that power is off before wiring!

2. Connect wires per WIRING DIAGRAM
   1) At the input “L” Red line is the hot wire, “N” Blue line is the neutral wire.
   At the output “L” Black line is the hot wire, “N” White line is the neutral wire. Do not connect the “L” (hot wire) and “N° (neutral wire )mistakenly.
   2) Connect the power to the “input” side, and the load to the “output” side carefully.
   3) The wireless switch kit only needs to connect with the hot wire and neutral wire. The “G” Green line (ground wire) just needs to be connected as normal.
   4) After connecting use the wiring cap to cover it
3. Remove the isolation tab in the battery compartment of the transmitter.
4. Press the ON or OFF buttom on the transmitter will turn on or off the corresponding accordingly.


Note:
The receiver will remain “ON” after a power cut to save energy.

Transmitter Installation

Handheld or wall mount

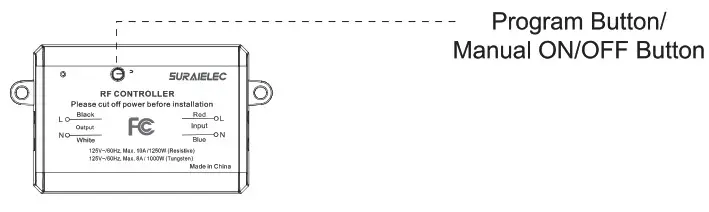

Reset an Receiver

To remove an receiver from all remote control pairings, it means that the receiver cant be controlled by any transmitter.

1. Press and hold the program On/off button on the switch receiver for about 6 seconds until the LED indicator begins to fast flash.

2. When the LED indicator flashes from slowly to rapidly, release the program button and press again. The indicator light will be off and the program has been cancelled.

Programming

The transmitter and receiver outlet have been pre-paired for immediate use, if you want to customize the configuration to meet your needs, to program a transmitter and receiver, please follow the steps below:

1. Cancel the programming referring to the above “Rest an Receiver” section firstly
2. Turn the power on for the wire switch receiver.
3. Press and hold the program On/Off button on the wire switch receiver for about 2 seconds until the LED indicator begins to flash slowly.
4. Release the program button and then press the “on” or “off” button on the remote control.
5. Program is successful when the LED indicator stops flashing.

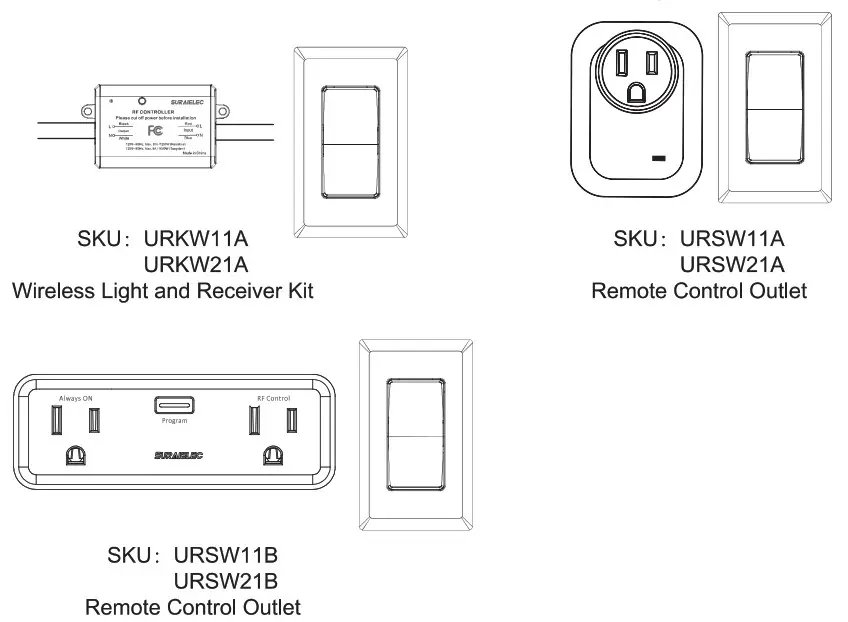

Suraielec Remote Series Product

To meet your different needs, suraielec provide all series remote products. All of them can be paired freely.

Specifications

Power Supply: 125VAC/ 60Hz
Max. Rating: 10A/ 1250W (Resistive) 8A/ 1000W (Tungsten)
Remote Range: 100ft (Free Area)
Frequency: 433.92MHz
Battery: 12V 23A(Included)

Package Includes

Receiver x 1
Remote Transmitter x 1
Mount Screwsx 1 set
Instruction Manual x 1

One Year Limited Warranty

Suraielec warrants this product to be free from defects in material and workmanship for a period of one year from the date of purchase.
Warranty is void if damage is caused by misuse or improper installation.
Email: [email protected]
Our dedicated customer service team will get back to you within 24 hours.This device complies with part 15 of the FCC rules.
