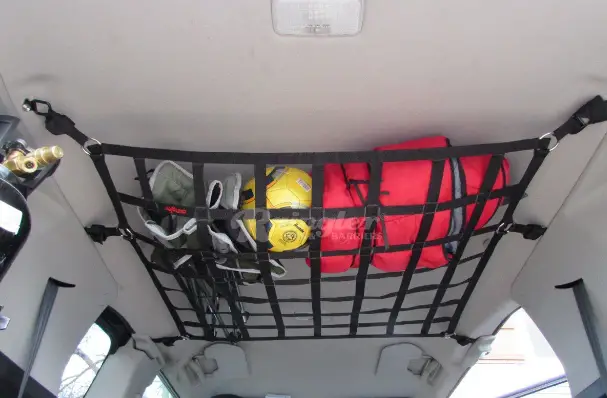

Raingler 2005-2015 Nissan Xterra Full Ceiling Net
IMPORTANT: READ INSTRUCTIONS FULLY BEFORE STARTING
INSTALLATION INSTRUCTIONS

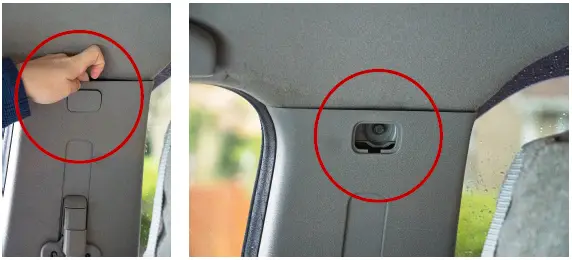

- Remove small panel over front seatbelts. Note: Removal of weather stripping wasn’t necessary. Removal of pop-out plastic piece on B pillar can be done by pushing it out from behind by sliding finger down between headliner and B pillar and simply pushing it out. This rectangle removable piece is directional and has an “UP” indicator with arrow.

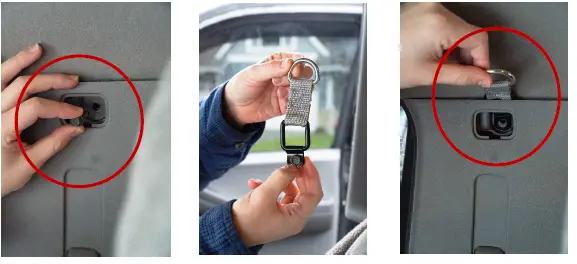

- Remove the bolt and reinstall with C100XS hardware.

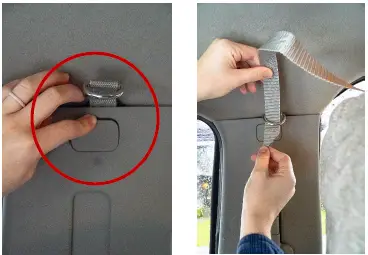

- Replace small panel. Loosely loop the front straps into the hardware D ring.
- Loop the middle straps through your rear passenger grab handles on each side.
- The rear straps loop through the existing ceiling mounts.

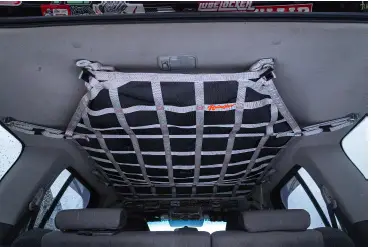

- Tighten the straps all around so the net is snug and tight as possible.

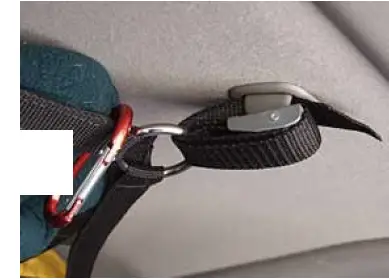

- Once installed, wrap and tuck the extra strap around and through the buckles to get ends out of the way (stock photo shown).
See video here for details: https://vimeo.com/316588617
Thank you for purchasing Raingler Nets. If you have any questions please contact us, we are here to help! See all our install videos on Vimeo! https://vimeo.com/raingler
866-905-7625 | [email protected] | Raingler.com
