Ribes
Installation manual
Installation Steps

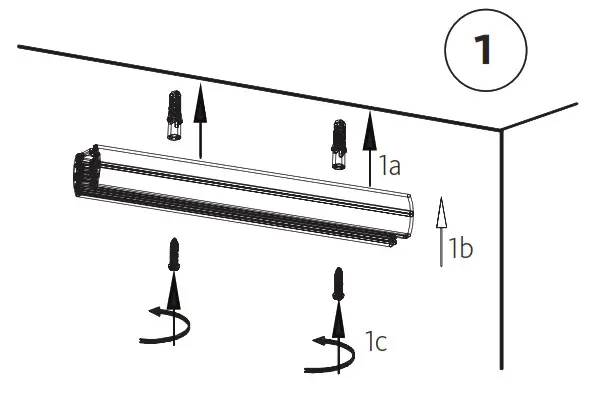

- Install the track to the ceiling as shown in picture 1.

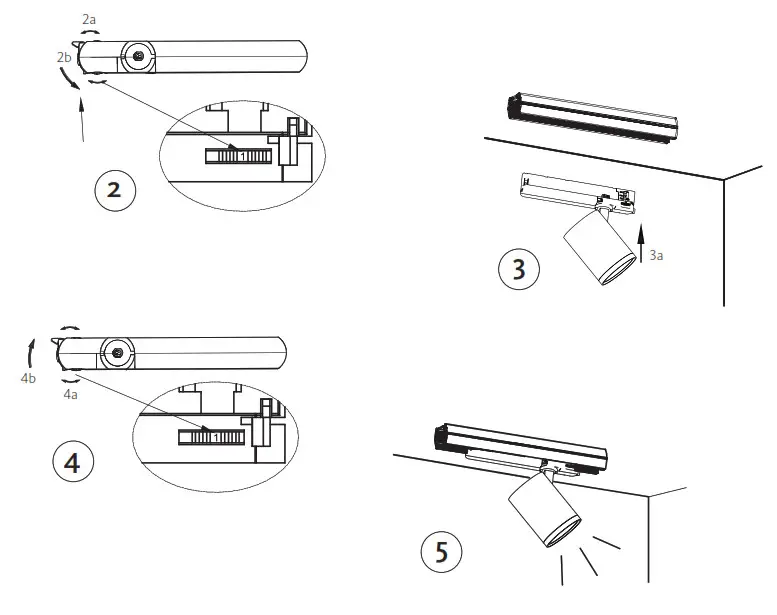

- Turn the power supply to position 1 and then rotate the shift as shown in picture 2.
- Assembly the track head into the track as shown in picture 3.
- Rotate the shift to 90° as in picture 4, rotate 1/2/3 as your requirement, the switch can rotate 3550 in clockwise and anticlockwise as shown in picture 4.
- Installation is complete as shown in picture 5.

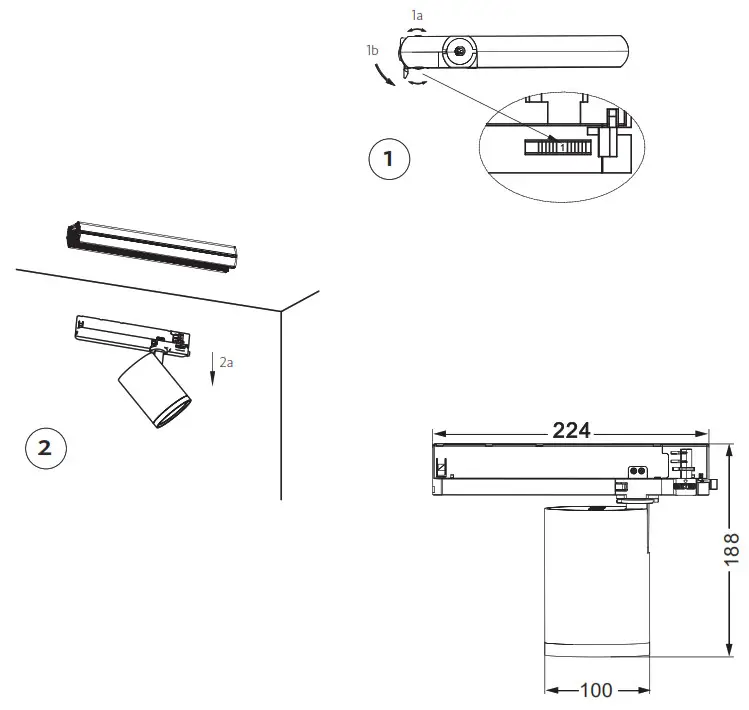

Disassemble Steps
- Turn the power supply to position 1 and rotate the shift to 90° as shown in picture 1.
- Pull the spotlight gently downward from the track as shown in picture 2.
Cautions!
- Make sure the power is disconnected between the spotlight and the track before spotlight disassembly.
- The installation operator must hold a qualified electrician certificate.
- Check the luminaire and accessories before installation. If there is any damage in the lamp body or glass, please stop the installation.
Aura Light AB, Sweden
Phone customer service +46 (0)20 32 30 30
[email protected], www.auralight.com
