Xtorm Xe110 Essential Powerbank User Manual

XE110 Essential Powerbank
User Manual

SPECIFICATIONS

	10.000 mAh Li-ion / 37 Wh
	1x USB-C 15W (5V-3A) 1x USB-A 15W (5V-3A)
	120 x 63 x 25 mm
	233 grams
	1 x USB to USB-C cable 1 x Manual

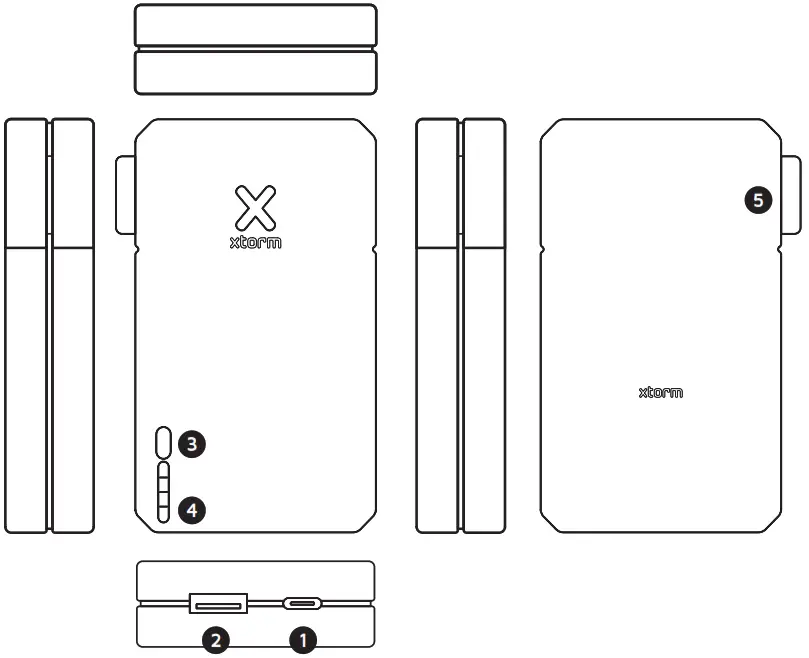

PRODUCT OVERVIEW

1. In/Output USB-C 15W
2. USB 15W
3. Power Button
4. LED Power Indicator
5. Official Xtorm Label

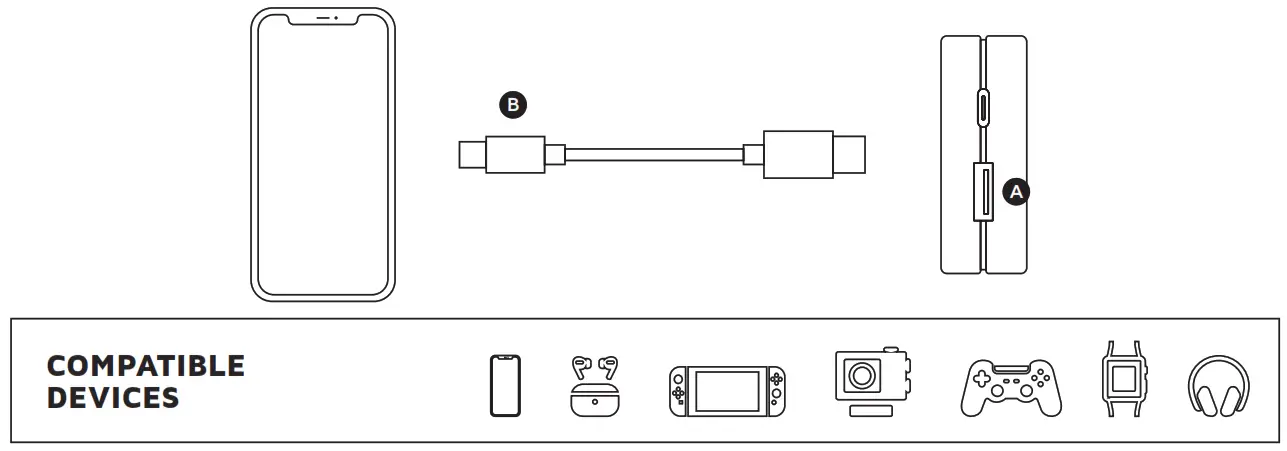

CHARGING YOUR DEVICE

3A Connect the USB end of the charging cable to the USB-A output of the Power Bank and the other end to the input of your device. The charging will start automatically.
3B Charging some devices requires a charging cable other than the one supplied.
E.g. an Apple Lightning® or a Micro USB cable.

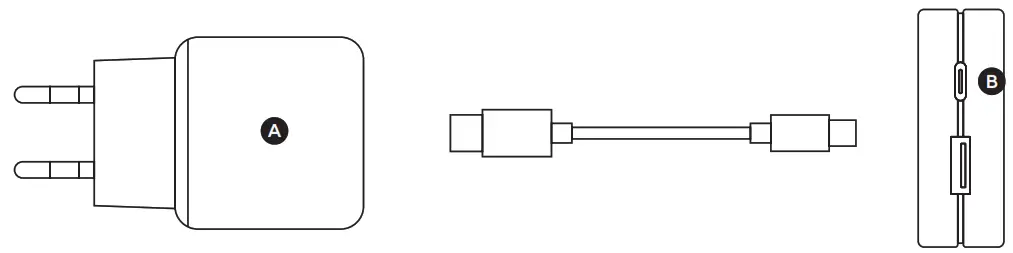

RECHARGING THE POWER BANK

4A Connect the USB-C end of the charging cable to output 1 of the Power Bank and the USB end to a wall charger.
4B For the fastest charging possible use a 15W charger. This will fully recharge the Power Bank within 4 hours.

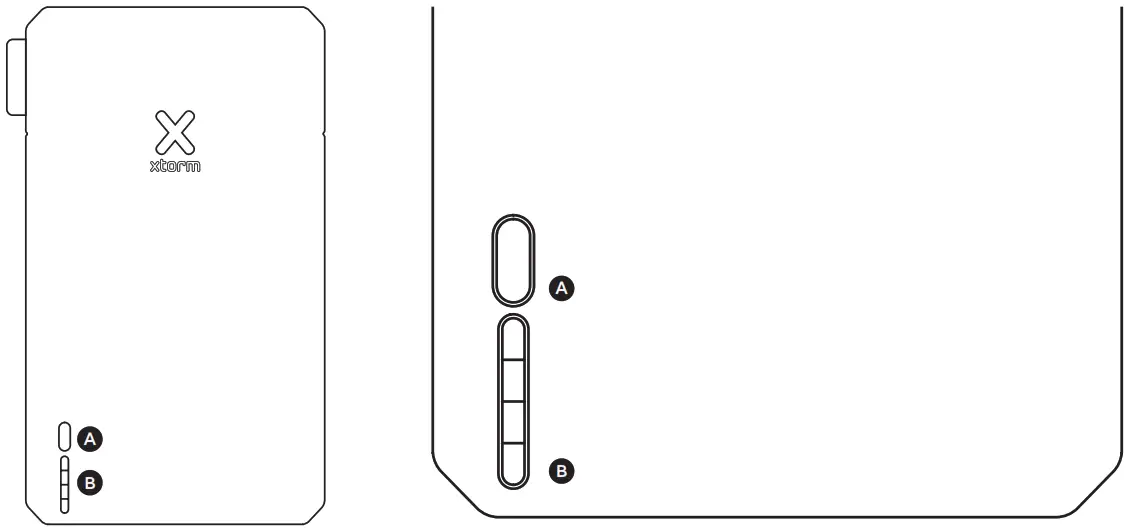

LED POWER INDICATOR

IN THE BOX

1. XE110 Essential Power Bank
2. USB to USB-C cable
3. Manual

RECYCLING
When recycling this product, please follow WEEE battery recycling procedures. Contact your local recycling organization for more information.

XTORM SAFETY CHECK

1. TEMPERATURE CONTROL
   Provided with a temperature control chip that prevents overheating.
2. OVERLOAD PROTECTION
   Protects both the internal battery as well as the battery of the attached device from overcharging.
3. SECURED POWER MANAGEMENT
   Automatically picks the correct charging speed and efficiently devides power between attached devices.
4. SHORT CIRCUIT PROTECTION
   Breaks the circuit automatically when an over current is detected. This protects the Xtorm charge rand your device from short circuit damage.
5. A-CLASS BATTERY CELLS
   We only use the best battery cells that provide the fast charging you need and meet all safety requirements.
6. HIGH EFFICIENCY
   Our power products are built to power your device as efficient as possible. This ensures the least possible loss of energy during the charging process.

WARNINGS

Don’t drop, dissemble or attempt to repair the charger by yourself. Avoid exposure to water or high humidity. Don’t expose to any heat source. Keep out of reach of children. Don’t use in the presence of flammable gas. The warranty will lapse in the event of improper use. Telco Accessories has tested the product in a test environment. All statements/declarations made by Telco Accessories about the (operation) of the product are based on the results obtained from such tests. These results/statements/declarations cannot be guaranteed, for example in cases of deviating or injudicious use and/or use in a different environment.

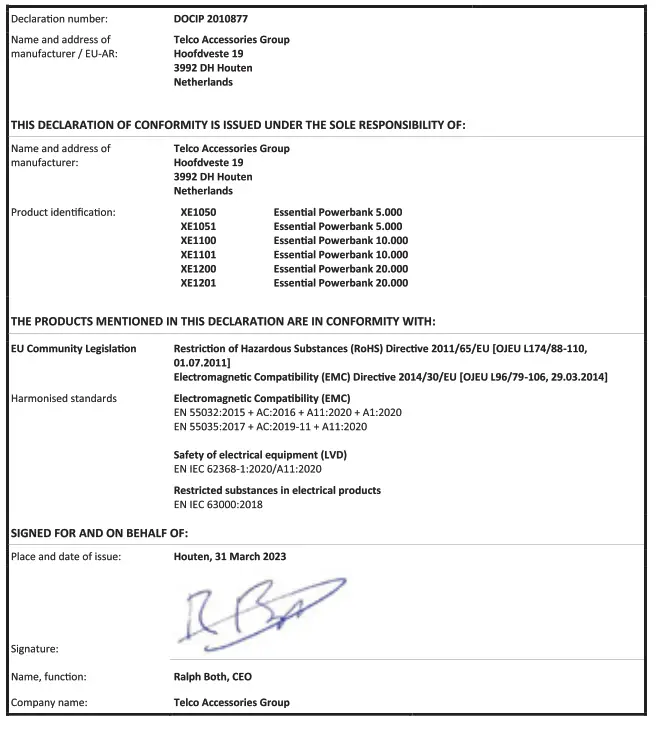

EU DECLARATION OF CONFORMITY
(In accordance with EN ISO/IEC 17050-1)

HIGHER QUALITY
= LOWER IMPACT
CUSTOMER SUPPORT
[email protected]
+31 (0)30 635 4800
TELCO ACCESSORIES GROUP
Hoofdveste 19, 3992DH Houten
The Netherlands
XTORM.EU
